Cotech CB5-5L-BS1 Original Instructions Manual

Cotech battery charger original instructions
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Battery charger
Art.no
Model
18-2692 CB5-5L-BS1
Important!
Read the entire instruction manual
carefully and make sure that you fully
understand it before you use the equipment.
Keep the manual for future reference.
Original instructions
Ver. 201209

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CB5-5L-BS1 and is the answer not in the manual?

Questions and answers

Related Manuals for Cotech CB5-5L-BS1

Summary of Contents for Cotech CB5-5L-BS1

  • Page 1 Important! Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference. Battery charger Art.no Model Ver. 201209 18-2692 CB5-5L-BS1 Original instructions...

  • Page 3: Battery Charger

    Battery charger Art.no 18-2692 Model CB5-5L-BS1 Please read the entire instruction manual before use and save it for future reference. We reserve the right for any errors in text or images and for making any necessary technical changes to this document. If you should have any questions concerning technical problems please contact our Customer Services.

  • Page 4: Product Description

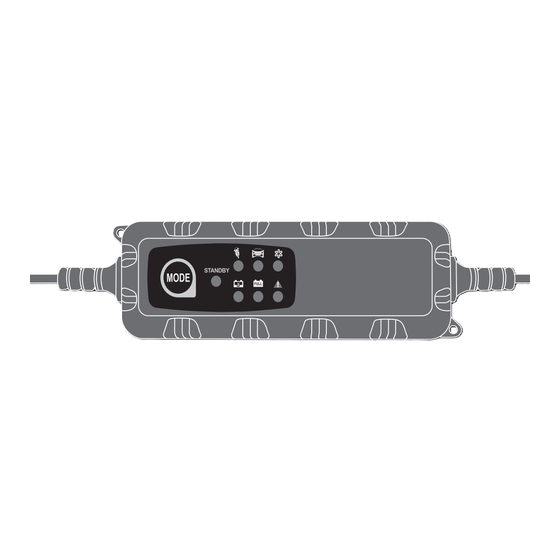

    2. Product description • Automatic battery charger for 12 V lead batteries. • Intended for use with lead batteries (WET, GEL, AGM etc.) with a capacity of 1.2 Ah to 120 Ah. • Protection against spark emissions and short circuiting. • LED indicates charging status and incorrect connection. •...
  • Page 5 4. Functions 4.1 Re-setting When the charger is connected to an electric socket it is automatically reset and charging does not commence until you have started the charger manually. 4.2 <14 Ah – Charge setting 1 Suitable for motorcycle batteries and other smaller batteries (14.4 V/0.8 A). Setting 1 is to be used for batteries with a lower capacity than 14 Ah.

  • Page 6: Protection Features

    4.5 Reconditioning of battery (pulse charging) (7.5 V to 10.5 V) The charger automatically enters this setting for weak batteries and which do not respond to normal charging. Connect the charging clamps to the battery (red to + and black to -), then press [ MODE ] to select the desired function and start charging. The charger automatically detects the battery’s voltage.

  • Page 7: Care And Maintenance

    6. The LED displays Display Charge setting Note STANDBY Charging has not commenced Connection error, no charging Setting 1, low charge Setting 1 (14.4 V/0.8 A) Setting 2, high charge Setting 2 (14.4 V/4 A) Setting 3, high charge Setting 3 (14.7 V/4 A) Connection error Incorrect polarity, check Charging...
  • Page 8 SVERIGE KUNDTJÄNST Tel: 0247/445 00 Fax: 0247/445 09 E-post: kundservice@clasohlson.se INTERNET www.clasohlson.se BREV Clas Ohlson AB, 793 85 INSJÖN NORGE KUNDESENTER Tlf.: 23 21 40 00 Faks: 23 21 40 80 E-post: kundesenter@clasohlson.no INTERNETT www.clasohlson.no POST Clas Ohlson AS, Postboks 485 Sentrum, 0105 OSLO SUOMI ASIAKASPALVELU Puh.: 020 111 2222 Sähköposti: info@clasohlson.fi INTERNET www.clasohlson.fi OSOITE...
