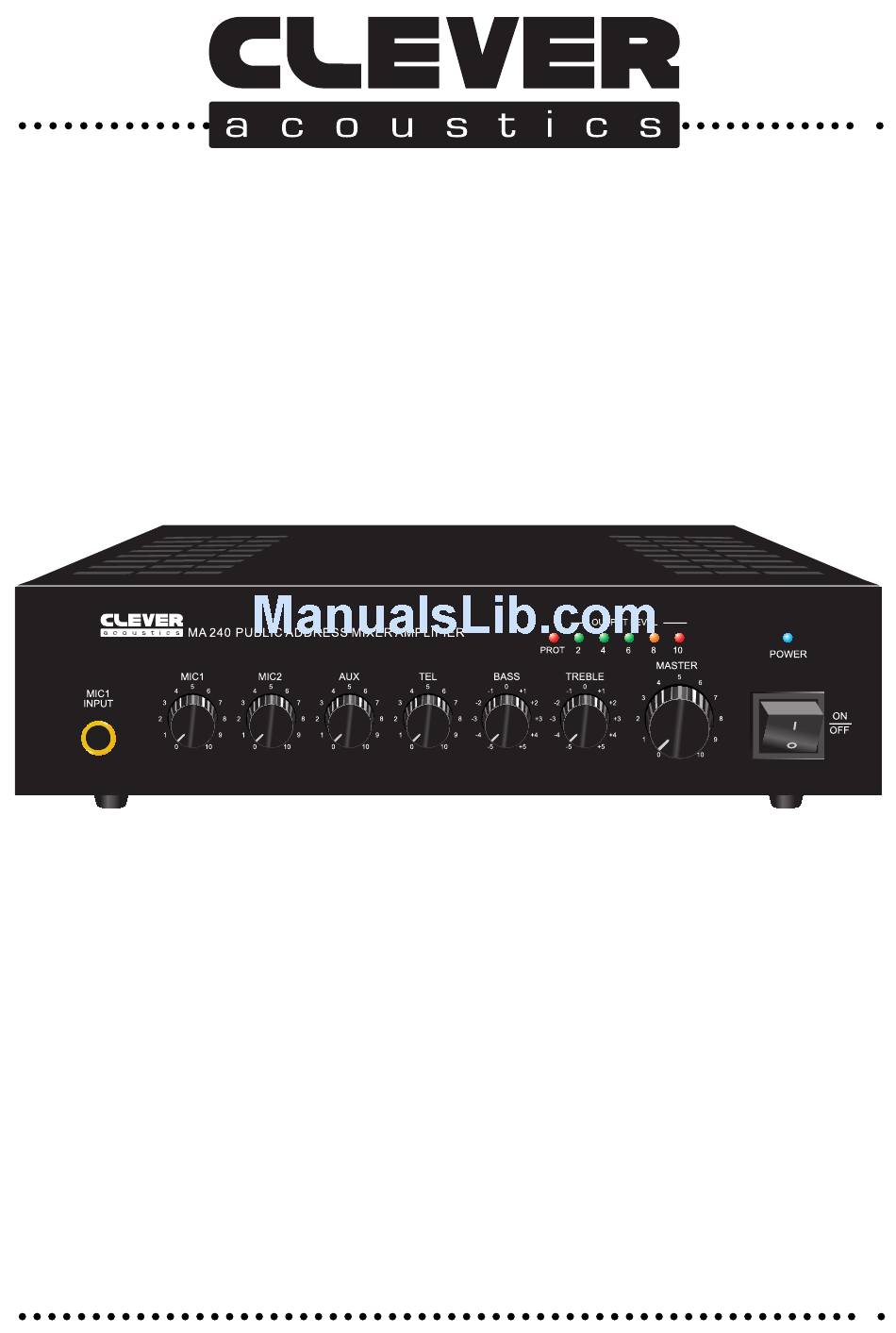

- Page 1 MA 240 100V 40W Mixer Amplifier Order code: CRAM04 USER MANUAL...
-
Page 2: Safety Instructions
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual CAUTION! TAKE CARE USING THIS EQUIPMENT! - Page 3 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
- Page 4 Input sensitivity/impedance for AUX 300mV/500Ω (AUX in @ 1kHz, preamp out): Input sensitivity/impedance for TEL 1V/500Ω (TEL in @ 1kHz, preamp out): Power consumption: Power supply: 240V-50Hz Dimensions (H x W x D): 66 x 320 x 273mm Weight: Order code: CRAM04...
-
Page 5: Power Switch
Identification: 1. POWER SWITCH 2. POWER - Power indicator 3. BASS - Adjust bass response. Rotate clockwise to increase bass output and anticlockwise to reduce it. 4. TREBLE - Adjust treble response. Rotate clockwise to increase treble output and anticlockwise to reduce it. 5. - Page 6 Inputs Short cables runs improve the sound quality remarkably. Input cables should be short and direct, since high frequencies will mostly be absorbed if the cables are unnecessarily long. Besides that a longer cable may lead to humming and noise problems. If the cable runs are unavoidable, you should use balanced cables.
-
Page 7: Machine Operation
TEL input has highest priority, followed by the MIC1. 3. The Clever Acoustics amplifiers all feature output VU meter’s with PEAK indication. Should the PEAK indicator illuminate (flashing) the output of the amplifier is too high, turn the master volume anti-clockwise to reduce the output. -
Page 8: Audio Source
Panel Connections: MIC 1 MAINS MIC 1 AUDIO SOURCE POWER AMPLIFIER TEL INPUT... -
Page 9: Speaker Connections
Speaker connections: Total impedance Total impedance 123Ω 250Ω Notes: • Both the 4 - 16Ω and 100V terminals cannot be used at the same time. • Impedances indicated in the figures represent the total speaker system (load) impedances. Loads presented to the amplifier must be equal to or greater than listed above. Speaker impedances must be measured using a true impedance meter, do not standard multimeters. - Page 10 Balanced XLR Jack Connection...
-
Page 11: Problem Chart
Problem Chart PROBLEM CAUSE REMEDY No Power The power cord is not connected Check the power cord and any extension cables No Sound Check the power cord and if the The power cord of the respective plugs are properly connected with product is not connected properly or the sockets. - Page 12 www.cleveracoustics.co.uk...
