Summary of Contents for Sharp Vision FPV Ground Station

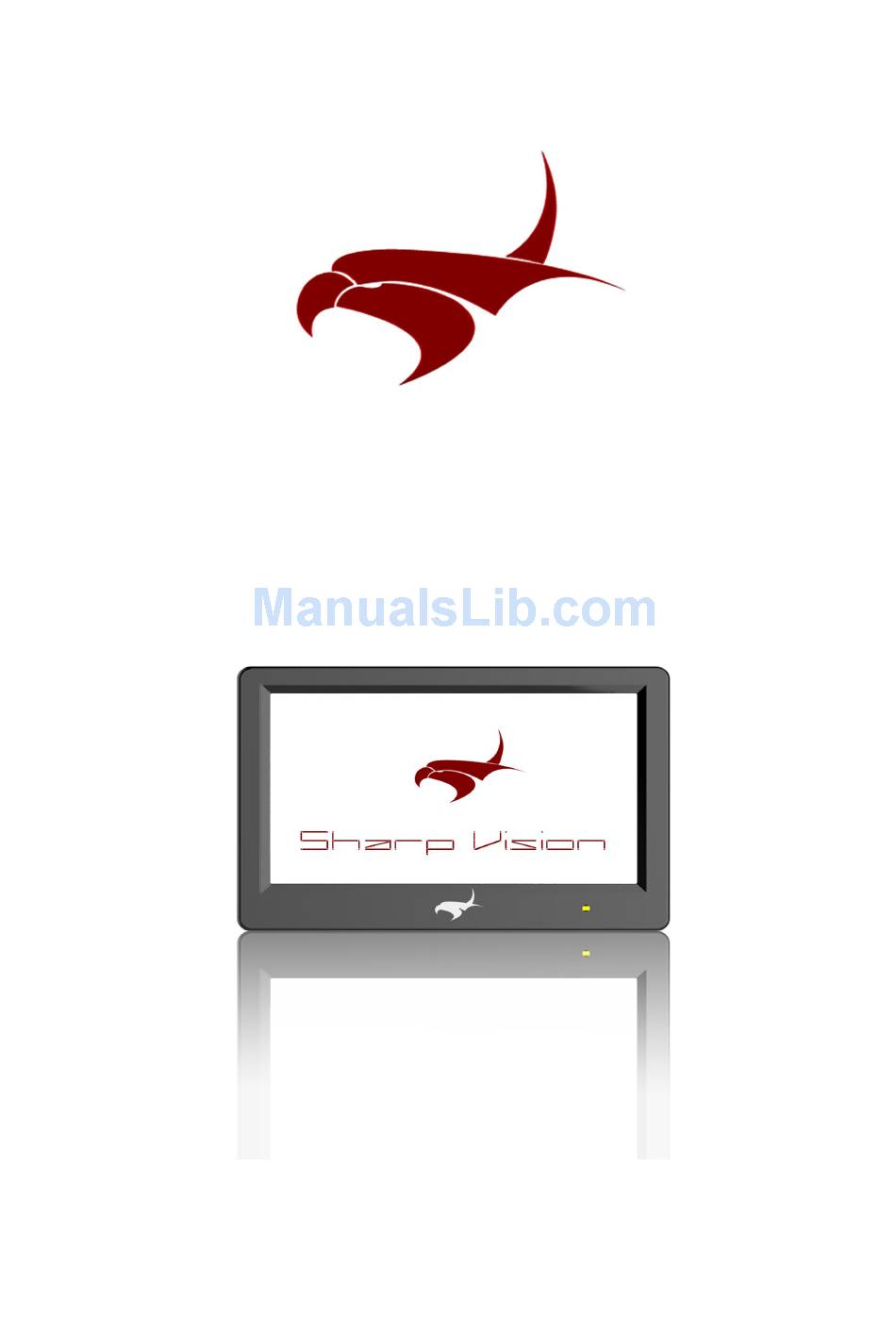

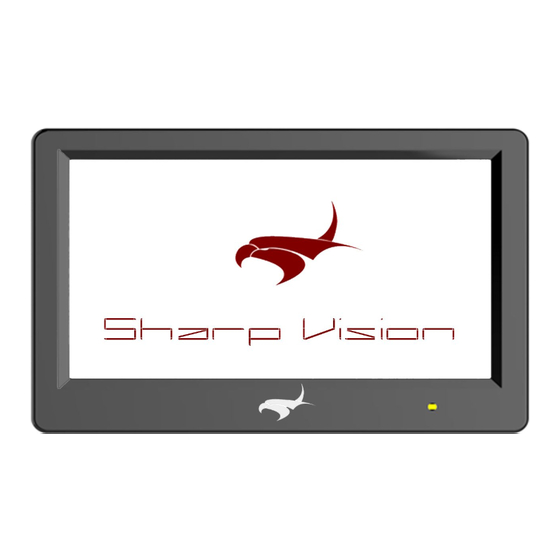

- Page 1 Ver 2.3 Sharp Vision FPV Ground Station (7-inch high bright LED monitor with built-in 5.8G dual receiver and DVR) FPV Model www.fpvmodel.com...
-
Page 2: Table Of Contents
User Manual Specifications and Features:....................4 Features:..........................5 Button Functions:........................ 6 DVR Control Buttons:....................6 Display Control Buttons:.................... 6 FPV Interface Descriptions....................7 DVR Interface (IF Have):....................7 External video input Interface (IF Have):................7 Display Interface Setting:....................8 Frequency Group Selection:..................8 FORMAT:........................ - Page 3 TV Mode:........................14 Default Settings:......................14 Quick Access Descriptions:....................15 Interface Switch:....................... 15 Timer Stop/Start:....................... 15 Reset Timer:......................15 Show/Hide Indication Windows:................15 Show Help Menu:..................... 15 Packing and Accessories:....................15 Size and Weight:......................15 Accessories:......................16 FAQ:..........................16 Not able to search channels automatically:...............16 The video displayed is black-and-white:..............
-
Page 4: Specifications And Features
Specifications and Features: FPV Model www.fpvmodel.com... -
Page 5: Features
5.8G Sensitivity -93db Features: Specially designed for aerial photography system, Sharp Vision all-in-one monitor has the following features: High brightness: 700 Lux. Dual receiver: built-in dual receivers. DVR black box background system: integrated DVR black box can run in the background for recording. -
Page 6: Button Functions
Button Functions: At the back of the monitor, there are 2 groups of buttons, one for DVR control and the other for display control. DVR Control Buttons: Functions Move cursor up DOWN Move cursor down MENU Po pup/exit menu/sub menu (left button) MODE Enter/exit video playback... -
Page 7: Fpv Interface Descriptions
FPV Interface Descriptions FPV interface is the default boot interface. RSSI/Channel Time Voltage in use 11.5 00:30 25 20 1 Voltage indicator: input voltage value is displayed; Display from 6.5V to 12.8V. Recording indicator: a red “R” flashes when DVR is working in the background. Time indicator: monitor running time is displayed. -
Page 8: Display Interface Setting
Display Interface Setting: Press OK button to po pup menu setting: Frequency Group Selection: You can manually select the desired frequency from 4 groups: A, B, C and D, or select SCAN option to start auto search. Press LEFT, RIGHT or OK button to stop searching. Dual 5.8G receivers cover 32channels: A1: 5.645G B1: 5.740G... -
Page 9: Format
FORMAT: Press LEFT or RIGHT button to enter system setting, 3 options are provided: AUTO/ PAL/NTSC. If AUTO selected, the input video system will be automatically identified. System setting will cause display failure. Volume: Control buttons: LEFT (-), RIGHT (+).Range: 1 to 40. Latitude: Control buttons: LEFT (-), RIGHT (+).Range: C1-C3. -
Page 10: Video Playback
Note：Please back up your data in TF card; when the TF card is used for the first time, it will be auto formated . Pressing RIGHT button can switch FPV interface to DVR interface and pressing LEFT button can switch back to FPV interface. Video Playback First,switch to the DVR interface, pressing MODE (RIGHT) button can start video playback. -
Page 11: Cycle Recording
Cycle Recording: If Cycle Recording is selected, the latest videos recorded will cover the earliest ones when the TF card is full. “OFF”: if Cycle Recording function is closed, video files will not be cut into small segments; If you select 3 min to 10 min, Cycle Recording function is open then; the length of each video segment is corresponding to the selected value. -
Page 12: Date Stamp
Date Stamp: Select ON/OFF to decide whether date and time will be showed at the bottom of the video images. Audio Acquisition: Select ON/Off to decide whether sounds can be recorded real-time into video files. Image Quality: Image definition and video file size can be adjusted by 3 levels. Higher image quality results in higher image definition and larger video file;... -
Page 13: Auto Power Up Recording
Auto power up recording: Select YES/ON to decide whether videos need to be auto recorded when power up. Advanced Settings: Press the MENU button twice will pop up the Advanced Setting options including Format, Date/Time and Language. Format: Enter Advanced Settings, and select Format option to format the TF card. In order to optimize the file system ,DVR will format the TF card, if it’s used for the first time;... -
Page 14: Date/Time
Date/Time: Enter Advanced Settings → select Date/Time option → press UP/DOWN button to select a desired date/time → press MENU button to exit. Language: Enter Advanced Settings → select Language option → press UP/DOWN button to select a desired language from 8 languages provided → press MENU button to exit. -
Page 15: Quick Access Descriptions
Quick Access Descriptions: In any mode except menu setting, Monitor keys can be used as shortcuts described as follows: Interface Switch: Pressing RIGHT button can switch between FPV, DVR and external video interfaces. Timer Stop/Start: In the FPV or external video interface, pressing LEFT button (of the display control group) once can stop the timer, and pressing LEFT again can restart it. -
Page 16: Accessories
Accessories: Light blocking drape Velcro cable tie Female T-plug to male XT60 plug connector cable Accessories Female to female T-plug connector extension cable AV input/output cable Power supply output cable Yellow Video input Audio input Interface descriptions Black Video output White Audio output FAQ:... -
Page 17: No Channel Can Be Received
No channel can be received: Install antennas, and move the monitor close to the 5.8 GHz transmitter. Connect video signal to the transmitter. Check whether the channel provided by the transmitter is one of those listed in the channels-able-to-be-received-table; check with other channels. Volume is too low: ...
