Operation instruction for H. 264 HD 1080P

Remote Control

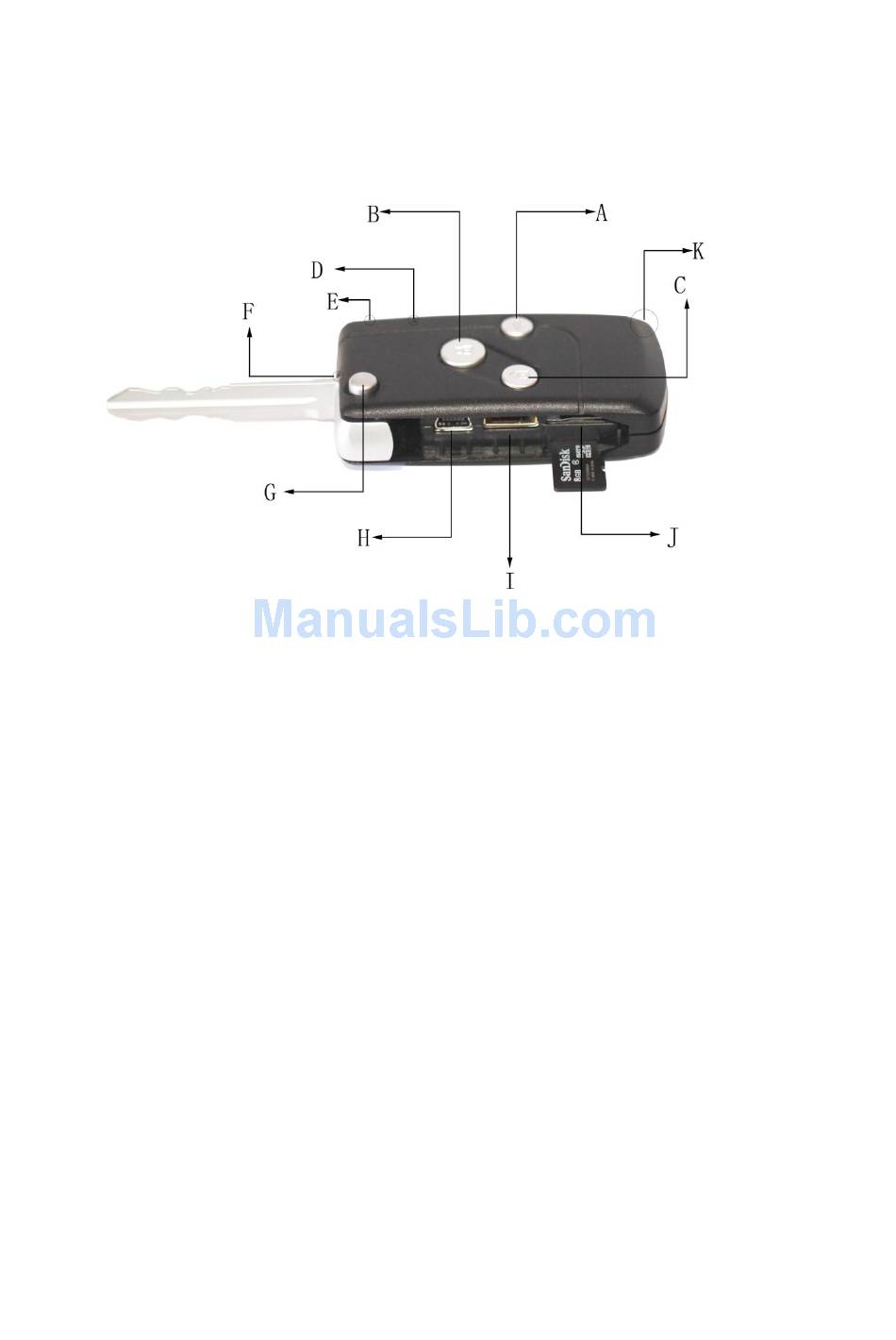

A: power button/reset button

B: function button

C: mode switch button

D: indicator

E: Mic hole

F: lens

G: key release button

H: Mini USB

I: HDMI

J: Miscro TF

K: Key ring hole

Thanks for using our company‟s video recording product. Prior to use, please read this

operation instruction carefully. Provided that you begin to use this product, we will

consider that you have already read this instruction carefully.

I Product features

1．Unique appearance design, external TF card slot, strong concealment

2. HD camera with 10 million pixels, clear shooting image with 1080P effect

3. HD MOV format with H.264 coding, recording audio and video simultaneously

4. Video resolution: 320*240 30 frames, 1280*720 30 frames, 1440*1080 15 frames

(optional).

5 Independent camera functions: the pixel of the photo can reach 4032*3024.1200 million

6. Built-in high capacity rechargeable lithium.

Page 1: Remote Control
Operation instruction for H. 264 HD 1080P Remote Control A: power button/reset button B: function button C: mode switch button D: indicator E: Mic hole F: lens G: key release button H: Mini USB I: HDMI J: Miscro TF K: Key ring hole Thanks for using our company‟s video recording product.
Page 2 7. External rewritable Flash1-64GB (optional) II Operation instructions 1, Turn on the camera: short press the power button once; the blue light is on after quickly flashing for 5 times; the machine comes into standby mode. 2. Recording video: in standby mode (the blue light is on), press the function button once, the blue indicator light goes out after slowly flashing for 5 times and comes into the video recording status.
Page 3 9. Charge: this product can be charged when connecting to computer by USB port, which can be charged through the special USB 5V charger as well; in shutdown model, when it connects to the charger, the green indicator is on until it is fully charged. 10.
Page 4 Windows me/2000/XP/2003/vista；Mac os 10.4； Win7 Supporting system DC-5V Charge voltage MINI 5 Pin USB，HDMI, Micro TF Interface category Battery type High-capacity polymer lithium-Ion battery，battery capacity:500MA Cautions: 1 Don‟t use the machine in hot, dusty and humid environment. 2 Avoid using the machine in extremely dry environment in order to prevent static electricity.
