Summary of Contents for Easy Listener PE 300T
- Page 1 P E 3 0 0 p e r s o n a l F M s y s t e m u s e r g u i d e P E 300T transmitter P E 300R/350F SR receiver P E 300C twelve-unit charger specs available on-line at www.phonicear.com...
-
Page 2: Table Of Contents
Transmitter: PE 300T ........1... -
Page 3: Transmitter: Pe 300T
PE 300T on/off switch auxiliary/charge jack Connect to a CD player or other device through the AT0532 cord to transmit a charging indicator second sound source; connect to personal Glows red when charging NiCad or NiMH charger (see 1 ) to recharge NiCad... -

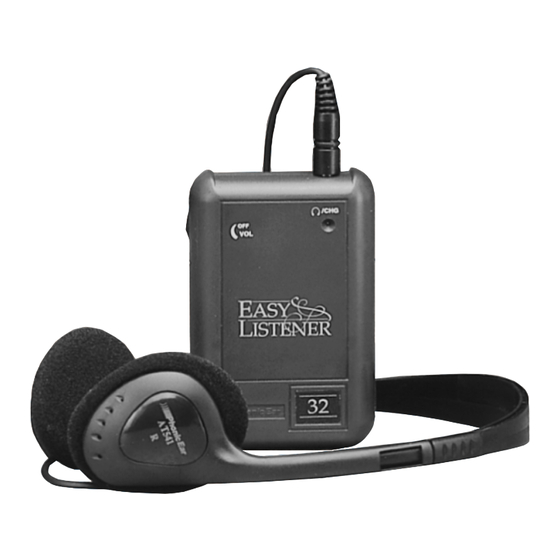

Page 4: Receiver: Pe 300R
receiver: PE 300R volume control/ on/off switch 10 earphone/charge jack Plug in a listening accessory; connect to personal charger (see 1 ) to recharge NiCad or NiMH batteries (never recharge alkaline batteries!) channel number Make sure the channel matches your transmitter front back... -
Page 5: Receiver: Pe 350Fsr
receiver: PE 350FSR 11 channel selector switch channel code label (inside battery compartment) Identifies the channel assigned to each of the six positions on the channel selector switch 11 . back front... -
Page 6: Easy Listener Personal Fm System Setup And Operation
Easy Listener personal FM setup and operation charging batteries Plug charger into unit AT0534 Plug charger into wall socket Charge every night for 12 hours; never recharge alkaline batteries! Charge only rechargeable NiCad or NiMH batteries! PE 300C replacing batteries... -
Page 7: Using The Transmitter
Easy Listener personal FM setup and operation (cont’d) using the transmitter Clip to belt or wear around neck AT0512 AT0712 Put on microphone. Position mic as close to mouth as possible Plug in microphone 15cm/ Turn transmitter 6in max. 7.5cm/3in... -
Page 8: Using The Receiver
Easy Listener personal FM setup and operation (cont’d) using the receiver Clip to belt or wear around neck AT0512 AT0712 Put on listening accessory Plug in listening accessory Turn receiver power/volume on AT0538-S binaural earbuds AT0606/AT0541-E headsets Keep antenna/ cord as straight then as possible. -
Page 9: Channels
Easy Listener personal FM setup and operation (cont’d) channels transmitter Make sure that channel PE 300T numbers match on receiver and transmitter receiver PE 300R transmitter Find number on frequency PE 300T chart inside battery compartment of 350FSR which matches frequency... -
Page 10: Auxiliary Transmission
Easy Listener personal FM setup and operation (cont’d) auxiliary transmission Plug in microphone both mic and auxiliary sound source AT0532 Connect 300T to auxil- connection cord iary sound source using AT0532 connection cord 300T Television auxiliary sound source only Plug in antenna... -
Page 11: Team Teaching
Easy Listener personal FM setup and operation (cont’d) team teaching* second teacher first teacher students MOD-300-TT Adjust VOL as necessary any phonic ear receiver PE 300R PE 300T PE 300T * Contact Phonic Ear for optimal frequency combinations. Because many Phonic Ear FM products are compatible with each other, the two teachers may wear different types of Phonic Ear transmitters. -
Page 12: Accessories
accessories microphones miscellaneous Wire Belt Clip (AT0489) Noise-cancelling behind-the-neck microphone with mute (AT0655M) (recommended) Lavalier Transmitter/Receiver Cord (blue) (AT0512-BU) Earhook mic (AT0814M) Wall Transformer/Two-Unit Charger (AT0534) Collar mic (AT0816) 12 Pocket Charger (PE 300C) Omni directional mic with mic clip and lavalier cord Wall Transformer for PE 300C (AT0461) (AT0164-L) Rechargeable AA NiCad Battery (1) (AT0665) -
Page 13: Troubleshooting
troubleshooting (refer to main instruction sheet for explanatory diagrams) try these first • If another working system is available, interchange accessories • Reset the system by turning the power off, then on again no sound from receiver • Recharge or replace the transmitter’s batteries •... -
Page 14: Caring For Your System
caring for your system cleaning Clean as needed, using a soft, damp cloth. storage Clean with a soft damp cloth and remove the batteries from the transmitter. Place the units in the PE 300C charger or original packaging. other important notes •... -
Page 15: Specifications
PE 300T transmitting frequency 72MHz to 76MHz (U.S./Canada) 37, 72, or 173 MHz (outside U.S./Canada) modulation FM narrow-band operating range 30m/100ft user controls Off/on inputs / outputs 3.5mm auxiliary input jack 2.5mm microphone input jack battery life 40Hr (AA alkaline) -
Page 16: Warranty
warranty A one-year limited warranty is issued to the original consumer of this product(s) by Phonic Ear Inc. time period of warranty This warranty will go into effect upon the date of original purchase of this equipment and will remain in effect for one calendar year from that date as long as the instrument remains the property of the original consumer. - Page 17 us: 800.227.0735, then press 5 • canada: 800.263.8700 outside u.s./canada: Call your local Phonic Ear dealer • website: www.phonicear.com © 2001 Phonic Ear Inc. Phonic Ear and E are trademarks of, and the exclusive property of Phonic Ear Inc. 821-6547-101/rev. D/2675 801 ISTENER...
