Summary of Contents for Lanzar VBD 1600MP

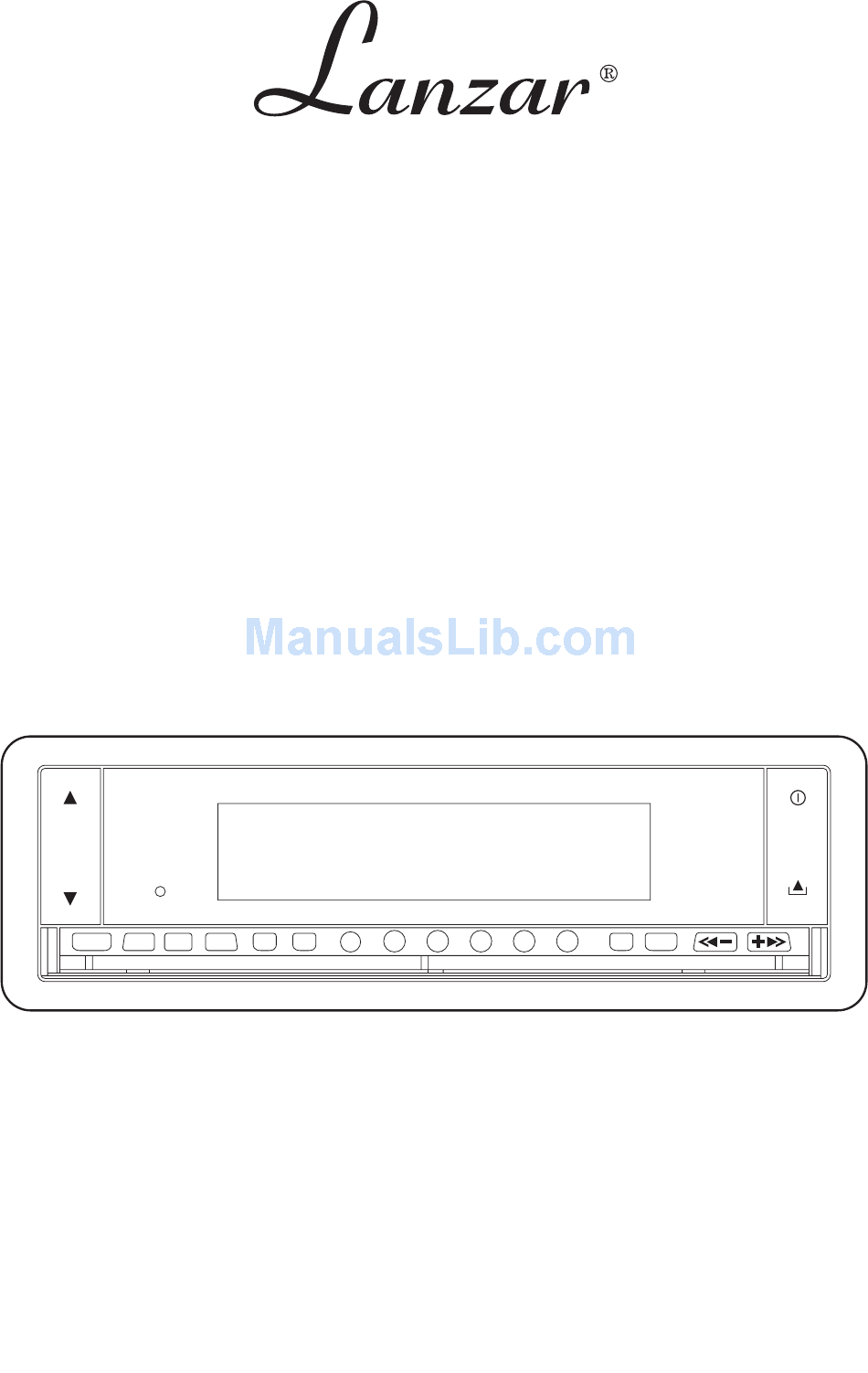

- Page 1 OWNER’S MANUAL VBD 1600MP PLL SYNTHESIZER STEREO RADIO WITH COMPACT DISC PLAYER DIGITAL...
-
Page 2: Installation
INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly. •... -
Page 3: Din Rear-Mount (Method B)
1. Dashboard 2. Nut (5mm) 3. Spring washer 4. Screw (5 x 25mm) 5. Screw 6. Strap Be sure to use the strap to secure the back of the unit in place. The strap can be bent by hand to the desired angle. (Fig. -
Page 4: Wiring Connection
WIRING CONNECTION MAIN UNIT ANTENNA CONNECTOR SUBWOOFER CABLE (GREEN) IGNITION SWITCH (B+) (BROWN) Rch RED YELLOW FRONT RCA CABLE MEMORY CHOKE BACK-UP Lch WHITE BLACK GROUND (B–) (GREY) Rch RED REAR RCA CABLE BLUE POWER Lch WHITE ANTENNA GREY WHITE FRONT Lch FRONT Rch SPEAKER... -
Page 5: Operation
OPERATION Fig. 1 10 3 16 17 Fig. 2 Fig. 3... -
Page 6: General Operation
GENERAL OPERATION • ON/OFF/ILLUMINATE As show in Fig. 1, press the hidden wireframe to turn on the unit, the front panel’s state will change into Fig. 2. Press /ILL button (9) shortly to control the brightness of VFD. Press it for several seconds to turn off the unit and the state will change into Fig. -
Page 7: Radio Operation
• RESET Reset button (19) is placed on the panel and must be activated with either a ball point pen or thin metal object. The reset button is to be activated for the following reasons: - Initial installation of the unit when all wiring is completed. - All the function buttons do not operate. - Page 8 OPERATION • DISC PLAY Gently insert a compact disc with the label side facing up into the disc slot (5). The disc is then automatically loaded into the unit and starts playing with the first track of the disc. The digital display will indicate the track number. Then you can press (Eject) button (4) to stop CD play and eject CD from slot or press OPEN...
-
Page 9: Mp3 Operation
MP3 OPERATION During MP3 operation, these buttons serve the followings. 1. “Searching track directly” in Digital Audio CD. 2. “Searching File Name” in Digital Audio CD. 3. “Searching File or directory” by file directory structure in Digital Audio CD. AMS button is assigned as Digital Audio Mode selection button in single CDP mode. When pressed, it is activated as selecting each mode of Digital Audio. -
Page 10: Control & Function Keys
Remote Control Handset CONTROL & FUNCTION KEYS 1. POWER = Power ON/OFF Button 2. MOD (7) = Mode Button (S, T, U, 7 For MP3 Operation) 3. S (SEL) = Select Button (Character Shift Right For MP3 Operation) 4. DSP (0) = Display Button (_, –, +, 0 For MP3 Operation) 5. -
Page 11: Specification
SPECIFICATION GENERAL Power Supply Requirements : DC 12 Volts, Negative Ground Chassis Dimensions : 178 (W) x 155 (D) x 50 (H) Tone Controls : ± 10 dB - Bass (at 100 Hz) : ± 10 dB - Treble (at 10 KHz) Maximum Output Power : 4 x 60 Watts Current Drain... -
Page 12: Troubleshooting
The radio does The antenna cable is not Insert the antenna cable firmly. not work. The connected. radio station automatic The signals are too weak. Select a station manually. selection does not work. www.lanzar.com 88-C1140-32...
