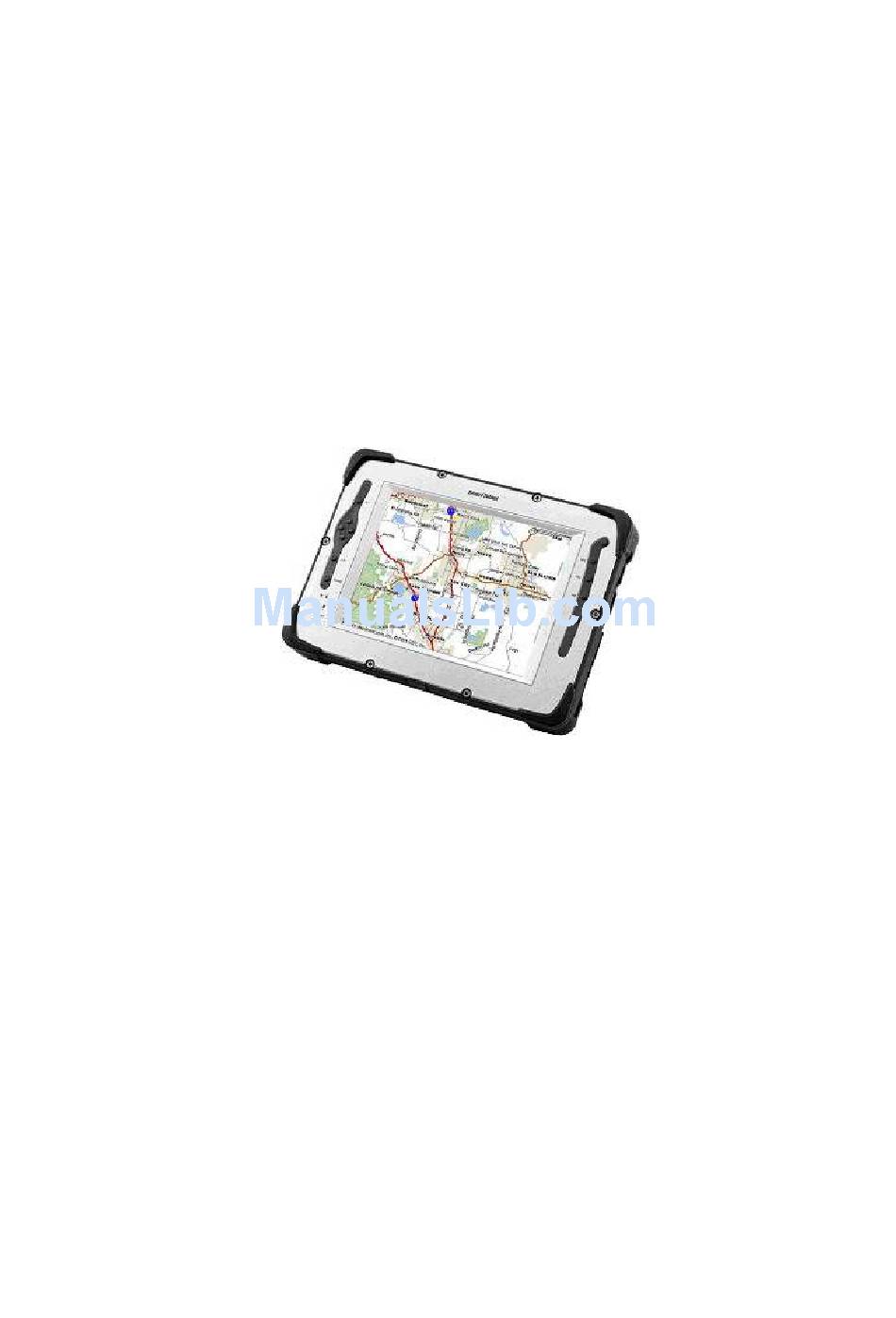

SmartTablet (SMT-8010, 8011) Quick Reference Guide SAMMI Information Systems Co., Ltd. Ver 3 on Oct 2007 Page 1 10/2/2007...
Page 2
Disclaimer SmarTerminal and SmartTablet are registered trademarks of Sammi Information Systems Co., Ltd. All other brand names, product names, or trademarks belong to their respective holders. Head Quarters Sammi Information Systems Co.,Ltd. 103-15, Galwor –dong, Yongsan-Gu, Seoul, Korea Tel. 82 -2-790-5508 / Fax. 82-2-790-5509 Email.
Table of Contents Introduction............................5 Chapter 1 Get to know more about SmartTablet................6 Make sure you have everything ..................6 Appearance .........................7 Chapter 2 Hot keys ......................... 10 Front panel with keys ....................10 Front panel keys and their usage ................10 System Status LEDS....................11...
Introduction This quick reference guide allows you to use all the advanced features of SmartTablet effectively. Please go through it once before using SmartTablet PC. Quick reference guide is designed specially for end users. It is not necessary for the user to have technical skills to understand the quick reference guide.
Chapter 1 Get to know more about SmartTablet Make sure you have everything SmartTablet Web Pad Stylus Pen AC/DC Adaptor/Battery Charger Lithium-Ion Rechargeable Battery Pack Power cord Quick Reference guide Hand strap Optional accessories Docking station (Vehicle, desktop) Carrying case...
Page 8
Rear side Stylus Pen (Pointing device) HDD Cover Port Cover Product Label Speaker outlet Hand Strap Battery Top side Page 8 10/2/2007...
Page 9
Bottom side Mini VGA port Cradle connector Serial port Right Side PS/2 Stylus Pen holder DC In PCMCIA Slot / CF Card slot LAN Port Left Side Speaker Jack Microphone Jack Battery Page 9 10/2/2007...
Rotate Left side Rotates the screen display by 90,180,270 degrees • Top Right side Turns SmartTablet On/Off Power key • Activates and deactivates hibernation (To be used when SmartTablet is already on by holding down the key) Page 10 10/2/2007...
• GPS /F2/ On-screen Right side Functions same as “F2” key for CMOS setup Keyboard key before windows starts • To show the Soft Keyboard (on screen keyboard) once It is set for it under windows • ESC key Right side Functions same as “ESC”...
Mounting SmartTablet on desktop docking station follow the steps given below. • Mount SmartTablet Web Pad on mounting unit so that the bottom notch fits in the Pin holder of the mounting unit so as it will look like in the figure below.
Page 13
Mounting SmartTablet on vehicle follow the steps given below. • Mount SmartTablet on mounting unit so that the bottom notch fits in the Pin holder of the mounting unit and press it against on the resting panel till you hear the locking sound.
SmartTablet on AC power. Use a power cord for the connection. Power settings 3.3.1 Power on Switch on the SmartTablet using Power key available on top left side of front panel Power LED (Green) and Hard disk LED (Red) will start glowing 3.3.2 Power off SmartTablet can be switched off in two ways 1.
3.3.3 Automatic shutdown In order to shutdown the system automatically after it is not used for particular duration of time please set it as follows. In the following example the system will hibernate automatically after 30 minutes while working on batteries and after 1 hour if working on AC voltage. Page 15 10/2/2007...
Hibernation Hibernation is used to save data on memory to hard drive and turn off the PC. Once computer comes out of hibernation, it goes back to its previous state. In order to enable hibernation Start > settings > control Panel > power options properties In order to set a key for hibernation Start >...
Battery low alarms Here you can set the low battery and critical battery power levels. Choose Alarm action following screen will be shown Page 17 10/2/2007...
Chapter 4 Installations and settings Touch program Installation (Touch screen / Stylus Pen operation program) Please check if there is DigiTouch icon on the desktop, that means touch program is already installed, if not follow the steps below for installation Please locate the Touch folder on hard drive (D:/ Drivers/Touch) Click setup icon and follow the Setup wizard Page 18...
To Calibrate the touch panel • Calibrate Tab > select 5 point calibrate > Calibrate button • The screen will show 5 points on the SmartTablet touch screen (Ctrl + Tab key) • Follow the instructions given on the screen •...
Page 21
• Press Rotate button and follow the calibration again. To check the calibration Draw > click draw button > whole screen will look like a check board , you can draw and check the calibration Press ESC to exit To set the touch options My computer icon on desktop >...
• Wireless network driver Installation of wireless network driver 1) Search for D> SmartTablet drivers > WLAN > autorun.exe. Select it for starting wireless LAN installation. Following screen will pop-up, select Install software. Access to Wireless network To access a network group connected with AP(Access Point)
Page 23
5) The Wireless network connection(SSID) icon appears in Task Bar. Click the icon. 6) Click Properties in the Wireless Network Connection Status tab. Page 23 10/2/2007...
Page 24
7) Click Properties in the Internet Protocol [TCP/IP]. 8) Input IP address and DNS server address 9) Click OK in the setting is completed. Page 24 10/2/2007...
Bluetooth connection. Bluetooth Dongle installation To use a Bluetooth wireless radio, it is required to install a Bluetooth dongle on each SmartTablet that consists of a network and to set up a dongle driver.
Page 26
2) Select Next to proceed with installation. 3) Read the license agreement, accept the conditions and select Next. Page 26 10/2/2007...
Page 27
4) As per the requirement select the custom settings. 5) Choose appropriate location for installation using Change button and select Next. Page 27 10/2/2007...
Page 28
6) Select Install to start installation. 7) After successful installation, select Finish to exit installation. Page 28 10/2/2007...
Page 29
8) Please check on desktop for successful installation, if there is icon for Bluetooth Devices as follows: Page 29 10/2/2007...
Page 30
Bluetooth Applications 1) Bluetooth Applications (Client Applications) "run <BlueSoleil> on desktop or Bluetooth icon on the right-bottom of the tray". This functionality is to allow this computer to access to a remote Bluetooth device for any services that the remote Bluetooth device is provided for. The service configuration setting is located on my service>properties…...
Page 31
3) Bluetooth Icon The Bluetooth icon in the Windows system tray provides at-a-glance feedback about Bluetooth status 4) Device Icons – searching for devices When you click the orange circle in the middle of screen, Tablet is trying to look for related devices as follows.
Page 32
And then when the appropriate device is selected, one related icon which is listed on the top will be covered by a box. These icons show the status of Bluetooth device connection. Page 32 10/2/2007...
Bluetooth Dongle Removal 1) Move into Start > Setting > Control Panel > Add or Remove Programs 2) Choose BlueSoleil and click Remove. 3) In a checking message that shows up as follows, click Yes. Page 33 10/2/2007...
Chapter 7 Recovery program settings Firstware Recover Pro by Phoenix Bios – Data/System Backup This recover product offers advantages for User System, Application Program and Data Backup. A factory backup is installed in the plant, and the user can define his or her backup coverage independently.
Page 35
On DOS CME Console Execution for Recover Pro Click “F4” during memory check and screen convert - The language changes from the Options. Recovery program allow following recovery points • New restore point (daily -- automatic creation) • Static restore point (factory or user -- manual) •...
How to create New restore Point? Click menu option Restore point > New > Select the type (incremental / Static) > Next Wait till the new restore point get created How to recover system back from restore point? Select the recovery point and Click Restore Point > Restore Page 36 10/2/2007...
Installation and operation of GPS Necessary connections GPS antenna has to be connected to GPS antenna jacket, which is located on top side of SmartTablet Following settings are necessary for GPS module communication test Start > programs > accessories > communications > HyperTerminal...
Page 38
Following dialog box with be displayed Enter Name and click OK button Connect using COM2 > click Ok button Page 38 10/2/2007...
Page 39
Set the port settings as follows Bits per Second > 4800 Date bits > 8 Parity > None Stop bits > 1 Flow control > Hardware Click OK This will enable a GPS session as follows Page 39 10/2/2007...
Right mouse click on Onscreen keyboard icon > properties > shortcuts > go to shortcut key option and pres GPS key on SmartTablet PC……F2 will be displayed as shortcut key > apply > Ok Now GPS key toggles to Onscreen keyboard on and off by pressing it sequentially.
Chapter 9 Accessories and Peripheral devices PCMCIA Cards External LAN and WAN cards can be connected to SmartTablet details are given in chapter 6 SmartTablet also comes with inbuilt LAN card. (Note that SmartTablet supports both 3.3 volts and 5 volt) Monitor To connect monitor use mini VGA cable from monitor to VGA port of SmartTablet.
One two-color LED for alarm notification : charger indicator / active HDD indicator Audio: Line-IN/OUT , internal Mono speaker, microphone Other I/O: PS/2 Keyboard, VGA, Serial, LAN USB: Two USB ports, support USB 1.1A Compliant Function / USB 2.0 for SmartTablet- CM and SmartTablet-PM Page 42 10/2/2007...
Page 43
GPS: Global Positioning System (optional, integrated) Regulatory Approvals SmartTablet-C - FCC Class B, CE compliant , SmartTablet-CM/PM – RoHS, FCC Class B, CE compliant Power Supply Power Battery 3600 mA Li-Ion removable battery (3 operation and 5 standby mode hours)*...
