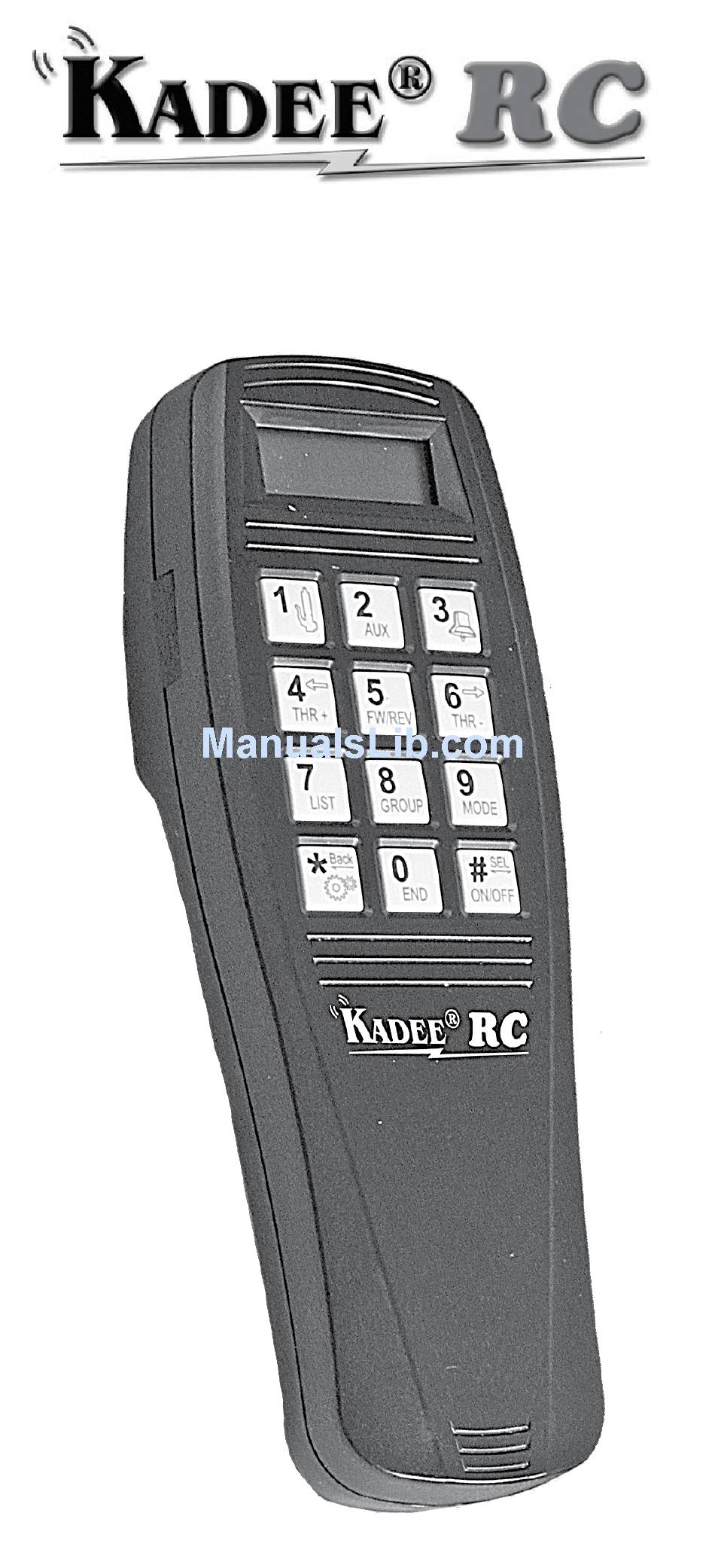

- Page 1 Transmitter User Guide...
-
Page 2: Table Of Contents
Table of Contents Introduction ..............1 Getting Started ............1.1 Overview ................. 5 1.2 Display ................6 1.3 Quick Start ..............7 1.3.1 Setup ..............7 1.3.2 Wake System ............7 1.3.3 Binding Receiver to Transmitter......7 2 Basic Operation ............. 2.1 Wake System .............. - Page 3 4 Typical Application ..........4.1 Operating a Servo ............17 4.1.1 Connecting the Servo......... 17 4.1.2 Actuating the Servo ..........17 4.1.3 Set Servo Delay ..........17 4.1.4 Clear Servo Delay ..........17 4.1.5 Servo Reversal ........... 17 4.2 Operating the Relay ............. 18 4.2.1 Relay Overview ..........
-
Page 4: Introduction
Introduction Thank you for choosing Kadee as your remote control system. We ® are sure that you will find the Kadee Remote Control sophisticated ® but yet simple to use. Our goal from inception to completion has been to design a system that will be up and running in just minutes providing a user friendly device to help you accomplish your remote control requirements. -
Page 5: Getting Started
1 Getting Started 1.1 Overview This section provides an overview of the Kadee Remote Control ® and it’s basic functions. To discover more features including: Relay Control, Turnout Control, Locomotive Control, Motor Control and many more functions and applications, go to www.RemoteUncoupling.com. -
Page 6: Display
Quick Start (Sec. 1.3) will get you up and running in no time and Typical Applications (Sec. 4) will guide you in some of the more common uses. Advanced Operations (Sec. 3) will go more in depth into customizing the Kadee Remote Control. ® 1.2 Display 1. -
Page 7: Quick Start
1.3 Quick Start Before continuing: Please read the entire “Quick Start Guide” 1.3.1 Setup 1) Install two AA batteries into the Transmitter. The display will show that the System is OFF. 2) Connect the Wire Harness to the Receiver. Do not force connector. 3) Connect the Servo to the Wire Harness. -
Page 8: Basic Operation
2 Basic Operation 2.1 Wake System Hold the [On/Off] Key for at least three seconds or until the Display shows “On”. The Transmitter will turn on and search for any Bound receivers. When the Display shows that the System is Ready, the System is awake and ready to use. -
Page 9: Key Command
2.4 Key Command Note: To exit any Mode and return to basic operation: Hold the [END] Key for one second or until the Display clears. 2.4.1 Standard Modes (Sec. 3.2) Hold the [Mode] Key for one second. Display shows “SEL”. Key in the desired mode: 0 = Delay mode clear* 1 = Delay mode set*... -
Page 10: Advanced Operation
3 Advanced Operation Note: We recommend reading this chapter before moving on to Section 4 Typical Application. 3.1 Modes Overview There are user Modes that enable you to uniquely setup and manage your system. (Standard, List & Group Modes) 3.1.1 Standard Modes Standard Modes help you customize many of your system’s operations. -
Page 11: List Modes
3.1.2 List Modes List Modes are used to Manage Receivers that are to be combined into Groups. Use List Mode to: - (Create), (View) and (Edit) list of Receivers to be used in a Groups. - (Delete) Receiver Groups. Note: The following List are automatically created for viewing only. - Receivers that are Bound to the Transmitter. -
Page 12: Using Standard Modes
3.2 Using Standard Modes 3.2.1 Delay Mode Receiver will pause for 30 seconds after receiving a command, then return to its original position. Either the Servo or the Receivers internal Relay can be set to Delay. Set Delay Mode on a Receiver: 1) Select the Receiver you wish to set to Delay. -
Page 13: Unbinding
User Defined Binding: 1) Hold the [Mode] Key until “SEL” appears in Display 2) Press the [7] Key. (Transmitter now waits for a two digit Address to assign to the Receiver) 3) Key in an (unassigned) Address for the Receiver you wish to Bind. -
Page 14: Using List Modes
3.3 Using List Modes 3.3.1 Create, view and edit Group List Note: To create a Group you must make a List of at least one Receiver Address to add to the group. Create a Group List: 1) Hold the [List] Key for one second or until “LIS” shows in the display. -
Page 15: Delete Groups
Delete an Addresses in a Group List: 1) Hold the [List] Key for one second or until “LIS” shows in the display. 2) Press the [0] Key to Create, View or Edit a Group. Display will show “GrP” 3) Select an Existing Group Number. 4) Use the [4] and [6] arrow keys to select the address you wish to delete. -
Page 16: View List Of Receivers With Low Batteries
3.3.4 View List of Receivers with Low Batteries 1) Hold the [List] Key for one second or until “LIS” shows in the display. 2) Press the [7] Key. Display will show a list of Receivers with low batteries. Note: If no low batteries are detected the display will show “non” and return to standard operating mode. -
Page 17: Typical Application
4 Typical Application 4.1 Operating a Servo Setting up and operating a standard hobby servo with your KDRC receiver is described below. 4.1.1 Connecting the Servo Connect servo cable to the Receivers three conductor Wire Harness making sure that the yellow, red and black wires are aligned. Note: Some servo connectors have a polarity tab that may need to be removed before inserting the connector into the wire harness receptacle. -
Page 18: Operating The Relay
4.2 Operating the Relay Your Kadee RC receiver is equipped with an on-board relay that can be used to switch electronic devices on and off. 4.2.1 Relay Overview Please read this brief overview. A basic understanding of the on-board relay and it’s capabilities will benefit you in achieving reliable operation without damaging the on-board relay. -
Page 19: Reference
5.1.2 Circuit Protection When utilizing a Receivers on-board relay, protecting the circuit is highly recommended. Kadee Quality Products will not be responsible for damage to the Receivers Relay it it has been overloaded due to improper wiring or a short circuit. -
Page 20: Specifications
Kadee Remote Control Product or Kadee Remote Control system products affiliated with Kadee Remote Control system (#11110, #11215, #11225, #11230) determined by Kadee to be defective, where such product fails due to a defect in material or workmanship within (1) Year following the initial consumer purchase. - Page 21 RMA number will be returned to the sender at sender’s expense. RMA numbers are valid for (10) business days. Kadee reserves the right to inspect any and all equipment involved in a warranty claim. Repair or replacement decisions are at the sole discretion of Kadee.
-
Page 22: Index
5.6 Index Actuate ..............4.1.2, 4.2.3 Address ................2.2 Amps (Amperes) ............4.2.3 Assign................3.2 Battery Monitoring ..........(see List) Bind & Binding ............ 1.3.3, 3.2.3 Clear .............3.2, 4.1.4, 4.1.5 Circuit ..............4.2.2, 5.1.2 Code(s) ...............(see Errors) Combine ..............(see List) Commands ................ - Page 23 Missing ................3.3.5 Mode(s) ................3 Motor ..............(see Servo) On Board Relay............(see Relay) Pause ..............(see Delay) Protection ............(see Fuses) Receiver ............1.3.3, 2.2, 3 Relay ................. 4.2 Select(ed) ................. 3.2 Sequential ............. (see Bind) Servo ..................4.1 Setup ................1.3.1 Sleep ................. 2.3 Tandem ................
-
Page 24: Long Battery Life
• Accommodates Standard Hobby Servos visit www.RemoteUncoupling.com for new features Kadee Quality Products Co. ® MODEL NO: 10100 Contains FCC ID: YU310200 & IC: 9074A-10200 673 Avenue C, White City, OR 97503-1078 Quality Products Co. 112012 © 2012, Kadee Quality Products Co. ®...
