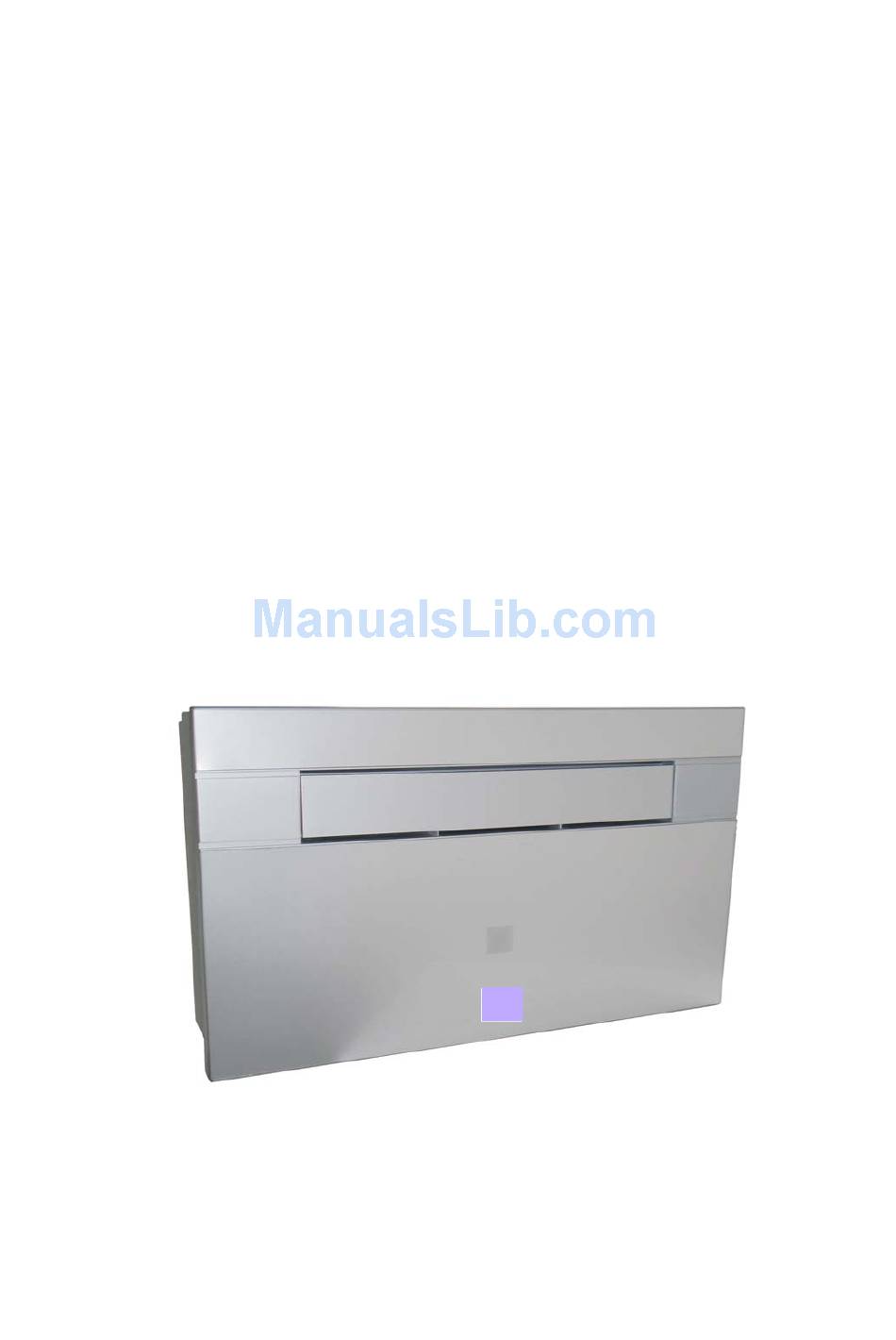

- Page 1 RCAT High Wall / Low Wall Air Conditioner Model PRESTIGE RCAT TECHNICAL MANUAL...
-
Page 2: Environmental Information
CONTENUTI INTRODUCTION SAFETY INSTRUCTIONS RECEIVING THE GOODS HANDLING PARTS LIST GENERAL FEATURES TECHNICAL FEATURES EXPLODED VIEW SPARE PARTS LIST PAPER TEMPLATE DRILLING THE WALL INSTALLATION OF AIR PIPES AND GRATINGS FITTING THE UNIT DRAINAGE LINE FITTING THE UNIT ON BRACKET ELECTRIC DIAGRAM COOLING CIRCUIT REMOTE CONTROL... -
Page 3: Important Safety Instructions
INTRODUCTION PLEASE NOTE. Do not dispose of any packaging until the installation of the equipment is completed. After having removed the packing, check that all the content is intact and complete. (See list of accessories). In the event of missing parts, contact your retailer. This unit has been designed to cool or heat the air of a room and should only be used for this purpose. -
Page 4: Receiving The Goods
Do not carry out any cleaning or maintenance or access internal parts until the air- conditioner has been disconnected from the mains electricity supply. Do not alter the safety or regulating devices without the permission and instructions of the air- conditioner manufacturer. -
Page 5: Part List
HANDLING - Be fully aware of the weight of the unit before attempting to lift it. Take all necessary precautions to avoid damaging the product or causing personal injury. - It is advisable to remove the packing only when the air-conditioner has been located in the point of installation. -
Page 6: General Features
1.6 GENERAL FEATURES A : 55cm L : 93cm P : 23cm OPERATING CONDITIONS IN COOLING AND DEHUMIDIFICATION MODE MIN : 18°C 70% R.H. MAX : 43°C 45% R.H. OPERATING CONDITIONS IN HEATING MODE ** MIN : -5°C 80% R.H. MAX : 24°C 45% R.H. -
Page 7: Technical Features
1. 7 TECHNICAL FEATURES echnical data sheet - Prestige Type Through the wall Technical data Tension V , Hz, 220-240V 50 Hz Cooling capacity (*1) 3120 Consumption (cooling mode) * Absorbed current (cooling ) * 3,90 Heating capacity (*2) 3280... -
Page 8: Exploded View
1. 8 EXPLODED VIEW... -
Page 9: Spare Parts List
SPARE PARTS LIST Position n° ( see Code Part description exploded view ) 81033600911 FLOATING HOLDER 82010402000 AXSL SLEEVE 81020400100 FLAT FRONT PANEL 81033601300D LED DISPLAY 81020400100B VISION LOW DECORATION PANEL 81020400200 VISION SWING 81010600500 CONDENSER FAN MOTOR SUPPORT 81013301400 CONDENSER FAN MOTOR BACK FOAM 81033601000D CONDENSER FAN MOTOR... -
Page 10: Paper Template
PAPER TEMPLATE Fasten the template to the wall once the following guidelines have been thoroughly checked. - Do not drill any holes until you are 100% confident that there are no obstacles in the area you wish to drill and there are no obstructions, which could be hidden by the construction of the wall, for example: electrical wiring water &... -
Page 11: Drilling The Wall
2. 1 DRILLING THE WALL Please note: If you are d rilling the hole above ground floor level, please ensure that an area has been secured and while the holes are drilled the outside area is supervised, until drilling has been completed. -
Page 12: Important Suggestions
INSTALLATION OF AIR PIPES AND GRATINGS After drilling the holes, the rubber rings, the plastic pipes and the grids supplied with the air conditioner need to be fitted through them. The pipe with a diameter of 160mm ( hot air discharge ) has to be fitted in the left hole while the pipe with diameter 150mm ( air intake ) has to be fitted on the right hole. - Page 13 FITTING THE UNIT DRAINAGE LINE Remove the compressor holders (remove plastic belt A and unscrew holder B and fasten the air conditioner to its supporting bracket, A and B can be discarded ). Connect the drain hose (C) provided into rear drain outlet. A further extension pipe (D) with an internal diameter of 16 mm can be fitted if necessary.
-
Page 14: Fitting The Unit On The Bracket
FITTING THE UNIT ON THE BRACKET IMPORTANT: After checking again that the fastening bracket is securely fastened to the wall, ensure electrical connections are safe and drainage point is correctly installed before hanging the unit on the wall. Lift up the unit, by holding the sides at the bottom. LIFT IT UP LIFT IT UP HERE... - Page 15 CIRCUIT DIAGRAM BLACK BLUE BROWN ORANGE WHITE YELLOW COMPRESSOR FMO FAN MOTOR GREEN THERMISTOR...
-
Page 16: Cooling Circuit
COOLING CIRCUIT COOLANT GAS DIRECTION IN COOLING MODE COOLANT GAS DIRECTION IN HEATING MODE... -
Page 17: Remote Control
3. 0 REMOTE CONTROL All the functions are controlled, set or adjusted through the infrared remote control. You cannot fully operate the unit without the remote control, so please ensure you replace the remote after use in a safe place. If the remote control is misplaced, switch the unit off via the mains socket. A new remote will need to be purchased, contact your Retailer. - Page 18 3.1 REMOTE CONTROL FUNCTIONS SET THE TIME : switch on the remote control using the ON/OFF button. Set the time by gently pressing the CLOCK button ; then adjust the time by using the HOUR button to adjust the hours and the button to adjust the minutes.
-
Page 19: Room Temperature
VENTILATION FUNCTION - Press the MODE button until the fan mode is set : appears on the remote display. - Press the FAN SPEED button and select the fan speed to high , middle , low - Through this function, the unit only circulates air in the room. AUTO FUNCTION - Press the button until the... -
Page 20: Sleep Function
SLEEP FUNCTION Press the button MODE and select the desired function among cooling ( COOL ) /heating ( HEAT ) / Automatic AUTO - Press the buttons to select the required room temperature ( temperature is not adjustable in AUTO mode - Press the button SLEEP... -
Page 21: Led Off Function
LED OFF FUNCTION The display on the unit can be switched on or off through the LED OFF button. Especially during night time, the display of the unit can be switched off by pressing once the LED OFF button ; the unit will continue working but the display lights will be not visible. To switch on the display, press again the LED OFF button . -
Page 22: Maintenance
3.2 MAINTENANCE To remove the frontal facia panel : Remove the 2 screws located under the side panels with a screwdriver. Remove the other additional 2 screws located on the sides of the units ( n°2 screws for each side ). The screws position is indicated in the below drawing. -
Page 23: Water Pump Replacement
COOLING GAS RECHARGE IMPORTANT : please contact the manufacturer or its Service Agent or a similarly qualified person in order to recharge the unit correctly. Do not alter the appliance, since hazardous situations could be created while the manufacturer of the appliance will not be liable for any damage or injury caused. To recharge the unit with the coolant gas, check to fill it in the correct position of the piping as per below drawing. -
Page 24: Cleaning The Unit
INTERNAL UNIT MAINTENANCE FILTERS CLEANING: The filters should be regularly cleaned to keep the unit running efficiently. Clean the filters every two weeks. How to proceed: - Disconnect the unit from the electrical supply. - Extract the filter grating. As the filter has three different compositions, the cleaning operations should be done as follows: - Extract the filters B/C from their case. -
Page 25: Problem Solving
PROBLEM SOLVING PROBLEM POSSIBLE CAUSE / REMEDIES The air-conditioner does not work. - Wrong setting of the timer / Check it. - Problems on the power supply/Verify the Presence of voltage. In cooling mode, no cool air coming out - The filter could be dirty / Clean it. - The temperature is not properly set / Check Strange smell in the room.
