Page 1: Table Of Contents
GENERAL FOAM PLASTICS CORPORATION 3321 East Princess Anne Road; Norfolk, Virginia 23502 www.GENFOAM.com RP2000 SWIMMING POOL FILTER SYSTEM OWNERS MANUAL FOR ABOVE GROUND QUICK SET ® SWIMMING POOLS ________________2 ARRANTY NFORMATION UL I _______2 MPORTANT AFETY NSTRUCTIONS ANSI/NSPI-4 S _______3...
Page 2: Ul Important Safety Instructions
180-days from the date of purchase. Original Purchaser must retain proof of such purchase in the form of a store sales receipt and must produce such upon request by General Foam Plastics or one of its customer service representatives.
Page 3: Ansi/Nspi-4 Safety Instructions
ANSI/NSPI-4 STANDARD SAFETY INSTRUCTIONS WARNING 1. Very Important: Swimming pool barriers, which restrict access to the pool by small children, may be required by law. A barrier is necessary to provide protection against potential drowning and near drowning. Barriers are not a subtitute for constant supervision of children.
Page 4: Preliminary Steps
ﬁlter cartridge, and pool will occur. 4. This RP2000 pump/ﬁlter is UL Listed (ﬁle #E93620) - double insulated and grounded - 115 V.A.C. - 60 Hz. (Unit must have a minimum of 105 V.A.C. to start and run properly.) This unit uses approximately 210 watts to run, and pumps approximately 2000 G.P.H (Gallons Per Hour).

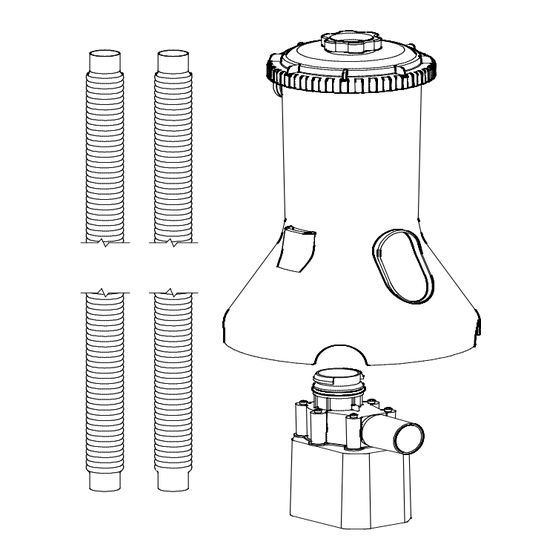

Page 5 KEY DESCRIPTION PUMP BODY W/CORD ROTOR ASSEMBLY MAGNET AXLE IMPELLER STAINLESS STEEL SHAFT THRUST WASHERS THE FILTER CARTRIDGE SHAFT END CAPS (15) WILL HOLD AS MANY PUMP GASKET AS 6 OF THE 1” DIAMETER VOLUTE HOUSING LIBERALLY O-RING (On Volute Housing) CHLORINE TABLETS.
Page 6 1. POWER FILTER INSTALLATION: WARNING EXTREMELY IMPORTANT! • Risk of electrical shock, connect only to a grounding type receptacle protected by a ground fault circuit interrupter, (GFCI). Contact a quali- ﬁed electrician if you cannot verify that the receptacle is protected by a GFCI.
Page 7: Filter Cartridge Cleaning
2. PUMP OPERATION: IMPORTANT: FILTER CARTRIDGE MUST BE FIRMLY SEATED OVER THE PUMP INTAKE PORT TO FILTER THE POOL WATER EFFICIENTLY. NOTE: ONLY FILTER CARTRIDGES WITH A 1-3/4” INCH DIAMETER HOLE WILL WORK PROPERLY. ANY OTHER SIZE HOLE WILL PREVENT PROPER FILTRATION. THE CARTRIDGE MUST SEAL TIGHTLY AROUND BOTH ENDS.
Page 8: Pool Maintenance
NOTE: Excessive levels of chlorine or low pH levels will damage pool liner. 3. The pool can be cleaned using a garden hose powered vacuum from General Foam Plastics or a pool supply store. 4. Using a foot bath near the pool to wash off your feet prior to entering the pool will assist in keeping the pool clean.
Page 9: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE DISCONNECT ELECTRICAL CORD BEFORE TROUBLESHOOTING FILTER SYMPTOM PROBLEM POSSIBLE SOLUTION 1 Motor fails to start or A Unit Not Plugged In A Unit must be plugged into a 3-wire grounded outlet with a GFCI type circuit breaker. kicks on and off.
Page 10 3. QUICK SET POOL: ® A. To drain the pool, locate the drain plug on the outside of the pool wall and remove the drain cap. A standard garden hose will thread onto the drain ﬁtting. Extend the hose to the area where the water is to be drained. When you have placed the garden hose where desired, the drain plug on the inside of the pool can be removed.
Page 11: Order Form
6) OBTAIN THE PROPER SHIPPING AND HANDLING CHARGES FROM THE RATE CHART BELOW RATE CHART FOR PARTS – NOTE: ALL RATES / COSTS ARE IN U.S. DOLLARS SEND TO: GENERAL FOAM PLASTICS CORP. Estimate the weight of your order. Use chart below to determine ATTN: PARTS DEPT shipping &...
Page 12: Pool Safety
NOTE: IT IS THE POOL OWNER’S RESPONSIBILITY TO OBEY ALL STATE AND LOCAL LAWS CONCERNING ABOVE GROUND SWIMMING POOLS, DECKS, FENCES/BARRIERS, LIGHTING, SAFETY REGULATIONS, ETC. ___________________________________ Afﬁx Postage ___________________________________ Here ___________________________________ General Foam Plastics Corporation 3321 East Princess Anne Road Norfolk, VA 23502...
