Hybrid MH-07R User Manual

Fm/mw/sw1, 2 world receiver with flashlight, cranker dynamo & solar power supply
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MH-07R
FM/MW/SW1, 2 WORLD RECEIVER WITH
FLASHLIGHT, CRANKER DYNAMO &
SOLAR POWER SUPPLY
RÉCEPTEUR MONDIAL FM/MW/SW1-2 AVEC LAMPE
TORCHE ET ALIMENTATION PAR DYNAMO À
MANIVELLE OU ÉNERGIE SOLAIRE
User Manual
Manuel d'utilisation
Please read the instruction carefully
before operating the unit.
Veuillez lire attentivement ce manuel
avant toute utilisation.
GB / FR / I / E / D / P / NL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MH-07R and is the answer not in the manual?

Questions and answers

Summary of Contents for Hybrid MH-07R

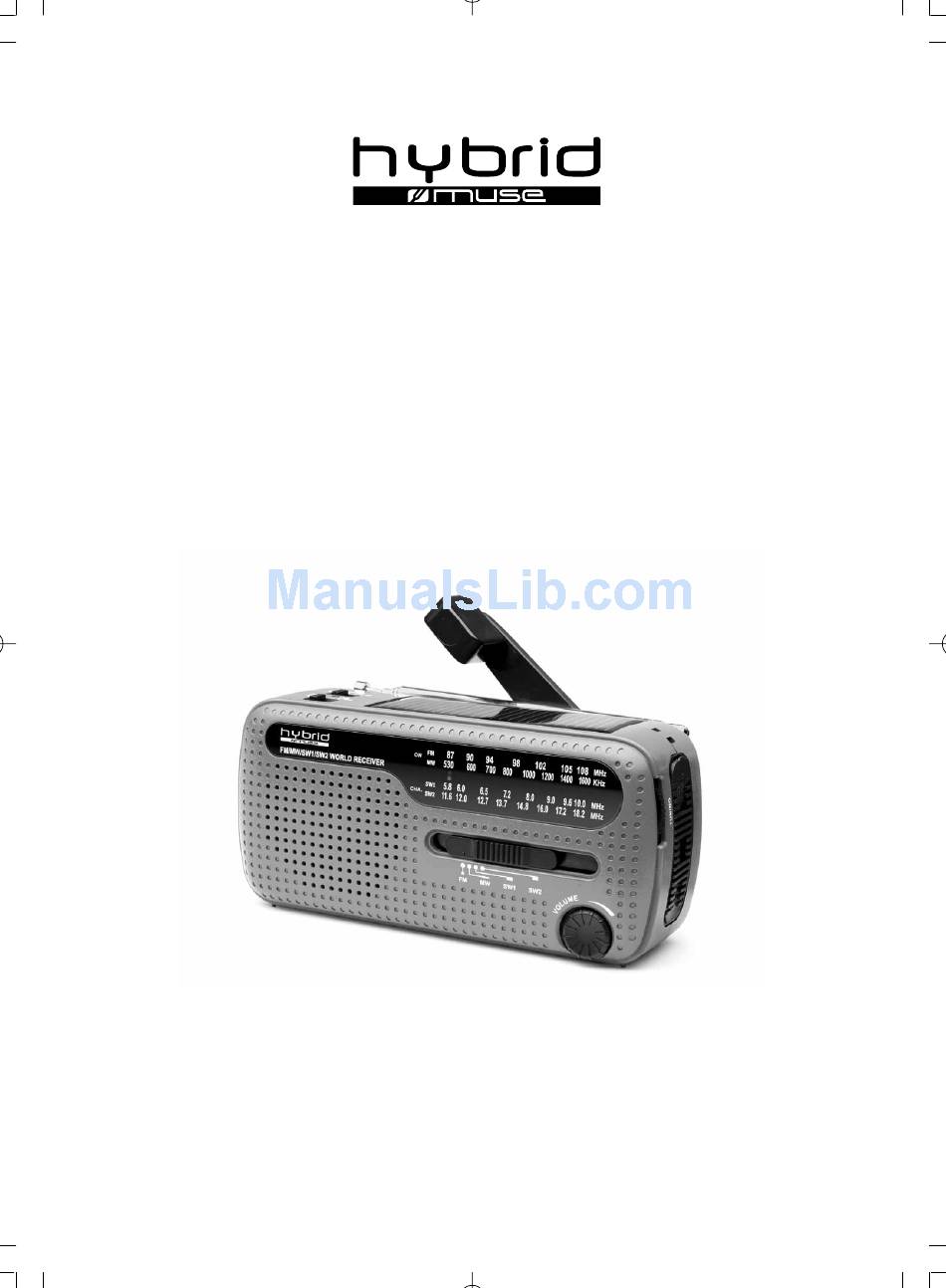

  • Page 1 MH-07R FM/MW/SW1, 2 WORLD RECEIVER WITH FLASHLIGHT, CRANKER DYNAMO & SOLAR POWER SUPPLY RÉCEPTEUR MONDIAL FM/MW/SW1-2 AVEC LAMPE TORCHE ET ALIMENTATION PAR DYNAMO À MANIVELLE OU ÉNERGIE SOLAIRE User Manual Manuel d’utilisation Please read the instruction carefully before operating the unit.

  • Page 2: Safety Information

    SAFETY INFORMATION • Clean the player with a soft cloth, or a damp chamois leather. Never use solvents. • Make sure that you keep your set away from water and high temperatures. • Do not use your system immediately after transporting it from a cold place to a warm place, as condensation may cause the system to malfunction.

  • Page 3: Basic Controls

    BASIC CONTROLS FRONT RIGHT SIDE 1. Speaker 2. Band Switch 3. Volume Knob 4. Tuning Knob 5. Frequency Dial Scale 6. Power Light 7. CHA. Light 8. Phone Charger Jack 9. Earphone Jack 10. DC IN Jack GB - 2...
  • Page 4 REAR 11. Multifunctional Switch 12. Power Switch 13. Solar Panel 14. Strap Hole 15. Telescopic Antenna 16. Battery Compartment (AAA Batteries) 17. Hand Crank 18. Battery Compartment (Ni-MH Battery) 19. Flashlight GB - 3...

  • Page 5: Power Supply

    POWER SUPPLY * POWERING BATTERY POWER NOTE: The Ni-MH battery and AAA batteries (alkaline or recharge- able batteries) can supply the power separately. 1. The battery compartment which is in the rear of the unit is for the rechargeable Ni-MH battery. And the rechargeable Ni-MH battery has been disconnect for transportation purposes.
  • Page 6 Battery Precautions Follow these precautions when using batteries in this device: Use only the size and type of batteries specified. Be sure to follow the correct polarity when installing the bat- teries as indicated in the battery compartment. Reversed batteries may cause damage to the device. Do not mix different types of batteries together (e.g.

  • Page 7: Solar Power

    SOLAR POWER 1. Set the <Power Switch> to “ ” position. 2. Put the unit in the sunlight, make the solar panel of the unit is irradiated directly by the sunlight. If the sunlight is enough strong, the power light (“ON”) in the front of the unit will be on. Or else, the power light (“ON”) can not be on and the unit can not work normally.
  • Page 8 DYNAMO CHARGING 1. Set the <Power Switch> to “ ”, “ ” or “ ” position. 2. Turning the hand crank, the built-in dynamo will start to gen- erate electricity. The unit will charge the Ni-MH battery automatically. 3. While charging, the “CHA.” light in the front of the unit will be on.
  • Page 9 NOTE: 1.The longest charging time is 8 hours. 2.You can buy a matched adaptor from the market which is with 5 pin jack, 5V output voltage and 300mA output current or above. USB COMPUTER CHARGING 1. Set the <Power Switch> to “ ”, “...
  • Page 10 Method B: Take the included charging cable and plug one port directly into the USB jack of the compute, connect the other port and the <DC IN Jack> of the unit via the included cellphone connector. The unit will charge the Ni-MH battery automatically. 3.
  • Page 11 CHARGING CELLPHONE 1. Use the cellphone connector which is matched with your cellphone, to connect the included charging cable and your cellphone. Note: The included cellphone connector is suitable for the cellphone which is with 5 pin jack. 2. Plug the other port of the supplied charging cable into the <PHONE CHARGER Jack>...

  • Page 12: Basic Operations

    BASIC OPERATIONS USING FLASHLIGHT Set the <Multifunctional Switch> to “ ” position, the flashlight will be on. Set the <Multifunctional Switch> to “OFF” position, the flashlight will be off. USING ALERT LIGHT Set the <Multifunctional Switch> to “ “ position, the middle red flashlight will blink.

  • Page 13: Reception Of A Radio

    RECEPTION OF A RADIO 1. Select the power mode. 2. Select the band: Set the <Band Switch> to “FM”, “MW”, SW1" or “SW2” position to listen to the FM, MW, SW1 or SW2 programs. 3. Adajust the volume: Rotate the <Volume Knob> to adjust the volume level.

  • Page 14: Listening With Earphones

    LISTENING WITH EARPHONES Connect the earphones ( not included) to the earphone jack on unit. SPECIFICATIONS 1. Frequency Range FM: 87.0 - 108.0 MHz MW: 530 - 1600 KHz SW1: 5.80 - 10.0 MHz SW2: 11.6-18.2 MHz 2. Max. Output Power: About 100mW 3.
