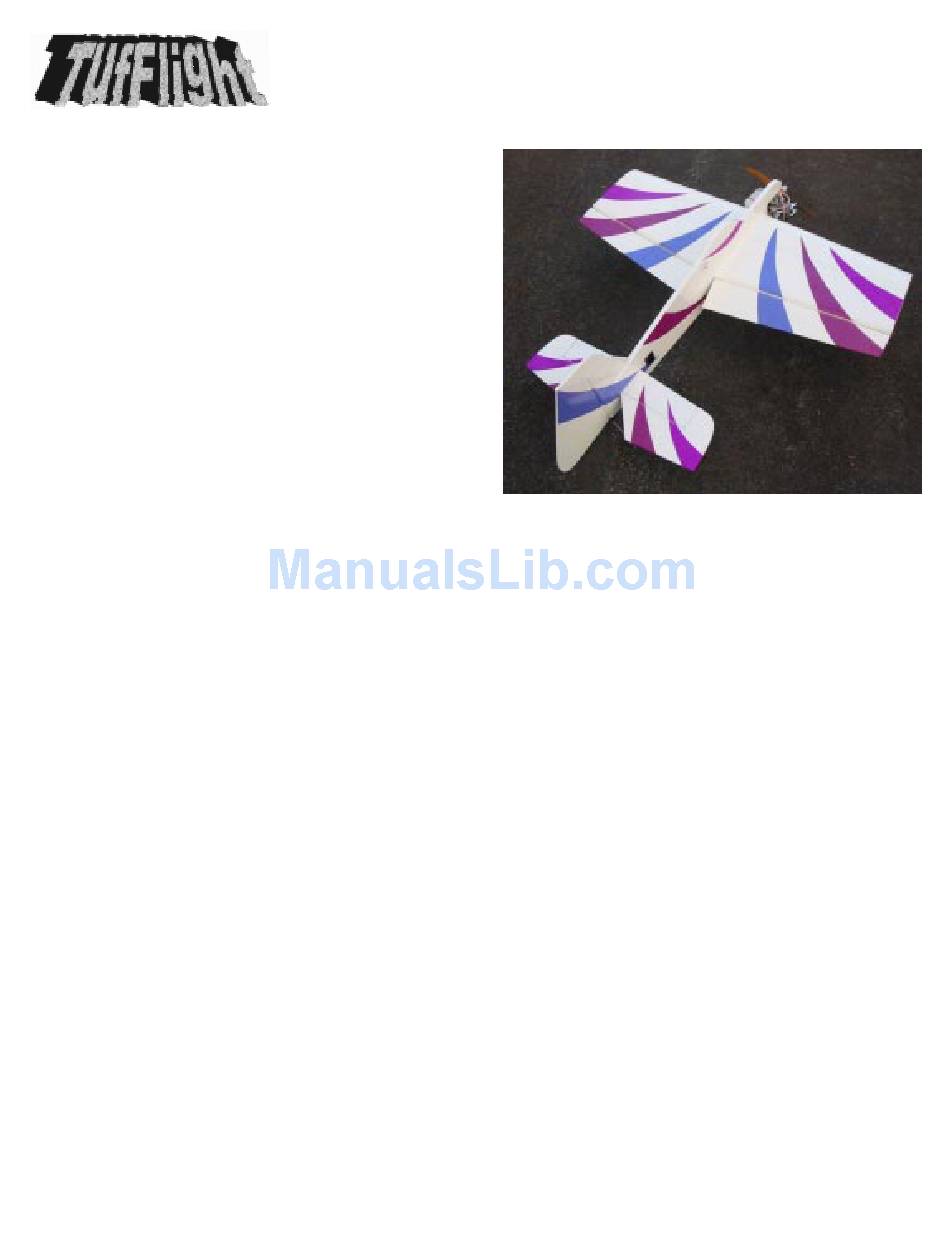

TufFlight Tuf-Yak Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
The Toughest R/C Planes Ever!
46"
Wingspan:
Length:
48"
4.5 - 4.75 lbs
Weight:
Engine:
.63-.82 four stroke
Radio:
4 channels
5
Servos:
670 sq in
Wing Area:
Hello, and thanks for buying the Tuf Yak! Our version
of the popular profile Yak 55SP represents a quantum
leap in flying excellence PLUS unprecedented Durabil-
ity for intermediate to advanced 3D pilots.
Caution: The Tuf Yak is not intended as an R/C trainer airplane. This plane is a very agile aerobatic performer
that is capable of quick rolls, hovering flight and many tricks appealing to the "3D" flyer.
While you may be tempted to fly close to yourself, please practice in a safe manner.
Always obey safety rules and exercise good judgement when learning new maneuvers.
Please read and understand the instructions before starting to build. We recommend joining the AMA and follow-
ing the AMA safety code. Call 1 (800) I- FLY-AMA for more details.
We assume no responsibility for how you use your plane. That said, let's get started!
Items Included in kit:
Foam:
CNC sliced EPP "block"
CNC sliced fuselage core pieces
Wood:
(3) 1/32" x 2-1/4" x 24" ply
(12) 1/16" x 3" x 24" balsa sheet
(4) 5/16" sq x 24" balsa sticks
(2) 1/2"x 18" balsa tri stock
(3) 1/4" x 5/8" x 18" balsa
(1) 5/8" x 3/4" x 18" balsa
(1) 5/16" x 3" x 8-7/8" balsa
(1) 1/4" 5/8" x 4" bass
(2) 1/32" x 6" x 8" ply
(2) 5/16" x 6" dowels
(1) 5/16" x 2-1/2" dowel
(1) 1/2" x 5/8" x 22" pine
Plastic:
(4) G10 joiner pieces
Rev 1.3
5376 Amalfi Drive,
.40 - .53 two stroke,
The CG location is 3/4" behind the spar.
Clay, NY 13041
www.tufflight.com
Tuf-Yak
(4) 1/16" clear plastic control horns
(1) 3/16"" x 4" x 7" white engine plate
(1) 1/16" x 2-1/4" x 15" spacer
(2) 2.5 degree wedges
Hardware:
(8) 10-24 x 1.5" nylon bolts
(8) 10-24 nuts
(8) 6-32 x 3/8" nylon bolts
(2) 1/4" washers
(1) 1/4-20 x 2" nylon bolt
(4) 6-32 nuts
(2) 6-32 x 1-1/4" bolts
(1) 1/4-20 nut
(4) #64 rubber band
(1) roll hinge tape - Frost King # T94
(15) Robart Hinge points
(1) 7" x 1/16" tail skid wire
(1) 21" pre-drilled carbon tube elevator axle
Graph Tech profile landing gear
This Instruction Manual
Full Size Plans
Page 1
