LC-26DA5U
LC-32DA5U

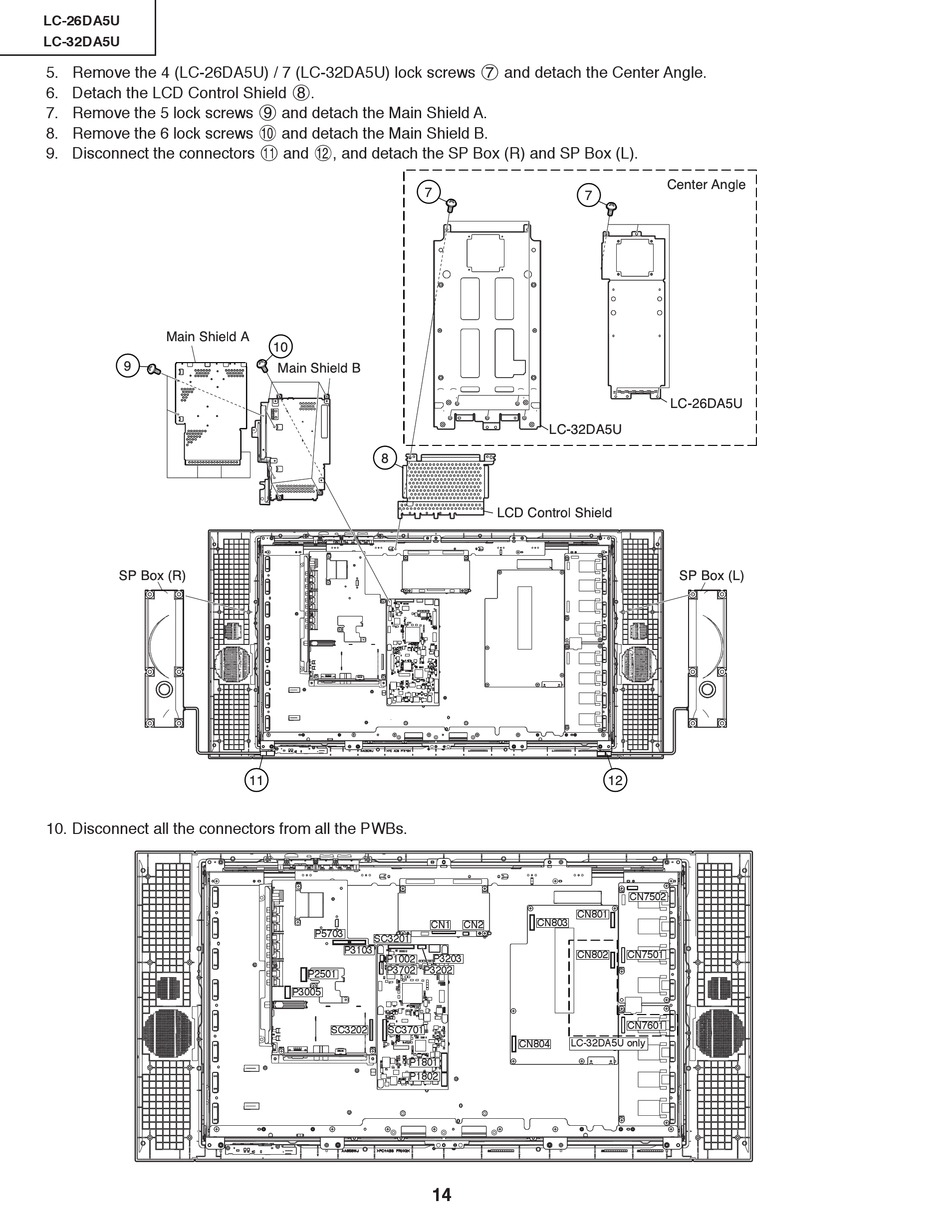

5. Remove the 4 (LC-26DA5U) / 7 (LC-32DA5U) lock screws 7 and detach the Center Angle.
6. Detach the LCD Control Shield 8.
7. Remove the 5 lock screws 9 and detach the Main Shield A.
8. Remove the 6 lock screws 0 and detach the Main Shield B.
9. Disconnect the connectors q and w, and detach the SP Box (R) and SP Box (L).
Main Shield A
9
SP Box (R)
10. Disconnect all the connectors from all the PWBs.
7
10
Main Shield B
8
11
P5703
SC3201
P3103
P1002
P3702 P3202
P2501
P3005
SC3202 SC3701
P1801
P1802
7
L -32DA5U
L D ontrol Shield
12
CN801
CN803
CN1 CN2
CN802
P3203
LC-32DA5U only
CN804
14
enter Angle
L -26DA5U
SP Box (L)
CN7502
CN7501
CN7601
