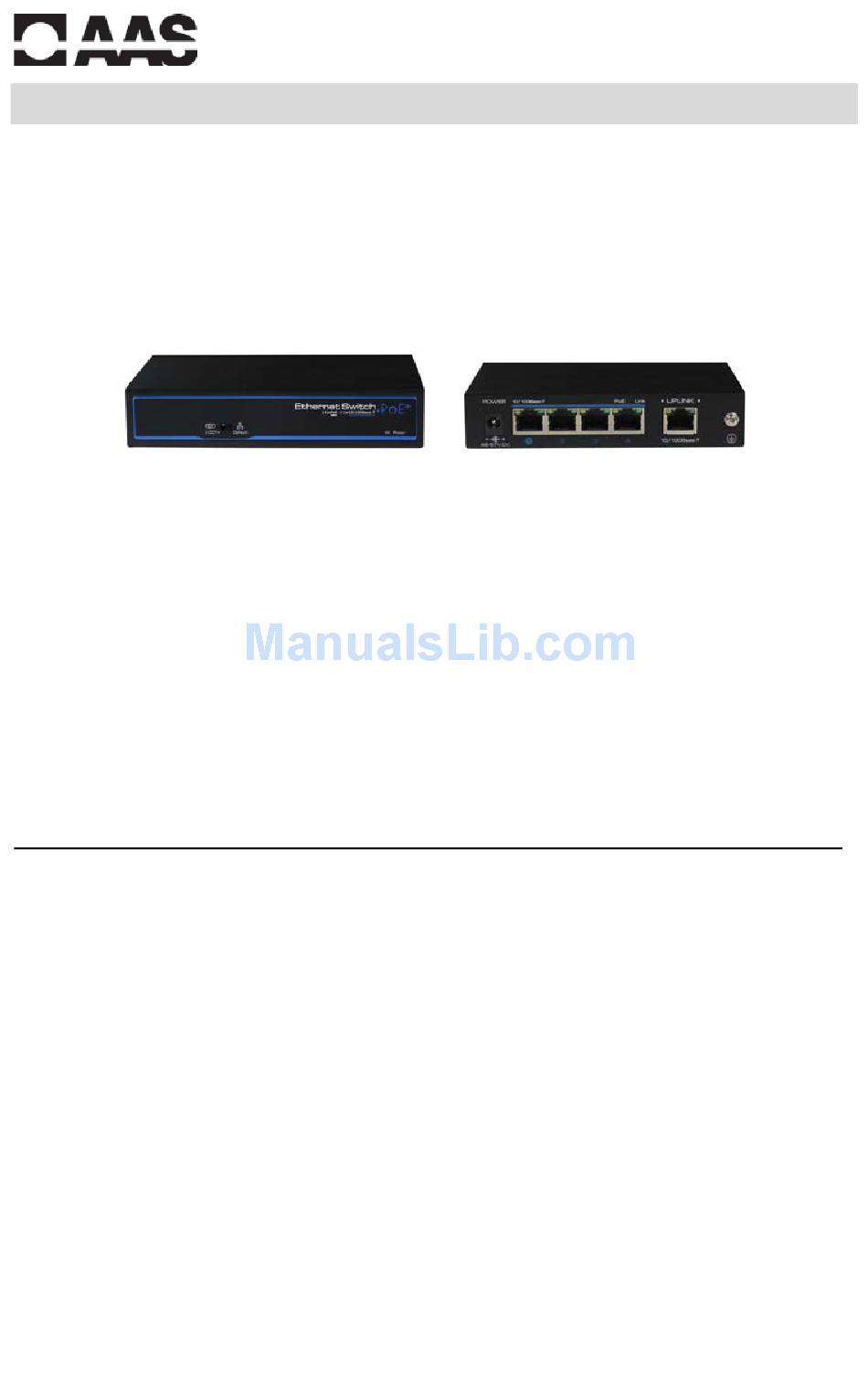

Front
This PoE Ethernet Switch is a security surveillance Ethernet Switch which aims at Ethernet high
definition surveillance and Ethernet project security system. The product fully combines the
characteristics of security surveillance, provides fast packet forwarding ability and abundant
backplane bandwidth, which ensures clear image and fluent transmission. Inserted static, surge
protection circuit can improve product stability. The product supports one key CCTV mode, can
achieve VLAN, QoS priority after configuration, control the Net storm, protect the information
security, prevent the viral transmission and Ethernet attack, fully satisfy the Ethernet video
security surveillance system and Ethernet project needs.
Features
•
Transmission distance for Ethernet port up to 100m / 300ft
•
1 pc 100Mbps uplink Ethernet port; 4 pcs 100Mbps down link Ethernet ports; every port
supports MDI/MDIX
•
1~4 downlink ports can only communicate with uplink ports
•
Meets IEEE802.3, IEEE802.3u, IEEE802.3 af/at standards
•
PoE use End-Span; the spare cable can be of other use
•
Excellent anti-thunder, anti-static and anti-interference ability
•
Delicate design and easy installation
•
Configurable anti-theft lock hole to guard against theft
•
Plug and Play, No Setting required
•
48V~57V DC
Copyright © 2015 AAS Technology
www.AAS.com.tw
User Manual
4 Ports PoE Ethernet Switch
POE-0401-60
Rear
..
POE-1
R201502-V24
Advertisement
Table of Contents
Summary of Contents for AAS POE-0401-60
-
Page 1: User Manual
• Excellent anti-thunder, anti-static and anti-interference ability • Delicate design and easy installation • Configurable anti-theft lock hole to guard against theft • Plug and Play, No Setting required • 48V~57V DC Copyright © 2015 AAS Technology POE-1 www.AAS.com.tw R201502-V24... - Page 2 Please read the Manual before attempting to use this product. Specifications and appearance are subject to change without notice. Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems). This symbol on the product or on its packaging indicates that this product shall not be treated as household waste.
-
Page 3: Package Contents
Package Contents 1. One (1) 4 Ports PoE Ethernet Switch 2. One (1) Power Adapter 3. One (1) AC Power Cable 4. One (1) Accessory Set 5. One (1) User Manual For any returns, please include all components listed above with original packaging in Resalable Condition. -
Page 4: Hardware Installation
Check if the installation is correct, if equipment is in good condition, if connection is stable, and then provide power for the system. Ensure the Ethernet equipment has appropriate power voltage and that it is working properly. Technical Specifications Model POE-0401-60 Power Supply Power Adapter Input Voltage Range 48V~57V DC Power Consumption Equipment <5W... -
Page 5: Troubleshooting
The remedies, provided therein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise. www.AAS.com.tw... - Page 6 CAUTION!!! Failure to read this notice may result in damaging the camera or device in which the warranty will be voided due to installation error. When using any type of RJ45 jack powered balun, a Cable Tester must be used to ensure proper connection. Many individuals can make RJ45 connections easily, however mistakes can be made.
- Page 8 MADE IN CHINA Copyright © 2015 AAS Technology POE-1 www.AAS.com.tw R201502-V24...
