Page 1

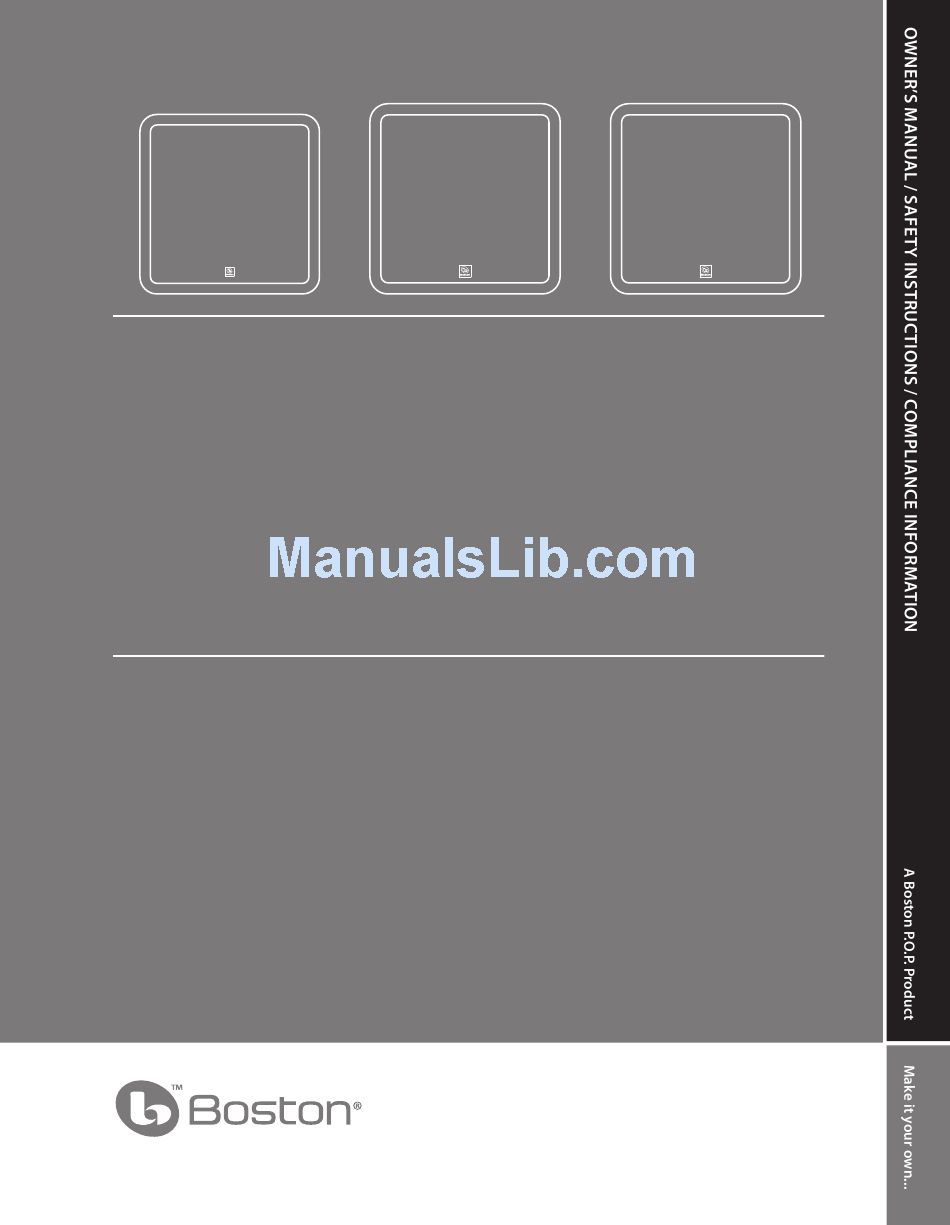

Bedienungsanleitung Información de Cumplimiento conformità / Sicherheitshinweise / Konformitätserklärung français svenska Caissons de graves Boston Boston Horizon Subwoofers Horizon Bruksanvisning / Guide de l’utilisateur / säkerhetsanvisningar Instructions de sécurité / / information om Informations relatives à la överensstämmelse...
IMPORTANT SAFETY INSTRUCTIONS WARNINg! To reduce the risk of fire or electri- This symbol found on the apparatus indicates hazards arising from dangerous voltages. cal shock, do not expose this apparatus to rain or moisture. This symbol found on the apparatus indicates the user should read all safety statements found in the user This symbol found on the apparatus indicates that manual.
Page 3
Thank you for choosing Boston Acoustics. The Horizon subwoofers incorporate high-quality components that produce the famous Boston Sound. The subwoofers are ideally suited for use in a high-quality 5.1 channel home theater or stereo music system. They are capable of impressive deep bass and high output from remarkably compact enclosures. In addition, they feature BassTrac®, a proprietary Boston-designed circuit that tracks the input signal to the subwoofer and prevents its ampli-...
Page 4
Keep the shipping carton and packing materials for future use. Be sure to keep your purchase receipt in a safe place, as it may be required for warranty purposes. HPS 10HO, HPS 10SE and HPS 12HO subwoofers with removable feet. Placement Options Place the subwoofer next to a wall or in a corner near your main speakers.
Page 5
Connections After your speakers are properly placed, you are ready to wire your system. NOTE: Power is always supplied to the subwoofer electronics unless it is unplugged or switched to the off position using the power switch located on the rear panel. The auto-on circuitry only activates or deactivates the power amplifier. Make sure your subwoofer and receiver are unplugged when making the connection.
Connecting to Electronics Without a Subwoofer Output If the electronic in your system does not have a subwoofer of LFE output you can connect the HPS units to a preamp output. Use a stereo RCA cable (not included) to connect the preamp outputs to the Left and Right Line Level inputs. Adjusting the Crossover Control When using the Line Level inputs (not the LFE input) the subwoofer’s built-in crossover is engaged.
Page 7
Limited Warranty Boston Acoustics warrants to the original purchaser of an HPS subwoofer that it will be free of defects in materials and workmanship in its mechanical parts for a period of 5 years from the date of purchase. The warranty period for the electrical components is 1 year.
