Summary of Contents for RedPort Optimizer Voice

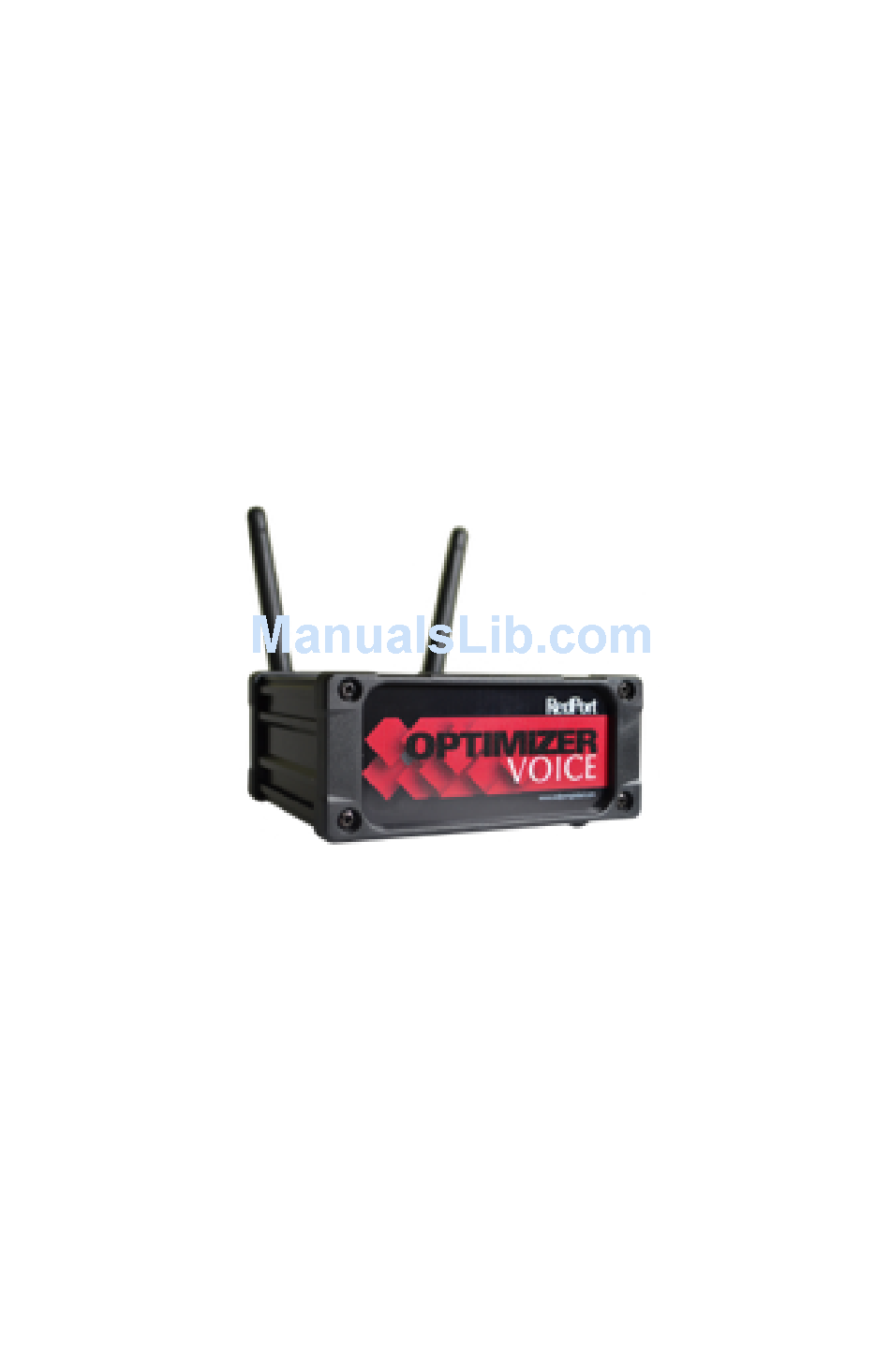

- Page 1 Optimizer Voice QuickStart Guide Information and easy-to-follow instructions on how to set up your Optimizer Voice with your satellite broadband terminal.
-
Page 2: Table Of Contents
9. First Use With Captive Portal Enabled….10 10. Captive Portal Usage………………….….11 11. Router Administration..…………………..12 12. Network-wide Web Compression…..…..12 13. Email Subaccounts………………………..13 14. PBX Voice Setup…………………………..14 15. Multi-VoIP (Multi-User VoIP)………..…….15 16. Enable RedPort VoIP Service…………….16 17. Voice Using Your Satellite Airtime……….16 18. Factor Default……………………..……….18... -
Page 3: Overview
The unit can be configured to allow other kinds of traffic (say, apps on a phone), while still giving you control over usage. • Email with RedPort is compressed up to 95% of its original size, meaning lower data usage and faster data transfer. •... -
Page 4: Setup Requirements
VoIP calls at one time. • Using the RedPort VoIP service, you can make voice calls for sometimes considerably less than traditional satellite phone voice rates. These VoIP calls consume approximately 15 minutes of talk time for each Mb of data. -
Page 5: Connection To The Device
Connecting to the Device You can connect to the Optimizer Voice either by connecting your satellite broadband terminal to the LAN port via Ethernet cable, or by WiFi-connecting using a WiFi USB bridge (for example, if using an IsatHub iSavi). -
Page 6: Router Admin Login
Router Admin Login There are two levels of administrative access for the Optimizer Voice: “Admin” access is designed for the onsite administrator who may not have the technical knowledge required to configure the router. Basic functions (like creating PIN codes, managing users,... -
Page 7: Setup Option #1: Default Setup
XGate or compression web-browsing client XWeb. The router is configured to allow this traffic through. XGate/XWeb users should refer to the RedPort Optimizer Quick Start Guide when using Optimizer Voice in this mode. This guide can be found online at http://www.redportglobal.com/support/... - Page 8 Users can also use Skype and other P2P applications that require a lot of bandwidth. To configure the Optimizer Voice with the Optimum setup: 1. Login to the Optimizer Voice admin portal. 2. Navigate to Services > Crew Internet Access >...
-
Page 9: Setup Option #3: Alternate Setup
The following procedure will enable the alternate setup: 1. Log in to the Optimizer Voice admin portal. 2. Navigate to Network > Firewall > Traffic Rules 3. Uncheck the first 6 rules at the top of the list labeled “XX - DO NOT MODIFY”... -
Page 10: First Use With Captive Portal Enabled
by selecting “Auto-detect proxy settings for this network”. Other browsers can be configured similarly. 6. Instruct the user to use the captive portal URL to access the login page. This is done by entering http://10.1.5.1:4990/www/login.chi the browser. 7. Once logged in, the user will have access to all http and https websites. -
Page 11: Captive Portal Usage
Captive Portal Usage As stated above, entering an http:// URL into a browser redirects the user to the captive portal login page. Alternately, users can access the captive portal directly using one of the following URLs. Login – http://10.1.5.1:4990/www/login.chi Status – http://10.1.5.1:4990/www/status.chi Logout –... -
Page 12: Router Administration
Compression You must have a valid web compression account before using this feature. Please contact your RedPort dealer and request a username and password for the compression service. Once you have your account information, log in to the router and browse to Services > Web Compression and Filtering >... -
Page 13: Email Subaccounts
A much better solution is to use RedPort Email subaccounts for crew, work teams, passengers, or guests. These compression email accounts run directly on the Optimizer Voice and can be accessed via a webmail interface on the web. -
Page 14: Pbx Voice Setup
In this section, you can add sub accounts for Optimizer Voice email. PBX Voice Setup Optimizer Voice has a full-featured PBX that allows you to have unlimited extensions, free local area calling, and SMS. By default, 4 extensions have been created in the system. -
Page 15: Multi-Voip (Multi-User Voip)
(multiple incoming/outgoing calls and SMS all at the same time) when using the optional RedPort VoIP service. With RedPort VoIP service, you get a phone number assigned to you (for a nominal monthly fee) and pay very small termination rates for outbound calls - generally in the realm of $0.16... -
Page 16: Enable Redport Voip Service
RedPort VoIP service. When the service is activated, you will be given a “Key.” This key is a long alpha-numeric string that must be entered into the Optimizer Voice web interface. Login to the Optimizer Voice web interface and select Services >... - Page 17 The only time you will need to go to the “Sailor” tab in the Optimizer Voice web interface is if your Sailor FleetBroadband terminal is not your primary device (ie: if it is being used for failover with a...
-
Page 18: Factory Default
Contact your RedPort satellite dealer if you need to purchase the Optimizer Voice ATA. Factory Default Optimizer Voice can be reset to factory default by pressing the reset button on the back of the router for 15 seconds and then releasing it. The router will then reboot and start backup with its default settings.
