Summary of Contents for Masotti TB6

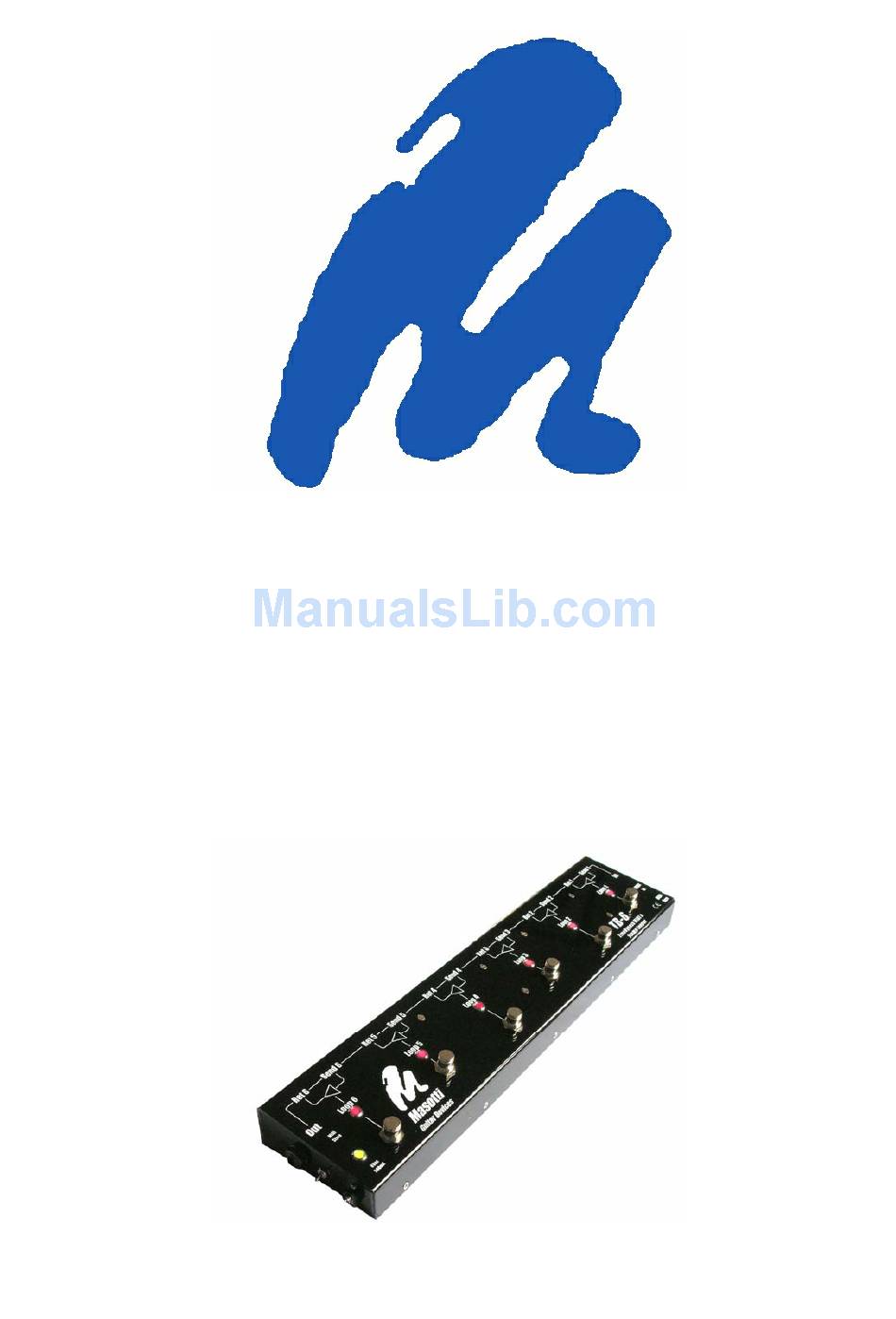

- Page 1 TB6 User’s manual TB61_1ENG Masotti Guitar Devices User’s manual...
- Page 2 "no compromise" philosophy. TB6 is a true bypass looper. It manages up to six pedals in direct mode as well as via MIDI. Noise switch is absent thanks to the microprocessor clickless technoloy, developed by MGD and adopted in all our products.
-
Page 3: Table Of Contents
TB6 User’s manual TB61_1ENG Index General descripiton..........................4 Commands and connectors......................4 Normal functioning..........................5 MIDI programming..........................5 Standard MIDI map.........................6 Connections............................6 Power supply............................6 Effects sequence..........................7 Inteconnecting cables and connectors....................7 Warranty............................7 Important safety notes........................8 Technical specs..........................8... -
Page 4: General Descripiton
Two or more TB6s can be easily connected in daisy chain. In the MGD products panorama, PW4 and MIDI STOMP are the ideal complements for TB6 to have a no-compromise and flexible pedal board. Commands and connectors. On the front panel, the six stomps are avalaible for the immediate access to loops. The corresponding leds indicate the loop status. -
Page 5: Normal Functioning
5-poles cable. Pedalboard must be set in channel 1 or the desired channel, as requested at the moment of the order. 2) Switch ON the TB6 by simply connecting the power supply to the power conncetor. 3) Move the Prog swith to the high position; status LED now is red. -
Page 6: Standard Midi Map
TB61_1ENG 6) Repeat 4 an 5 steps as necessary. 7) Move the prog switch in low position; status LED becomes green. Now TB6 is in normal mode and you can start to play and enjoy it! You can move to normal mode to prog mode and vice-versa in any time simply acting on the left side switch. -
Page 7: Effects Sequence
A start trace for connecting the effects can be the following: 1) wha wha: if it is true bypass, it can be connected also bifore the TB6. Of course, in this case it’s not pssible to manage it via MIDI;... -
Page 8: Important Safety Notes
• Never introduce in the plugs objects different than corresponding connectors. • Always use CE/FCC-approved and good conditions power supply. • Before switch TB6 on, check mains and ouptut voltages value on the power supply. Technical specs. Six loops true bypass system.
