Page 1 MEDI-MINDER INSTALLATION MANUAL Medi-Minder Installation Manual Rev1.11...
Page 2 Tel: +61 3 9875 6400 Facsimile: +61 3 9875 6422 Email: smartlink@ness.com.au Web Site: www.smartlink.com.au SmartLink Medi-Minder Installation Manual Rev 1.11 Document Part Number: For Products: Medi-Minder Unit © 2012 Ness Corporation Pty Ltd ABN 28 069 984 372 Specifications may change without notice.

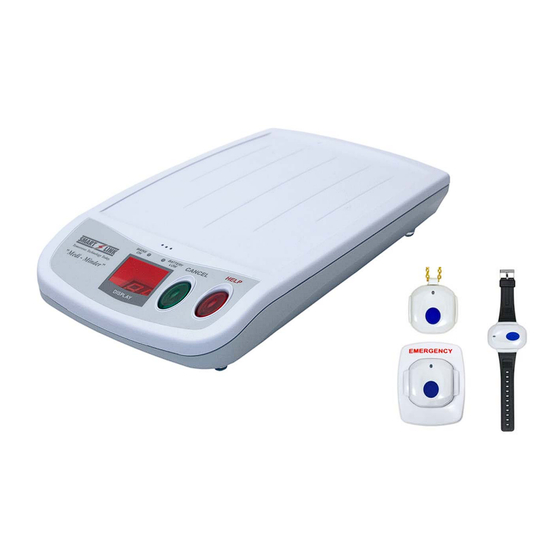

Page 3 .......................28 PECIFICATIONS 2 . E q u i p m e n t L i s t A Medi-Minder Unit consists of the following equipment: 1. Medi-Minder Unit 2. Waterproof 2 Way Pendant (106-183) 3. 9VDC 300mA Regulated Plug Pack (840-050) 4.
Page 4: I Ntroduction
3 . I n t r o d u c t i o n Your SmartLink Medi-Minder unit has been designed to provide you with the freedom and peace of mind in that, should you need assistance or HELP, it is available to you 24 hours a day with the simple press of a Button.
Page 5 Aux Inputs/Outputs I/P 1, 2 & O/P 1, 2, 3 (Part No. 450-191) Common - Black Input 1 - Red Input 2 - White Output 1 - Green Output 2 - Brown Output 3 - Blue Medi-Minder Installation Manual Rev1.11...
Page 6: P Rogramming R Ules
5.2 Programming Options NOTE: If NO Buttons on the Medi-Minder unit or the Radio Key Pendants have been pressed within 5 minutes, the Medi- Minder unit will revert back to NORMAL OPERATION MODE (NB: A Client Account Number and at least one Phone Number must be programmed in for the Medi-Minder unit to Exit Program Mode and enter Normal Operation Mode).
Page 7: O Ptions
6.1 Programming Main Menu Options The easiest way to program the Medi-Minder unit is to use the large CANCEL (Green) Button and the HELP (Red) Button on the Medi-Minder unit. Press the CANCEL (Green) Button to scroll through the Main Menu Options.
Page 8: O Ptions
“dF” is displayed. Press the CANCEL and HELP Buttons at the same time and the unit will beeps three times to indicate that ALL Phone Numbers (n1 to n4) have been Erased. Press the CANCEL Button to move to the next Program Option. Medi-Minder Installation Manual Rev1.11...
Page 9 6.2.3 SERVER Programming Options (Medi-Minder 3G Version Only) Note: The easiest way to program the SERVER Programming Options is to use the SmartLink Up/Download Programmer Software (MediMinder) Server 1 IP Address - (up to 30 Digits/Characters Maximum) Note: Programmed as the first Digit will delete Server 1 URL...
Page 10: Pendants Programming Options
“dF” is displayed. Press the CANCEL and HELP Buttons at the same time and the unit will beeps three times to indicate that ALL Radio Key Pendants (User Keys u1 to u8) have been Deleted/Erased. Press CANCEL Button to move to the next Program Option. Medi-Minder Installation Manual Rev1.11...
Page 11: Detectors Programming Options
“dF” is displayed. Press the CANCEL and HELP Buttons at the same time and the unit will beeps three times to indicate that ALL Detectors (Detectors d1 to d8) have been Deleted/Erased. Press the CANCEL Button to move to the next Program Option. Medi-Minder Installation Manual Rev1.11...
Page 12 “dF” is displayed. Press the CANCEL and HELP Buttons at the same time and the unit will beeps three times to indicate that ALL Outputs (Outputs o1 to o3) have been Disabled. Press the CANCEL Button to move to the next Program Option. Medi-Minder Installation Manual Rev1.11...
Page 13: Preferences Programming Options
Button to move to the next Program Option. Exit Time 10 to 60 Seconds - The time requesting Arm Mode and Medi-Minder unit being in that Mode. “E1” is displayed. Press the HELP Button to view programmed time. “60” is displayed.
Page 14 Quiet - (Ademco & British DTMF Versions) Disabled - Medi-Minder unit beeps on all Key presses and Alarms. Enabled - Medi-Minder unit beeps are suppressed. Medi-Minder unit will answer in LISTEN ONLY MODE. This does not effect the Hands Free Operation.
Page 15 To store an option selected, press the CANCEL and HELP Buttons at the same time. The unit will beep twice while flashing the display to acknowledge that the option has been selected. Press the CANCEL Button to move to the next Program Option. Medi-Minder Installation Manual Rev1.11...
Page 16 Enabled - Unit will automatically hang up if it detects a specific hang up signal (ie. short beep, long gap) Disabled - Medi-Minder unit will not detect a hang up so call needs to be either, manually terminated (Pressing the * Key twice), pressing the Medi-Minder unit CANCEL (Green) Button (or the OFF Button on any 3 Button Pendant), or by waiting for the Medi-Minder unit to time out.
Page 17: Systems Programming Options
“dF” is displayed. Press the CANCEL and HELP Buttons at the same time and the unit will beeps three times to indicate that ALL System Programming Options have been defaulted. Press the CANCEL Button to move to the next Program Option. Medi-Minder Installation Manual Rev1.11...
Page 18 6.2.10 CELLULAR Programming Options (Medi-Minder 3G Version Only) Cellular Identity NB: Cannot be changed but are there for your reference only eg. 359769123456789 Cellular Type NB: Cannot be changed but are there for your reference only eg. SIMCOMSIM5216J Cellular Revision NB: Cannot be changed but are there for your reference only eg.
Page 19 “dF” is displayed. Press the CANCEL and HELP Buttons at the same time and the unit will beeps three times to indicate that ALL System Programming Options have been defaulted. Press the CANCEL Button to move to the next Program Option. Medi-Minder Installation Manual Rev1.11...
Page 20 “dF” is displayed. Press the CANCEL and HELP Buttons at the same time and the unit will beeps three times to indicate that ALL System Programming Options have been defaulted. Press the CANCEL Button to move to the next Program Option. Medi-Minder Installation Manual Rev1.11...
Page 21: Reports Programming Options
6.2.13 REPORTS Programming Options Report Modes - (Medi-Minder 3G Version Only) GSM Only GPRS/PSTN PSTN/GPRS GPRS Only GPRS/GSM/PSTN PSTN/GPRS/GSM GPRS/GSM PSTN Only PSTN/GSM/GPRS “rS” is displayed. Press the HELP Button to view programmed option. “ 8” is displayed. Pressing the HELP Button again to scroll through (0, 1, 2, 3, 4, 5, 6, 7, & 8).
Page 22 NB: To Exit Program Mode - Client Account Number “CA” and Phone Number “n1” must be programmed/entered for the Medi-Minder Unit to Exit Program Mode. “PE” is displayed. Press the HELP Button on the unit and the unit Annunciate “unit disarmed”...
Page 23 7 . S e t t i n g T i m e & D a t e The Medi-Minder unit has an inbuilt Clock and Calendar that is backed up by the system battery and will remain even in the event of a power failure. If you require the time and date to be changed for any reason then perform the following steps using the CANCEL and HELP Button on the Medi-Minder Unit: Note: You can also use the SmartLink UpDownload Programmer Software to Set the Time and Date.
Page 24 1 0 . C e l l u l a r U D P / S e r v e r Note: Medi-Minder 3G VERSION ONLY The Medi-Minder 3G unit has an internal GPRS/GSM Module to perform Network Reporting. This reporting is used to transmit alarm reporting messages from a subscriber’s site to a Data Monitoring Centre via a mobile data network and internet.
Page 25 Check and make sure that the BATTERY SWITCH is turned ON underneath the Medi-Minder Unit. Contact your Installer/Monitoring Centre. is on the Display - The SmartLink Medi-Minder unit failed to send a message to your Monitoring Centre – Check and Make sure that the telephone lead is plugged in &...
Page 26: Format
HELP P 8 none *Note: The Medi-Minder unit HELP will be on the channel programmed in the System “S_” Main Menu Option and the Medi-Minder unit Help (Red) Button Reporting Channel “HE” option. Alarms sent with “CL” CALL OPTION AVAILABLE ON KEYS ENABLED. (V2.0 – 2.2 Only)
Page 27: Contact Id Reporting
Tamper Alarms Detector Tamper 383 Tamper 9 - 16 Panic Alarms Medi-Minder unit Help Button 120 Panic Alarm Hardwired Inputs 1 to 2 – “i1” to “i2” 120 Panic Alarm 21 - 22 Radio Keys Panic Option - “Pc” or “An”...
Page 28: Eporting
The Tunstall Base Station will transmit a trigger message, DTMF digits ‘DB’, to signal to the Medi-Minder unit to start its transmission. The Tunstall Base Station will transmit a kiss off message, DTMF digits ‘DB’, to signal to the Medi-Minder unit that it has received the message.
Page 29: S Pecifications
Intruder Alarm Systems - Wireless  AS4268.2012 Radio Equipment & Antenna Systems - Short Range Devices WARNING: For safety reasons, only connect equipment with a telecommunications compliance label. This includes customer equipment previously labelled permitted or certified. Medi-Minder Installation Manual Rev1.11...
Page 30 To the best of our knowledge, the information contained in this manual is correct at the time of print. SmartLink “A division of NESS CORPORATION PTY LTD” reserves the right to make changes to the features and specifications at any time without prior notice in the course of product development. Medi-Minder Installation Manual Rev1.11...
