Summary of Contents for Byrobot Drone Fighter HD CAM

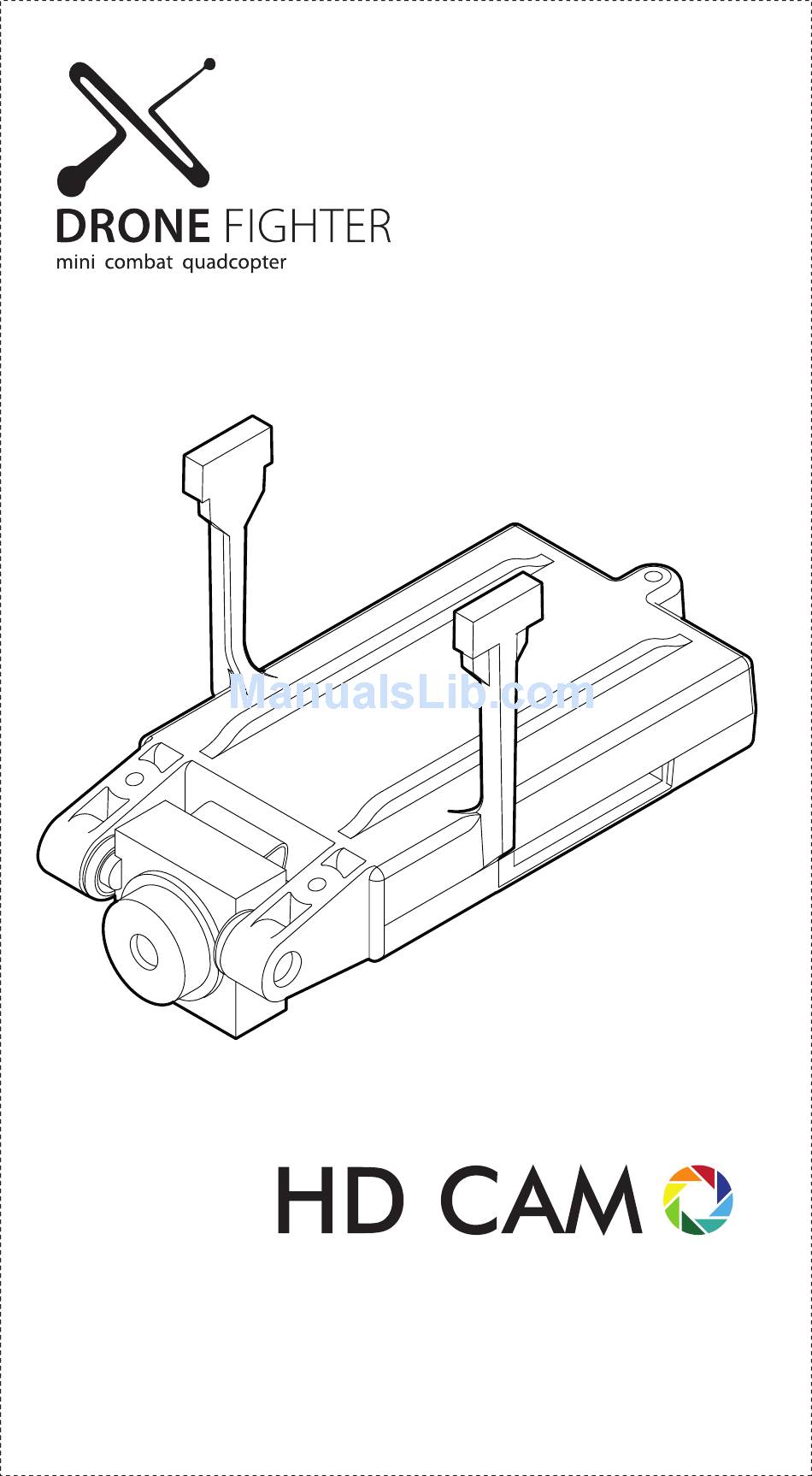

- Page 1 User Manual...
- Page 2 Components 1. Micro Camera 2. Micro SD Memory Card 3. OTG(On-to-Go) Memory Card Reader 4. Motor Bracket Adapter 5. User Manual Micro SD Micro Camera Memory Card OTG(On-to-Go) Motor Bracket Adapter Memory Card Reader...
- Page 3 Cautions 1.Be sure to know and follow instructions before use. 2.Do not tamper with the structure of this product. 3.Prevent electrical shocks from damaging this product. 4.Keep this product from other electronic products, magnetic objects, or wireless devices. 5.Please check the available memory before taking videos and photos.
- Page 4 How to equip the camera 1. Remove the 2. Remove the canopy 3. Remove the battery holder propeller guards 4. Equip the motor brackets 5. Connect the camera wire to the drone body with the motor bracket adapters 6. Attach the camera holder to the drone body. 7.
- Page 5 Ready to shoot *Caution!! The words on the card should face downwards Insert the Micro SD card Insert the fully charged Insert the battery and in the camera. battery. turn on the controller. Shooting 1. Stand-by : Blue Light ON 2.
-
Page 6: Control Buttons
Camera LEDs Control Buttons HD Cam RED LED BLUE LED No card BLINGKING VIDEO BUTTON Stand - by START / FINISH PHOTO BUTTON BLINGKING Photo USB ports (one time) Video (Rec) Power switch How to watch the video on android phones. (The iPhone is not supported) Install MX Player in android play store. -
Page 7: Check The Data
You can check the data the camera to connect the reader into the reader. (Push the card briefly) to smart device or PC. ■ CS Center --------------------------------------------- Customer Support Center of BYROBOT Co.,Ltd. Mail : help@byrobot.co.kr ■ Onlines --------------------------------------------- www.byrobot.co.kr facebook.com/DroneFighter165 Youtube.com/user/BYROBOTCO...
