Summary of Contents for Senrigan GP-55

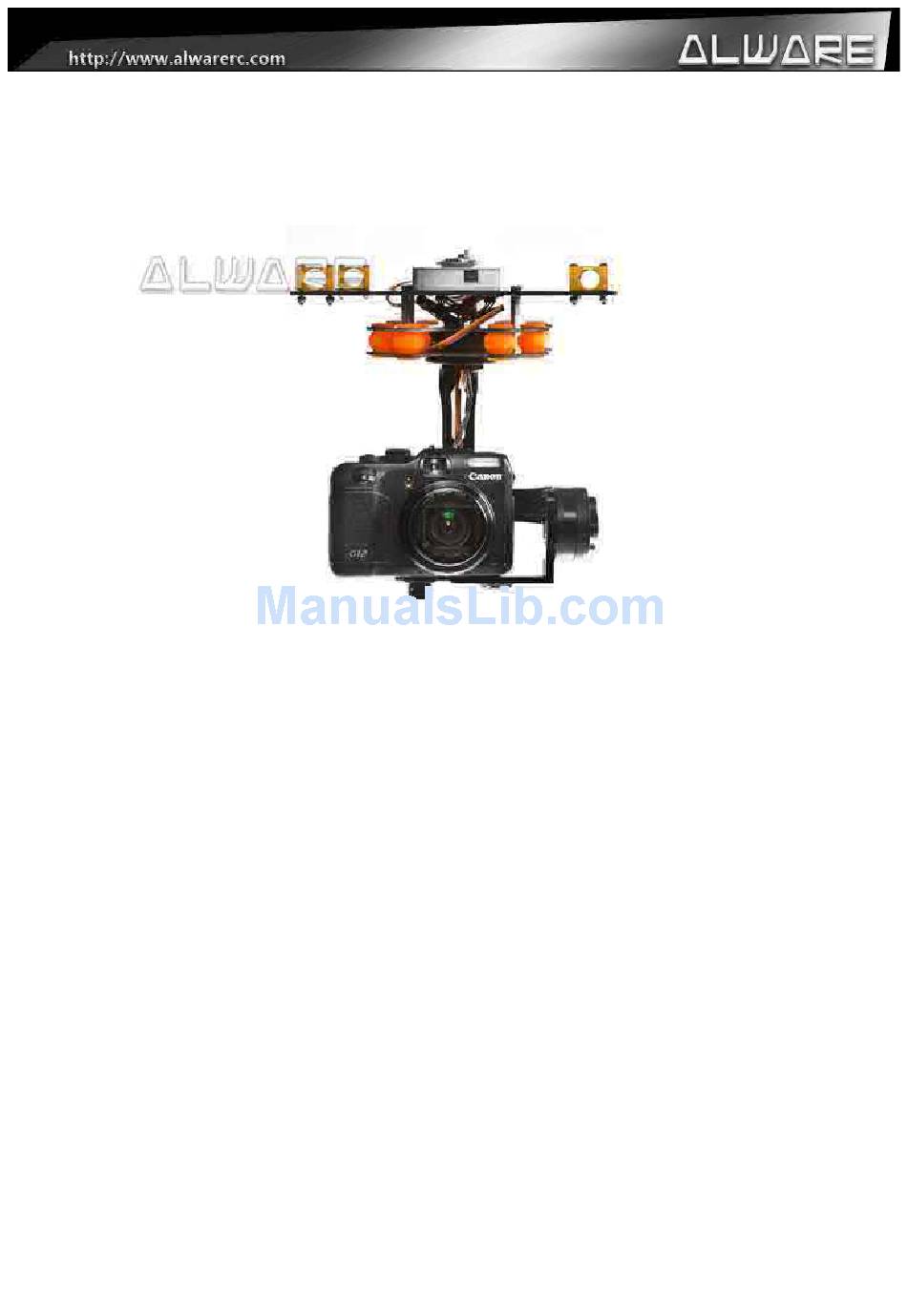

- Page 1 Senrigan GP-55 3-Axis Brushless Gimbal (For 600 -1000 Size Multicopter) Instruction Manual v1.1 12 February 2014...
-
Page 2: Table Of Contents
Content 1. Introduction …................3 -Features -Specification -Included 2 . Check list …................4 3 . Equipment Required For Assembly …..........6 4 . Assembly steps …............... 7 5 . End of manual …..............15... -
Page 3: Introduction
PID tuning of the Brushless Gimbal. However, it is easy and convenience to change the setting (setup Follow Mode etc.) of GP-55 since it is using the famous Gimbal Software called Alexmos which is one of the most user friendly and functional software for brushless gimbals. -
Page 4: Check List
2. Check List Please Check the Follow parts. Open box. Senrigan GP-55 3-Axis Brushless Gimbal packing box. Damper plate up *1 Top plate *1 Damper plate down *1 (with big circle in Hex cap screws *4 the middle.) Motor *3... - Page 5 Black Pieces *4 Black gimbal piece *6 Camera nut *1 Alu rods *4 Scew pack *1 Boom mount yellow piece set *4 GP55 main control board with case *1 Hex screws *8 Cable *1 M3 self-nuts *8 IMU cable *1 IMU with sticker *1...
-
Page 6: Equipment Required For Assembly
3. Equipment Required For Assembly Sony Nex 5 / or Sony Nex 7 DJI S800 EVO kit / or Alware Cyclone X8 Octocopter 2S 800Mah (or above) battery with JST connector... -
Page 7: Assembly Steps
4 , Assembly Step : **Always apply little amount of Threadlock when installing metal parts. Use M3x5mm screw only, screw longer M2.5x6mm Hex Cap Screw then 5mm will damaged the motor! M3x5mm Hex Cap Screw M2.5x6mm Hex Cap Screw... - Page 8 M2.5x6mm Phillip Flat Screw Use M3x5mm screw only, screw longer M3x5mm Hex Cap Screw then 5mm will damaged the motor!
- Page 9 M2.5x6mm Hex Cap Screw M2.5x6mm Phillip Flat Screw Use M3x5mm screw only, screw longer then 5mm will damaged the motor!
- Page 10 M3x5mm Hex Cap Screw M3x6mm Hex Cap Screw...
- Page 11 Pan(Yaw): Motor A Wiring of Motor wires. IMU cable must Roll: Motor B not pass through the motors. This will Tilt : Motor C affect the performance of the gimbal! Install the main control case on the X mount (M2x16mm Hex Cap Screw). Make sure you can see four set pin.
-
Page 12: Camera
Install four set yellow boom mount on IMU board stick under the Camera plate. the X mount. (M2.5x23mm Hex Cap Screw) Insert all wire to main control board. Pan motor insert direct to main control board. Link up the X mount with alu rods. - Page 13 The Pan(+-360 degree) and Tilt(+45-90 degree) axis of GP-55 can be controlled by using any two Free channels of your receiver. Finish assembly. Mount GP-55 to the Multicopters.
- Page 14 Specification for the Simple Brushless Gimbal Controller with GP-55 Gimbal: Board: version 1.0+3a Firmware: 2.2 b2 Tuning Software: SimpleBGC GUI 2.2b2 GP-55 included Licensed BaseCam SimpleBGC Controller (Starting from version 2.1, firmware upgrade is possible from GUI.) Alexmos websize dowlond 2.2b2 http://www.basecamelectronics.com/files/v10/SimpleBGC_GUI_2_2b2.zip...
-
Page 15: End Of Manual
End of Manual...
