Summary of Contents for FMN alpha DSL WTM PC
-

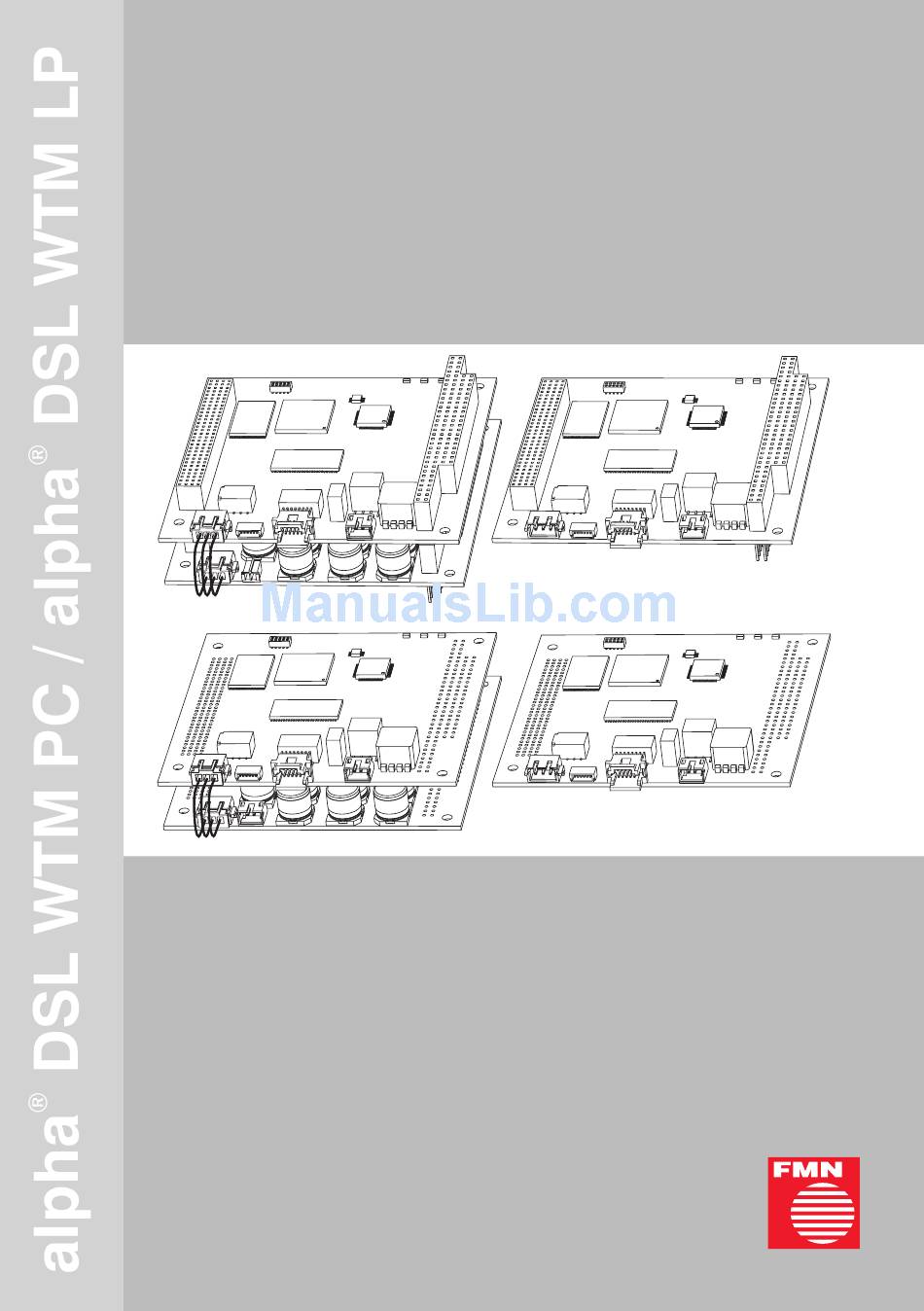

Page 1: Instructions For Use
Instructions for use ADSL modem alpha DSL WTM PC / alpha DSL WTM LP... -
Page 2: Safety Precautions
Safety precautions Safety precautions The ADSL modem complies with the European norm EN60950 – safety of information technology equipment. Do not use or install your unit in rooms with explosive material! Do not touch the device terminals with metallic or sharp objects! The connection cables of the unit may only be plugged into the designated sockets! Never install the unit during a thunderstorm! -
Page 3: Checking The Content Of The Package
8 bit and 16 bit-ISA connector according to PC/104 specification Connection for internal voltage supply (only at version alpha DSL WTM PC AD and alpha DSL WTM PC BD) Version with power supply PCB see type plate: version alpha DSL WTM PC AD for ITUG.992.1 Annex A version alpha DSL WTM PC BD for ITUG.992.1 Annex B (G.dmt 1TR112 (UR2)) - Page 4 alpha DSL WTM LP alpha DSL WTM LP DSL modem power supply PCB LEDs: LED for the condition of the DSL connection Power LED for the operating condition of the modem LED for the condition of the LAN connection Connections: DSL input for the connection to the splitter USB / LED USB connection / connection for external LED for DSL signalling...
- Page 5 3-core connection line. Modem and power supply PCB are to be attached to a PC/104 slot. At the versions alpha DSL WTM PC A and alpha DSL WTM PC B, the modem is to be attached to a PC/104 slot.
- Page 6 Connection alpha DSL WTM LP Connecting alpha DSL WTM LP In the following picture you can see how you have to cable the modem: opening in front plate power supply for RJ45 socket cable power supply cable 14,8 adapter cable adapter cable adapter cable adapter cable...
- Page 7 Connection Assignment of the connecting sockets 1. DSL connecting socket 2-pole on modem PCB for the connection to the DSL splitter DSL connecting socket 2-pole RJ45 socket at DSL adapter cable Assigned with Assigned with DSL signal 1,2,3 not used DSL signal DSL signal DSL signal...
- Page 8 4. Connecting socket for internal power supply 3-pole on modem and power supply PCB (at versions alpha DSL WTM PC AD and alpha DSL WTM PC BD or alpha DSL WTM LP AD and alpha DSL WTM LP BD for the connection of modem and power supply PCB;...
-
Page 9: Putting Into Operation
Putting into operation Putting into operation and LEDs Required software drivers The communication between PC and DSL over the LAN connection is realized by means of PPPoE (Protocol Point to Point over Ethernet). The driver required for this has to be installed and activated on the PC to which the DSL modem is connected. -
Page 10: Troubleshooting
Troubleshooting Troubleshooting Status indication One possible cause Measures Power - not glowing The modem has no 1. Check the correct sit of the DSL power supply. modem in the PC/104 stack; check the power supply of the PC/104 module 2. The unit has to be exchanged DSL - not blinking DSL connection faulty Contact provider... - Page 11 Conformity Conformity Herewith, the FMN communications GmbH declares that the alpha DSL WTM PC / alpha DSL WTM LP complies with the essential requirements and the other relevant provisions of the directive 1999/5/EG (R&TTE directive). The conformity with the above mentioned directive is confirmed by the CE symbol on the unit.
-
Page 12: Maintenance / Technical Data
Maintenance / Technical data Maintenance No maintenance is necessary at the alpha DSL WTM. The DSL modem may only be repaired by the manufacturer or by authorized specialists. Technical data of the DSL modem dimensions (W x D x H): with power supply PCB approx. - Page 13 Notes...
- Page 14 Notes...
- Page 15 Copyright All rights reserved. Duplication of these instructions for use or parts thereof by any reproduction method whatsoever is not permitted without prior permission of the manufacturer. Amendments may be published without prior notification. Notwithstanding the above declaration, the manufacturer accepts no liability for errors in these instructions or their consequences.
- Page 16 +49 (36 31) 56-50 00 +49 (36 31) 56-32 24 Email info@fmn.de Internet www.fmncom.com HOTLINE +49 (36 31) 56-34 16 If you have any questions, please do not hesitate to contact us. Subject to change. alpha DSL WTM PC/LP 0112.3.0052.01 Edition: 09/12 (1111-5504)
