English Quickstart Manual OfficeMaster EyeSDN US Quickstart Manual | Ferrari electronic UNIFIED COMMUNIC TIONS www.ferrari-electronic.de...
Page 2
Introduction Welcome Thank you for choosing an EyeSDN USB recording device. In this quick start manual you can find information about the device and software installation process. First Steps • Check if something is missing from your OM EyeSDN USB device package page 2 –...
Page 3

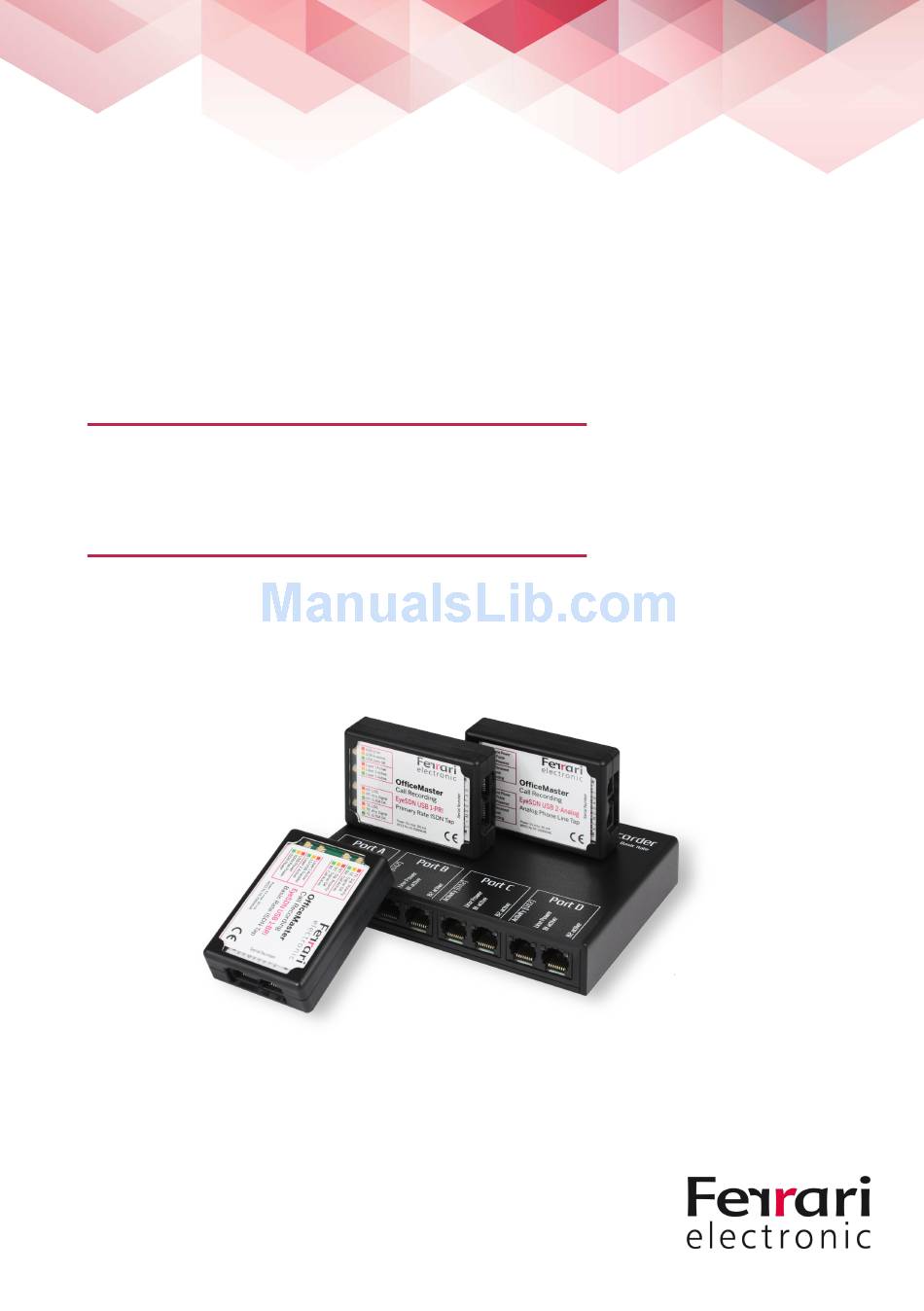

OM EyeSDN USB 1-BRI Call recording device for 1 basic rate interface, 2 channels OM EyeSDN USB 1-BRI CD-ROM Quickstart Manual ISDN Cable USB Cable...
Page 4
OM EyeSDN USB 4-BRI Call recording device for 4 basic rate interfaces, 8 channels OM EyeSDN USB 4-BRI CD-ROM Quickstart Manual USB Cable 4 x ISDN Cable...
Page 5
OM EyeSDN USB 1-PRI Call recording device for 1 primary rate interface (E1/T1), 3 /23 channels OM EyeSDN USB 1-PRI CD-ROM Quickstart Manual USB Cable UTP Patch Cable...
Page 6
OM EyeSDN USB 2-Analog Call recording device for 2 analogue lines, 2 channels OM EyeSDN USB 2-Analog CD-ROM Quickstart Manual USB Cable 2 x Analogue Cable...
Page 7
OM EyeSDN USB 8-Analog Call recording device for 8 analogue lines, 8 channels OM EyeSDN USB 8-Analog CD-ROM Quickstart Manual 8 x Analogue Cable USB Cable...
Installation Start • Insert the software CD into the drive • Wait until the installation dialogue appears • If the installation dialogue does not appear automatically, then start the programme Banner from the CD root folder lick • Version 4 client/server) page 12 Install optional third-party software: Audacity...
Page 9
EyeSDN Software • Select the desired language lick OK • In the welcome dialogue • click Next Installable components SIP WinPCAP • ) — Library for network packet capturing (required for VoIP recording) Recording Service • — Background service for call recording Collector Service •...
Page 10
EyeSDN Software • Check the suggested installation target folder lick Install • • Accept to create the desktop icon by clicking Yes • Click Finish to complete the installation...
Connecting to the Computer • Plug the USB cable into the OM EyeSDN USB device • Directly connect the USB cable to your PC Don't use a USB hub! • Wait until the device firmware has been loaded 1. USB device is activated by the driver 2.
ISDN Primary Rate Interface Existing primary rate installation Integration of an OM EyeSDN USB 1-PRI device Option 1 Option 2...
Page 14
Analogue Line Existing analogue line installation Integration of an analogue EyeSDN USB device OM EyeSDN USB 2 Analog OM EyeSDN USB 8 Analog...
Page 15
Overview Call Browser User interface for finding and playing recorded data back Run: • Start /All Programs / OfficeMaster / Call Browser Interactive Client User interface for interactively monitoring phone calls Run: • Start /All Programs / OfficeMaster / Interactive Client Service Configuration Configuration tool for the Recording Service and the...
Page 16
Further Information Sources Manual is available as electronic version in PDF format • on the CD-ROM: doc/Manual4_EyeSDN_USB_en.pdf • on the Internet at: www.ferrari-electronic.com/en/Service/downloadcenter.html Support • Read the FAQ on the Internet at: http:www.innoventif.com/faq.html • Contact your local dealer Notes...
Page 17
Declarations of Conformity and WEEE CE Declaration and Electromagnetic Compatibility The declarations of conformity can be found on the Internet at: www.ferrari-electronic.de/download/EG_Declaration_Conformity_EN.PDF Declaration of Electrical and Electronic Equipment (WEEE Directive) The declaration can be found on the Internet at: www.ferrari-electronic.de/download/WEEE_Declaration_EN.PDF...
