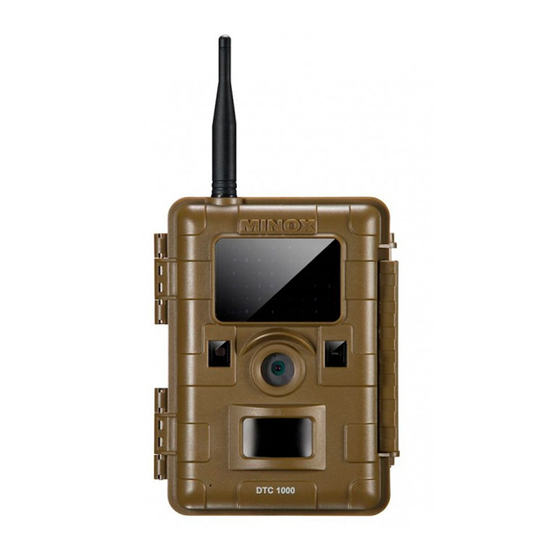

- Page 1 Instructions MINOX DTC 1000...
- Page 2 MINOX DTC 1000 • English page 43...
-
Page 3: Table Of Contents
Scope of Delivery - Photo Format Accessories (optional) - Photo Resolution Introduction - Photo Burst Get to Know Your MINOX DTC 1000 - Video Resolution Controls - Video Length Preparing Your Camera - Video Sound - Explanation of the Controls... - Page 4 - B. GSM Setup - C. GPS Input - Settings Using the Download Tool Software - D. Language - Send Mode - Send Via - E. Camera Information - Send To - Files Count - Operator Parameter - Storage - Recipients - Firmware Version - Remote Control - Camera Name...
-
Page 5: Scope Of Delivery
- Bracket, order no. 65019 - 2 GB SD card - Instructions Further information about accessories for the DTC 1000 can be found on the MINOX website: www.minox.com Important notice Please use only the SD card included in the scope of delivery. -
Page 6: Introduction
Introduction Congratulations on the purchase of your MINOX DTC 1000 trail camera. Like all other MINOX products, this MINOX DTC 1000 trail camera boasts of the traditional values fostered by MINOX. It combines functionality and best optical quality in the smallest possible space. Simple and fast operation makes the MINOX DTC 1000 ideal for digi- tal photos and videos in the intended fields of use. -
Page 7: Get To Know Your Minox Dtc 1000
Get to Know Your MINOX DTC 1000 Some product highlights include: Please take a few moments to read these instructions - Sends images to your cell phone or per carefully. e-mail instantly - Quadband technology We wish you much enjoyment with your MINOX... - Page 8 13 14...
-
Page 9: Controls
2. Twilight sensor Proceed as follows to prepare the camera for use: 3. Blue activation LED 1. Place your DTC 1000 on a flat surface. 4. Camera lens 2. Push the latch (5) up on the right of the camera body. -
Page 10: Inserting The Batteries
To close the camera body, proceed as follows: symbol in the bottom left of the LCD display (8). 1. Place your DTC 1000 on a flat surface in front of you. Note: For best results, we recommend using high 2. Fold the camera body to the right. -
Page 11: Inserting The Sim Card
Please make sure that the camera is turned off be- fore inserting or removing the SD card. Switch your The DTC 1000 Trail Camera is set to English by factory DTC 1000 to SET (12) to continue with your camera default. -
Page 12: Mounting The Camera
(17) for fixing the camera to a tree or post with a strap or mounting harness. Pass the mounting strap Switch your DTC 1000 to SET (12). You are now in (included in the scope of delivery) through the two Manual Release mode. -
Page 13: Menu Functions And Settings
Menu Functions and Settings Manual Release This option enables you to use your DTC 1000 as a The main menu of your DTC 1000 has 5 menu items normal digital camera. As with any common digi- to choose from: tal camera, you can view scenes on the display and capture them as photos or videos. -
Page 14: Day And Night Modes
UP arrow button (11). While in the manual release mode, push the DOWN ar- Your DTC 1000 is set to day mode by default – photos row button (11) or select “Playback” found in “Camera and videos will be in color. -
Page 15: Camera Setting
Go to the main menu and select “Camera Setting” Camera Mode and then push OK (11). Select “Photo Resolution” You can set your DTC 1000 to either take photos or and verify with OK (11). Select the desired resolu- record videos. Push MENU (15) to enter the main tion –... -
Page 16: Video Length
Here you can set the intervals between shutter re- You will automatically enter the “Camera Setting” leases where the DTC 1000 should not record images menu. You can make further settings or push the ie. how long the motion sensor should be deactivated LEFT arrow button (11) to enter the previous menu. -
Page 17: Time Stamp
Time Stamp Time Format Here you can activate or deactivate the timestamp Choose your desired time format of 12 or 24 hours for your photos or videos. Go to the main menu and and then push OK (11). You will automatically enter select “Camera Setting”... -
Page 18: Access Control
Power Type Go to the main menu and select “Camera Setting” Your DTC 1000 Trail Camera is a high-tech precision and then push OK (11). Using the UP/DOWN arrow device. It is highly suggested to use high-quality buttons (11), select “Access Control”... -
Page 19: Format
If the card has been used in a different camera, heit” or “Celsius” and verify with OK (11). You will do not use it in the DTC 1000 without first formatting automatically enter the “Camera Setting” menu. You it with your PC. If however, the SD card included in... -
Page 20: Time Lapse
Time lapse Go to the main menu and select “Camera Setting” and then push OK (11). Using the UP/DOWN arrow buttons This is not to be confused with the duty time and (11), select “Duty Time” and then verify with OK (11). is for the express purpose of defining a time frame Select “Disable”... -
Page 21: Default Set
Default set 2. Go to the main menu and select “GSM Setup” and Here you can set your DTC 1000 back to the factory de- then “Download Tool” in the submenu. fault. All settings that have been made will be deleted. -
Page 22: Send Mode
As in this exam- provider. For both options however, you can specify ple, the first 10 photos made with the DTC 1000 will multiple destinations. be sent at 09:30 to the predefined phone numbers or email addresses. - Page 24 Note 1: Please enter the complete email address We suggest using the following log-in data: in the “Email” and “Account” fields – the account name is the same as the email address. Email: smtp@ minox-dtc.de Account: smtp@ minox-dtc.de Email: smtp@ minox-dtc.de Password: MinoX-DTC...
-
Page 25: Send To
Your DTC 1000 has been pre-configured to selected protocol. These email servers do not allow the mobile phone providers around the world. You can sending of photos sent via your DTC 1000. For more select the pre-configured settings for your country information, please contact your email provider. -
Page 26: Recipients
( ; ) to separate the recipients from one another and no other symbols or blank spaces. Remote Control This function allows you to change the “Send Mode” (see “Send Mode”) of the DTC 1000 via a SMS text message sent to the camera [Fig. 11]. - Page 27 (applicable only in “Custom” send mode) Note: Avoid sending more than one SMS command #E = end of command to the DTC 1000 per day. The time can only be set in the 24 hour format. For example, this command “C#02#0930#05#E” will change the send mode to “Custom”...
-
Page 28: Camera Name
Here you can enter the GPS coordinates of the current location of your DTC 1000 [Fig. 12]. The coordinates Insert the SD card into the DTC 1000 and push the can be determined by using a hand held GPS device main switch (12) to “SET”. -
Page 29: Settings Using The Camera
Network” in the display (8). As soon as the of the photo can take from 20 to 60 seconds. Send- DTC 1000 has found a network, you will see the ing photos via GPRS always takes more time than network’s name in the bottom of the display (8). - Page 30 09:30 and "Daily Max" to 10, the first 10 photos the LEFT arrow button (11) to enter the main menu. made with the DTC 1000 will be sent to the pre- 2. Select “Instant” and verify with OK (11) to have the defined recipients at 09:30.
-
Page 31: Send Via
Send To email addresses to receive the photos sent from Here you can set the DTC 1000 to send your photos to your DTC 1000 and select your mobile phone net- a telephone number, an email address or to both. You work provider. - Page 32 four phone numbers and then push OK (11). Choose select “Network Setup” and then verify with OK (11). a position with the UP/DOWN arrow buttons where Select “Recipient Email” to enter up to four email you wish to save a telephone number and push OK addresses and then push OK (11).
-
Page 33: Download Tool
(11), select “Network Setup” and then verify the “Send Mode” of the DTC 1000 via a SMS text with OK (11). message sent to the camera. This message is read every day at the predefined time and implemented. Select “Cellular Providers” and push OK (11). Use... -
Page 34: Gps Input
Camera Name D. Language Files Count The DTC 1000 Trail Camera is set to English by factory default. To change the menu navigation to a different Select “Files Count” and push OK (11). Here you can language, please follow these steps:... -
Page 35: Storage
There are two possibilities to transfer your files from video. Select “Disable” and push OK (11) to disable the DTC 1000 to your PC – either by removing the the camera name or select “Enable” and push OK SD card and inserting it into an SD card reader or... -
Page 36: Connecting With A Usb Cable
MPEG-4 standard. your PC and before every use – we suggest not to format the card with the DTC 1000 (see also “For- Further information can be obtained from MPEG LA, mat” under “Camera Setting”). This procedure de- LLC on http://www.mpegla.com... -
Page 37: Technical Data
Dimensions (H x W x D)..101 x 149 x 55 mm / 4 x 5.9 x 2.2 in. Weight (without batteries) ..406 g / 14.3 oz. Order number ... . 60701 – DTC 1000 brown... -
Page 38: Warranty Terms
4) To make a warranty claim, please return the MINOX DTC 1000 along with the original re- With the purchase of the MINOX DTC 1000, you have ceipt and a full description of the defects to the purchased a product that has been manufactured and... - Page 39 Design subject to alterations without notice. MINOX is a registered trademark of MINOX GmbH, Wetzlar. MINOX GmbH Walter-Zapp-Str. 4 D - 35578 Wetzlar, Germany Tel.: +49 (0) 6441 / 917-0 Fax: +49 (0) 6441 / 917-612 e-mail: info@ minox.com www.minox.com...
