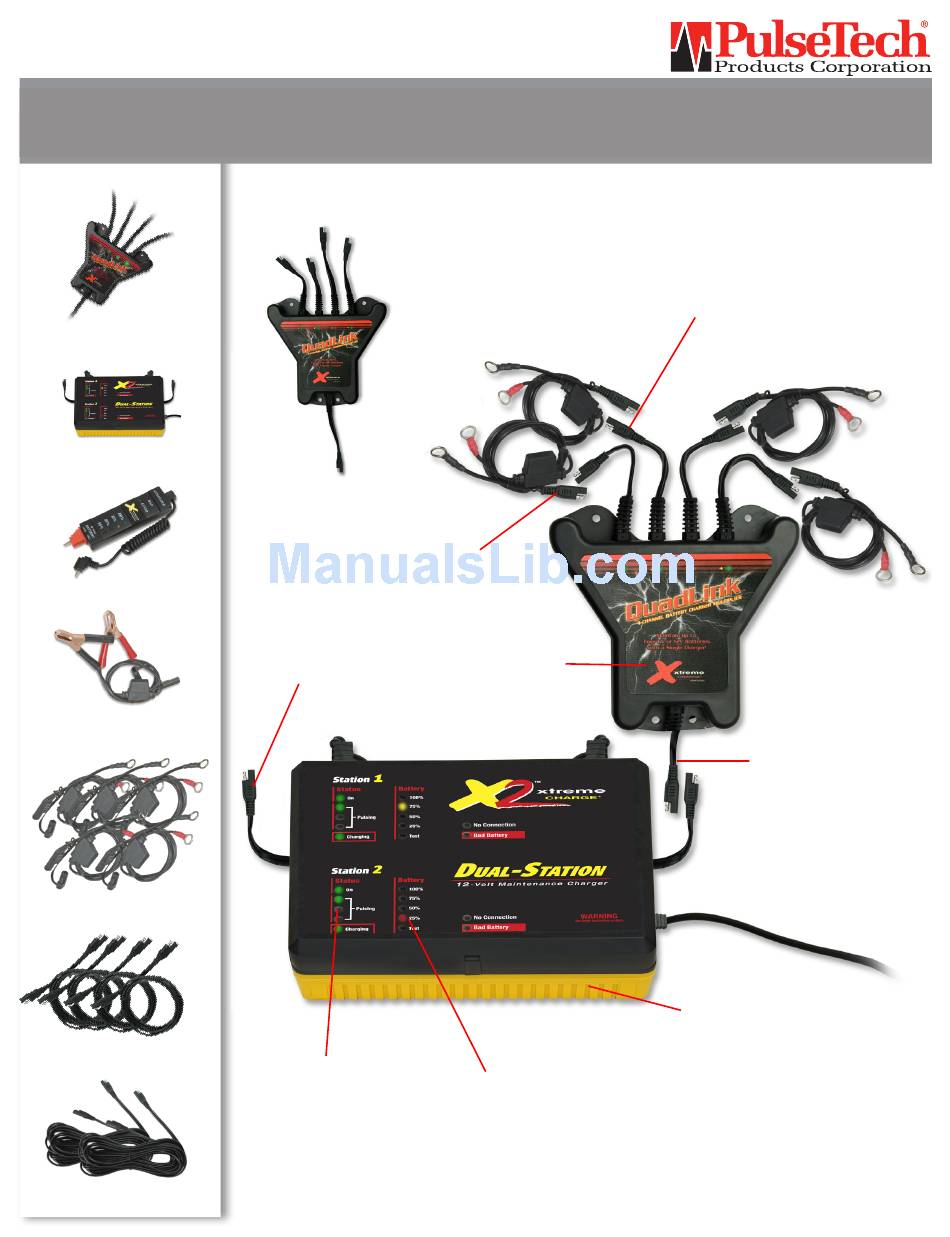

What's Included:
QuadLink 4-Station
[2]
Charger Multiplier, XC-QL4
2-Station Battery Maintenance
[1]
Charger, X2
[1]
Battery Tester, XC-822-TEST
2' Battery Leads with
[2]
Clips, XC-CLIPS
[10]
2' Battery Leads with
Lugs, XC-LUGS
5' Battery Extension
[8]
Lead, XC-EXT-5
25' Battery Extension
[4]
Lead, XC-EXT-25
X2-QL4-K2, 8-Station QuadLink Kit
Quick Start Instruction Manual
input connect
2-pin
output connect
Status Indicators
PulseTech Products Corporation • 1100 South Kimball Avenue • Southlake, TX 76092-9009
800-580-7554 • ppc@pulsetech.net • www.pulsetech.ne
2-pin
QuadLink
Battery State of Charge
2-pin
output connect
2-pin
input connect
Xtreme 2-Station 12V
Maintenance Charger
t
Advertisement
Related Manuals for QuadLink XC-QL4-K2
Summary of Contents for QuadLink XC-QL4-K2
- Page 1 X2-QL4-K2, 8-Station QuadLink Kit Quick Start Instruction Manual What’s Included: 2-pin output connect QuadLink 4-Station Charger Multiplier, XC-QL4 2-Station Battery Maintenance Charger, X2 2-pin input connect Battery Tester, XC-822-TEST QuadLink 2-pin output connect 2’ Battery Leads with Clips, XC-CLIPS 2-pin...
- Page 2 (12) Connect your battery charger’s 2-pin output connector to the 2-pin input connector of the QuadLink. (Fig.2) (13) Connect the QuadLink 2-pin output connector to the 2-pin input connector of either the battery lead with lugs or battery lead with clips.
- Page 3 Model X2 12-Volt Charger FEATURE AND USE GUIDE...
- Page 4 Model X2 12-Volt Charger FEATURE AND USE GUIDE Table of Contents Use Guide..............1 Specifi cations............3 Five-Year Limited Warranty........4 Accessories............Back FEATURES Pulse Patented Pulse Technology increases the duty and life cycles of all 12 volt batteries by up to five times Desulfate The unique application of patented PULSE conditioning provided by ®...
- Page 5 US E GUID E Do not operate without first reading the Important Safety Instructions. Connect red battery clip to positive (+) battery post. Then connect black battery clip to negative (-) battery post. Once you’ve connected the battery cables properly, you can begin the ®...
- Page 6 CH ARGING CONDI TI ONS Once charger has evaluated battery’s current condition, “Test” light goes off. The appropriate charge profile begins automatically. ® Green “Charging” light indicates Xtreme Charge is providing bulk charge to battery. Three green “Pulsing” LEDs light sequentially as charger conditions battery.
- Page 7 sulfate crystals. This allows your battery to accept more power than other chargers can provide. Our patented PULSE technology is NOT “Pulse Charging” which is commonly used in the market place today. It IS a total- ly unique 1-2 punch provided by the independent application of our unique high frequency conditioning pulse on one circuit and proprietary charging algorithms on another.
- Page 8 F I V E -Y E AR L I MITE D WA R R AN TY ® PULSETECH PRODUCTS CORPORATION ® XTREME CHARGE BATTERY MAINTENANCE CHARGER What Does This Warranty Cover? This warranty covers any defects in workmanship or materials in this charger under normal use and service. How Long Does the Coverage Last? This warranty runs for five (5) years from the date of purchase.
- Page 10 PRODUCTS & ACCESSORIES ® 12V Xtreme Charge ® QuadLink w/Pulse Maintenance 4-Channel Battery Ideally suited for AGM and Charger Multiplier Maintenance-Free batteries. Increases the duty and life Gives your existing 6V or cycle of all 12V batteries up 12V charger, no matter what the to five times longer.
- Page 11 Model XC-QL4 4-Channel 6/12V DC Charger Multiplier FEATURE AND USE GUIDE...
- Page 12 There’s no more need to spend time or to remember to switch back and forth between vehicles or batteries in storage. Utilizing a simple, plug and play system, QuadLink automatically splits and distributes 10-minute charge segments to up to four batteries.
-
Page 13: User Guide
B. The QuadLink is almost transparent to the battery. It does not add to the charging capabilities of your charger, just to the number of batteries being maintained. Your... - Page 14 LED light. D. Every 10 minutes, the QuadLink will switch to the next battery in line. If there is no battery connected to any given channel, the channel will be skipped after a short qualifi - cation process.
-
Page 15: Specifi Cations
3. If for any reason the QuadLink is not unplugged from the DC power source and allowed to reset during removal of a battery, the LED channel indicator will remain illuminated until the next cycle provides a circuit verifi cation test indicating an open circuit. The output previously associated with the removed battery will then in turn be skipped. -
Page 16: Frequently Asked Questions
Frequently Asked Questions 1. Can the QuadLink be used with a Solar Charger? YES, if the Solar Charger uses the same connector, is 6V or 12V DC and does not exceed 8 Amp output. 2. Is the QuadLink water resistant? YES, it is water resistant but not waterproof. It cannot be submerged or left in pooled water or driving rain. -
Page 17: 5-Year Limited Warranty
5-Year Limited Warranty PulseTech Products Corporation What Does This Warranty Cover? This warranty covers any defects in workmanship or materials in the product under normal use and service. How Long Does The Coverage Last? This warranty runs for fi ve (5) years from the date of purchase. What Will PulseTech Do? PulseTech will, at its option, repair the unit or replace the unit with a remanufactured unit at no charge. - Page 18 Part #: 100X825 Part # 100X200 Model: XC-EXT-25 Model: X2 Quick Battery Tester QuadLink™ 4-Channel Battery Charger Multiplier Assess your 12V battery’s state of charge Turns any 6/12V battery charger quickly with this pocket-sized tester. (using the standard 2-prong It will be the most used tester in shops,...
