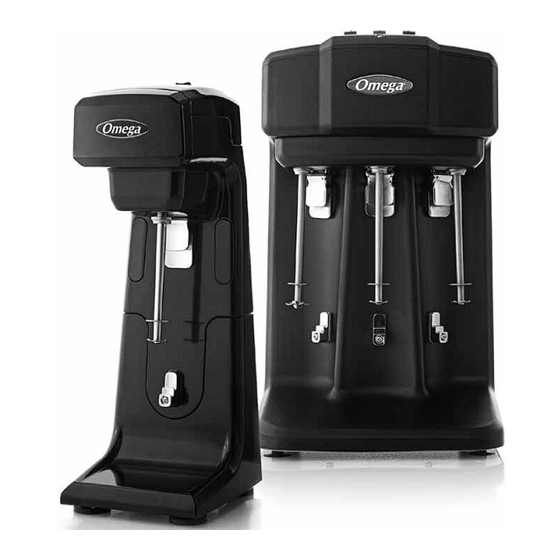

- Page 1 InstructIOn manuaL eat well, drink well and live well with Omega www.omegajuicers.com Drink Mixers M1000/M3000 SERIES Product Contents english, January 2014 PLease read tHese InstructIOns careFuLLy beFOre use...
-
Page 2: Table Of Contents
Contents Important safeguards _______________________________________ 2 specifications ______________________________________________ 3 Parts and Features __________________________________________ 4 Operating & cleaning Procedures ____________________________ 5-8 Wall mounting __________________________________________ 9-10 m1000/m1220 exploded View ________________________________ 11 m1000/m1220 Parts List ____________________________________ 12 m3000/m3220 exploded View ________________________________ 13 m3000/m3220 Parts List ____________________________________ 14... -
Page 3: Important Safeguards
IMPoRtAnt sAFeGUARDs We have provided many important safety messages in this manual and on your appliance. always read and obey all safety messages. WARNING – When using electrical appliances, basic safety precautions should be followed to reduce the risk of personal injury, including the following: •... -
Page 4: Specifications
sPeCIFICAtIons M1000 M3000 rated voltage: ac 120V 50/60HZ rated voltage: ac 120V 50/60HZ rated power: 162W rated power: 485W cord length: 5 foot cord length: 5 foot gross weight: 16.53 lb gross weight: 36.6 lb box size: 9.06”x9.06”x22.05” box size: 13.5”x11.2”x23.8”... -
Page 5: Parts And Features
PARts AnD FeAtURes the parts and features of your mixer are shown on this page. become familiar with all the parts and features before using the mixer. M3000/ M3220 M1000/ M1220 TOP VIEW OF CONTROLS TOP VIEW OF CONTROLS Pulse Switch 2-Speed selector switch... -
Page 6: Operating & Cleaning Procedures
oPeRAtInG AnD CLeAnInG PRoCeDURe Operating procedure connection to main power supply. • The electrical safety of this drink mixing machine can only be achieved if the machine is properly connected to an appropriate grounded receptacle that is in compliance with current national safety standards. therefore, the manufacturer cannot be held responsible for damage and/or injury caused by failure to connect the unit to an appropriate power source. - Page 7 oPeRAtInG AnD CLeAnInG PRoCeDURe Mixing a drink • Plug the drink mixer into a grounded outlet. • Place the ingredients into the container supplied. The basic milkshake recipe is: 3 no. 24 scoops of ice cream. 4 ounces of very cold milk. 1-1/2 ounces of syrup.
- Page 8 oPeRAtInG AnD CLeAnInG PRoCeDURe NOTE: Inspect agitator(s) daily and replace every 90 days. WARNING Cut Hazard always use the metal container when mixing. do not put spoon or other utensils in metal container when mixing. Failure to follow these instructions can result in cuts. Using the container rest •...
-
Page 9: Operating & Cleaning Procedures
oPeRAtInG AnD CLeAnInG PRoCeDURe Removing/installing the container guide pin & housing plug • Unplug the drink mixer. • Hold the container guide by the indents on each side and pull straight down. • Press the retainer clip and slide the guide pin out of the guide. •... -
Page 10: Wall Mounting
WALL MoUntInG step: 1. remove m4x12 screws on back of the machine. 2. separate main housing and base. 3. remove two black magnet covers. 4. Fixed the main housing on the wall by using the four screws and wall anchors supplied. 5. - Page 11 WALL MoUntInG...
-
Page 12: M1000/M1220 Exploded View
M1000/M1220 eXPLoDeD VIeW... -
Page 13: M1000/M1220 Parts List
Stir Shaft with parts 18,19,22 PM1-20 Agitator standard with locking bolt PM1-21 Agitator hinged 21B PM1-21B Agitator high power PM1-22 Screw#3 PM1-CUP PM1-CUP-O Cup with lazer engraved Omega PM1-24 Switch ejector PM1-25 Screw#4 PM1-26 Spring PM1-27 Screw#5 PM1-28 Screw#6 PM1-29... -
Page 14: M3000/M3220 Exploded View
M3000/M3220 eXPLoDeD VIeW... -
Page 15: M3000/M3220 Parts List
Stir Shaft with parts 18,19,22 PM1-20 Agitator standard with locking bolt PM1-21 Agitator hinged PM1-21B Agitator high power PM1-22 Screw#3 PM1-CUP Cup s/steel PM1-CUP-O Cup s/steel with lazer engraved Omega PM1-25 Screw#4 PM1-26 Spring PM1-27 Screw#5 PM1-28 Screw#6 PM1-29 Microswitch PM1-30... - Page 16 Omega PrOducts, Inc. 6291 Lyster Lane HarrIsburg, Pa 17111-4523 u.s.a. PHOne: 1.800.633.3401 Fax: 717.561.1298...
