JCC-5120HQ
1/3" COLOR CCD CAMERA
FEATURES
1. Lead (Pb) Free RoHS Compliance
2. Performance: 550 TV lines of resolution.
3. Digital Signal Processor: SONY HQ1
4. Long life and high reliability are achieved by the use of a CCD image
device. This makes the camera 100 percent solid state. No longer is
an image tube needed.
5. The Minimum illumination 0.15Lux @ F=1.0
6. Ease of use in any application is achieved through the small size.
The lightweight also improves performance where shock and
vibration would affect larger tube type cameras.
7. Lower power consumption.
8. Built-in automatic electronic Iris. This camera can be used for most
indoor application without using the auto iris lens
CAUTION
1. Never point the camera toward the sun
Do not expose the lens directly to the sun or to strong light as this
may damage the pick-up device.
2. Handle this camera with care
Avoid any shock or bumping of the camera. Improper handling could
damage the camera.
3. Requires a proper operating environment
This camera is designed for indoor use. The allowable temperature
range for operation of this camera is between -10°C~50°C and the
allowable humidity is 85% maximum. If the camera is to be placed
outdoors, a special weatherproof housing, which also has heaters
and cooling device included, should be used.
4. Clean the front face to the pick-up device
It is recommended that the pick-up device surface be cleaned before
lens installation or whenever the lens is changed. Cleaning should be
done using a chamois, a very fine soft cloth, lens tissue or cotton
tipped applicator and ethanol to carefully remove any fingerprints or
dust.
5. Check the power source voltage
The power source voltage should be within the specified range.
(Camera must meet the specification)
6. Object and Liquid Entry
Never push objects of any kind into this as this may touch dangerous
voltage points or short-out parts that could result in a fire or electric
shock. Never spill liquid of any kind on the video product.
7. Servicing
Do not attempt to service this video product yourself as opening or
removing covers may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service personnel.
8. Damage Requiring Service
Unplug this video product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the video
product
c. If the video product has been exposed to rain or water.
d. If the video product has been dropped or the cabinet has been
damaged.
e. When the video product exhibits a distinct change in performance-
this indicates a need for service.

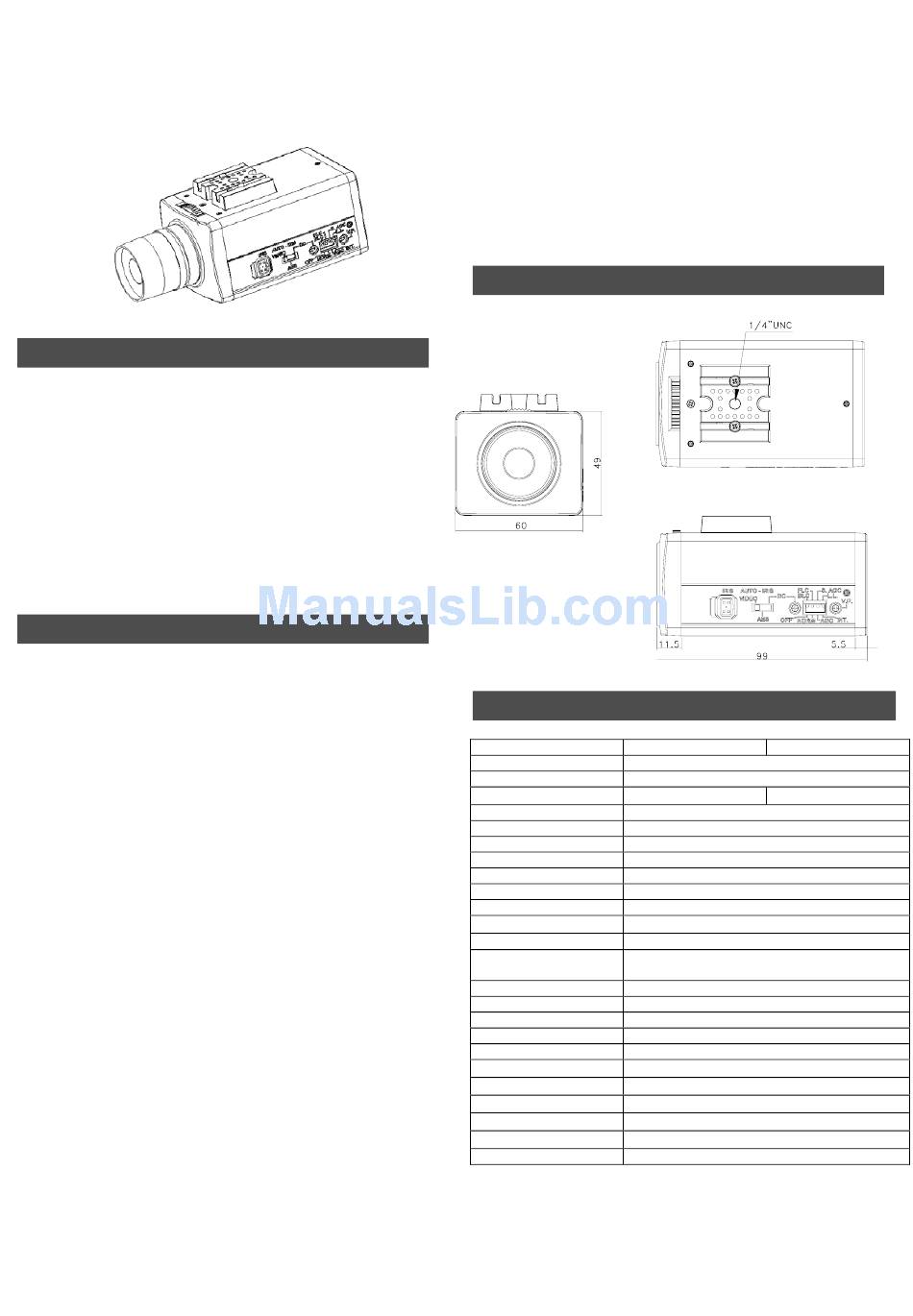

DIMENSIONS (Unit : mm)
SPECIFICATION
TV system
Digital Signal Processor
Image Sensor
Number of Total Pixels
Synchronizing System
Resolution
Minimum Illumination
Signal to Noise Ratio
Gamma Correction
Auto Iris Output
Auto White Balance
Video Output
Iris Control
Electronic Shutter Speed
Control
Lens Mount
Adjustment VR
Power Supply
Power Consumption
Lead Free
Operation Temperature
Operation Humidity
Storage Temperature
Storage Humidity
Dimensions
Weight
NTSC
SONY HQ1
1/3" SONY SUPER HAD CCD
811(H)×508(V) 752(H)×582(V)
Internal / Line Lock (AC Version Only)
550TVL
0.15Lux @ F1.0
50dB (AGC OFF)
0.45
D4 IRIS Jack
YES
1.0Vp-p Composite ; 75Ω
Video / DC
AES ON: 1/50 (60) sec.~1/100,000 sec.
AES OFF: 1/50 (60) sec.
CS mount
L.L V-phase; DC Level
12Vdc /24Vac ; 90~260Vac
12Vdc /24Vac: 3.5W ; 90~260Vac: 4.5W
YES
-10℃~50℃
Maximum: RH85﹪
-20℃~60℃
Maximum: RH90﹪
60(W)×49(H)×99(D)mm
12Vdc /24Vac: 250g ; 90~260Vac: 300g
PAL
9403-V1
