Summary of Contents for SI-lIte SRTBP09RGB

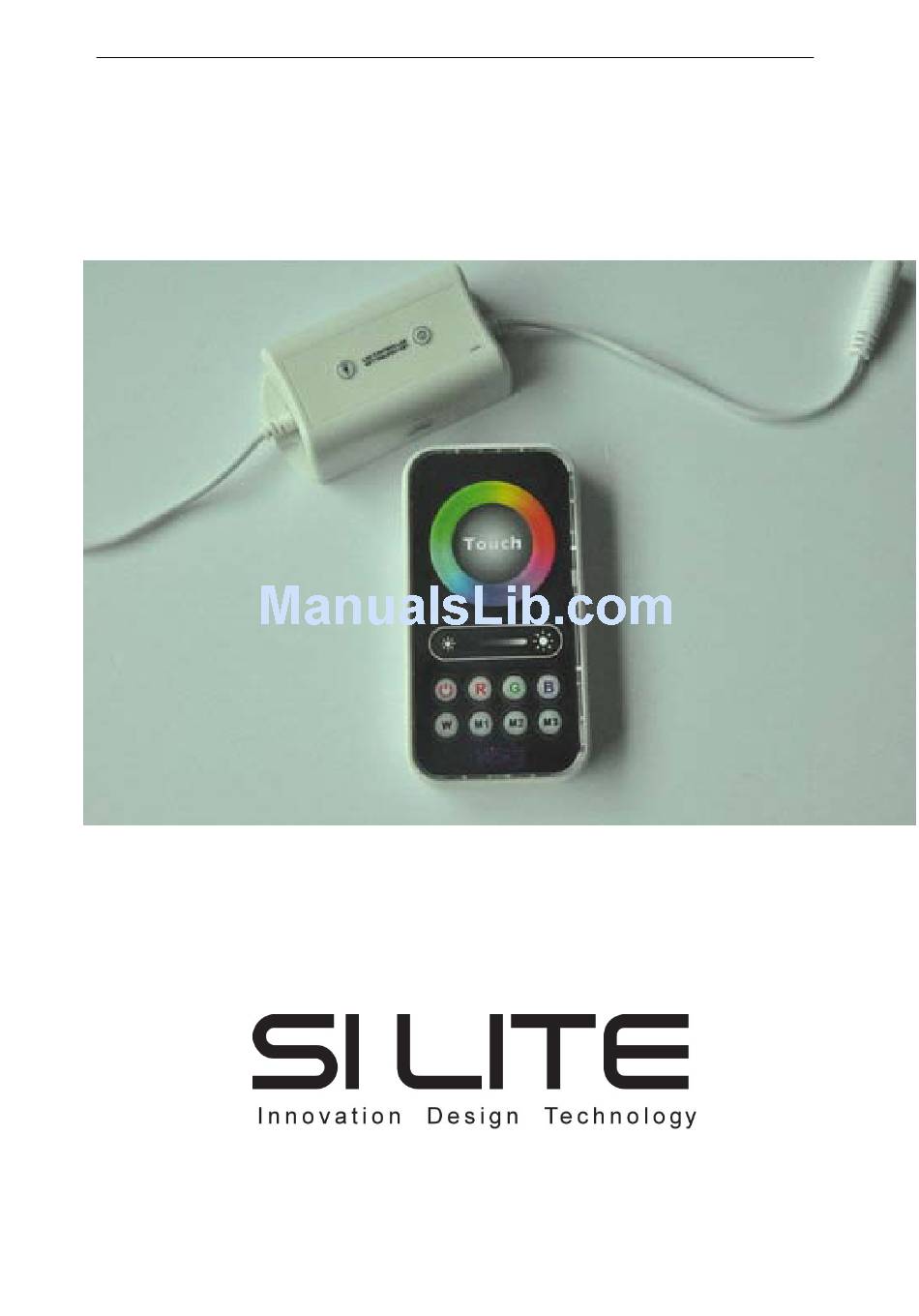

- Page 1 SRTBP09RGB Touch Controller User Manual User User User Manual Manual Manual Please read this manual carefully before using this controller.
- Page 2 Instructions Instructions Instructions Thank you for purchasing the SRTBP09RGB LED Strip kit with “Touch” Control. Please read this manual prior to installation to avoid unnecessary damage to the LED strip, power supply or controller. Firstly, please check you have all required kit parts: 5M REEL RGB LED STRIP RF CONTROLLER WITH SIGNAL LEAD &...
- Page 3 Introduction The SRTBP09RGB is a “Touch Control” LED colour-changing kit, which can providea xed colour of choice using the “Touch” remote control unit. Fixed red, green, blue or white colours can be selected by pressing the appropriate R, G ,B or W buttons. Speci c colours from the spectrum can be selected by pressing or stroking the required area of the colour wheel.
- Page 4 3. Structure (1).outside drawing of master controller: (Figure 1) 2 Remote Control Outside drawing: (Figure 2)
- Page 5 Schematic diagram of the controller connection: (Figure 3) 4 Remote Control Mode Description (Figure 4) Colour wheel:the corresponding colour will appear if you touch it rightness adjustment: You can change the brightness if you touch it. The left part is the minimum brightness; the right part is brightest part. Switch : You can turn on and turn off by touching.
- Page 6 2. RF Ccontroller buttons description Brightness adjustment button: you can change the brightness if you touch it. A continuous change will appear if you touch it continuously. Switch button: On/Off The product can be turned on/o via the RF Contoller or the Touch remote control. CONNECTION PROCESS It is recommended that you connect and test this product prior to installation, to ensure the product is fully working.
