Summary of Contents for Global Solutions Versa7

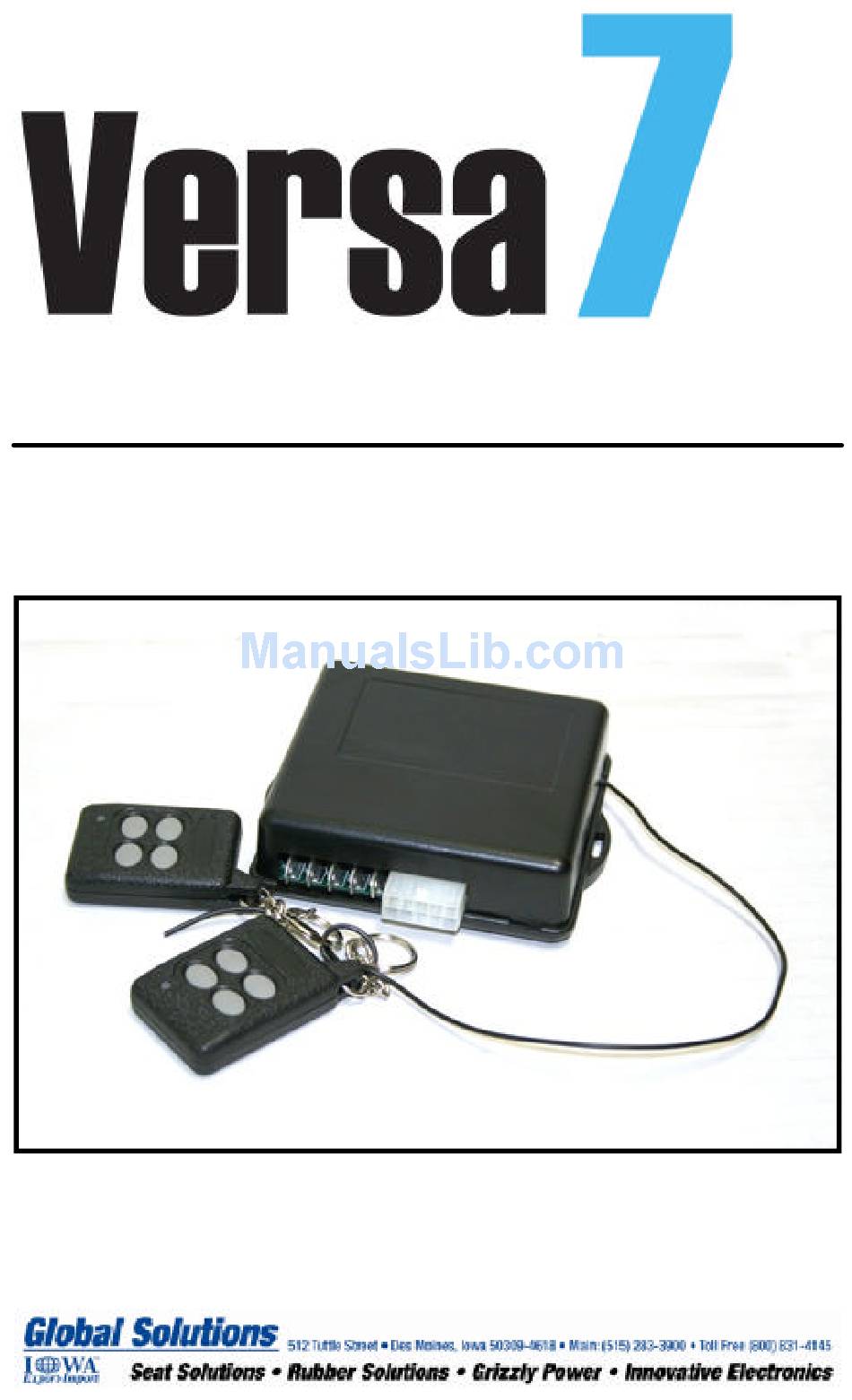

- Page 1 Seven Channel Remote Control...
- Page 2 Page 1 Versa7 Kit Contents The Versa7 is designed to remotely control up to seven devices, or functions. All seven functions can be con- trolled with the supplied four button remote control. Channels 1 and 2 are tied to onboard 30 AMP relays and may be used to control two functions up to 30 AMPs directly.
-
Page 3: Remote Control Operation
Page 2 Remote Control Operation The remote control supplied with your kit has four buttons, but is capa- ble of controlling 7 Channels. Channel 1: Onboard relay Channel 2: Onboard relay Channel 3: Channel 4: Channel 5: Optional negative outputs (500 mA) **Additional relays are required for each channel** Channel 6: Channel 7:... -
Page 4: Components Identification
Main Harness Plug SIDE C Mounting Considerations Choose your mounting location carefully. The Versa7 should be se- curely mounted in an area that will remain dry, and not be subject to excessive shock and vibration. Additionally, try not to mount the Ver- sa7 in a fully enclosed metal area, this will affect the operational range of the unit. -
Page 5: Dip Switch Settings
Page 4 DIP Switch Settings Refer to the table below for DIP switch settings and special functions. The default position for all DIP switches is OFF. - Page 6 Page 5 Wiring Harness Information See the diagram below for wiring harness and connections informa- tion.
-
Page 7: Typical Wiring Diagrams
Page 6 Typical Wiring Diagrams The next several pages contain a number of typical applications for the Versa7 remote control system. - Page 8 Page 7...
- Page 9 Page 8...
- Page 10 Page 9...
-
Page 11: Installation Notes
Page 10 Installation Notes... - Page 12 WARRANTY STATEMENT Iowa Export-Import warrants this product to be free form defects in ma- terial and workmanship for a period of one (1) year from the date of sale to the original purchaser, and not more than two (2) years form the date of manufacture.
