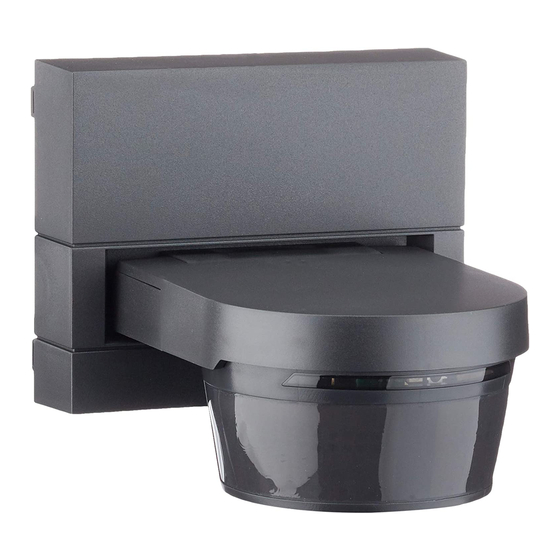

Summary of Contents for Busch-Wachter 6847 220 MasterLINE
- Page 1 1473-1-8102 │ Rev. 01 │ 11.2012 Operating Instructions ® Busch-Wächter Pos: 2 /#Neustruktur#/Online-Dokumentation (+KNX)/Titelblätter/Waechter/Titelblatt - 6847-6867-MasterLINE -- BJE @ 24\mod_1338458140180_15.docx @ 214600 @ @ 1 6847 220 MasterLINE 6867 280 MasterLINE === Ende der Liste für Textmarke Cover ===...
-
Page 2: Table Of Contents
Operating Instructions ® Busch-Wächter Pos: 4 /#Neustruktur#/Online-Dokumentation (+KNX)/Inhaltsverzeichnis (--> Für alle Dokumente <--)/Inhaltsverzeichnis @ 19\mod_1320649044386_15.docx @ 109653 @ @ 1 Safety ..................................3 Intended use ................................3 Environment ................................3 Setup and function ..............................4 Busch-Watchdog 220 MasterLINE ......................4 Busch-Watchdog 280 MasterLINE ...................... -
Page 3: Safety
Operating Instructions ® Busch-Wächter Safety Pos: 6 /#Neustruktur#/Online-Dokumentation (+KNX)/Überschriften (--> Für alle Dokumente <--)/1. Ebene/S - T/Sicherheit @ 18\mod_1302612791790_15.docx @ 103357 @ 1 @ 1 Safety Pos: 7 /#Neustruktur#/Online-Dokumentation (+KNX)/Sicherheitshinweise und Hinweise (--> Für alle Dokumente <--)/Warnhinweise/Sicherheit - 230 V @ 18\mod_1302606816750_15.docx @ 103308 @ @ 1 Warning Electric voltage! Risk of death and fire due to electrical voltage of 230 V. -
Page 4: Setup And Function
Operating Instructions ® Busch-Wächter Setup and function Pos: 12 /#Neustruktur#/Online-Dokumentation (+KNX)/Überschriften (--> Für alle Dokumente <--)/1. Ebene/A - F/Aufbau und Funktion @ 11\mod_1279185435352_15.docx @ 83027 @ 111 @ 1 Setup and function Pos: 13 /#Neustruktur#/Online-Dokumentation (+KNX)/Aufbau und Funktion/Waechter/Funktionen - 6847-6867 220-280 MasterLINE @ 28\mod_1347514544179_15.docx @ 233163 @ 2223 @ 1 Busch-Watchdog 220 MasterLINE The Busch-Watchdog 220 MasterLINE is a movement detector with a detection range of 220°... -
Page 5: Detection Ranges
Operating Instructions ® Busch-Wächter Setup and function Pos: 17 /#Neustruktur#/Online-Dokumentation (+KNX)/Überschriften (--> Für alle Dokumente <--)/2. Ebene/A - F/Erfassungsbereiche @ 19\mod_1320393658466_15.docx @ 109558 @ 22333 @ 1 Detection ranges Pos: 18 /#Neustruktur#/Online-Dokumentation (+KNX)/Überschriften (--> Für alle Dokumente <--)/3. Ebene/U - Z/Übersicht der Erfassungsbereiche Busch-Wächter 220-280 @ 28\mod_1347517634430_15.docx @ 233219 @ 333 @ 1 4.4.1 Overview of the detection range for Busch-Watchdogs 220 - 280 MasterLINE Pos: 19 /#Neustruktur#/Online-Dokumentation (+KNX)/Erfassungsbereiche/Waechter/Erfassungsbereiche - 6847-6867 220-280 MasterLINE @ 28\mod_1347514597367_15.docx @ 233177 @ 1333 @ 1... -
Page 6: Technical Data
Operating Instructions ® Busch-Wächter Technical data Pos: 23 /#Neustruktur#/Online-Dokumentation (+KNX)/Überschriften (--> Für alle Dokumente <--)/1. Ebene/S - T/Technische Daten @ 11\mod_1279185386320_15.docx @ 83019 @ 112 @ 1 Technical data Pos: 24 /#Neustruktur#/Online-Dokumentation (+KNX)/Technische Daten/Waechter/Technische Daten - 6847-6867 MasterLINE @ 24\mod_1338458229291_15.docx @ 214614 @ 2 @ 1 Designation Value Nominal voltage... -
Page 7: Installation And Electrical Connection
Operating Instructions ® Busch-Wächter Installation and electrical connection Pos: 27 /#Neustruktur#/Online-Dokumentation (+KNX)/Überschriften (--> Für alle Dokumente <--)/1. Ebene/M - O/Montage und elektrischer Anschluss @ 23\mod_1336477157864_15.docx @ 209033 @ 3333 @ 1 Installation and electrical connection Pos: 28 /#Neustruktur#/Online-Dokumentation (+KNX)/Sicherheitshinweise und Hinweise (--> Für alle Dokumente <--)/Warnhinweise/Sicherheit - Niederspannungs- und 230 V-Leitungen @ 23\mod_1336558868201_15.docx @ 209164 @ 2 @ 1 Warning Electric voltage! Risk of death due to electrical voltage of 230 V during short-circuit in the low-voltage line. -
Page 8: Mounting
Operating Instructions ® Busch-Wächter Installation and electrical connection Pos: 31 /#Neustruktur#/Online-Dokumentation (+KNX)/Überschriften (--> Für alle Dokumente <--)/2. Ebene/M - O/Montage @ 18\mod_1302615960458_15.docx @ 103424 @ 3234443333 @ 1 Mounting Pos: 32 /#Neustruktur#/Online-Dokumentation (+KNX)/Sicherheitshinweise und Hinweise (--> Für alle Dokumente <--)/Warnhinweise/Sicherheit - 230 V @ 18\mod_1302606816750_15.docx @ 103308 @ 31 @ 1 Warning Electric voltage! Risk of death and fire due to electrical voltage of 230 V. -
Page 9: Wall Mounting With Gradient
Operating Instructions ® Busch-Wächter Installation and electrical connection 6.2.1.2 Wall mounting with gradient. Fig. 3: Wall mounting with gradient. Wall mounting with gradient is recommended on a building situated on a hill or with a gradient. This allows the detection ranged to be used effectively. 6.2.1.3 Ceiling mounting Fig. -
Page 10: Corner Mounting
Operating Instructions ® Busch-Wächter Installation and electrical connection 6.2.2 Corner mounting Fig. 5: Corner mounting The combination with a corner adapter is recommended for an optimal 280° detection range. Note Detailed user information is available via the link http://www.busch-jaeger-katalog.de/index.php in the Busch-Watchdog category under accessories. 6.2.3 Installation sites >1,7 m... -
Page 11: Preparing The Installation
Operating Instructions ® Busch-Wächter Installation and electrical connection 6.2.4 Preparing the installation To prepare the installation of the device, perform the following steps: Fig. 7: Preparing the installation 1. Remove the locking screw (1) (if installed). 2. Press in the clamps (2 ... 5) on the sides of the housing with a suitable tool. 3. -
Page 12: Mounting Steps
Operating Instructions ® Busch-Wächter Installation and electrical connection 6.2.5 Mounting steps Fig. 9: 1. Mount the device to the wall. ∅6,5 mm - 8,5 mm Do not use countersunk head screws for mounting to the wall. Use screws with a head diameter of 6.5 mm - 8.5 ∅3,5 mm - 3,9 mm 2. -
Page 13: Electrical Connection
Operating Instructions ® Busch-Wächter Installation and electrical connection Pos: 35 /#Neustruktur#/Online-Dokumentation (+KNX)/Überschriften (--> Für alle Dokumente <--)/2. Ebene/A - F/Elektrischer Anschluss @ 21\mod_1328177051724_15.docx @ 138042 @ 223233 @ 1 Electrical connection Pos: 36 /#Neustruktur#/Online-Dokumentation (+KNX)/Anschluss/Waechter/Anschluss - 6847-6867 220-280 MasterLINE @ 24\mod_1338459376540_15.docx @ 214643 @ 11133 @ 1 6.3.1 Standard connection Fig. -
Page 14: Commissioning
Operating Instructions ® Busch-Wächter Commissioning Pos: 38 /#Neustruktur#/Online-Dokumentation (+KNX)/Überschriften (--> Für alle Dokumente <--)/1. Ebene/G - L/Inbetriebnahme @ 11\mod_1279185496977_15.docx @ 83035 @ 1222 @ 1 Commissioning Pos: 39 /#Neustruktur#/Online-Dokumentation (+KNX)/Inbetriebnahme/Waechter/Inbetriebnahme - 6847-6867 -- 220-280 MasterLINE @ 24\mod_1338448339667_15.docx @ 214542 @ 3221233 @ 1 Setting / limiting the coverage and the detection range Caution Risk of damaging the device! -
Page 15: Activation Test
Operating Instructions ® Busch-Wächter Commissioning Fig. 15: Adjusting the detection range by masking 3. The range can be specifically limited by gluing on the enclosed foil. – Cut the enclosed foil to the size required. The coverage and the detection range are set. Activation test The activation test can also be triggered via the service remote control (see separate operating manual). -
Page 16: Operation
Operating Instructions ® Busch-Wächter Operation Pos: 41 /#Neustruktur#/Online-Dokumentation (+KNX)/Überschriften (--> Für alle Dokumente <--)/1. Ebene/A - F/Bedienung @ 11\mod_1279185541649_15.docx @ 83043 @ 2221 @ 1 Operation Pos: 42 /#Neustruktur#/Online-Dokumentation (+KNX)/Bedienung/Waechter/Bedienung - 6847-6867 @ 24\mod_1338459472320_15.docx @ 214658 @ 22333222 @ 1 Control elements Fig. -
Page 17: Standard Operation (Time- And Brightness Dependent)
Operating Instructions ® Busch-Wächter Operation Standard operation (time- and brightness dependent) 1min T/ S 10 sek Fig. 19: Normal operation Set the values for the brightness limit value and the switch-off delay (on period of the light after the last detection). -
Page 18: Remote Control
Operating Instructions ® Busch-Wächter Remote control Pos: 46 /#Neustruktur#/Online-Dokumentation (+KNX)/Überschriften (--> Für alle Dokumente <--)/1. Ebene/G - L/Handsender @ 24\mod_1338471401020_15.docx @ 214714 @ 21222 @ 1 Remote control Pos: 47 /#Neustruktur#/Online-Dokumentation (+KNX)/Sonstige/Handsender/Waechter/Handsender - 6847-6867 @ 24\mod_1338471592389_15.docx @ 214731 @ 22222 @ 1 Control elements of the remote control Fig. -
Page 19: Commissioning Of Remote Control
Operating Instructions ® Busch-Wächter Remote control Commissioning of remote control Fig. 22: Removing the protective foil from the battery Remove the protective foil from the battery before commissioning. Fig. 23: Programming the remote control • Press the "AUTO" button on the remote control for at least 3 seconds within the period of 10 minutes after activating the power on the Busch-Watchdog. - Page 20 Operating Instructions ® Busch-Wächter Pos: 49 /#Neustruktur#/Online-Dokumentation (+KNX)/Rückseiten (--> Für alle Dokumente <--)/Rückseite - Busch-Jaeger - Allgemein @ 28\mod_1347009779995_15.docx @ 232282 @ @ 1 A member of the ABB Group Notice We reserve the right to at all times make Busch-Jaeger Elektro GmbH technical changes as well as changes to the PO box...
