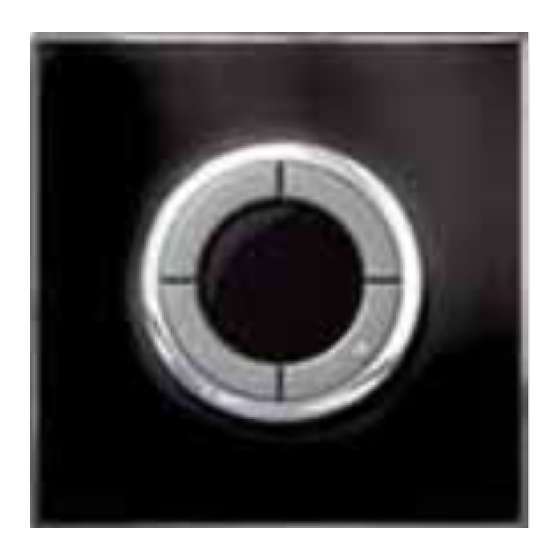

A R T E O R T E C H N I C A L G U I D E
Radio system
®
on ZigBee
technology

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Arteor and is the answer not in the manual?

Questions and answers

Summary of Contents for LEGRAND Arteor

  • Page 1 A R T E O R T E C H N I C A L G U I D E Radio system ® on ZigBee technology...
  • Page 2 Radio system ® on ZigBee technology General features ........IV-02 Wiring diagrams ......... IV-26...
  • Page 3 The ZigBee ® protocol is particularly suitable for HOME and allows future expansions. AUTOMATION applications because it features simplicity of The Radio Legrand ZigBee ® System uses the ZigBee ® management and safety for the people using it. transmission technology based on the IEEE 802.15.4 standard for Wireless personal area network (WPAN).
  • Page 4 A R T E O R T E C H N I C A L G U I D E The advantages of the installation of the Radio system on No specific software ® ZigBee technology: “Intelligence” integrated in the device Configuration with PUSH and LEARN procedure directly on PLUG and PLAY installation the device...
  • Page 5 G E N ER A L F E AT U R E S Introduction to the Radio system ® on ZigBee technology ® Inside the Radio system Legrand ZigBee System there are two types of device: Devices connected to the load or switch Control-only devices DEVICES CONNECTED TO THE LOAD The devices connected to the load must be installed in flush-...
  • Page 6 A R T E O R T E C H N I C A L G U I D E Customisation with touch plates DEDICATED DEVICE COVERS Radio control Radio control Touch plates can be installed to customise the switches and radio controls.
  • Page 7: Control Switches

    ® R A D I O S Y S T E M O N Z i g B e e T E C H N O L O G Y G E N ER A L F E AT U R E S Controls The radio controls are not directly connected to the load.
  • Page 8: Remote Controls

    A R T E O R T E C H N I C A L G U I D E REMOTE CONTROLS Pocket remote control To control 4 devices or call 4-scenarios. Advanced RF and IR remote control Pocket remote control To call 5 scenarios and send general commands.
  • Page 9 ® R A D I O S Y S T E M O N Z i g B e e T E C H N O L O G Y G E N ER A L F E AT U R E S Switches and dimmers Switches and dimmers are directly connected to the load to be controlled and to the 240 V a.c.
  • Page 10 A R T E O R T E C H N I C A L G U I D E DIMMERS To the load dimmer without neutral with bargraph LED Can control and adjust 100 – 240 V a.c. loads with max power 300 W or 600 W.
  • Page 11 ® R A D I O S Y S T E M O N Z i g B e e T E C H N O L O G Y G E N ER A L F E AT U R E S Interfaces TRANSCEIVER for technical alarm When a flooding or gas leak alarm is given it transmits a...
  • Page 12 A R T E O R T E C H N I C A L G U I D E SCS/ZIGBEE ® GATEWAY With the function of integrating Radio ZigBee ® (LED versions) and SCS systems, the radio controls can control SCS devices. ®...
  • Page 13 ® R A D I O S Y S T E M O N Z i g B e e T E C H N O L O G Y G E N ER A L F E AT U R E S ®...
  • Page 14 A R T E O R T E C H N I C A L G U I D E A network created in this way allows: 2-way communication between the devices Increase of the communication distances between two bridges Possibility of transmitting information even when devices are faulty or temporarily out of service ZigBee ®...
  • Page 15 ® R A D I O S Y S T E M O N Z i g B e e T E C H N O L O G Y G E N ER A L F E AT U R E S ®...
  • Page 16 A R T E O R T E C H N I C A L G U I D E ASSOCIATION To create the network the devices must be inserted in it. Press the coordinator NETWORK KEY briefly. The coordinator NETWORK LED changes to 3 pulses/3s while Press the coordinator NETWORK KEY.
  • Page 17 ® R A D I O S Y S T E M O N Z i g B e e T E C H N O L O G Y G E N ER A L F E AT U R E S Associating the devices After creating the ZigBee...
  • Page 18 A R T E O R T E C H N I C A L G U I D E The devices are now associated: press the OFF KEY on the radio control to check that the association is correct. The same procedure can be used to associate one switch to another switch.
  • Page 19: Associating Devices

    ® R A D I O S Y S T E M O N Z i g B e e T E C H N O L O G Y G E N ER A L F E AT U R E S Associating devices ASSOCIATING A CONTROL DEVICE TO A NEW SWITCH (OR Integration Module)
  • Page 20 A R T E O R T E C H N I C A L G U I D E Press the LEARN KEY briefly on the radio control. All the LEARN LED switch OFF. Briefly Press the radio control ON KEY. The loads associated to it switch OFF. The individual switch switches its load ON and OFF, while the radio control switches both loads ON and OFF.
  • Page 21 ® R A D I O S Y S T E M O N Z i g B e e T E C H N O L O G Y G E N ER A L F E AT U R E S Disassociating devices DISASSOCIATING A CONTROL DEVICE FROM A SWITCH (OR Integration Module)
  • Page 22: Creating A Scenario

    A R T E O R T E C H N I C A L G U I D E Creating a scenario 4-scenario control Programming for self-learning Dimmer Dimmer Shutter Shutter You want to control a light and a shutter from a 4-SCENARIO CONTROL with just one touch. 4-scenario control Dimmer Shutter...
  • Page 23 ® R A D I O S Y S T E M O N Z i g B e e T E C H N O L O G Y G E N ER A L F E AT U R E S Creating a scenario Remove the keys or touch plates of the three devices.
  • Page 24 A R T E O R T E C H N I C A L G U I D E Press the LEARN KEY on the 4-SCENARIO CONTROL. Exit all SCENARIOS (or FACTORY MODE): 1 Push Briefly on LEARN key's product (which you want to exit) - Green LED flash slowly 2 Push during 10s on LEARN key - Green LED enter in flashing mode...
  • Page 25: Maximum Number Of Devices

    ® R A D I O S Y S T E M O N Z i g B e e T E C H N O L O G Y G E N ER A L F E AT U R E S Maximum distances and number of devices MAXIMUM NUMBER OF DEVICES...
  • Page 26 A R T E O R T E C H N I C A L G U I D E ® The features of the ZigBee network are used to control devices at a greater distance. ® The devices connected to the electrical mains have a ZigBee Router and thus receive the command and retransmit it to other devices.
  • Page 27: Installation Examples

    ® R A D I O S Y S T E M O N Z i g B e e T E C H N O L O G Y W I R I N G D I A G R A M S Installation examples UNIVERSAL SWITCH RF WITH NEUTRAL 2...
