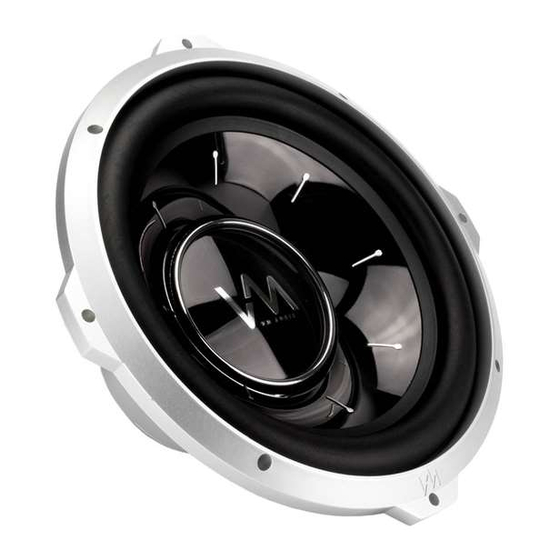

SRW10 / SRW12 / SRW15
SHAKER SERIES SUBWOOFERS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRW10 and is the answer not in the manual?

Questions and answers

Summary of Contents for VM Audio SRW10

  • Page 1 SRW10 / SRW12 / SRW15 SHAKER SERIES SUBWOOFERS...
  • Page 2: Table Of Contents

    -Return shipping on non-defective items. ENCLOSURES DETAILS Warranty Turnaround Time SINGLE SPEAKER WIRING It is VM Audio’s goal to turnaround the merchandise in a timely fashion of 1 week. Unexpected delays may occur due to repair parts or replacement shortage. DUAL SPEAKER WIRING...
  • Page 3: Introduction

    CONSUMER LIMITED WARRANTY AGREEMENT INTRODUCTION Your product is covered by a limited warranty by VM Audio as established Thank you for your interest in VM Audio products. Our goal is to below: enhance your listening experience. The Shaker Series was designed as Mobile Electronics Limited Warranty the economical solution for a performance craving, casual consumer.
  • Page 4: Physical Dimensions

    PHYSICAL DIMENSIONS TROUBLESHOOTING If the subwoofer(s) does not appear to be working, check for blown SRW10 SRW15 SRW12 fuses, poor or incorrect wiring connections and incorrect settings. 16.54 inches 10.87 inches 13 inches (A) Overall Diameter 276 mm 330 mm...
  • Page 5: Thiele/Small Parameters

    THIELE/SMALL PARAMETERS DUAL SPEAKER WIRING MODELS SRW10 SRW12 SRW15 Series Connection Free Air Resonance (Fs) 39 Hz 38 Hz 32 Hz Driver Compliance (Cms) 0.23 mm/N 0.13 mm/N 0.12 mm/N Moving Mass (Mms) 69 g 121 g 201 g Driver Total Q (Qts) 0.82...
  • Page 6: Enclosure Details

    ENCLOSURE DETAILS DUAL SPEAKER WIRING Sealed Box Parallel Connection ENCLOSURE DIMENSIONS (3/4 inch wood thickness) SRW10 16 inches (A) 13 inches (B) 8 inches (C) SRW12 18 inches (A) 14.75 inches (B) 12 inches (C) SRW15 22 inches (A) 19 inches (B)
  • Page 7 SINGLE SPEAKER WIRING Series Connection Ported Box ENCLOSURE DIMENSIONS (3/4 inch wood thickness) SRW10 22 inches (A) 13 inches (B) 11 inches (C) SRW12 26 inches (A) 15 inches (B) 12 inches (C) SRW15 32 inches (A) 19 inches (B)
  • Page 8 ENCLOSURE DETAILS SINGLE SPEAKER WIRING Port Parallel Connection ENCLOSURE DIMENSIONS (3/4 inch wood thickness) SRW10 1 inch (A) 11.5 inches (B) 9 inches (C) SRW12 1.75 inches (A) 13.5 inches (B) 8.5 inches (C) 10.5 inches (C) 2.25 inches (A) 17.5 inches (B)
