Summary of Contents for Underfloor Heating Limited 300

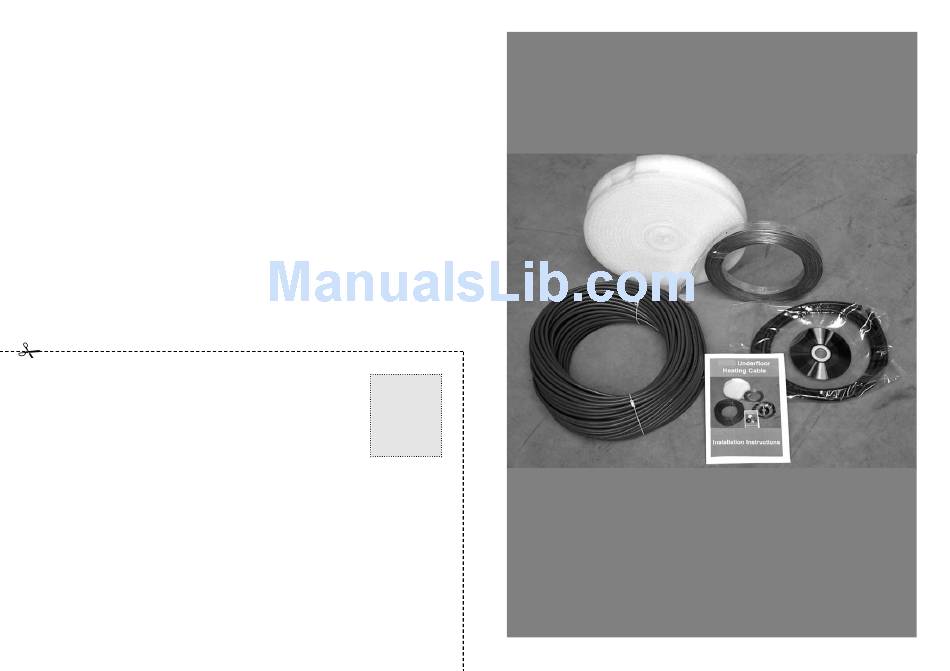

- Page 1 Underfloor Heating Cable Postage stamp Underfloor Heating Limited. P.O. Box 2004 Aberfeldy PH15 2YF Installation Instructions...
- Page 2 1. Points of attention: Measurements: Type Wattage Ampére meter length Set 300 300Watt 17 m The cable is insulated and watertight and can be installed on Foil finished insulation Set 500 500Watt 30 m (Kingspan or Celotex) or existing concrete bases. The construction of the cable also allows...
- Page 3 IEE regulations. 3. Preparation: Underfloor Heating Limited. P.O. Box 2004, Aberfeldy PH15 2YF. Technical helpline: 0870 - 411 1115 - Check that the cable length/wattage is correct for the area of free floor surface that must be heated.
- Page 4 PLEASE READ CAREFULLY: 5. Fitting the cable to the floor: Feed the cable end (marked with *******) through the electrical pipe to the back box for the MPORTANT POINTS OF ATTENTION FROM THE GENERAL INSTALLATION INSTRUCTIONS. WE RECOMMEND ALL FLOORS ARE INSULATED BEFORE UNDERFLOOR HEATING INSTALLATION. thermostat.
- Page 5 B: Applied Directly on top of Insulation: When laying the Heating cable onto the insulation the cable must be laid and secured onto a steel mesh. Do not install the cable directly onto the insulation. The cable is laid on to a smooth reinforcing mesh (approximately 100mm square), and secured with tie wraps.
- Page 6 Splice...
