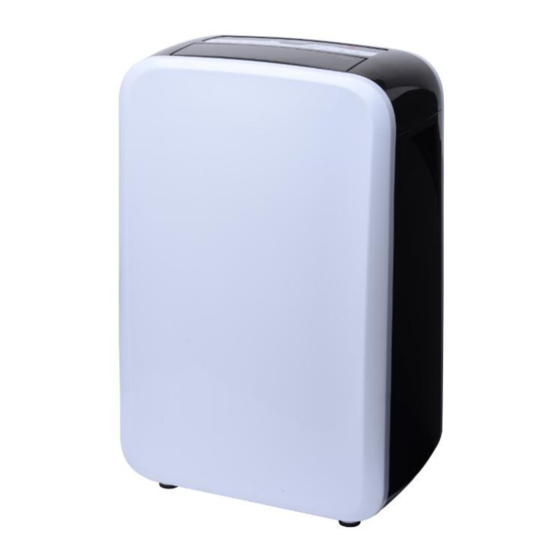

20L DEHUMIDIFIER
OPERATING INSTRUCTIONS
This Dehumidifier is rated to extract 20L per day in an environment of 80% humidity and
temperature of 30°C. This is the world-wide standard for rating dehumidifiers.
In New Zealand we do not have climatic conditions with humidity and high temperature and
accordingly this product will not extract 20L per day. Extraction levels will be lower.
Model: CELDH200
Advertisement
Table of Contents
Related Manuals for Celsius CELDH200
Summary of Contents for Celsius CELDH200

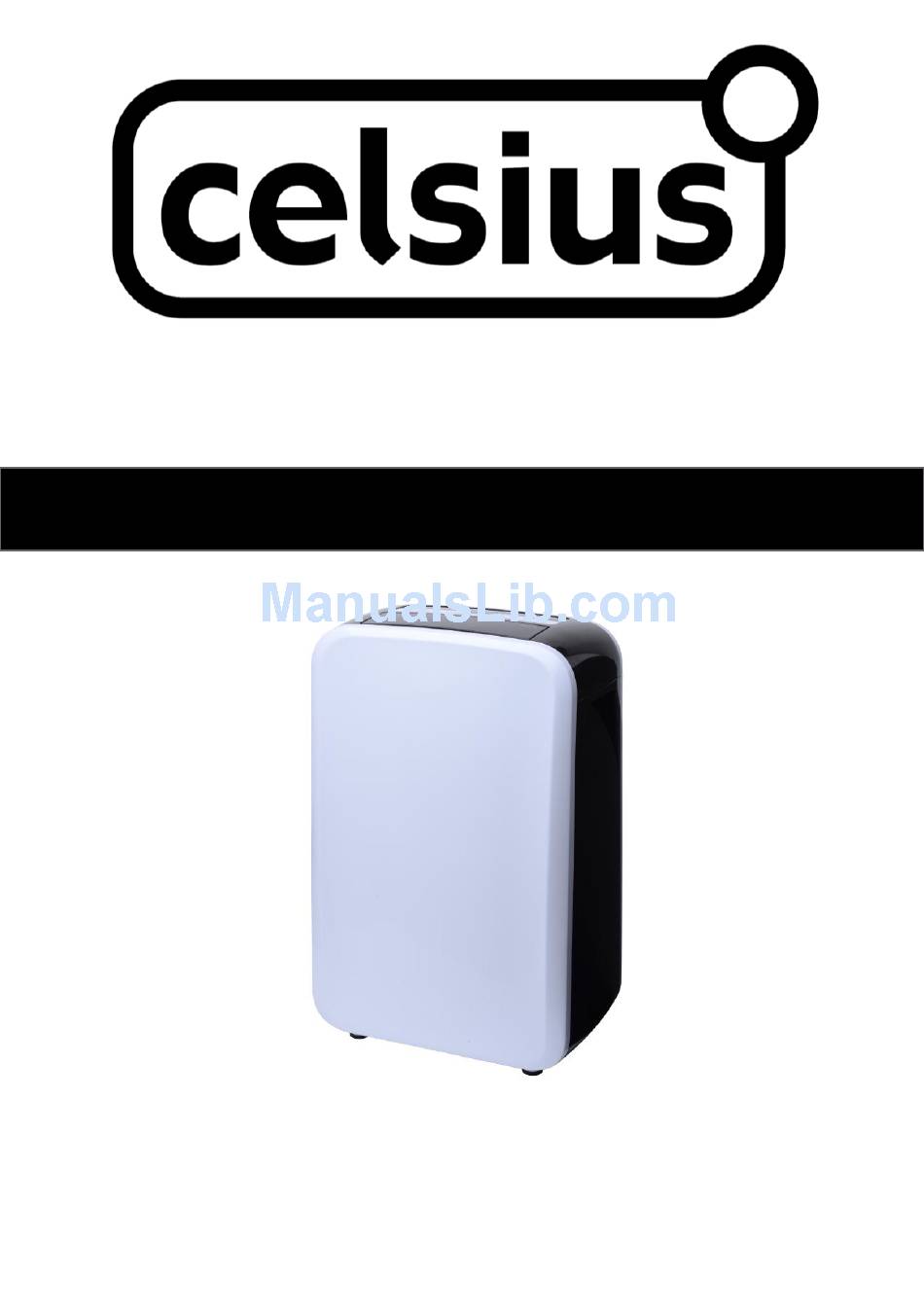

- Page 1 30°C. This is the world-wide standard for rating dehumidifiers. In New Zealand we do not have climatic conditions with humidity and high temperature and accordingly this product will not extract 20L per day. Extraction levels will be lower. Model: CELDH200...
-
Page 2: Warnings And Safeguards
Ensure these deposits are removed regularly purchase or the Celsius Customer Services by unplugging the appliance and vacuum Team. Repair work on the appliance by cleaning the air vents and grills. unqualified persons can cause serious risk to Do not use abrasive cleaning products on this the user. -
Page 3: Control Panel
COMPONENTS Control Panel Filter Handle Continuous Dehumidify Drain Water Tank Air Guide Louvre Air Outlet Power Cord Front Cover CONTROL PANEL... -
Page 4: Operating Your Dehumidifier
OPERATING YOUR DEHUMIDIFIER Always choose a safe location for the Dehumidifier, keeping in mind the safety precautions outlined. Ensure all packaging has been removed from the unit before use. This appliance requires no installation, it should be used solely as a portable appliance OPERATION Leave the appliance to stand for one hour after transport or after the unit has been on its side before connecting it to the mains supply to let the refrigerant settle. -
Page 5: Air Guide
TIMER When the Dehumidifier is running, you can set the Timer to turn the unit off after 1-12 hours. In order to do this, press the TIMER button and use the up and down arrows to set the length of time (displayed in the LED display), after which you want the unit to switch off. -
Page 6: Water Drainage
If this option is desired, you will need to purchase a suitable tube from your local hardware retailer (Celsius does not hold tubes as spare parts). Connect the drainage hose to the drain spout and ensure that the end of the hose is lower than the drain opening, otherwise the water will not drain and flooding may occur. -
Page 7: Troubleshooting
Reduce the number of The room has too much ventilation sources (i.e. close ventilation windows, doors, etc. TECHNICAL SPECIFICATION Model: CELDH200 Supply: 220-240VAC 50Hz Wattage: 330-440W Unit Capacity: 20L/day max (30°C/80%RH) Tank Capacity: 2.0L Refrigerant: R134a/180g PROOF OF PURCHASE To receive warranty retain receipt as proof of purchase. - Page 8 In non-domestic use Celsius limits the voluntary warranty to three months. Celsius undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the warranty period.
