Page 1: Operation Instructions

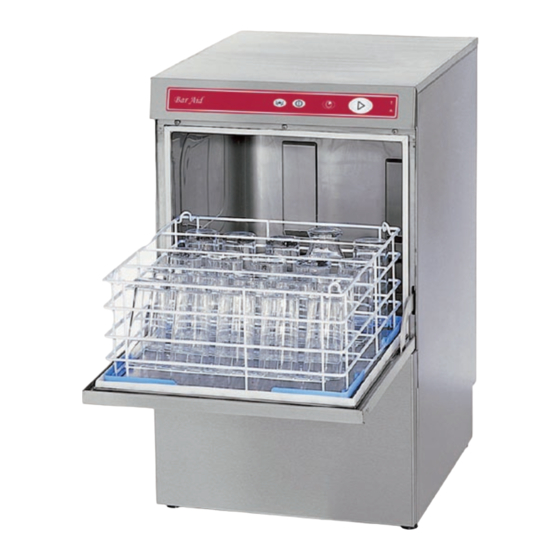

GlasswashER Baraid 400 InstallatIon and opERatIon InstRuctIons Starting from Serial No.: 8649 1065 REV. 19.01.2009... - Page 2 1618-A-01-09...
-
Page 3: Table Of Contents
contEnt Page ImpoRtant notEs ..............4 InstallatIon ................5 .1 Location ..................5 . Electrical connection ............... 5 . Water connection ................5 .4 Drain connection ................5 contRols .................. 6 staRt-up ..................7 4.1 Detergent / rinse aid ............... 7 4. Softener (only on option) .............. -
Page 4: Important Notes
The machine noise level is 60 dB (A). connecting tensions: The machine described with this operation manual, has following connecting tensions: 230 V/50 hz/1 ph/n/pE or 400 V/50 hz/3 ph/n/pE BasIcs REGaRdInG GlasswashInG water quality and impact on the cleaning result: The local supply water quality has a major impact on the wash and rinse result: A high content of minerals may cause streaky results during the drying process. -
Page 5: Installation
InstallatIon locatIon – Wall clearence is not required. – Level machine by turning the feet. – Distribute machine weight equally onto all feet. Vapour may escape from the glasswasher door. Therefore adjacent furniture has to be protected to prevent swelling. ElEctRIcal connEctIon must be carried out by an authorized technician according to the local and national codes. -
Page 6: Controls
contRols ➀ Machine on / oFF Pushing this button switches the machine on. In case of operating error or faults, it is possible to switch-off the machine immediately without the drain cycle, by pushing this button again. after switch off, the machine is not voltage free! ➁... -
Page 7: Start-Up
staRt-up dEtERGEnt / RInsE aId Use only commercial detergent and rinse aid. please pay attention to the manufacturers safety instructions. – Before changing to a different product type (even from the same supplier), the suction hoses must be rinsed thoroughly with fresh water (procedure as described under 4.4). -
Page 8: Priming The Suction Hoses
staRt-up – Push start button ➁ . At the temperature indicator wash ➄ appears "- - 1". Wait until the indicator displays "- - 0". – Close the door. The machine switches off and is now ready for operation. pRImInG thE suctIon hosEs attEntIon: the machine has to be switched off. -
Page 9: Operation
opERatIon pREpaRatIon – Check correct position of wash arms and strainers. You should be able to turn the wash arms easily by hand. If not, clean the wash arms as described in chapter 8. – open shut-off valve. – switch on main switch or put the plug in. –... -
Page 10: Preview Of Temperatures
opERatIon – sElEct pRoGRam: The machine is operating automatically with standard cycle time. If needed, it is possible to select the shorter program. To show the present program, push the program button ➃ before starting the wash cycle. To change the program, push the program button again. p01 = Short cycle (for light / medium soiled glasses) p02 = Standard cycle (for medium / heavy soiled glasses) -
Page 11: Switch-Off And Cleaning The Machine
swItch-oFF and clEanInG thE machInE swItch-oFF – Close the door. Push and hold drain-button ➂ for 2 seconds. – notE: During the drain cycle, the interior of the machine is cleaned automatically. A final inspection is recommended to remove any food debris. -
Page 12: Settings
sEttInGs attEntIon: the machine has to be switched off. open the door. – Push program button ➃ and drain button ➂ – simultaneously until the upper display ➅ shows "boF". If no button is pressed for 10 seconds, the indicator automatically switches off and the new settings will be saved. -
Page 13: Frost Prevention
FRost pREVEntIon In case of frost or longer operation pauses (e.g. for seasonal operations) the machine must be completely drained. This should be carried out by after sales service. REsEt FoR opERatIon: open the door. – – Push program button ➃... -
Page 14: Faults
Faults The service indicator ➈ illuminates and according to the fault, an error code will be shown in the upper display ➅ : e.g. "al" = drain fault: possible types of fault as follows (please report the error code to the service technician): codE possIBlE causE... - Page 15 tRouBlEshootInG GuIdE typE oF FaIluRE possIBlE causE REmEdy poor wash result Stripes and staines on Rinse aid concentration too high. Reduce quantity (see instructions). glasses. Hard water or high mineral content. Check water quality. Obtain details from local water authority. Recommended values: Ideal degree of hardness is up to 4°...
