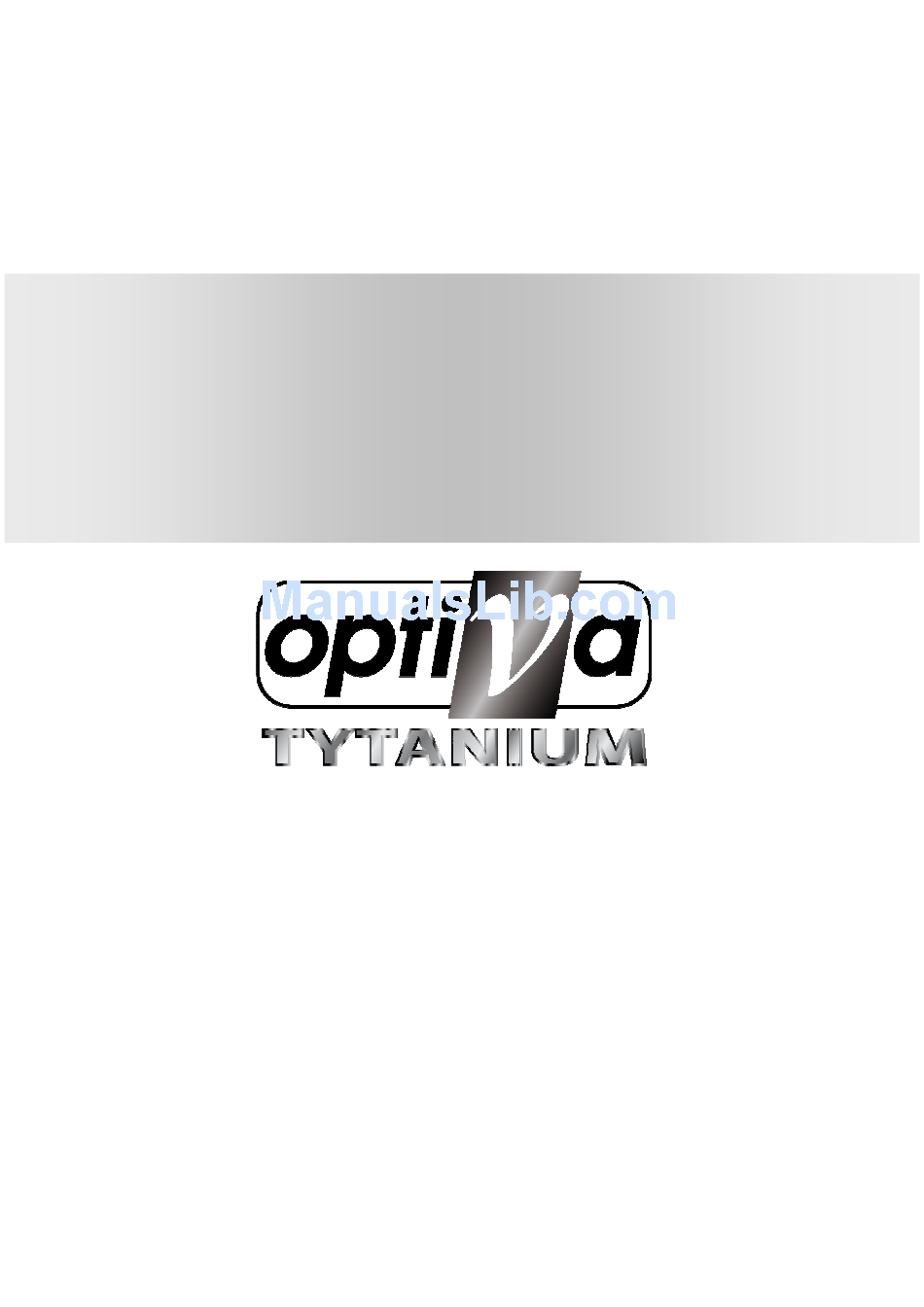

  • Page 1 VTDVR5100 Tytanium DVR series Installation & User’s Guide (v 1.0)

  • Page 2: Fcc Compliance Statement

    VTDVR5100 Digital Video Recorder Caution As this equipment undergone EMC registration and suitable for business purpose, distributors and users are aware of this point. FCC Compliance Statement Caution : Any changes or modifications in construction of this device which are not expressly approved the party responsible for compliance could void the user's authority to operate the equipment.

  • Page 3: Important Notice

    VTDVR5100 Digital Video Recorder Important Notice 1. Do not place heavy objects on the top of the product. 2. Product is for indoor use. It is not weatherproof. Use product with referring to its environmental specifications (Temperature & Humidity). To clean the product, gently wipe the outside with a clean dry cloth.

  • Page 4: Table Of Contents

    VTDVR5100 Digital Video Recorder Contents Installation Guide ........................11 Overview ............................11 Introduction ........................11 Supplied accessories ......................14 Description & Function ....................... 15 Installation and Connection ......................18 Connecting & Running ......................18 4.1. Connecting camera ...................... 18 4.2. Connecting monitor .....................
  • Page 5 VTDVR5100 Digital Video Recorder Date........................29 8.2.5. 8.2.6. Time ........................29 Apply Date/Time ....................29 8.2.7. 8.3. Setting recording condition ................... 30 Configuration Status ..................... 31 8.3.1. Recording Speed/Quality ..................31 8.3.2. 8.3.3. Speed(ips) ......................31 Quality ........................ 31 8.3.4. 8.3.5.
  • Page 6 VTDVR5100 Digital Video Recorder Connecting with DVR ................... 48 10.5.1. 10.5.2. Set ID ........................49 Connecting power and operating ................50 10.5.3. Network monitoring & managing ..................51 11.1. Connecting Ethernet ....................51 11.2. Configuring Network infomraiton of eDVR..............52 Using Control Center Lite ....................
  • Page 7 VTDVR5100 Digital Video Recorder Utilizing Load Preset .................... 67 14.9.3. 14.9.4. Utilizing Save Preset ..................... 67 Utilizing Clear Preset .................... 67 14.9.5. 14.9.6. Utilizing Auxiliary On................... 67 Utilizing Auxiliary Off ..................68 14.9.7. 14.10. Relay control ......................68 14.11. Screen Lock control ....................68 14.12.
  • Page 8 VTDVR5100 Digital Video Recorder Setup ......................... 118 16.2.2. 16.2.3. System Alarm ..................... 119 16.3. Monitor Setup ......................120 16.4. System Setup ......................122 Audio Setup ....................... 122 16.4.1. Time Schedule Setup ..................123 16.4.2. 16.4.3. Special Time ...................... 123 Security Setup ....................124 16.4.4.
  • Page 9 VTDVR5100 Digital Video Recorder Closing Video Channel ..................165 17.3.16. 17.4. Playback ........................ 165 Video Division & Changing Channel ..............166 17.4.1. 17.4.2. Image recording....................167 Printing ......................167 17.4.3. Backup ......................168 17.4.4. 17.4.5. Web Monitor ...................... 169 Channel On/Off ....................169 17.4.6.
  • Page 10 VTDVR5100 Digital Video Recorder System Alarm ....................198 18.3.19. 18.3.20. Recording ....................... 199 Alarm Recording .................... 200 18.3.21. 18.3.22. Manual Recording ................... 201 Extension ........................... 202 External device connection ..................... 202 19.1. Using Text device ....................202 19.1.1. Setup in Text ...................... 202 Setup in RS232 menu of Serial Setup ..............

  • Page 11: Installation Guide

    VTDVR5100 Digital Video Recorder Installation Guide Overview 1. Introduction eDVR Series is DVR(Digital Video Recorder) that can record analog video channel, Audio, text data, alarm info. etc in regard to all channel simultaneously. Also using MPEG-4 algorithm increases the quality and video file size innovatively. Quick Setup menu in eDVR Series makes possible to direct recording by only connection between Power &...

  • Page 12: Main Features

    VTDVR5100 Digital Video Recorder Main features - It supports 16ch (32ch) video - Supports 4 ch bi-directional audio - Supports recording, playback, network recording, network playback simultaneously (Pentaplex) - Recording speed D1, 480(VTDVR5100H) ips Half, 480(VTDVR5100M) ips Half, 960(VTDVR5100M) ips - Real-time display speed Max.
  • Page 13 VTDVR5100 Digital Video Recorder...

  • Page 14: Supplied Accessories

    VTDVR5100 Digital Video Recorder 2. Supplied accessories Unpack and check all the items as below; 1. eDVR (1EA) 2. AC Power Cord (1EA) 3. CD (Including Software) (1EA) 4. Remote Controller (1EA) 5. RACK FIXING KIT (1SET) 6. R-HDD screw (8EA) <Note>...

  • Page 15: Description & Function

    VTDVR5100 Digital Video Recorder 3. Description & Function...
  • Page 16 VTDVR5100 Digital Video Recorder front (1) Power switch (2) Function buttons (3) LED (4) USB port (5) Remote controller receiver (6) CD/DVD-RW ROM (7),(8) Built-in Hard Disk Rack...
  • Page 17 VTDVR5100 Digital Video Recorder rear (9) AC power connector (10) BNC connector for video input (11) BNC connector for video output(VTDVR5100H,VTDVR5100M)/BNC connector for video input(VTDVR5100M) (12) Terminal block for sensor, relay, and serial input/output (13) RS232 connector (14) VGA connector (15) IEEE1394 connector (16) eSATA connector (17) Network Storage connector(RJ45)

  • Page 18: Installation And Connection

    VTDVR5100 Digital Video Recorder Installation and Connection 4. Connecting & Running 4.1. Connecting camera (1) Connect CCTV camera to eDVR with BNC cable as below. <Note> The video type for all channels should be either NTSC or PAL, not be combined both. eDVR sets video signal’s impedance (75 ) automatically.

  • Page 19: Connecting Monitor

    VTDVR5100 Digital Video Recorder 4.2. Connecting monitor (1) Connect CCTV monitor to eDVR with BNC cable as shown below; <Note> eDVR’s monitor output divided into Video Out 1~4(H1600L, H3200M) / 1~2(H1600M), and connect to Video Out 1 for the use of 1 monitor only 4.3.

  • Page 20: Supplying Power

    VTDVR5100 Digital Video Recorder 4.4. Supplying power (1) Connect power cable as shown below <Note> When supplying power, eDVR starts booting automatically. 2. In order to cut off power, press the power switch on eDVR front during 4 seconds and enter admin password after appearing a pop window.

  • Page 21: Running Osd Menu

    VTDVR5100 Digital Video Recorder 5. Running OSD menu 5.1. Using menu Press the [MENU] in keypad of front to open the OSD Configuration Menu ① Main Menu ② Sub-menu ③ Setting Page (1) Main Menu : The selected tab is shown in blue and the related sub-menu will be shown below the tab.
  • Page 22 VTDVR5100 Digital Video Recorder (1) Entering words Move pressing [▶] arrow button to enter next word until the word is looking for is shown using [▲/▼] arrow buttons. In case of spacing words, press [▶] to move one space and enter the word. To exit the Dialogue box, press the [▷] arrow button.

  • Page 23: Setting Remote Controller

    VTDVR5100 Digital Video Recorder 6. Setting remote controller When controlling several eDVRs with one remote controller, set Remote Contorl ID as follows. 6.1. Setting ID of eDVR (1) Press the [MENU] button (2) Select “System” with using [▶] button and press the [▷] or [▼] button (3) Select “Miscelleaneous”...

  • Page 24: Selecting Edvr

    VTDVR5100 Digital Video Recorder 6.2. Selecting eDVR If several eDVRs are set with unique ID numbers, they can be controlled with one remote controller. To select a specific eDVR, Keep pressing the ID button of remote controller until a buzzer sounds during 2 seconds.

  • Page 25: Edvr Configuration

    VTDVR5100 Digital Video Recorder 7. eDVR configuration 7.1. Basic configuration 7.2. Advanced configuration...

  • Page 26: External Storage & Back Up Configuration

    VTDVR5100 Digital Video Recorder 7.3. External storage & Back up configuration 7.4. Internet/ Intranet configuration...

  • Page 27: Edvr Basic Setting

    VTDVR5100 Digital Video Recorder 8. eDVR basic setting 8.1. Viewing Image When power is on, eDVR starts automatically and images are displayed in basic 16ch-split screen after the booting. <Note> If user password is set, a prompt for entering the password will appear. Facotry default is reserved as not responding key pad on eDVR front (It is not set from factory default)

  • Page 28: Setting Date & Time

    VTDVR5100 Digital Video Recorder 8.2. Setting Date & Time (1) Press [MENU] button and select “Quick Setup” tab. (2) Select “Date/Time” using the [▷] or [▼] and press [EXIT] button. 8.2.1. Time Zone (1) Select “Time Zone” using the [◀/▶] or [▲/▼] buton and press [▷] to configure. (2) Select Time Zone using the [◀/▶] button and press [EXIT].

  • Page 29: Time Format

    VTDVR5100 Digital Video Recorder (2) Select On/Off using the [◀/▶] button and press the [EXIT] button. 8.2.4. Time Format (1) Select “Time Format” using the [◀/▶] or [▲/▼] button and press [▷] button.. (2) Two time formats are available; ‘DD/MM/YYYY,’ ‘MM/DD/YYYY’, ‘YYYY/MM/DD’; Select a value using [▲/▼] buttons and press the [EXIT] button when it is finished.

  • Page 30: Setting Recording Condition

    VTDVR5100 Digital Video Recorder 8.3. Setting recording condition Recording conditions under the “Quick Setup” menu tab apply the same values to all analog channels 1~16(32). All settings are applied for 24 hours/ day regardless of the value set for “Time Schedule” or “Alarm Rec.”...

  • Page 31: Configuration Status

    VTDVR5100 Digital Video Recorder (3) Select “Recording” using the [▲/▼] buttons and press [▷]. 8.3.1. Configuration Status Displays the recording configuration status. When setting through the “Quick Setup” menu, “Quick Setup” will be shown. When setting up thorugh “Normal Rec,” or “Alarm Rec,” “Custom Setup” will be shown.

  • Page 32: Apply

    VTDVR5100 Digital Video Recorder 8.3.7. Apply (1) Select “Apply” using [▲/▼] buttons and press [▷]. (2) Setting values are applied and the prevous menu will be displayed. 9. Connecting and configuring DIO ports <Note> Wire Handling Trimming Wire When connecting a wire to a terminal block, follow the instructions below. Note the different types of wire that can be used.

  • Page 33: Connecting Sensor Input

    VTDVR5100 Digital Video Recorder Output current Typical DC 12mA 9.1.2. Connecting sensor input Connect S1 ~ S16 with referring to the followings. It shows to connect a dry contact (Please refer to “<Note> Wire Handling” on page 27). When connecting a non-dry contact type of sensor (e.g. Open collector output) please contact WEBGATE’s customer Support team.

  • Page 34: Configuring Sensor At Osd Menu

    VTDVR5100 Digital Video Recorder 9.1.3. Configuring sensor at OSD menu (1) Press the[Menu] button and select “Alarm Source”. (2) Press [▷] or [▼] button to move to Sub-Menu, select “Sensor” and press [▷]. 9.1.3.1. Global Use when selecting all 16 sensors simultaneously, which can be selected as “Do not use”(Off). “Normal Open”...

  • Page 35: Connecting & Configuring Relay Out

    VTDVR5100 Digital Video Recorder (3) Press [Exit] to out from OSD Menu. <Note> Configuration a sensor is to set On/Off usage and type. Please refer to “Alarm Rec” for saving and “Alarm Act” for relay-out on the “eDVR User’s Guide” 9.2.

  • Page 36: Connecting Relay Out

    VTDVR5100 Digital Video Recorder 9.2.2. Connecting relay out Connect R1 ~ R4 with referring to the followings, It shows to connect a warming light. Please refer to “<Note> Wire Handling” on page 27.

  • Page 37: Configuring Relay Out As Osd Menu

    VTDVR5100 Digital Video Recorder 9.2.3. Configuring relay out as OSD menu. Relay can run by sensor or MD and its condition can be set differently according to schedule. When using the [Relay] button + [Number] button on the front panel or Control Center Lite-D S/W, relay can be operated from remote site.

  • Page 38: Connecting Serial Port

    VTDVR5100 Digital Video Recorder 9.3. Connecting serial port 9.3.1. Configuring serial ports for Pan/Tilt/Zoom The eDVR have most major PTZ protocols already pre-programmed. Makes and models not supported can still be controlled using the Transparent Protocol. For a list of supported protocols, refer to the list on the OSD Configuration menu.

  • Page 39: Diagram Of Serial Ports

    VTDVR5100 Digital Video Recorder 9.3.2. Diagram of serial ports 9.3.2.1. Diagram of COM1(RS232) 9.3.2.2. Diagram of COM2/COM4...

  • Page 40: Configuring Serial

    VTDVR5100 Digital Video Recorder 9.3.2.3. Diagram of COM3 9.3.3. Configuring Serial Configure PTZ COM ports and available models at “System/ Serial Setup” in eDVR. After completing serial setup, configure base address or port for each channel at “ Camera menu” tab. When connecting PTZ devices to several cameras, be sure base address matches address for the camera.

  • Page 41: Connecting External Device With Serial Port

    VTDVR5100 Digital Video Recorder 9.4. Connecting external device with serial port 9.4.1. Connecting text inout device (ATM / POS / Access Control) The eDVR can record text data received from POS/ATM through the COM/RS232 serial port. Connect to COM1/RS232 (9Pin D-Sub) of eDVR and configure the “Serial Setup” sub-menu under the “System”...

  • Page 42: Configuring Serial Setup (Com1) At Osd Menu

    VTDVR5100 Digital Video Recorder 9.4.2. Configuring serial setup (COM1) at OSD menu (1) Set the “System” in OSD menu and move to “Serial Setup” menu. (2) Select COM in “Serial Setup”, set Devices as “Text”. (3) Set Baud Rate/ Parity/ Stop bit with referring to manual of the connected external device.

  • Page 43: Configuring Text

    VTDVR5100 Digital Video Recorder 9.4.3. Configuring text (1) Select the “Alarm Source” menu among OSD menus. (2) Select the “Text” and set each value. <Note> Before installing any external device, consult with the local WEBGATE distributor. Some external devices may not be compatible with the eDVR. 9.5.

  • Page 44: Connecting Video In/Output

    VTDVR5100 Digital Video Recorder <Note> The disk should be formatted with FAT32 type. If properly connected the disk is recornized automatically as in the following pricutre. To copy images the process is as follows; Set copy range (up to 1minute) Select drive Copy <Note>...
  • Page 45 VTDVR5100 Digital Video Recorder...

  • Page 46: Connecting External Storage

    VTDVR5100 Digital Video Recorder 10. Connecting External Storage 10.1. IEEE1394 port eDVR have two IEEE 1394 ports (Rear: 2-ports) for external storage device interface. <Note> Some IEEE 1394 Bay may not be recognized by the eDVR. Before purchasing consult the local WEBGATE’s local distributor.

  • Page 47: Registering & Formating Hdd

    VTDVR5100 Digital Video Recorder WEBGATE Inc. will guarantee the warranty. 10.4. Registering & Formating HDD “Disk Manager” will automatically run on start-up installing a HDD as below; If “Disk Manager” deos not automatically run on start-up, make sure the HDD is properly installed. (1) Press [▷] button marked at “Select Disk”.

  • Page 48: Connecting With Nvs04R

    VTDVR5100 Digital Video Recorder 10.5. Connecting with NVS04R 10.5.1. Connecting with DVR (2) Connect to DVR as shown in the picture below using Gigabit Ehternet Cable. (3) Connect DVR Port of NVS04R and Storage Port of DVR directly. <Note> The network cable connected to DVR should be Gigabit Ehternet Cable (Category-6). If not, it is not connected to DVR.

  • Page 49: Set Id

    VTDVR5100 Digital Video Recorder 10.5.2. Set ID (1) Set ID using Rotary Switch located on the back. This ID is used as IP Address of NVS04R and the form of IP address is 10.10.20.XXX. when the user connect more than 2 units of NVS04R, each ID should be set differently.

  • Page 50: Connecting Power And Operating

    VTDVR5100 Digital Video Recorder 10.5.3. Connecting power and operating (2) Connect power as below. (3) As soon as power is connected, the device starts booting. <Note> It takes around 1 minute to connect NVS04R and DVR after connecting power. Four LEDs at the front starts blinking and they are fully on when connection is completed. The HDD list is available to check at Disk Manager.

  • Page 51: Network Monitoring & Managing

    VTDVR5100 Digital Video Recorder 11. Network monitoring & managing eDVR can be accessed, controlled, and managed from remote site using PC via Internet/ Intranet, which is same way as local access for controlling & monitoring features. 11.1. Connecting Ethernet (1) Turn off power switch of eDVR (2) Connect eDVR to hub with Ethernet cable (3) Turn on power switch of eDVR <Note>...

  • Page 52: Configuring Network Infomraiton Of Edvr

    VTDVR5100 Digital Video Recorder 11.2. Configuring Network infomraiton of eDVR The following description is based on Ethernet connection. For more detailed information on the Network setting page and way of using xDSL, please refer “eDVR USERS’ GUIDE”. (1) Press [MENU] button (2) Select “System”...

  • Page 53: Using Control Center Lite

    VTDVR5100 Digital Video Recorder (12) Press [EXIT] button to exit to montor mode 12. Using Control Center Lite Control Center List is a eDVR Management Software and it makes eDVR installtion & setting more easier throguth a PC which is connected with eDVR in Network. All configuration could be handled in OSD menu of eDVR without a PC, however, Control Center Lite makes the complete setting more simply.
  • Page 54 VTDVR5100 Digital Video Recorder 2> Click “I Agree” button to accept the license agreement 3> Select components which wish to install and press “Next” button. “WESP SDK” must be installed. 4>.Click the “Install” button after selecting a directory to be insatalled.

  • Page 55: Log-In

    VTDVR5100 Digital Video Recorder 12.3. Log-In Enter User Name, Password and press “Ok” button. The factory default value : User Name:Administrator, Password:admin...

  • Page 56: Configuration Tool

    VTDVR5100 Digital Video Recorder 12.4. Configuration Tool Click the icon on the desk top to run “Control Center Lite Configuration Tool”. 12.5. Monitor * Max. 5 users could be connected simultaneously in one unit of eDVR. Click the icon on the desk top to run “Control Center Lite Monitor”.

  • Page 57: Playback

    VTDVR5100 Digital Video Recorder 12.6. Playback * Max. 2 user could be connected for playback in one unit of eDVR. Click the icon on the desk top to run “Control Center Lite Playback”.

  • Page 58: User's Guide

    VTDVR5100 Digital Video Recorder User’s Guide 13. Description 13.1. Front Part (1) Status LED (2) Remote controller (3) Power switch receiver (4) USB Interface (5) Function buttons (6) Channel button (7) Menu & Directions (1) Status LED : It indicates Power input, and light on at Power in. Power Network : Indicates Ethernet &...
  • Page 59 VTDVR5100 Digital Video Recorder (5) Function buttons : Function to copy recorded images COPY In single monitoring mode, press the button to activate COPY menu : Function to diplay all video connected sequentially Press more than 1 sec. to operate User Sequnce mode MULTI : Function to monitor multi video images in a screen((4/9/16 division channel) : Function to select video channel to control PTZ in Monitor model.

  • Page 60: Rear Part

    VTDVR5100 Digital Video Recorder (x1, x2, x4, x8, x16, x32, x64) : To pause Live/replaying PAUSE STOP : To stop replaying It converts to from single/multi mode to next channel or multi mode with suitable channel group. 13.2. Rear Part (1) Audi In/Out (4) Video input &...

  • Page 61: Summery Of Installation

    VTDVR5100 Digital Video Recorder 13.3. Summery of Installation - Camera connection - Monitor connection - Ethernet connection (for remote connection) - Audio connection - Power connection & Operation...

  • Page 62: Basic Structure

    VTDVR5100 Digital Video Recorder Basic Structure 14. Monitoring All analog video image channels connected to eDVR is displayed to screen by Power connection. It is to utilize all monitoring mode of eDVR series. <Attention> VTDVR5100L, VTDVR5100M support Quad monitor(1~4), and H1600M supports Dual monitor(1~2). And Monitor 1~4 support all functions as follow.

  • Page 63: Manual Recording

    VTDVR5100 Digital Video Recorder 14.4. Manual Recording By the press [REC] button for user recording, it records as long time as it set the time. It is prior to Normal Rec, Event Rec. And it records by user recording set in disregard for any recording setup when user recording starts.
  • Page 64 VTDVR5100 Digital Video Recorder Auto Switch mode can be set in every division mode by the press [SEQ] button. Press [SEQ] button once more to leave from Auto Switch mode.

  • Page 65: User Sequence Mode

    VTDVR5100 Digital Video Recorder 14.5.2. User Sequence mode Press [SEQ] button longer than 1 sec. User Sequence is to set User Sequence Configuration from “Monitor 1” in OSD menu. <Attention> 1. User mode can define max. 16 channels. 2. The above picture defines 6 Sequence, and it is displayed in order as 4 division(1,2,3,4) Full screen(1) division(5,6,7,8)

  • Page 66: Zoom Screen Mode

    VTDVR5100 Digital Video Recorder button to return orginal channel. <Attention> 1. If Alarm Pop-up Hold (sec) set to Off, Alarm Pop-up will not operate. 2. If Alarm Pop-up Hold (sec) set to Keep, it does not return to previous screen before press any button. 14.7.

  • Page 67: Pan/Tilt Control

    VTDVR5100 Digital Video Recorder 14.9.1. Pan/Tilt Control This menu is used to control Pan & Tilt function at real-time monitoring mode. Press [SELECT] button and select Channel. Press [MENU], then select ‘Pan/Tilt’ from OSD. Control Pan/Tilt through directional key at front part. 14.9.2.

  • Page 68: Utilizing Auxiliary Off

    VTDVR5100 Digital Video Recorder 14.9.7. Utilizing Auxiliary Off This menu is used to stop operation of specific function of PTZ device. 14.10. Relay control The function to Relay On/Off. (supports 4 Relay Output.) Press [RELAY] button to display “Relay On” icon on screen. Then Relay Out signal is out by pressing the relevant number of Relay among 1~4 number button.

  • Page 69: Utilizing Quad Monitor

    VTDVR5100 Digital Video Recorder Press [EXIT/LOCK] button over 3 sec. to operate Lock mode with message “Screen Locked” on the bottom of screen. When “User Password” is Off, the message “Enable user password first” is on the screen. At the Lock mode, any button does not work. It must release to operate function button. At Lock mode, window for user password input will be displayed at any button press.

  • Page 70: Vtdvr5100H Monitoring & Playback

    VTDVR5100 Digital Video Recorder Alarm Pop-up Monitor Multi Monitor Single Monitor Sequence Monitor 14.12.2. VTDVR5100H Monitoring & Playback Monitor 1~4 are capable of searching several video/playback in single & divided sreen. Namely, several channels can be monitored and playback separately and simultaneously. But Playback can be monitored in 1 monitor among Monitor 1~4, and the rest 3 monitors for monitoring.

  • Page 71: Vtdvr5100M Monitoring & Playback

    VTDVR5100 Digital Video Recorder Following conditions can monitor in various combination. Monitor 1, 2 can be set under every conditions below individually. Monitor 1 Monitor 2 Multi Monitor Single Monitor Single Monitor Sequence Monitor Sequence Monitor Alarm Pop-up Monitor Alarm Pop-up Monitor Multi Monitor 14.12.4.

  • Page 72: Vtdvr5100M Monitoring

    VTDVR5100 Digital Video Recorder 14.12.5. VTDVR5100M Monitoring H3200M can only display and setup channel 1 to 16 to Monitor 1 & Monitor 3, and channel 17 ~ 32 to Monitor 2 & Monitor 4. Every Monitor 1~4 can be set in following conditions separately.. Monitor 1 Monitor 2 Monitor 3...

  • Page 73: Vtdvr5100M Monitoring & Playback

    VTDVR5100 Digital Video Recorder 14.12.6. VTDVR5100M Monitoring & Playback Monitor 1~4 are capable of searching several video/playback in single & divided sreen. Namely, several channels can be monitored and playback separately and simultaneously. But Playback can be monitored in 1 monitor among Monitor 1~4, and the rest 3 monitors for monitoring.

  • Page 74: Playback

    VTDVR5100 Digital Video Recorder 15. Playback 15.1. Various Playback mode(Playback) 15.1.1. Playback on standard monitor (16 division) Press Playback button [▷] at Monitoring mode. It playback images with initial 1x speed. <Attention> At Monitor mode, Playback buttom will play the recorded image from Channel 1. Namely, it will always start playback of channel 1 from 30sec.

  • Page 75: Various Playback Functions

    VTDVR5100 Digital Video Recorder 15.1.5. Various Playback functions ▷ ▷ ▷ ▷ (PLAY) : Playback 1x speed. Press [▷]playback button at single monitor mode will playback recorded images of monitoring channel. Press [▷]playback button at multi monitor mode will always playback recorded images of no.

  • Page 76: Search Mode

    VTDVR5100 Digital Video Recorder 15.2. Search mode This menu is to playback specific time data from the time frame and searching log at Playback mode. From for the time to start recorded data, To indicates the last time. Select From/To and press [ENTER] to move to the relevant time.

  • Page 77: Copy / Backup / Delete

    VTDVR5100 Digital Video Recorder 15.3. Copy / Backup / Delete This menu describes how to copy/backup/delete recorded images. Press [SELECT] and [MENU] in order and Playback mode. 15.3.1. Copy Image Use USB Memory Stick etc to copy selected channel images in some part. Time Slect the range of Copy.

  • Page 78: Backup Data

    VTDVR5100 Digital Video Recorder Select the target of Copy. 15.3.2. Backup Data Start Date & Time / End Date & Time Select the range of backup. Select Disk Select the disk to use backup device. <Note> Uncompleted backup file 100% can not be played normally in PC <Note>...

  • Page 79: Delete Data

    VTDVR5100 Digital Video Recorder 15.3.3. Delete Data The menu to delete specific rage of data in present HDD recorded. Delected data is limited to present HDD used, and it does not affect to backup disk. The range of delete data is from oldest data to the data that the time selected. <Note>...

  • Page 80: Configuration

    VTDVR5100 Digital Video Recorder 16. Configuration 16.1. Recording Setup There are all 4 different recording modes in eDVR. As following picture, it describes structure of setup and the table explains the type of recording briefly. Refer to each list as follow for the recording in detail. Type of Recording Contents Quick Recording Setup...
  • Page 81 VTDVR5100 Digital Video Recorder [List of Quick Recording Setup] ① Recording Speed ② Recording Quality ③ Recording Resolution ④ Audio Recording On/Off Schedule Recording It is to set recording by channel or time period offered in setup list, and also possible to set Schedule recording. [List of Schdule Recording Setup] ①...

  • Page 82: Time Setup (Date/Time)

    VTDVR5100 Digital Video Recorder ⑥ Pre Alarm ⑦ Post Alarm Setup Manual Recording by When pressing ‘Rec’ button at the front of unit, it records based on user setup value in Manual Recording menu. 16.1.1. Time Setup (Date/Time) It must set the time of unit before Recording setup. Setup the time to the local is very important to protect Recording data in a unit.
  • Page 83 VTDVR5100 Digital Video Recorder Time Zone Select the times using left-right directional key from eDVR front. Every time pressing direction changes the time zone. (Press [EXIT] to return to previous menu. It is as same as OSD menu.) Daylight Saving(Summer Time applied) This menu is linked to Time zone set menu.
  • Page 84 VTDVR5100 Digital Video Recorder Time Format Select the method of Time Format. Using Legt-Right key set Time Formate “MM/DD/YYYY” or “YYYY/MM/DD”. Date/Time Using Left, Right key will shift Year, Month, Date menu, and select each menu with Upper & Lower button.

  • Page 85: Camera Setup (Camera)

    VTDVR5100 Digital Video Recorder 16.1.2. Camera Setup (Camera) This menu is to set the condition for each camera connected to the system such as ‘Name’, ‘Status’, ‘Brightness’, ‘Color/Black & White, Contrast of ratio, and part of PTZ setup. Refer to the following list for the explanation of each menu.
  • Page 86 VTDVR5100 Digital Video Recorder Press [ENTER] to display the letter set menu. <TIP> Display Letter input window to input characters. According to menu, letter input window can be different, but Set is the same. Use direction key for letter input. Select letter using [▲/▼] button.

  • Page 87: Quick Recording Setup

    VTDVR5100 Digital Video Recorder AGC (Auto Gain Control) AGC is the function to control the range of video signal input from carame connected. After press [ENTER], use [◄] or [►] button to set “Enable/Disable”. Brightness/Contrast It can control Brightness and Contrast of video. After press [ENTER], use [◄] or [►] button to set the value wanted from each “–9”...
  • Page 88 VTDVR5100 Digital Video Recorder 16.1.3.1. Method of Quick Recording Setup Select “Recording” menu inferior to “Quick Setup”. Configuration Status It just indicates the setup status of recording only. If user sets recording condition to Quick Setup, it is indicated to “Macro Setup” and “Custom Setup” when any set has changed from recording menu. <Note>...
  • Page 89 VTDVR5100 Digital Video Recorder No Rec. / Low / Standard / High / Custom The conditional Setup except “Custom” comes to auto synchronize with “Speed(ips)”and “Quality”, Quality can set the each separately. Resolution Recording resolution of all cameras [CIF /Half D1/ Full D1] It is possible to change when resolution setup is set to Custom at ‘Recording Speed/Quality’.

  • Page 90: Normal Schedule Recording

    VTDVR5100 Digital Video Recorder <Note> How to check Recording If recording setup completed normally, ‘Recording LED’ at front twinkles. To check the recording status by channel, afer recording setup as above, press ‘Exit’ button, and then press ‘Help’ button at monitoring status after closing all windows.
  • Page 91 VTDVR5100 Digital Video Recorder <Note> 1. The difference of recording setup in Quick Setup is that there is no audio recording setup, and sets whether Special Time Recrding & Event Recording sets or not. 2. What Alarm Recording Off is set, Alarm Rec. menu is not available. To set Alarm Rec. menu, Alarm Recording of Recording menu should be set to “On”...
  • Page 92 VTDVR5100 Digital Video Recorder 16.1.4.2. Setup by Channel Time Schedule It sets recording condition based on every time schedule. Time period can be set 4 districted areas, Full Time, Weekday (Day)/Weekday (Night)/Weekend (Day)/Weekend (Night). Day & Night, Weekday & Weekend can be set from “System” menu.
  • Page 93 VTDVR5100 Digital Video Recorder <Time Schedule Setup> Shift to“System” menu to set Time Schedule. Weekday Start/End Set Time zone from Monday to Sunday using Left, Right key button. The unset zoon can be set to Weekend time zone. Day Start/End Set Day time zone using Up, Down button.
  • Page 94 VTDVR5100 Digital Video Recorder Resolution There are all 3 conditions. (CIF/HALF/D1) At this menu, resolution set is applied to every User recording, Event recording. CIF : 360x240 @ NTSC, 360x288 @ PAL HALF : 720x240 @ NTSC, 720x288 @ PAL (HALF D1) D1 : 720x480 @ NTSC, 720x576@ PAL (FULL D1) Special Time Recording This menu is to differenciate recording conditions by setup of specific time zone.
  • Page 95 VTDVR5100 Digital Video Recorder Max. 4 specific time zones can be set. Event Recording After pressing [ENTER] button, set “On/Off” using [◄] or [►] button. Detailed Alarm recording conditions sets from “Alarm Recording” menu. Here only can set recording according to alarm recording setup.
  • Page 96 VTDVR5100 Digital Video Recorder (6) Select ‘Same as above’ at Special Time Recording Special Time Recording: ‘Save as above’ means to record same as above set at Special time assigned. Refer to 5.4.3 Special Time for the details of Special Time. (7) Select Alarm Recording Off.
  • Page 97 VTDVR5100 Digital Video Recorder (1) Move to System> Time Schedule menu. (2) As above picture, set basic value. (3) Refer to the following explanation for the each value in the setup menu. <Note> Weekday Start Mon Weekday End Fri Day Start 09:00 Day End 18:00 The aboves are explained as follow, Weekday Day: means Moday to Friday, 09:00AM~ 18:00PM.
  • Page 98 VTDVR5100 Digital Video Recorder (1) Press [Enter] key at Schedule Rec> Global menu, and select Weekday Day using [◀/▶] key. (2) Select ‘No Rec.’ using [◀/▶] key at Normal Recording Parameters. In case of No Rec., it does not record, but monitoring is available. (3) Select Special Time Recording Same as above (4) Select Alarm Recording Off.
  • Page 99 VTDVR5100 Digital Video Recorder (1) Press [Enter] key at Schedule Rec> Global menu, and select Weekday Night using [◀/▶] key. (2) Select Custom using [◀/▶] key at Normal Recording Parameters. (3) Select Speed(ips) 15, Quality Q5, Resolution D1. (4) Select Special Time Recording Same as above. (5) Select Alarm Recording Off.
  • Page 100 VTDVR5100 Digital Video Recorder <Cam #1: Setup to record full time> (1) Move to Schedule Rec.> Cam #1 menu. (2) Press [Enter] key to select Full Time, and set to record as above picture. (3) Press [Enter] to Apply, and move to the next camera to set. (4) Cam #1 is set to full time recording.
  • Page 101 VTDVR5100 Digital Video Recorder (1) Move to Weekday Day to setup recording Cam #2 for Weekday Day. (2) It can set recording wanted. As above picture, it set to record in Custom, Speed 15 ips, Quality Q5.

  • Page 102: Alarm Recording Setup

    VTDVR5100 Digital Video Recorder (1) Move to Weekday Night, Weekend Day, Weekend Night and select No Rec. as above picture due to set recording Cam # 2 for Weekday Day only. (2) In case of other camera, it can set recording as same as above for the wanted time schedule. (3) Set to record other cameras as above for wanted schedule, and exit menu using [Exit] key.
  • Page 103 VTDVR5100 Digital Video Recorder 16.1.5.1.1. Sensor Setup This menu is to setup the existing sensor input and type of sensor. Sensor has 2 types, Normal Open(N.O.) and Normal Close(N.C.). Global It set all sensors same together. After select among Off/N.O./N.C., and press “Apply” to activate. Configuration It can set 16 sensors (S1~S16) separately.
  • Page 104 VTDVR5100 Digital Video Recorder Motion Detection It sets 6 different sensitivity of MD; Off, Lowest, Low, Std, High, Highest. MD Area It sets MD Area. It can set all areas with selection of “Set All”, and clear the selection through “Clear All”. <Note>...
  • Page 105 VTDVR5100 Digital Video Recorder Custom Area It sets MD zone by user NTSC 22x15, PAL 22x18 First default value is set to “Select All”. If “Custom Area” pressed, Window for MD zone setup is opened.
  • Page 106 VTDVR5100 Digital Video Recorder < MD Zone Setup > It can set MD zone by user directly. If “Custom Area” is pressed, sell NTSC 22x15, PAL 22x18 for setup is displayed. Selected MD zone is in grey color. To select MD zone, use direction key for the wanted zone and press“ENTER” to apply.
  • Page 107 VTDVR5100 Digital Video Recorder Recording It is On or Off to save the Text input. Sync Text With Select the channel synchronize with Text data. Seek Header It has the various type of data input from the external device (Access Control, POS, ATM etc). Like Star Finger 007, it is not needed when the protocol of these device have implemented on the device.
  • Page 108 VTDVR5100 Digital Video Recorder purchasing stores of its model. Timeout (ms) Following lines defined here means maximum number of text line from one data. Even if there is standized data, there can be a short and long data. For example, there are 3 lines to write names on ATM. But some may need only First name &...
  • Page 109 VTDVR5100 Digital Video Recorder Pairing means 1:1 synchronization between the channel and Sensor/MD. Text When set “On”, it deals text input of relevant channe as Alarm Event and is saved. <Note> 1. To apply Global setup, press “Apply” button. 2. Refer to following Setup by channel for the details. 16.1.5.3.
  • Page 110 VTDVR5100 Digital Video Recorder 1. * : Press ▷ button. 2. – or # : Press number 0 button. Recording Speed/Quality There are all 4 conditional setup (No Rec/Low/Standard/High/Custom). Except “Custom”, Setup condition will synchronize “Speed(ips)” and “Quality” automatically, Speed(ips) and Quality can be set each separately.
  • Page 111 VTDVR5100 Digital Video Recorder (1) Move to Alarm Rec.> Global menu. (2) Press [Enter] key at Sensor and select Pairing. (3) Press [Enter] key at Sensor and select Pairing. If select Pairing at MD & Sensor, it set to match Sensor that meet to each channel and is set up MD On.
  • Page 112 VTDVR5100 Digital Video Recorder <Alarm Recording ON> (1) After complete setup at Alarm Rec. menu, set Alarm recording ON to operate alarm recording. (2) Move to Schedule Rec.> Global menu. (3) Select Full time. (4) Press [Enter] at Alarm Recording and set to ON. (5) Press Apply, and press [Exit] to exit from menu.
  • Page 113 VTDVR5100 Digital Video Recorder In case of Alarm recording, it can ON/OFF at each menu by schedule in Schedule Rec. it can ON to the cameras’ schedule to work alarm recording by schedule. <Set to ON/OFF Alarm recording by Camera schedule> (1) As above picture shows the Cam #1 is alarm record in day time during week..

  • Page 114: Manual Recording Setup (Manual Rec.)

    VTDVR5100 Digital Video Recorder (1) Set the Cam #2 as alarm record OFF for weeknight. (2) Move to Cam #2 and select Alarm Recording Off and press [Enter] key. As above, it can ON/OFF alarm recording by schedule of each camera. <Note>...
  • Page 115 VTDVR5100 Digital Video Recorder Recording Speed/Quality There are all 4 setup conditions. (No Rec/Low/Standard/High/Custom). Setup condition except “Custom” will synchronize “Speed (ips)” and “Quality” automatically, Speed (ips) and Quality can be set each separately. Pre Alarm (sec)

  • Page 116: Alarm Action Setup (Alarm Act.)

    VTDVR5100 Digital Video Recorder It means the time of recording before user press [Rec] button and can be set max. 5 seconds. Post Alarm (sec) It means the time of recording after user press [Rec] button and can be set Latched or max. 60 seconds. <Note>...

  • Page 117: Schedule

    VTDVR5100 Digital Video Recorder 16.2.1. Schedule Select Action Source Sensor and MD can be set max 4 or ANY for Relay1~Relay4, Buzzer, E-mail. Video Loss and Text can be set On/Off. Selection of Sensor/MD is done by pressing relevant number button. <Note>...

  • Page 118: Setup

    VTDVR5100 Digital Video Recorder 16.2.2. Setup Relay Configuration Set the use or not for R1~R4. Buzzer Set the use of Buzzer or not. E-mail Addr. Input E-mail address to inform Alarm. Sender Addr. Input “Sender” address in the typr of who@where. Mail Duration (min) E-mail notification is to send message in terms of Mail Duration set, but not every time that Alarm is occurred.

  • Page 119: System Alarm

    VTDVR5100 Digital Video Recorder <Note> Network setup is set to DNS for E-mail notification. 16.2.3. System Alarm 16.2.3.1. System Alarm Setup It is to set ON/OFF of Alarm for the notification of system faulty. HDD Fail Alarm action is operated when HDD disconneced or abnormal action. HDD Almost Full It operates alarm action when connected HDD is almost full.

  • Page 120: Monitor Setup

    VTDVR5100 Digital Video Recorder Password Fail It operates Alarm when wrong User or Admin password input. WRS Reg. Fail It operates Alarm when disconnection of WRS. 16.2.3.2. Alarm Method Setup It is to set ON/OFF of Alarm when system alarm is occurred. Warning Message When setup this menu, it display warning message through pop-up.
  • Page 121 VTDVR5100 Digital Video Recorder Alarm Pop-up (sec) It sets auto Pop-up display for the alarm. Pop-up display time can be set from 5~10 second. If it sets to “Keep”, it keeps to display Pop-up image and press any button to release Keep mode. Seq.

  • Page 122: System Setup

    VTDVR5100 Digital Video Recorder <Attention> 1. It can define all 16 user mode. 2. The picture for example defines 6 Sequences in order as shown 4 division(1,2,3,4) Full mode(1) 4 divisions(5,6,7,8) Full mode(5) Full mode(8) 9 divisions(9,10,11,12,13,14,15,16). 16.4. System Setup 16.4.1.

  • Page 123: Time Schedule Setup

    VTDVR5100 Digital Video Recorder When playback recorded image, it sets which it works together. 16.4.2. Time Schedule Setup It sets the time period from Week & Weekend, Day and Night. Weekday Start/End Using Left, Right key sets the time period from Weekday. Other unassigned time is for the Weekend. Day Start/End Using Up, Down button sets Day time period.

  • Page 124: Security Setup

    VTDVR5100 Digital Video Recorder It used for the set of regular exceptial time. Max. 4 different specific time can set. Exception Days It used for the setup of irregular exceptional time, max. 30 time zones. Start Date&Time : Set Starting time. Duration : Set an interval of Exceptional time.
  • Page 125 VTDVR5100 Digital Video Recorder 16.4.4.1. Local Password User Password It is only capable of monitoring and playback only with user registery. Default set is “1111”. Admin Password Authorized administrator can control every function. Default set is “9999”.
  • Page 126 VTDVR5100 Digital Video Recorder 16.4.4.2. Remote Users Admin ID setup Admin ID “admin” cannot be changed. Password of admin is set and has all rights and unchangeable. User ID setup Max. 10 user’s ID can be set. To register the user, change Use’s value to “Y” and input ID & password. Basic value is available for all monitoring/playback/Relay.

  • Page 127: Disk Setup

    VTDVR5100 Digital Video Recorder 16.4.5. Disk Setup Auto Deletion When no HDD space left for recording, it deletes the recorded data automatically. Disk full alarm(%) Block PlayBack This menu is to playback the recorded images from HDD in limited time. It can set from Day 1 to 31. 16.4.6.
  • Page 128 VTDVR5100 Digital Video Recorder Type It sets the type(Ethernet/xDSL) of network line connected to eDVR. It sets ‘Ethernet’ at the connection of network through leased line, Cable model or LAN based connection. It sets to ‘xDSL’ when eDVR is connected to xDSL line of PPPoE method. But it sets to ‘Ethernet’ if it is not PPPoE method even if it is xDSL line.
  • Page 129 VTDVR5100 Digital Video Recorder It sets IP address, Network Mask, Broadcast address, Gateway , DNS address, and Port, Bandwidth limit. 16.4.6.2. xDSL When eDVR is with xDSL line and PPPoE method, ID & Password should be setup. User ID/Password Set ID & Password for eDVR in xDSL connection. Status It indicates the connection of eDVR.
  • Page 130 VTDVR5100 Digital Video Recorder WRS Interval For continuous registery, register inverval should be set to ‘WRS Interval’. According to set value of static IP address, it renews the information in WRS server regularly. If user registers the interval ‘0’ or eDVR does not transmit any data for 2 days, the data is removed from WRS.
  • Page 131 VTDVR5100 Digital Video Recorder Status It indicates the status of eDVR registry.
  • Page 132 VTDVR5100 Digital Video Recorder 16.4.6.4. NTP Setting NTP (Network Time Protocol) synchronizes the time of every devices connected to network. It consists of Server that offers standard time on network, and Client for synchronization that receives the time from server connected. Sync With NTP It can On/Off NTP function.

  • Page 133: Serial Setup

    VTDVR5100 Digital Video Recorder Input IP of NTP server in local network or eDVR IP that NTP mode is set to Server. Interval (min) It sets interval (min.) of Time synchronization. <Note> When NTP Mode is Client, Sync with NTP must be set to On. 16.4.7.

  • Page 134: Status Overview

    VTDVR5100 Digital Video Recorder Baud rate/Parity/Stop (bit)/Data (bit) In put suitable value according to external device. 16.4.8. Status Overview It shows status & temperature of HDD relevant to video recording and Fan speed. Earliest / Latest Recording It shows intial starting time and last time of the recorded file. Disk Capacity It shows total HDD capacity installed.

  • Page 135: Miscellaneous

    VTDVR5100 Digital Video Recorder HDD SMART It indicated HDD status installed in GOOD & BAD. FAN RPM It shows FAN speed installed in eDVR. 16.4.9. Miscellaneous <Order of Button input> - After press [MENU] button, move to “Miscellaneous” inferior to “System”. Remote Control ID Max 16 controller ID can set up and contril via 1 remote controller.
  • Page 136 VTDVR5100 Digital Video Recorder <How to register Remote Controller> Face Remote controller toward eDVR. Press “ID” button on controller when eDVR is responding. If ID of Controller does match with ID of eDVR, all Alarm LED of eDVR is ON and sounds. It is capable to use after ID match.

  • Page 137: Disk Manager (Utility)

    VTDVR5100 Digital Video Recorder <Note> 1. When Encording Policy is changed, reboot DVR. 2. After setup of Recording Speed/Quality to High, recording performance can be lowered when it sets Networking Prior. Language OSD menu is supported in multi languages. Select the wanted language. H/W Version It indicates H/W version of the system.
  • Page 138 VTDVR5100 Digital Video Recorder < Order of Button input> - After press [MENU] button, move to “Utility” inferior to “System”.

  • Page 139: Disk Manager

    VTDVR5100 Digital Video Recorder 16.5.1. Disk Manager Installed Hard disk is automatically recognized. Select Disk Select disk to set. Action Select wanted work among the menus, “Add/Remove/ Confirm Removed/Add used”. [Add] : Add Disk. Use disk that there is no partion table. Partion table can be removed from PC.
  • Page 140 VTDVR5100 Digital Video Recorder [Add used] : Adding HDD again without formatting that is used < Compatible File System> Disk that is used in eDVR reusable again without deleting data through Add Used. FAT32 Format FAT32 Format when connecting external Hard disk. Execute FAT32 Format for Backup/Copy in partition of under 250GB.
  • Page 141 VTDVR5100 Digital Video Recorder 16.5.1.1. Exchange HDD This DVR supports Hot Swap function and HDD removable and installation without power off. (1) Press the button (①) and pull the handle (②)to remove the hard disk rag. (2) Install a new hard disk at the rag and hold the handle (②) to push and install. (3) Access to disk manager and select the HDD installed.
  • Page 142 VTDVR5100 Digital Video Recorder 16.5.1.2. Mirroring 16.5.1.2.1. DVR 16.5.1.2.2. 16.5.1.2.2. Mirroring configuration 16.5.1.2.2. 16.5.1.2.2. Mirroring configuration Mirroring configuration Mirroring configuration Basically Int A, B is used for Recording while Rack A, B areused for Mirroring.
  • Page 143 VTDVR5100 Digital Video Recorder (1) Use the arrow key to select DVR at Select Mirroring Device menu and press ENTER. (2) Press “Apply” and ENTER to save. (3) Select OK at pop up window and press ENTER. (4) The entire HDDs installed are formatted and the status of Rack A,B are changed to [M](Mirroring) while the status of Int A,B is changed to [V].
  • Page 144 VTDVR5100 Digital Video Recorder <Note> 1. Original and mirroring HDDs should have the same model and the size. Otherwise the user can not set mirroring function. However if the size is the same but different model, mirroring is set normally but it could work abnormal. Ex) Normal mirroring and abnormal mirroring 1) Normal mirroring Type...
  • Page 145 VTDVR5100 Digital Video Recorder 2. The status of the entire HDDs in DVR or NVS04R should be changed to [V] to configure mirroring function. If there is a case of the status of HDD is not [V], the mirroring function is not available at all.
  • Page 146 VTDVR5100 Digital Video Recorder <Note> <Note> <Note> <Note> 1. Mirroring recording performance on NVS04R can be different according to the product. But, if cancel Mirroring configuration, recording performance will be returned. Ex) Max recording performance per Mirroring type based on VTDVR5100H Mirroring type Resolution D1/30ips/Q5...
  • Page 147 VTDVR5100 Digital Video Recorder 16.5.1.3. Mirroring HDD exchange When the space for mirroring hard disk goes down to 0% a pop-up message to exchange the mirroring hard disk turns on the DVR console monitor. In this case, the user can check the space of mirroring hard disk for HDD CHANGE menu at Disk Manager to exchange it.
  • Page 148 VTDVR5100 Digital Video Recorder practically, he will find that there is no duplication. < Compatible File System > How to Use. After upgrading DVR, HDD that recorded in previous version is indicated to [V] in Disk Manager. Select HDD in ‘Select Disk’. Press ‘Apply’...

  • Page 149: Usb Utility

    VTDVR5100 Digital Video Recorder 16.5.2. USB Utility It supports firmware upgrading and setup saving & sending, Text file saving for printing set value through USB. Update F/W After saving upgrade firmware for USB use to USB device, connect eDVR and press ‘Update F/W’ for firmware upgrading.
  • Page 150 VTDVR5100 Digital Video Recorder Audio setup data Load Settings Set the system as set value saved in USB device. Save Settings Save present set value to USB device.

  • Page 151: Web Viewer

    VTDVR5100 Digital Video Recorder 17. Web Viewer WebViewer is Web application program loaded to monitor real-time image or to minitor the images recorded through Web browser to PC located remotely. WebViewer is divided into Login page and Monitor to do monitoring real-time images, Playback to replay reocorded images.
  • Page 152 VTDVR5100 Digital Video Recorder It can use total 11 ID including administrator & general user. For the security, change ID & Password of admistrator. For the unused user’s account, it cancels the check of’Use’ part.

  • Page 153: Usable Browser

    VTDVR5100 Digital Video Recorder This is the changed ID & Passwork at Control Center Configuration Tool. After complete of account setup, setup authorities of user’s ID. To use Playback page, check ‘HDD’ in User’s account at Authority of Configuration Tool. Also, click to Check box and Apply to use ‘Microphone’, ‘PTZ’, ‘Relay’...
  • Page 154 VTDVR5100 Digital Video Recorder <Note> When install WebViewer Installer, it must close all program related to Control Center. It might not be efficient to install. If execute Webviewerinstaller.exe file downloaded, it can use WebViewer function normally. Save ID Select Save ID at check box, it is to connect same User ID at next connection automatically. It is applied to a PC that Save ID is activated.

  • Page 155: Monitor

    VTDVR5100 Digital Video Recorder 17.3. Monitor When it is authorized with User ID & Password input at Login page, it moves to Monitor page. At Monitor page, monitor real time image of cameras connected to DVR, or it can control PTZ camera, Relay, and use Microphone function according to user’s authorization.
  • Page 156 VTDVR5100 Digital Video Recorder Double click on one of the playback screen to convert in 1 channel mode. After conversion to 1channel mode, double click on screen to return to previous division channels.

  • Page 157: Caption

    VTDVR5100 Digital Video Recorder At division screen, it can change screen location. If 3channel image moves to 6ch, drag 3ch image and drop on 6ch location so as to exchange between 3ch and 6ch image. 17.3.2. Caption If the user click on the right button of the mouse, above menu pops up. Select “Caption” and choose the sub menu what user wants to select, the information of Caption prints out.

  • Page 158: Rec Start

    VTDVR5100 Digital Video Recorder In this case MJPEG, 5ips, Q1 excelp Resolution always do not change. <Note> The transmission of stream speed can be differentiated by network speed connected to the device and the specificaiont and speed of the PC connected from remote site. 17.3.4.

  • Page 159: Channel On/Off

    VTDVR5100 Digital Video Recorder 17.3.8. Channel On/Off It is On/Off button for the Channel located to left in page. Click the channel wanted to On or Off. And Default is On. Above picture refer to Off channel 1. In case of Channel Off, relevant button is projected. And video does not come and changed to black screen.

  • Page 160: Relay Operation

    VTDVR5100 Digital Video Recorder <Note> Disabled sensor button refers to do not support and relate to this unit. 17.3.10. Relay Operation It can On or Off Relay of the unit. Click the number button to activate Ralay On, then the incon changes from Blue to Orange color.

  • Page 161: Using Microphone

    VTDVR5100 Digital Video Recorder 17.3.11. Using Microphone It can On or Off the use microphone.Default is Off and it is changed from the Blue to Red when click the button for the use Mic. <Note> Unactivated Relay button refers to do not support and relate to this unit. 17.3.12.

  • Page 162: Video Recording & Recording Pause Video

    VTDVR5100 Digital Video Recorder 17.3.13. Video Recording & recording Pause Video 17.3.13.1. Video Recording During monitoring, it can record max. 10 minutes of video by click Quick Recording button “ ”. During Quick Recording, recording time is indicated on video. During video recording, if click Quick Recording button “...
  • Page 163 VTDVR5100 Digital Video Recorder Zoom, and Focus. But, when PTZ camera is connected and ready to set PTZ, the button is acitavated to use the functions. Pan, Tilt Control Mouse is on the image and click right button to pop-up menu for the selection or “PTZ” or button.

  • Page 164: Using Audio

    VTDVR5100 Digital Video Recorder Area Zoom In Control In case of Connect and set PTZ cameras that supports Area Zoom In, it is usable relevant functions. A dotted quadrangle is shown. And it is the mode to selects the specific area with dragging mouse for operation of Pan, Tilt, and Zoom automatically, based on the location of relevant area.

  • Page 165: Closing Video Channel

    VTDVR5100 Digital Video Recorder 17.3.16. Closing Video Channel Cancel for disconnection of image monitoring by click ‘Close’ at top right on screen, then it comes to black screen. To reconnect the channel disconnected, it can reconnect relevant channel using ‘Channel On/Off’ menu. 17.4.

  • Page 166: Video Division & Changing Channel

    VTDVR5100 Digital Video Recorder administrator can use this function. Playback that is made up 16 divisions can play the images by searching through calander by recording period and moving the period. It can backup recorded image and also print Pause image or save to Bmp file.

  • Page 167: Image Recording

    VTDVR5100 Digital Video Recorder 17.4.2. Image recording It can save playback image to BMP file. Click mouse to channel to save. Dotted line will be surrounding to the selected channel, and click ‘Save’ button. Save Iamge dialog box appears, then it can input message or select channel name, date, event data. Press ‘OK’...

  • Page 168: Backup

    VTDVR5100 Digital Video Recorder Window comes to input Memo, and click ‘OK’ button to print the image through the printer connected. Print material includes ‘Printing Date’, ‘Channel name’, ‘Recording Date’ ‘Event’, ‘Memo’. 17.4.4. Backup It can save recorded iamge to PC in avi or rec format by channel. Indicate file format to backup.

  • Page 169: Web Monitor

    VTDVR5100 Digital Video Recorder After completion of recording time selection, total size comes. This is total size for recording, and shows approximate size on the basis of all channels’ backup. Even if it makes for 1channel only, it shows the total channel base. It can sekect backup channel.

  • Page 170: Saving Time & Checking Rec. Capacity

    VTDVR5100 Digital Video Recorder Disabled Channel button refers to do not support and relate to this unit. 17.4.7. Saving time & Checking Rec. Capacity It indicates total capacity of HDD & remains and shows Starting date & Last date of recording. Also it shows percentage (%) for HDD capacity.
  • Page 171 VTDVR5100 Digital Video Recorder forward’. It is the function to set play speed. After click the button, it can set the play speed ‘0.5x, 1x, 2x, 4x, 16x, 32x, 64x, and All’. It is the function to set play area. After click the button, it can select play area ‘10min, 30min, 1hour, 3hour, 6hour, 12hour, 24hour’.

  • Page 172: Control Center Lite-D Configuration Tools

    VTDVR5100 Digital Video Recorder 18. Control Center Lite-D Configuration Tools With the following images can deal channel number and menu according to product features. 18.1. Log in Configuration Tool (1) Click icon to run “Control Center Lite-D Configuration Tool”. (2) Program Log in.. Click on “OK”...

  • Page 173: Interface

    VTDVR5100 Digital Video Recorder 18.2. Interface Site Tree Configuration Page Menu The full screen of Configuration Tool is as above and its contents are such as site tree, menu and configuration page. 18.2.1. Site Tree The units which is listed in unit tree are registered in main view of Control Center Lite and it is not possible for user to register/delete/revise them using Configuration Tool.

  • Page 174: Configuration Page

    VTDVR5100 Digital Video Recorder 18.2.3. Configuration page As “Apply” button will be activated when user changes configuration of the page, user will just press this button to apply new configuration. User should press “Apply” button after changing setting of each configuration page. If user moves to another configuration page without pressing “Apply”...
  • Page 175 VTDVR5100 Digital Video Recorder User can save all the configuration information of selected DVR in file format (Export) and easily apply the configuration to other DVR by using saved file (Import) This function is useful when user want to apply the same configuration to many DVR. Interchange can be done only if firmware version is equivalent to the products <Export>...
  • Page 176 VTDVR5100 Digital Video Recorder Click Import to pop-up Import Wizard window. Select the file (*.cci) saved as Export to see Product Type, Hardware Type and firmware version in Import Source Info. Press “Next” button. Check whether Model type of import and export is same and belongs to same category.
  • Page 177 VTDVR5100 Digital Video Recorder If they are same model type, Import will be promptly started. Enter Admin Password and press “OK” button to start Import. When Import is finished, the message of “Completed” will appear and “Finish” button will be activated. Reboot It is for rebooting DVR.

  • Page 178: Camera

    VTDVR5100 Digital Video Recorder Factory Default It is for changing configuration into factory default value. <Note> The information such as date, time, network setting and image type (NTSC/PAL) will not be change even if configuration is changed to Factory Default. 18.3.2.

  • Page 179: Time/Date

    VTDVR5100 Digital Video Recorder 18.3.2.3. Image Calibration To create best image user must set things such as brightness, contrast and the AGC Enable. 18.3.3. Time/Date 18.3.3.1. Setting Date & Time Date & Time It shows Date & Time of DVR. Setup can set in menu of local unit. Timezone &...

  • Page 180: Connectivity

    VTDVR5100 Digital Video Recorder the same time. - Interval : When NTP mode is Client, select a period of time to get. (1/3/6/12/24Hour.) - IP Type : When it gets Time data from NTP server opened in Internet, select Public IP. When it gets the time from NTP server indicated by user, select Local IP.
  • Page 181 VTDVR5100 Digital Video Recorder 18.3.4.2. When using xDSL Select xDSL if network is xDSL (ADSL, HDSL, VDSL) and set user ID, password. <Note> 1. xDSL has various types such as ADSL, HDSL, VDSL, it can be used by PPPoE protocol. 2.
  • Page 182 VTDVR5100 Digital Video Recorder 18.3.4.3. WRS (Dynamic IP Registration Sever) If user registers i-Rec in WRS (Dynamic IP address registration server) managed by WEBGATE, user will be free from inconvenience. Since user can not know exact dynamic IP address at every moment, user needs something such as WRS that can give IP address of DVR.
  • Page 183 VTDVR5100 Digital Video Recorder 18.3.4.4. Setting Port - Port : User should change port number if user can not connect WebEye 2.0 because of network problem such as firewall. - Idle Time : User can set idle time. User can wait for reconnection during idle time if connection is closed because of network problem.

  • Page 184: Com Port

    VTDVR5100 Digital Video Recorder 18.3.5. COM Port User can set com port and devices in com port page. Tab number indicates each port number. 18.3.5.1. Selecting device linking serial port User can connect devices such as PTZ, TP, Keyboard and Text to serial port. - PTZ : Select it when user wants to use PTZ.

  • Page 185: Ptz

    VTDVR5100 Digital Video Recorder 18.3.6. PTZ Tab number indicates camera channel number and shows which channel will be connected to PTZ. 18.3.6.1. Setting PTZ PTZ setting can be done only when “PTZ” is selected on Device item in COM Port page. - Enable : Select it when user wants channel to be linked to PTZ.
  • Page 186 VTDVR5100 Digital Video Recorder 18.3.6.2. Setting Preset Preset setting window will appear if user clicks “Preset” button. Saving and deletion of Preset Input name and click on “set” button after selecting preset user want to save and adjusting its position. The preset position will be deleted if user selects preset and click on “clear”...
  • Page 187 VTDVR5100 Digital Video Recorder 18.3.6.3. Setting Auxiliary PTZ device provides various additional functions including basic functions such as Pan/Tilt/Zoom. Dialogue box for setting max 16 auxiliary functions will appear if user clicks “Auxiliary” button. Select “Auxiliary” after choosing “PTZ” in the pop-up menu to use them.

  • Page 188: Text

    VTDVR5100 Digital Video Recorder 18.3.7. Text Set Recording menu to ‘On’ and set Sync channel to the wanted value. If connectable devuce is Star Finger 007, set the relevant device only. And et other products to Manual and set all inferior menus. 18.3.8.

  • Page 189: User

    VTDVR5100 Digital Video Recorder According to DVR, it supports 1 or 4 audio. When payback, it works any channel together. - Channel : Setup synchronizing with any channel Dependency - Volume : Control the value of Audio Gain. - Recording : Set up audio recording or not.
  • Page 190 VTDVR5100 Digital Video Recorder <Local User Account> - Admin Password : Authorized administrator can control every function. - User Password : It is only capable of monitoring and playback only with user registery. 18.3.9.2. User Authority User can set user’s authority according to Microphone, PTZ, relay out, HDD, channel viewing. Registered “user1.

  • Page 191: Ip Filtering

    VTDVR5100 Digital Video Recorder 18.3.10. IP Filtering User can give access authority of i-Rec by using IP filtering. It is allowed to access If IP address is registered “Allow”, and it is not allowed to access if IP address is registered “Deny”. Total ten IP can be registered in each category.

  • Page 192: Storage

    VTDVR5100 Digital Video Recorder 18.3.11. Storage DVR indicates the data of total size & free size of HDD. - Auto Deletion : When no space in HDD, delete recorded data automatically. - Disk Full Alarm : It shows the message checked of HDD capacity. - Block Playback : This is menu to show limitedly according to set time of image recorded in HDD.

  • Page 193: Miscellaneous

    VTDVR5100 Digital Video Recorder 18.3.12. Miscellaneous If this is “On”, it records video image which is not input. 18.3.13. System Log...

  • Page 194: Time Schedule

    VTDVR5100 Digital Video Recorder It is used to view System Log 18.3.14. Time Schedule 18.3.14.1. Setting Time Schedule - Weekday : Sets start point and end point of weekday, the remaining day is automatically included in weekend. - Day time : Set start point and end point of day, the remaining hour is automatically included in night 18.3.14.2.
  • Page 195 VTDVR5100 Digital Video Recorder 18.3.15. MD Set “Motion Detection” according to each channel. User can also set sensitivity of MD. User can not use MD if user sets sensitivity “None”. Highest is most sensitive level. (None / Lowest / Low / Standard / High / Highest)

  • Page 196: Input

    VTDVR5100 Digital Video Recorder 18.3.16. Input Set sensor type user wants (NC : Normal Close, NO : Normal Open, Off) 18.3.17. Relay...

  • Page 197: E-Mail

    VTDVR5100 Digital Video Recorder DVR has 4 relay out. User can operate relay out relating to sensor input, motion detection. Relay out can be set four time section. (weekday, weekend, day, night) - Time Schedule : User can set four time section such as Weekday(Day), Weekday(Night), Weekend(Day), Weekend(Night).

  • Page 198: System Alarm

    VTDVR5100 Digital Video Recorder but not every time that Alarm is occurred. It can be set from 1 to 30 minutes. 18.3.19. System Alarm <System Alarm> It is to set ON/OFF of Alarm for the notification of system faulty. - HDD Fail : Alarm action is operated when HDD disconneced or abnormal action.

  • Page 199: Recording

    VTDVR5100 Digital Video Recorder - Send E-Mail : When this menu is sest, it sends email to the address input. - Relay 4 On : It operates Relay. 18.3.20. Recording Set recording options according to each channel. Set resolution and recording speed in the designated time zone (weekday day/ weekday night/ weekend day/ weekend night) by using Recording group setting value.

  • Page 200: Alarm Recording

    VTDVR5100 Digital Video Recorder 18.3.21. Alarm Recording This menu is to set Alarm Recording condition. After setup Recording condition, “Event recording” menu from “Recording” must be “On” to setup Alarm recording in eDVR. Also, before setup Alarm recording, “Alarm Source” must be set. - Sensor / MD Pairing : Pairing means 1:1 synchronization between the channel and Sensor/MD.

  • Page 201: Manual Recording

    VTDVR5100 Digital Video Recorder 18.3.22. Manual Recording This menu is to set video recording condition by user when pressing [REC] button. If manual recording starts, Normal Rec & Event Rec is ingored and it records based on user recording setup. - Recording Speed/Quality : There are all 5 conditional setup (No Rec/Low/Standard/High/Custom).

  • Page 202: Extension

    VTDVR5100 Digital Video Recorder Extension 19. External device connection 19.1. Using Text device There are 4 essential setups to use Text devices; Text menu, RS232 menu of Serial Setup, Alarm Rec. menu, Recording menu. 19.1.1. Setup in Text Set Recording & Monitoring menu to all ‘On’ and set Sync channel to the wanted value. If connectable devuce is Star Finger 007, set the relevant device only.

  • Page 203: Setup In Rs232 Menu Of Serial Setup

    VTDVR5100 Digital Video Recorder 19.1.2. Setup in RS232 menu of Serial Setup Set connectable device in COM1 of Serial Setup menu, and also set Baud Rate, Parity, Stop, Data with relevant value.

  • Page 204: Setup In Alarm Rec

    VTDVR5100 Digital Video Recorder 19.1.3. Setup in Alarm Rec If there is video channel want to record with Text sync., set Text Event from Off to On.

  • Page 205: Setup In Recording

    VTDVR5100 Digital Video Recorder 19.1.4. Setup in Recording If any channel like to record with Text, set Alarm recording to ‘On’. Full Time is to set all Week day & night, Weekend day & night, and change menu to set Weekday and Weekend differently. <...

  • Page 206: Using Keyboard

    VTDVR5100 Digital Video Recorder 19.2. Using Keyboard There are 2 essential setups to use Keyboard; RS232 menu of Serial Setup, PTZ menu of Serial Setup 19.2.1. Setup in COM1 menu of Serial Setup Set connectable device in RS232 in Serial Setup menu to Keyboard. Also set Baud Rate, Parity, Stop, Data with relevant value.

  • Page 207: Using Ptz

    VTDVR5100 Digital Video Recorder 19.3. Using PTZ The following 2 setup should be carried for the use of PTZ. Refer to Installation guide “9.3 Connection Serial port & Setup for PTZ connection. 19.3.1. Serial Setup at COM port eDVR can connect PTZ and setup at COM2, COM3, and COM4. The following explains how to connect and use SPD1800 from WebGate to COM2 RS485.

  • Page 208: Setup From Camera

    VTDVR5100 Digital Video Recorder (12) Using [◀/▶] key select 9600 and press [Enter]. (13) In case of WebGate SPD1800, the value of Parity, Stop, and Data as above picture use as default. Without any special case, Parity, Stop, Data in most of PTZ use standard value. (14) When leave Monitor mode, press [Exit] key.

  • Page 209: Check Ptz Operation

    VTDVR5100 Digital Video Recorder Incase of WebGate SPD1800, default is set to Address 1. Select Address 1 and press [Enter] key. (6) When exit to Monitor mode, press [Exit] key. 19.3.3. Check PTZ operation When PTZ connection and setup is completed, check the operation of PTZ. Refer to “3.9 Operation of PTZ”...
  • Page 210 VTDVR5100 Digital Video Recorder APPENDIX...

  • Page 211: Hdd

    VTDVR5100 Digital Video Recorder #1. HDD #1.1. Fundamental notions & terms eDVR storing constructure (VFS2) eDVR series has a peculiar storing constructure, and its features are as follows. (1) It is possible to connect 2 sets of HDD internally (Internal, ATA Interface) and 63 sets of HDD externally (External, 2 ports of IEEE1394 / External, 2 ports of eSATA / Storage Network).
  • Page 212 VTDVR5100 Digital Video Recorder...
  • Page 213 VTDVR5100 Digital Video Recorder (2) HDD Type at Disk Manager Available recording status Connected and formatted as eDVR’s file system. If using ‘Add Used’ command, it will be changed to [R]. There is no need to format. Connected but not available eDVR’s file system. After using ‘Add’, need to format for making as [R].

  • Page 214: Installing Hdd

    VTDVR5100 Digital Video Recorder #1.2. Installing HDD Compatible HDD It is recommended to use the following HDD models with the eDVR.. If a non-recommended HDD is used, WEBGATE Inc. will not guarantee the warranty. Installation and extension of internal HDD-RACK HDD In case of installation/adding or exchange HDD, follow the procedure as followings (1) Cut off the power to eDVR.
  • Page 215 VTDVR5100 Digital Video Recorder <Note> When assemble HDD, the base of HDD should be HDD below. (5) After insertion of BRAKET that HDD installed to RACK, take the handle down to fix. (6) Rock HDD-RACK using KEY to complete installation...
  • Page 216 VTDVR5100 Digital Video Recorder When installing one primary disk (1) When power is supplied to eDVR, “Disk Manager” runs automatically after rebooting. If not, run it manually in “Menu Utility Disk Manager”. (2) There is a HDD that is indicated as “[F] IntA”. Select it. (3) Select “Action”...
  • Page 217 VTDVR5100 Digital Video Recorder <Note> Some IEEE1394, eSATA ports may not be recognized by the VTDVR5100H. Before purchasing, consult the local WEBGATE distributor. External storage should use external power. For connection and setup of IEEE1394, eSATA, NVS04, please refer to the manual of related device.
  • Page 218 VTDVR5100 Digital Video Recorder When using Disk Farm The following description is when eDVR has internal primary disk and 3 sets of IEEE1394 HDD. (1) When external HDD farm is connected to IEEE1394 port, “Disk Manager” runs automatically. If not, run it manually in “Menu Utility Disk Manager”.
  • Page 219 VTDVR5100 Digital Video Recorder When using RAID The following description is when eDVR has internal primary disk and 1 set of IEEE1394 RAID. <Note RAID> Even though several HDDs are connected to RAID, eDVR will recognize them as only one HDD. For connection and setup of RAID, please refer to the manual of related device.

  • Page 220: Replacing Hdd

    VTDVR5100 Digital Video Recorder Replacing HDD Checking HDD eDVR file system (VFS2) sensors bad sector automatically, and the sensored bad sector is not used. The following means when HDD is broken or has some problem in connection. (1) When playback is stopped or eDVR is rebooted in specific playback range or image searching per event is impossible.
  • Page 221 VTDVR5100 Digital Video Recorder (5) Set backup range and press the “Start” button after selecting backup HDD. <Note> Backup HDD should be formatted as FAT32 type. Backup data can be replayed with specific S/W in PC such as Control Center Lite-D or MiniPlayer. Backup data is made as “*.re4”...
  • Page 222 VTDVR5100 Digital Video Recorder Caution in using HDD For handling or guaranteeing HDD, WEBGATE follows HDD guaranty condition. WEBGATE doesn’t bear the responsibility about data loss by user’s mistake in operating. <Note> Attention for the system without HDD installed In case of system without HDD, HDD only can only be installed in R-HDD(Removable Hard disk rack).

  • Page 223: Using Cd-Rom

    VTDVR5100 Digital Video Recorder #2. Using CD-ROM Components of CD- ROM disc Installation Guide : eDVR Installation Guide User’s Guide : eDVR User’s Guide : Control Center Lite-D User’s Guide Control Center Lite-D (Control Center lite-D Remote Management Program) Acrobat Reader : Version 7.0 Preparation To read manual of CD-ROM disc, Adobe Acrobat 7.0 should be installed in client’s PC.

  • Page 224: Utilizing Ip Address In Local Network

    VTDVR5100 Digital Video Recorder #3. Utilizing IP address in Local network 1#2.1 Outline When internet uses, it connects to another server for acquisition of data or email communication through IP address. So it is not connectable to Internet without IP address. At present, authorized IP has limits to use in worldwide.
  • Page 225 VTDVR5100 Digital Video Recorder 1#2.3 Network Class 1) Address feature IP address : 3 numbers in X4 indicates Host ID that is addressed from 0 to 255. But, generally, 0 & 255 is used to network ID & Broadcast address, but 1 to 244 IP address used in practical. Network ID: As Local network ID, the address indicates network identity in Internet.
  • Page 226 VTDVR5100 Digital Video Recorder Sub-Network ID: xxx.xxx.xxx.128 Gateway Address: xxx.xxx.xxx.129 Subnet Mask: 255.255.255.128 Broadcast Address: xxx.xxx.xxx.255 IP Addresses: xxx.xxx.xxx.130 – xxx.xxx.xxx.254 (3) When structure 3 networks (1/2 + 1/4 + 1/4) Sub-Network ID: xxx.xxx.xxx.0 Gateway Address: xxx.xxx.xxx.1 Subnet Mask: 255.255.255.192 Broadcast Address: xxx.xxx.xxx.63 IP Addresses: xxx.xxx.xxx.2 –...
  • Page 227 VTDVR5100 Digital Video Recorder (4) When structure 4 networks (1/4 + 1/4 + 1/4+1/4) Sub-Network ID: xxx.xxx.xxx.0 Gateway Address: xxx.xxx.xxx.1 Subnet Mask: 255.255.255.192 Broadcast Address: xxx.xxx.xxx.63 IP Addresses: xxx.xxx.xxx.2 – xxx.xxx.xxx.62 Sub-Network ID: xxx.xxx.xxx.64 Gateway Address: xxx.xxx.xxx.65 Subnet Mask: 255.255.255.192 Broadcast Address: xxx.xxx.xxx.127 IP Addresses: xxx.xxx.xxx.66 –...

  • Page 228: How To Recognize Manufacturing Date

    VTDVR5100 Digital Video Recorder #4. How to recognize manufacturing date The manufacturing date by Webgate can be recognized by S/N(Serial Number) attached at the each product. S/N : Serial Number Management number for each Webgate product to combine twelve alphabet character and digit including model name, manufacturing year/month/week You can see serial number by looking at the bottom of product attached label and system info of Configuration Tool.

  • Page 229: Specification

    VTDVR5100 Digital Video Recorder #5. Specification Item Description VTDVR5100H VTDVR5100M VTDVR5100M 32 BNC connectors Video Input Analog Ch. 16 BNC connectors (NTSC/PAL, Auto detect) (NTSC/PAL, Auto detect) 4 BNC(Each 2 BNC(Each monitor 4 BNC(Each monitor Monitor monitor support 16 support 16 division), 1 support 16 division), 1 Video Output...
  • Page 230 VTDVR5100 Digital Video Recorder File System Intelligent Power Failure Recovery Watermark Password Protection 2 Level (Admin/User) DVD Writer (DVD-R 4.7G Media), , eSATA, USB, R-HDD, Network, Backup IEEE-1394b*, NVS04R* Interface 2 RS-232C, 2 RS-485 Storage 2 Internal + 2 Hot-Swappable SATA HDD TCP/IP, ARP, ICMP, DHCP, PPPoE, UDP, SMTP, SNMP, FTP, SNTP, Network HTTP...
  • Page 231 VTDVR5100 Digital Video Recorder...
  • Page 232 VTDVR5100 Digital Video Recorder...

Table of Contents
