Art HS09 Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

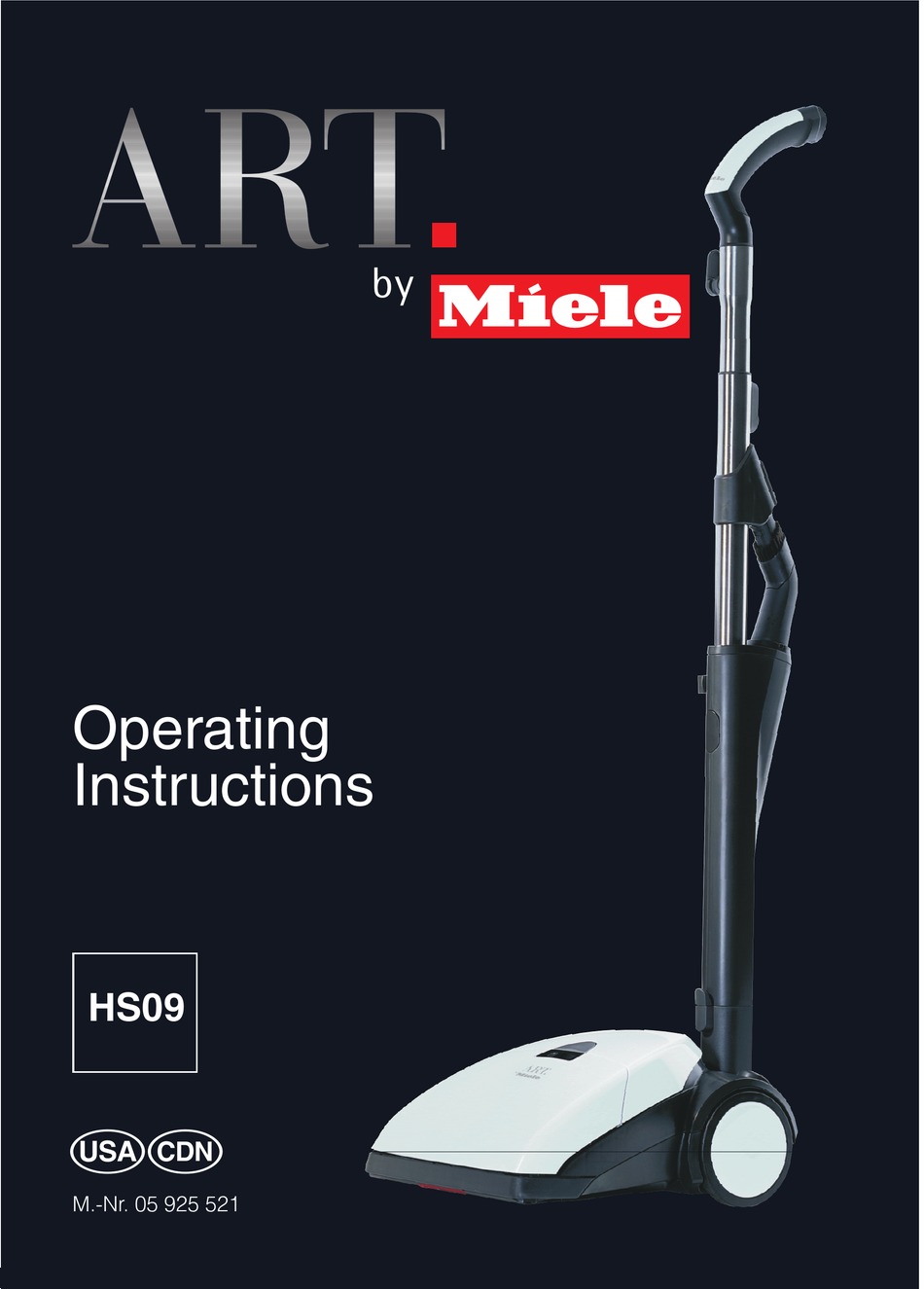

Operating
Instructions
HS09
UV
M.-Nr. 05 925 521

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS09 and is the answer not in the manual?

Questions and answers

Summary of Contents for Art HS09

  • Page 1 Operating Instructions HS09 M.-Nr. 05 925 521...

  • Page 3: Table Of Contents

    Contents IMPORTANT SAFETY INSTRUCTIONS ....... . . 4 CONSIGNES DE SÉCURITÉ ......... 7 Caring for the environment .

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE WARNING- A damaged vacuum cleaner can be dangerous. Check the To reduce the risk of fire, electric shock or injury: packaging, the vacuum cleaner and accessories for any signs of damage.
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS The manufacturer cannot be held Do not use to pick up flammable or responsible for damage caused by combustible liquids, such as non-compliance with these "Important gasoline, or use in areas where they Safety Instructions". This appliance is may be present.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS To aid the vacuum in dissipating This appliance is equipped with a heat during extended operation power cord reel. Hold plug when (longer than 1 hour), the power cord rewinding onto cord reel. Do not allow should be unwound from the cable reel plug to whip when rewinding.

  • Page 7: Consignes De Sécurité

    CONSIGNES DE SÉCURITÉ Lorsque vous utilisez un appareil électrique, vous devez toujours prendre des précautions essentielles. LISEZ TOUTES LES INSTRUCTIONS AVANT D’UTILISER CET APPAREIL ATTENTION- Un aspirateur endommagé peut s’avérer dangereux. Vérifiez bien Afin de réduire le risque d’incendie, de choc électrique ou de blessures. l’emballage, l’appareil lui-même et les accessoires pour constater des Vérifiez la tension nominale de...
  • Page 8 CONSIGNES DE SÉCURITÉ Le fabricant décline toute Veillez à ce que vos cheveux, vos responsabilité quant à des vêtements - s’ils sont amples - vos dommages causés par la doigts et toutes les autres extrémités de non-conformité aux présentes votre corps ne se trouvent pas à consignes de sécurité.
  • Page 9 CONSIGNES DE SÉCURITÉ Ne faites fonctionner l’aspirateur Les sacs à poussière Miele sont que si le sac à poussière, le filtre jetables. Ne les réutilisez pas. du réservoir à poussière et le filtre Un cordon d’alimentation d’évacuation sont bien en place. endommagé...
  • Page 10 CONSIGNES DE SÉCURITÉ Cet appareil est muni d’un enrouleur. Tenez la fiche lorsque vous rembobinez le cordon d’alimentation et ne la laissez pas fouetter le plancher. Ne procédez pas à des réparations à l’exception de celles précisées dans la section "Entretien". Toute autre réparation devrait être effectuée par un agent de service technique autorisé.

  • Page 11: Caring For The Environment

    Caring for the environment Disposal of the packing Disposal of a vacuum cleaner materials Before discarding a vacuum cleaner, please disconnect it from the power The cardboard box and packing source, then cut off the power cord to materials protect the appliance during render it inoperative and child resistant.

  • Page 12: Guide To The Vacuum

    Guide to the vacuum...

  • Page 13: Guide To The Vacuum

    Guide to the vacuum a Combi nozzle release button b Handpiece c Power cord hook d Telescopic wand e Cord channel f Telescopic wand release button g Body wand h Body wand release i Body wand swivel lever j On / Off button (depending on model with integrated power selection) k Dust compartment lid release l Dust compartment filter (motor protection) m Dustbag change indicator...

  • Page 14: Assembly

    Assembly To assemble the vacuum A Insert the body wand into the vacuum cleaner. B Insert the telescopic wand into the body wand and swivel it slightly until it clicks into place. C Press the combi nozzle into the combi nozzle holder. ^ Never carry the vacuum by the combi nozzle.

  • Page 15: Use

    Power cord Unwinding ^ Hold the plug and unwind cord to the desired length (max 21’ 4" / 6.5 m): If the vacuum cleaner is operated for more than 30 minutes, at least 14 feet (4.3 m) of the power cord must be unwound to prevent overheating and damage to the vacuum.

  • Page 16: Releasing The Body Wand

    Releasing the body wand ^ Step onto the body wand swivel release to maneuver it into a comfortable position for vacuum cleaning. Adjusting the telescopic wand One part of the telescopic wand is inserted inside the other and can be adjusted to suit your height for comfortable vacuum cleaning.

  • Page 17: Turning On And Off

    Turning on and off ^ Step onto the On/Off button. Opening the air inlet valve The air inlet valve can be opened for a quick reduction of suction e.g. when moving from a carpet to an area rug. ^ Open the air inlet valve just enough for the vacuum to move easily.

  • Page 18: Adjusting The Suction

    Adjusting the suction On select models, the suction power can be adjusted between two settings to suit the type of flooring. Min. = reduced suction power Max. = full suction power ^ Step onto the On/Off foot switch. The vacuum is now running at the highest setting.

  • Page 19: Vacuuming With The Combi Nozzle

    Hold onto the vacuum cleaner while using the combi nozzle or telescopic wand to prevent it from falling over. Vacuuming with the combi nozzle A Pull the sliding release upwards (see arrow). B Pull the combi nozzle hose upwards. ^ The brush end of the combi nozzle can be used for cleaning keyboards, etc.

  • Page 20: Accessories

    Accessories The following accessories are included with the vacuum cleaner: a Accessory adapter b Crevice nozzle c Upholstery tool d Filter frame The filter frame is only supplied with select models fitted with an "ACTIVE air clean" or "HEPA" exhaust filter as standard.

  • Page 21: Using Accessories

    Using accessories Accessory adapter To use the crevice nozzle and the upholstery tool, the supplied accessory adapter must be attached to the telescopic wand or to the combi nozzle. Crevice nozzle For cleaning in folds, crevices or corners. ^ Attach the crevice nozzle onto the accessory adapter.

  • Page 22: Storage

    Storage To store the vacuum in an upright position, lock the body wand. The vacuum can also be hung on a hanging hook. Release the body wand and insert the hanging hook into the opening on the handpiece.

  • Page 23: Maintenance

    Maintenance Always disconnect the vacuum cleaner from the electrical supply before maintenance work and cleaning. Turn off power at the wall switch and unplug. The Miele filter system consists of three filters which must be replaced regularly to ensure efficient suction: a Dustbag b Dust compartment filter (motor protection)

  • Page 24: Where To Purchase New Dustbags And Filters

    Maintenance Filter frame 1. If you are installing a SUPER air clean exhaust filter, you will have to insert it into the filter frame *. 2. If you are installing an ACTIVE or HEPA exhaust filter, you will not need to use the filter frame.
  • Page 25 Maintenance How the dustbag change indicator works The indicator is designed to show when the bag is full of dust by measuring the air permeability of the dustbag. Normal household dust is a mixture of dust, hair, carpet fluff, threads, grit, etc. However, if an amount of fine dust, such as plaster, brick dust, cement or flour is vacuumed, the pores of the...

  • Page 26: Replacing The Dustbag

    Maintenance Replacing the dustbag ^ Open the dust compartment lid by pressing the release. ^ Grasp the card collar tabs and pull the dustbag out from the dustbag holder. The dustbag has a flap which closes automatically to prevent dust from escaping when the dustbag is removed.

  • Page 27: Changing The Filters

    Maintenance Changing the filters A dust compartment (motor protection) filter is supplied with every box of Miele dustbags and should be replaced when opening a new box of dustbags. Dust compartment filter ^ Open the dust compartment lid by pressing the release. ^ Open the filter frame.
  • Page 28 Maintenance ^ Open the dust compartment lid by pressing the release button. ^ Press the exhaust filter lid release button and open the exhaust filter lid. ^ Remove the filter frame and dispose of the old filter.
  • Page 29 Maintenance ^ Replace the SUPER air clean filter with the imprint either way out. Close the filter frame. ^ Close the exhaust filter lid and the dust compartment lid until it clicks into place.

  • Page 30: Active Air Clean Filter And The Active Hepa Filter

    Maintenance ACTIVE air clean filter and the ACTIVE HEPA filter ^ Open the dust compartment lid by pressing the release button. ^ Press the exhaust filter lid release button. ^ Open the exhaust filter lid. ^ Remove the Active air clean or Active HEPA filter.

  • Page 31: Changing The Thread Catchers

    Maintenance Changing the thread catchers The tread catcher pads on the bottom of the floor tool should be checked occasionally. Replace the pads if they appear worn. ^ Use a screwdriver as shown to remove the thread catcher from the slot.

  • Page 32: Cleaning And Care

    Cleaning and care Warning! Do not leave the vacuum unattended when it is plugged in. Turn off and unplug the vacuum before opening cover. Vacuums and Accessories The vacuum cleaner and other plastic components can be cleaned using a damp cloth or a cleaner made especially for plastics.

  • Page 33: Frequently Asked Questions

    Frequently asked questions What if the vacuum cleaner turns off while vacuuming? The vacuum has overheated and the temperature limiter switched off the vacuum automatically. This may occur if the vacuum wand is blocked, the dustbag is full or fine dust has clogged the pores of the dustbag.

  • Page 34: Technical Service

    Technical Service In the event of a fault which you cannot correct, please contact the Miele Technical Service Department 1-800-999-1360 techserv@mieleusa.com 1-800-565-6435 service@miele.ca...
  • Page 36 When contacting the Technical Service, please quote the model and serial number of your appliance. Miele, Inc. Miele Limited National Headquarters National Headquarters 9 Independence Way 55G East Beaver Creek Road Princeton, NJ 08540 Richmond Hill, ON L4B 1E5 Phone: 800-843-7231 Phone: 800-643-5381 905-707-1171 609-419-9898...
