Summary of Contents for Alamo Water R14-02

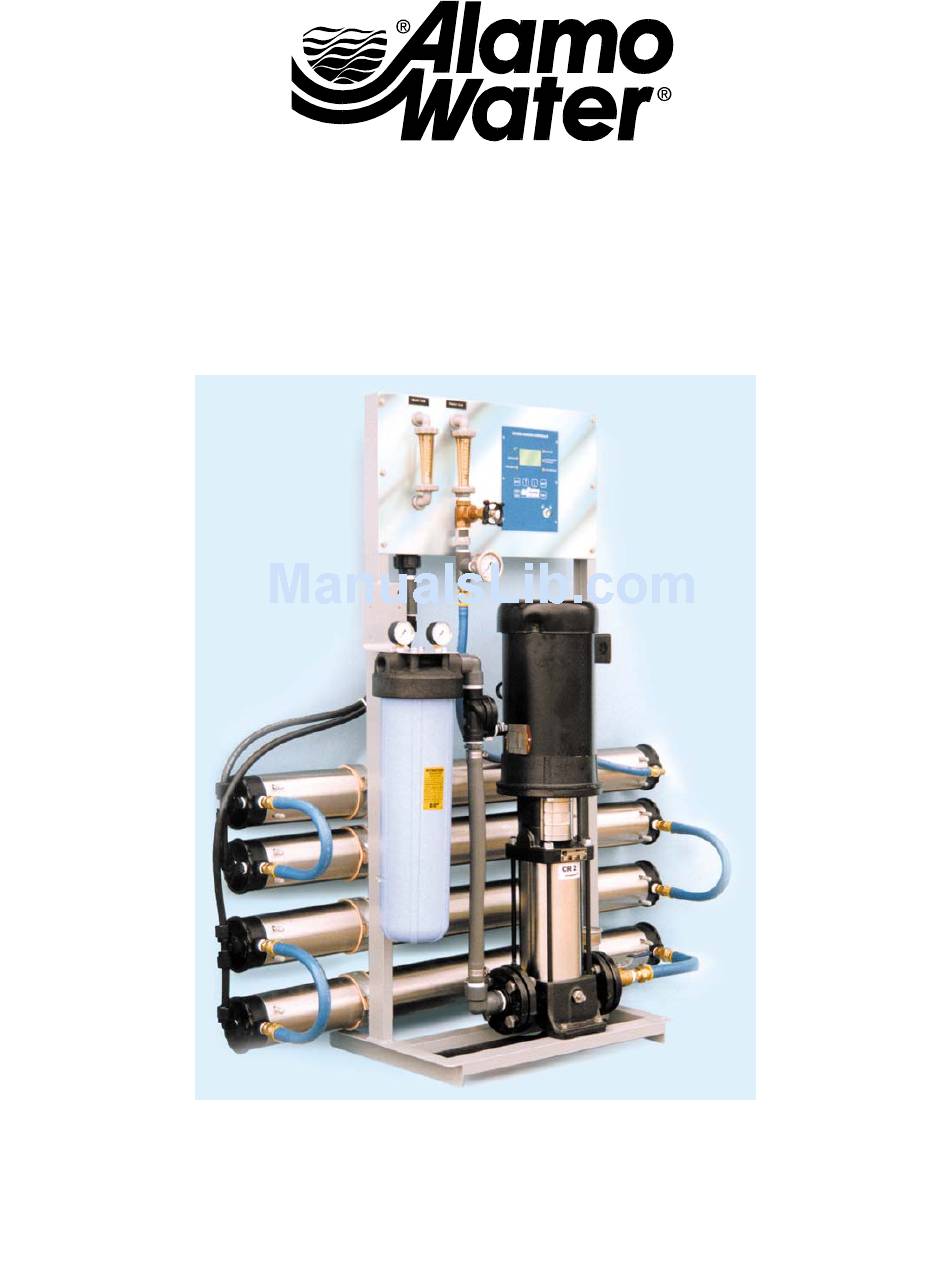

- Page 1 A L A M O W A T E R R E F I N E R S REVERSE OSMOSIS INSTALLATION AND OPERATION MANUAL R14-SERIES...
- Page 2 Alamo Water Refiners, Inc. 13700 Hwy. 90 West San Antonio, TX 78245 U.S.A. 210-677-8400 www.alamowater.com...
- Page 3 Never allow the unit to freeze or operate with a feed water temperature above 100°F. NOTES Changes in operating variables are beyond the control Alamo Water Refiners, Inc. The end user is responsible for the safe operation of this equipment. The suitability of the product water for any specific application is the responsibility of the end user.
- Page 4 TABLE OF CONTENTS I. Introduction Specifications Overview Pre-treatment II. Controls, Indicators, and Components Figure # 1 General System Drawing Figure # 2 Package One Controller Drawing Figure # 3 Package Two Controller Drawing III. Operation Installation Plumbing Connections Electrical Connections Startup Controllers Operation and Maintenance Log...
- Page 5 INTRODUCTION The separation of dissolved solids and water using RO membranes is a pressure driven temperature dependent process. The membrane material is designed to be as permeable to water as possible while maintaining the ability to reject dissolved solids. The main system design parameters require the following: Internal flows across the membrane surface must be high enough to prevent settling of fine suspended solids on the membrane surface.
- Page 6 A. SPECIFICATIONS R14-02 R14-03 R14-04 R14-05 R14-06 Productivity 3600 / 2.5 5400 / 3.75 7200 / 5.0 9000 / 6.25 10800 / 7.5 (Gallons per day / Gallons per minute) Maximum production based on standard membranes and feed water of 25°C, SDI <...
- Page 7 B. RO OVERVIEW Reverse osmosis systems utilize semipermeable membrane elements to separate the feed water into two streams. The pressurized feed water is separated into purified (product) water and concentrate (reject) water. The impurities contained in the feed water are carried to drain by the reject water.
- Page 8 recommended. Iron & Manganese - These foulants should be removed to less than 0.1 ppm. Special media filters and/or chemical treatment is commonly used. pH - The pH is often lowered to reduce the scaling potential. Silica: Reported on the analysis as SiO2. Silica forms a coating on membrane surfaces when the concentration exceeds its solubility.
- Page 9 Separate motor starter enclosure used only with CI 1000 controller. Figure 1...
- Page 10 Figure 2 Controller Package One...
- Page 11 Figure 3 Controller Package Two...
- Page 12 III. OPERATION A. INSTALLATION The water supply should be sufficient to provide a minimum of 20 psig pressure at the design feed flow. Proper pretreatment must be determined and installed prior to the RO system. A fused high voltage disconnect switch located within 10 feet of the unit is recommended.
- Page 13 Do not apply power to the RO unit at this time. D. STARTUP 1. Verify that the pretreatment equipment is installed and working properly. Verify that no free chlorine is present in the feed water. 2. Verify that the on/off switch is in the off position. 3.
- Page 14 E. Controllers Two controller options are available. Controller option # 1 is a basic controller with an on / off switch, low pressure, tank level, and pretreatment interlock (see figure # 2). Automatic low pressure reset If the unit shuts down due to low pressure, a red light on the front of the controller will illuminate.
- Page 15 Controller option # 2 is the CI 1000. This is a microprocessor based controller with a product water conductivity meter. A separate manual for this controller begins on the next page. The autoflush option is available with both controllers. On controllers # 1, the flush valve is preset to open for 2 minutes every time the pump starts and 2 minutes every hour.
- Page 16 A L A M O W A T E R R E F I N E R S REVERSE OSMOSIS CONTROLLER OPERATION MANUAL Model # CI-1000...
- Page 17 TABLE OF CONTENTS Introduction Features Specifications Outputs Inputs Mode Descriptions Controls Indicators Operation Contrast Adjustment Operation Screen Configuration Screen Timer Screen Calibration Screen Pop-Up Screens III. Service and Maintenance Troubleshooting Drawings Figure 1 Front View Figure 2 Electrical Connections...
- Page 18 INTRODUCTION The 3501 Reverse Osmosis Controller is designed to control and monitor the operating parameters of a reverse osmosis water purification system. Information is displayed on a back-lit liquid crystal display, and on individual light-emitting diodes (LEDs). Functions and controls are operated through snap-dome switches (see Figure 1). Features Temperature Compensated Conductivity Monitor Water Temperature Monitor...
- Page 19 Outputs Inlet Solenoid: A 24 VAC output is provided to power the inlet solenoid. This output always energizes 12 seconds before the pump turns on, and de-energizes 12 seconds after the pump turns off. Flush Valve: A 24 VAC output is provided to power the optional reject solenoid valve.
- Page 20 Pretreatment Interlock: This is a dry contact that signals the system to shut down when a pretreatment device is not functioning, or regenerating. This could be used on a water softener, multi media filter, chemical feed pump, differential pressure switch, etc. This contact is normally open. When a circuit is not complete between the two terminals the system will operate.
- Page 21 Select Button: This button is used to select a function or parameter so that it can be reviewed or changed. Up Arrow. This button increases the value of, or advances to the next option of, the function selected. Down Arrow. This button decreases the value of, or advances to the next option of, the function selected.
- Page 22 OPERATION The key switch must be in the ON position (see Figure 1). Contrast Adjustment Press the up or down arrow when the Alamo Water logo is displayed to increase or decrease the contrast of the display. Operation Screen When the Start/Stop button is pressed the inlet valve will open. After a 12 second delay the pump will start.
- Page 23 AUTOFLUSH: (0-10 minutes) This is the length of the flush cycle. The system will flush for this amount of time every hour in tank feed and standby modes. Timer Screen Pressing either the ACCEPT or the RESET button from the configuration screen brings up the timer screen.
- Page 24 III. SERVICE AND MAINTENANCE The 3501 Reverse Osmosis Controller is designed for ease of maintenance and minimum service. Since the highest quality of electronic semiconductor components are used in this design, it is not likely that circuit malfunctions or failures will occur. It is our recommendation that service be limited to identifying malfunctions at the board level and that component level troubleshooting be referred to the factory.
- Page 25 Operation and Maintenance Log DATE PRODUCT REJECT PUMP REJECT FEED PRODUCT FEED FEED FEED WATER REMARKS DISCHARGE PRESSURE WATER WATER CHLORINE FILTER FILTER PRESSURE TEMP HARDNESS LEVEL INLET OUTLET PRESSURE PRESSURE Note: Change the prefilter when the differential pressure increases by 5 - 10 psi over the clean differential pressure. Clean the RO membranes when the product flow drops by 15% or more.
- Page 26 F. TROUBLESHOOTING RO TROUBLE SHOOTING GUIDE SYMPTOMS Salt Passage Permeate Flow Pressure Drop Location Possible Causes Verification Corrective Action Normal to Decreased Normal to Predominantly Metal oxide Analysis of metal Improved pretreatment increased increased first stage ions in cleaning to remove metals. solution.
- Page 27 MOTOR TROUBLE SHOOTING CHART TROUBLE CAUSE WHAT TO DO Motor fails to start Blown fuses Replace fuses with proper type and rating Overload trips Check and rest overload in starter. Improper power supply Check to see that power supplied agrees with motor nameplate and load factor.
- Page 28 MOTOR TROUBLE SHOOTING CHART ( CONTINUED TROUBLE CAUSE WHAT TO DO Unbalanced line current Unequal terminal volts Check leads and connections on polyphase motors Single phase operation Check for open contacts during normal operation Scraping noise Fan rubbing air shield Remove interference.
- Page 29 REPLACEMENT PARTS LIST A list of common replacement parts is provided below. All of these parts are not used on every system and all of the parts are not listed. Contact you dealer for replacement parts assistance. Part Number Description S7563A-D/T Pre filter housing 20"...
- Page 30 MEMBRANE REPLACEMENT 1. Turn off the system and close the feed water shutoff valve. 2. Disconnect the membrane feed hoses by loosing the brass fittings between the end of the hoses and the pressure vessel end caps. 3. Remove the retaining "U" pins from the pressure vessels. 4.
- Page 31 The following tables are intended as a guide to determining the flow rates for the R14 series RO systems. All flows are in gallons per minute (GPM). Nominal flows for systems without reject recycle and a feed water Silt Density Index less than 3. R14-02 R14-03 R14-04 R14-05...
- Page 32 Temperature Correction Factors Deg C Deg F Correction Factor 1.16 84.2 1.13 82.4 1.09 80.6 1.06 78.8 1.03 1.00 75.2 0.97 73.4 0.94 71.6 0.92 69.8 0.89 0.86 66.2 0.84 64.4 0.81 62.6 0.79 60.8 0.77 0.74 57.2 0.72 55.4 0.70 53.6 0.68...
