Operator's Manual
Introduction
Read this information carefully to learn how to operate
and maintain your product properly and to avoid injury
and product damage. You are responsible for operating
the product properly and safely.
You may contact Lawn-Boy directly at
www.Lawn-Boy.com for product and accessory
information, help finding a dealer, or to register your
product.
Whenever you need service, genuine Lawn-Boy parts,
or additional information, contact an Authorized
Service Dealer or Lawn-Boy Customer Service and have
the model and serial numbers of your product ready.

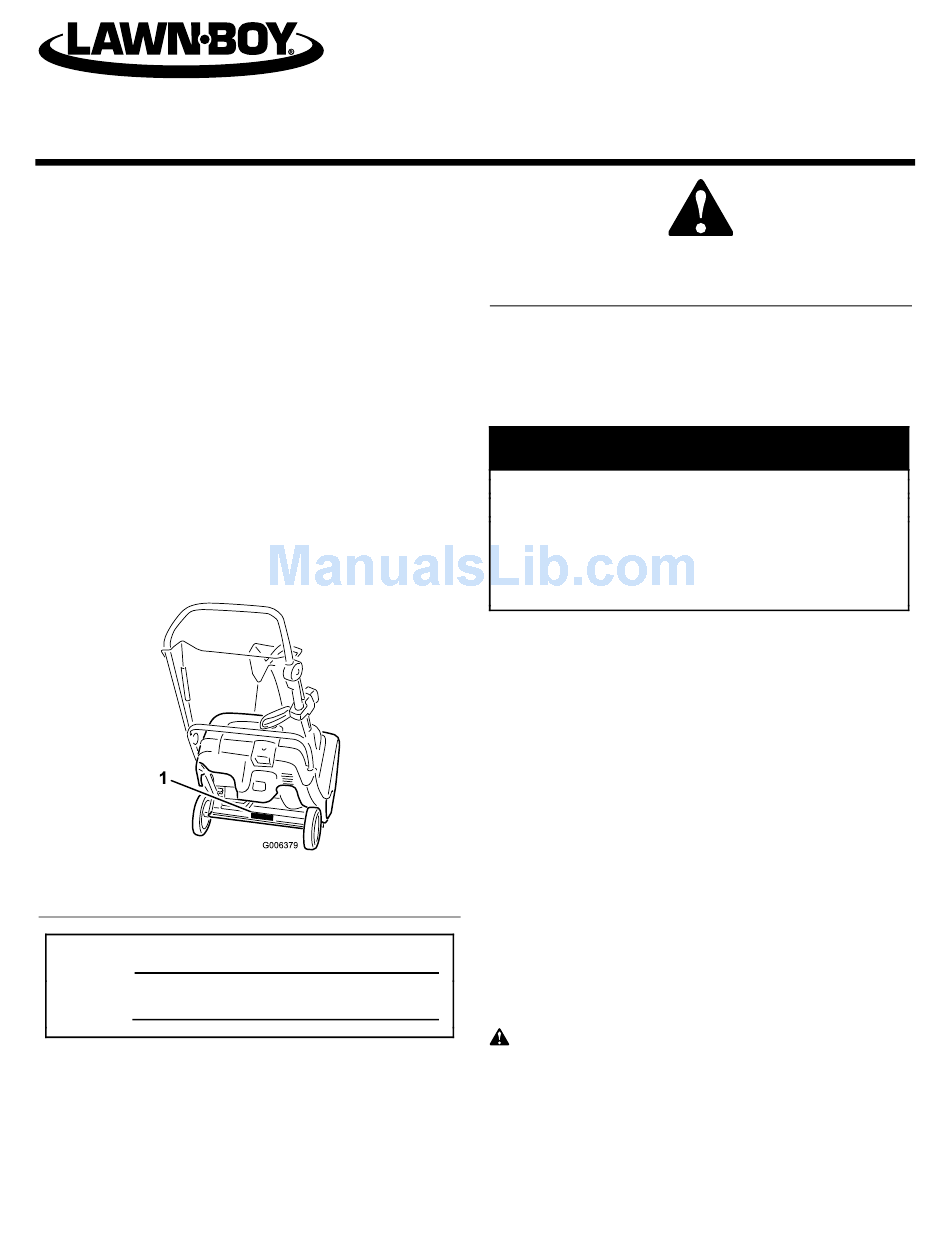

Figure 1 identifies the location of the model and serial
numbers on the product. Write the numbers in the
space provided.
Figure 1
1. Model and serial number location
Model No.
Serial No.
This manual identifies potential hazards and has
safety messages identified by the safety alert symbol
(Figure 2), which signals a hazard that may cause serious
injury or death if you do not follow the recommended
precautions.
© 2008—Lawn-Boy® Inc.
8111 Lyndale Avenue South
Bloomington, MN 55420
Insight™ Snowthrower
Model No. 34001—Serial No. 280000001 and Up
Model No. 34002—Serial No. 280000001 and Up
1. Safety alert symbol
This manual uses 2 words to highlight information.
Important calls attention to special mechanical
information and Note emphasizes general information
worthy of special attention.
This spark ignition system complies with Canadian
ICES-002.
The enclosed Engine Owner's Manual is supplied
for information regarding the US Environmental
Protection Agency (EPA) and the California
Emission Control Regulation of emission systems,
maintenance, and warranty. Replacements may be
ordered through the engine manufacturer.
Safety
This snowthrower meets or exceeds the B71.3
specifications of the American National Standards
Institute in effect at the time of production.
Read and understand the contents of this manual
before you start the engine.
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
Improperly using or maintaining this snowthrower
could result in injury or death. To reduce this
Register at www.Lawn-Boy.com.
Form No. 3358-541 Rev B
Figure 2
Warning
CALIFORNIA
Proposition 65 Warning
The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.
Original Instructions (EN)
Printed in the USA
All Rights Reserved
