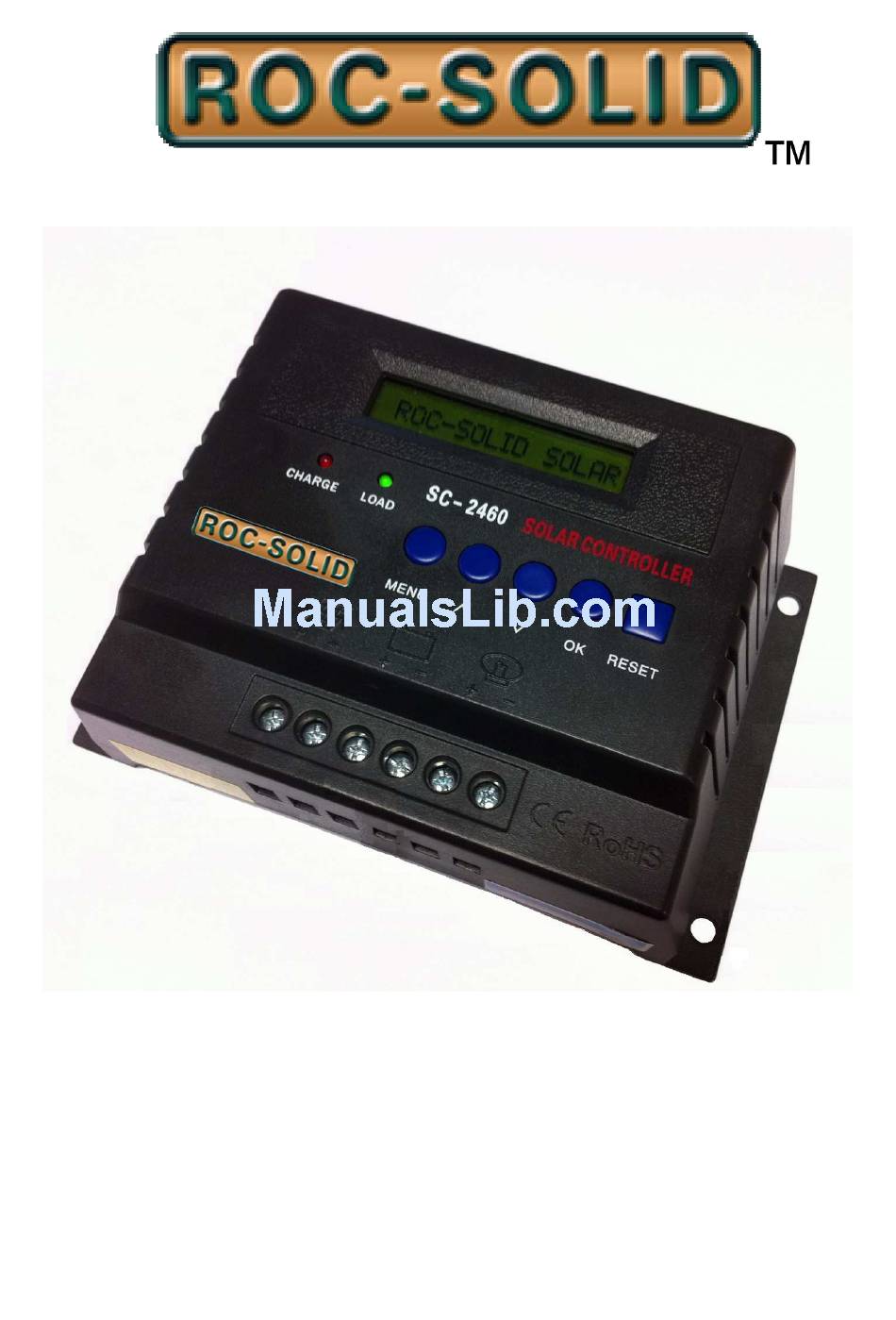

Safety First Poten al safety concerns have been considered in the design of the ROC-SOLID solar controller. Your ROC-SOLID solar controller is designed to convert power from your PV cell/array and as such may produce significant poten al energy at the output load terminals, even when a load is not connected.
Page 4
(Note: disconnection must be made in the reverse order) Features The ROC-SOLID SC series solar controllers use a microprocessor to provide SOC (state of Charge) management functions, which in turn controls the charge current using PWM technology and controls the supply of power to the load(s) according to the voltage and capacity of battery.
Page 5
∗ Automatic load reconnect upon battery voltage recovery (user settable) Connection Your ROC-SOLID solar controller has 6 terminals for connection to your battery, solar cells and load. These terminals are clearly marked for your ease of connection. Your battery, solar cells and loads all have separate earths (negative connections), never join them together.
Page 6
Operation of you CS series Solar Controller Immediately following the initial power-up, the screen will display the model number of the controller for a few seconds, then default to the main screen below. Upon Initial start up the battery charge-off voltage, loads cut off voltage, Load-on Voltage of loads reset will be the factory defaults unless you have previously changed them.
Page 7
Activating the circular display mode No matter what is displayed on the screen you can press the “OK” button and the unit will begin to display the instantaneous measured battery voltage, Charge current and Load current in sequence. Each will be displayed for about 5 seconds.
Page 8
Navigating the menu and changing settings Press menu repeatedly to cycle through the screens This is the controller temperature used for charge voltage compensa on This is the total Ampere Hours logged for the ba ery charging This is the total Ampere Hours logged from the ba ery to the load This is the controllers calculated “state of Charge”...
Resetting the controller If the controller display is showing either “Short circuit” or “Overload Reset” the controller will require manual resetting once the problem has been fixed. To clear these displays and reset the functionality of the controller, press the reset button. The controller will restart and if the problem has been rectified the controller will operate as normal.
Technical Parameters Model SC-2420 SC-2440 SC-2460 Rated Voltage 12V / 24V Automatic voltage detection Max Solar current Max Load current Full charge cut out Voltage 13.7V/27.4V Default (user settable) Low voltage cut out voltage 10.5V/21V Default (user settable) Temperature compensation...
For any fault conditions not covered above, please contact your ROC-SOLID dealer. There are no user serviceable parts inside the controller. Attempts to repair a fault by untrained persons may result in undesirable and even potentially dangerous outcomes.
Page 12
“ROC-SOLID” is a trademark of Ingenium Ruggedised Technologies, who is the master distributor/Agent for ROC-SOLID solar and ROC computing products www.roc-solid.com.au...
