Summary of Contents for Zico ZI-846
-

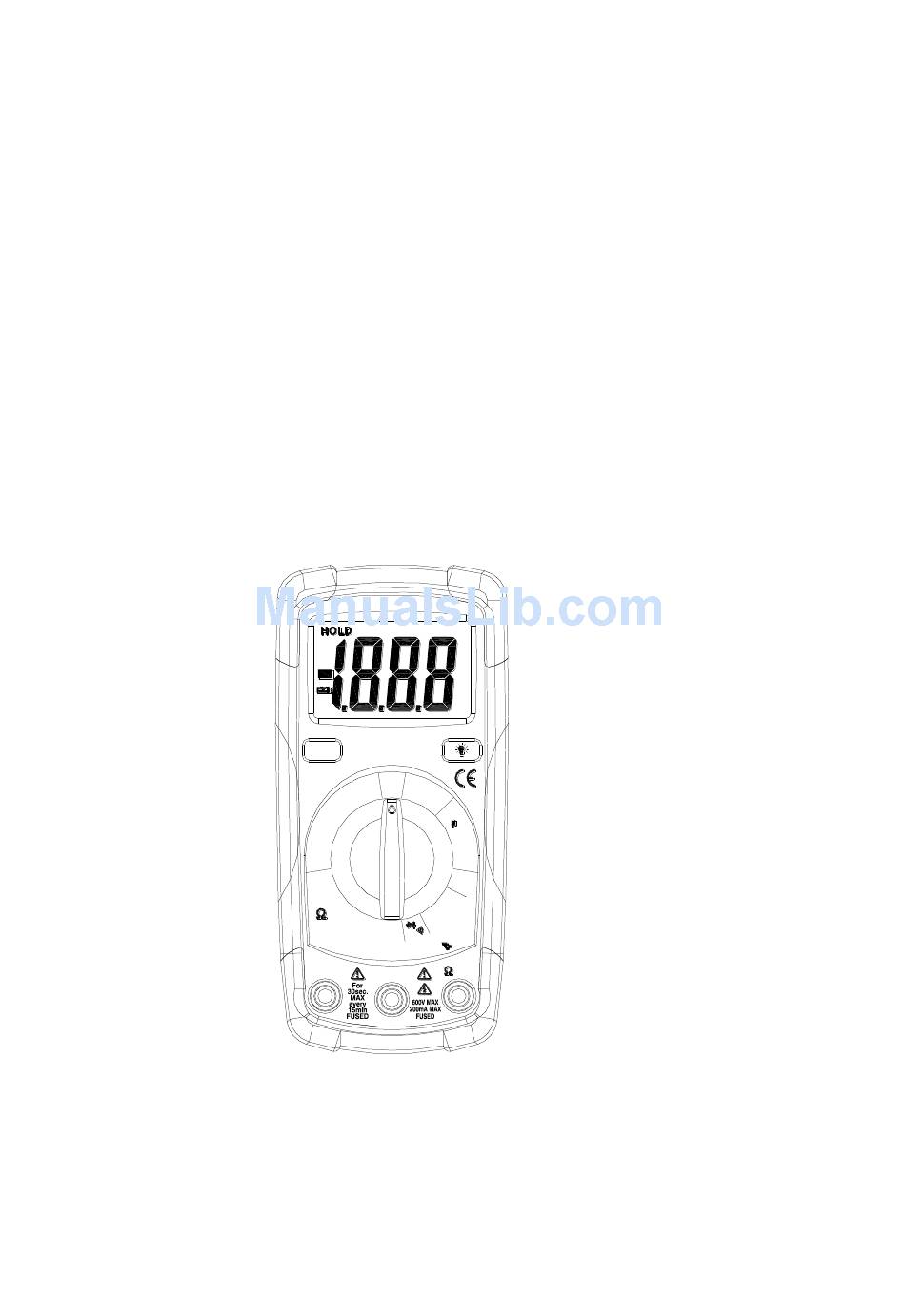

Page 1: Digital Multimeter
Zico ZI-846 OPERATING INSTRUTION DIGITAL MULTIMETER HOLD 2000 2000 2000 200k 1.5V BATT. 2000 CAT III 600V www.zicotech.com... -
Page 2: Safety Instructions
SAFETY INSTRUCTIONS This meter has been designed for safe use, but must be operated with caution. The rules listed below must be carefully followed for safe operation. NEVER apply voltage or current to the meter that exceeds the specified maximum: Input Limits Function Maximum Input... -
Page 3: Safety Symbols
diode tests. ALWAYS turn off the power and disconnect the test leads before opening the doors to replace the fuse or batteries. NEVER operate the meter unless the back cover and the battery and fuse doors are in place and fastened securely. -
Page 4: Controls And Jacks
voltage with respect to earth ground exceeds (in this case) 500 VAC or VDC. This symbol adjacent to one or more terminals identifies them as being associated with ranges that may, in normal use, be subjected to particularly hazardous voltages. For maximum safety, the meter and its test leads should not be handled when these terminals are energized. - Page 5 Function switch 10A jack COM jack Positive jack Data Hold Button Backlight Button Note: Tilt stand, fuse and battery compartment are on rear of unit. SYMBOLS AND ANNUNCIATORS •))) Continuity Diode test micro (amps) milli ( volts, amps) kilo (ohms) ...
- Page 6 0.01V (0.8% reading + 2 200V 0.1V digits) 600V (1.2% reading + 10 AC Voltage 200V 0.1V (V AC) digits 600V (50/60Hz) (1.0% reading + 2 DC Current 2000A 1A (A DC) digits) 20mA 10A (1.2% reading + 2 200mA 100A digits) (2.0% reading + 2...
-
Page 7: Specifications
SPECIFICATIONS Diode Test Test current of 1mA maximum, open circuit voltage 2.8V DC typical Continuity Check Audible signal will sound if the resistance is less than approximately 30 Battery Test current 9V (6mA); 1.5V (100mA) >1MΩ Input Impedance ACV Bandwidth 45Hz to 450Hz DCA voltage drop 200mV... -
Page 8: Battery Installation
Operating Altitude 7000ft. (2000) meters maximum. Weight 255g Size 150mm x 70mm x 48mm Safety For indoor use and in accordance with Overvoltage Category II, Pollution Degree 2. Category II includes local level, appliance, portable equipment, etc., with transient overvoltages less than Overvoltage Category III. -
Page 9: Data Hold Button
OPERATING INSTRUCTIONS DATA HOLD BUTTON The Data Hold function allows the meter to "freeze" a measurement for later reference. 1. Press the DATA HOLD button to “freeze” the reading on the indicator. The indicator “HOLD” will be appear in the display. -
Page 10: Dc Voltage Measurements
random, changing reading. This is normal and is caused by the high-input sensitivity. The reading will stabilize and give a proper measurement when connected to a circuit. DC VOLTAGE MEASUREMENTS CAUTION: Do not measure DC voltages if a motor on the circuit is being switched ON or OFF. -
Page 11: Dc Current Measurements
WARNING: Risk of Electrocution. The probe tips may not be long enough to contact the live parts inside some 240V outlets for appliances because the contacts are recessed deep in the outlets. As a result, the reading may show 0 volts when the outlet actually has voltage on it. Make sure the probe tips are touching the metal contacts inside the outlet before assuming that no voltage is present. - Page 12 CAUTION: Do not make current measurements on the 10A scale for longer than 30 seconds. Exceeding 30 seconds may cause damage to the meter and/or the test leads. 1. Insert the black test lead banana plug into the negative (COM) jack. 2.
-
Page 13: Resistance Measurements
measurements, reset the function switch to successively lower mA DC positions to obtain a higher resolution reading. The display will indicate the proper decimal point and value. RESISTANCE MEASUREMENTS WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all capacitors before taking any resistance measurements. -
Page 14: Diode Test
WARNING: To avoid electric shock, never measure continuity on circuits or wires that have voltage on them. 1. Set the function switch to the position. 2. Insert the black lead banana plug into the negative (COM) jack Insert the red test lead banana plug into the positive () jack. -
Page 15: Battery Test
BATTERY TEST Insert the black test lead banana plug into the negative COM jack and the red test lead banana plug into the positive V jack. Select the 1.5V or 9V BAT position using the function select switch. Connect the red test lead to the positive side of the 1.5V or 9V battery and the black test lead to the negative side of the 1.5V or 9V battery. -
Page 16: Replacing The Fuses
Follow instructions for installing batteries. See the Battery Installation section of this manual. Dispose of the old batteries properly. WARNING: To avoid electric shock, do not operate your meter until the battery door is in place and fastened securely. REPLACING THE FUSES WARNING: To avoid electric shock, disconnect the test leads from any source of voltage before removing the fuse door. - Page 17 WARNING: To avoid electric shock, do not operate your meter until the fuse door is in place and fastened securely.
