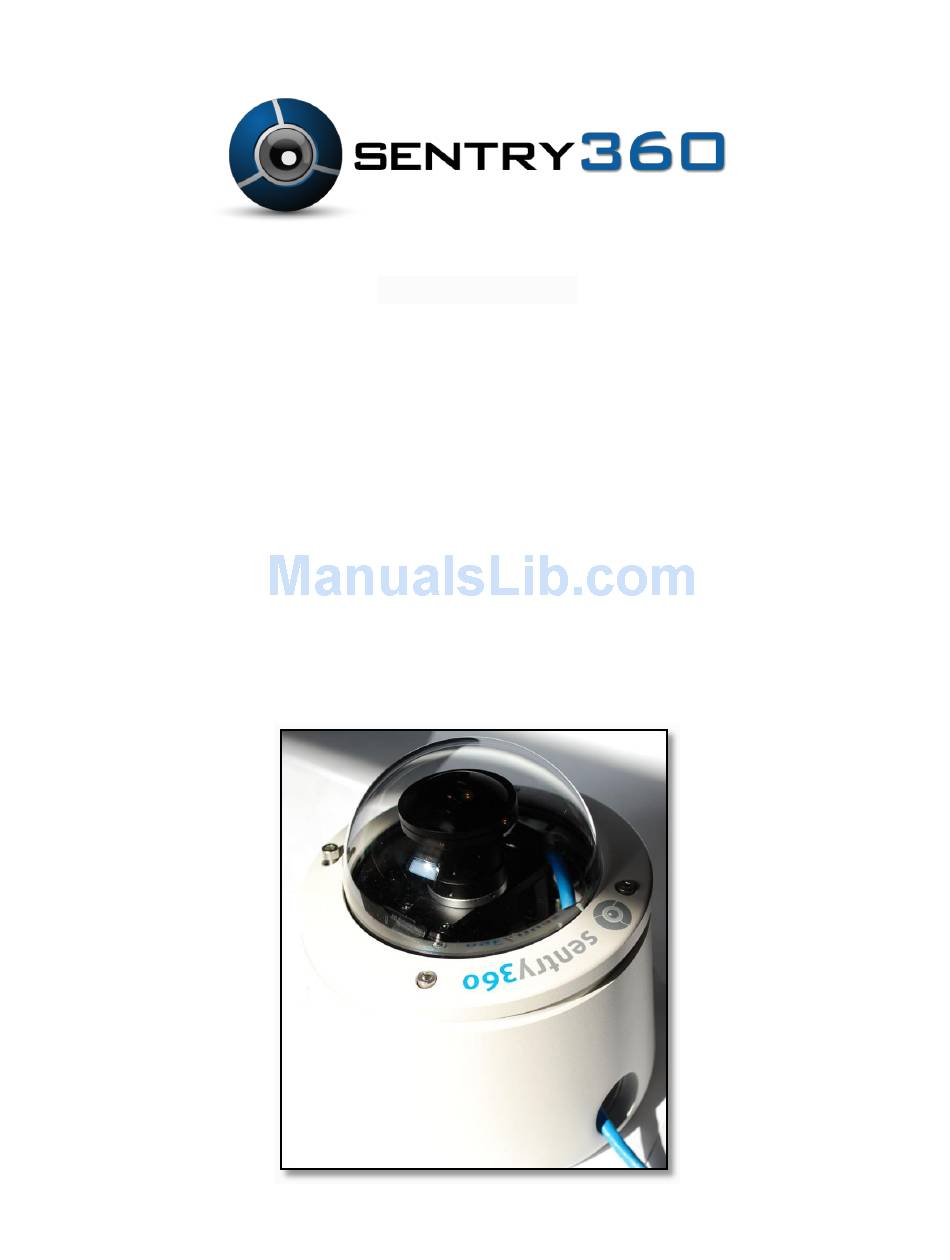

Page 1: Installation Guide
FS-DM-DOME-HB FullSight™ Dome with Heater Blower Installation Guide Revision: 10/9/2014 Copyright © 2007-2013 Sentry360... - Page 2 Description The FS-DM-DOME-HB is suitable for indoor and outdoor use, and has been designed for rapid installation. The extended dome cover permits unhindered 360° viewing. The case has been produced using die- castings aluminum materials, powder coating and a high impact- resistant, ultra-transparent cover.
-
Page 3: Package Contents
III. Package Contents Dome Enclosure (1) Hexagonal Allen Wrench (1) Plastic Screw Anchors (4) 1” Philips Screws (4) 3/8 ” Hexagonal Screw (1) Ethernet Cable (1) FS-DM-DOME-HB Installation Guide... - Page 4 IV. FullSight™ Camera Installation Instructions: A. Locate and loosen Screws. a) Find the 4 Hexagonal screws located around the ring of the glass enclosure. FS-DM-DOME-HB Installation Guide...
- Page 5 Loosen the 4 screws with the hexagonal wrench packaged with the dome. FS-DM-DOME-HB Installation Guide...
- Page 6 B. Remove the vandal-proof lid by lifting it from the base. Internal components overview: Blower Camera Plate Optional DC POE Port Conduit Holes FS-DM-DOME-HB Installation Guide...
- Page 7 C. Locate and remove the camera plate by unscrewing the Philips screw attaching it to the dome. D. Attach the camera plate to the camera using the 3/8 ” screw packaged with the dome. (NOTE: Washers may be required) FS-DM-DOME-HB Installation Guide...
- Page 8 E. Select a conduit knockout hole Depending on what surface you are mounting the camera to, choose between one of the two conduit knockout holes to use for the cables: Conduit knockout holes: Side Conduit Knockout Hole Bottom Conduit Knockout Hole FS-DM-DOME-HB Installation Guide...
- Page 9 F. Remove the plug of the conduit knockout hole you have selected by using a large flathead screwdriver. G. Insert your external Ethernet cable through the conduit knockout hole and plug it into the open POE port. FS-DM-DOME-HB Installation Guide...
- Page 10 H. Connect the Ethernet cable provided with the dome to the camera. (NOTE: If powering camera with DC power, you can connect your external network cable directly to the camera for direct data transmission) FS-DM-DOME-HB Installation Guide...
- Page 11 I. Slide the camera into place and lock it into position. (The brackets will clip around the camera) J. Screw the camera bracket back onto the dome to fasten the camera in place. FS-DM-DOME-HB Installation Guide...
- Page 12 (Optional) Flip the switch next to the 12V DC connector to the right. (NOTE: Only perform this step if you are using 12V DC power. If using POE make sure the switch is flipped to the left) FS-DM-DOME-HB Installation Guide...
- Page 13 Make sure that the screws are tightened snug, but not overly tightened. Screwing these in too tight can damage the rubber gaskets. (Note: It is the installer’s responsibility to ensure that the conduit knockout hole is sealed properly.) FS-DM-DOME-HB Installation Guide...
- Page 14 M. Located on the bottom of the dome are 4 punch-out holes. Screws can be used to either surface mount the dome or to attach it to an adapter. FS-DM-DOME-HB Installation Guide...
