Tecnolec TZ80WA-U Instruction Manual

48cm under counter freezer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
48cm Under Counter Freezer
MODEL: TZ80WA-U
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TZ80WA-U and is the answer not in the manual?

Questions and answers

Related Manuals for Tecnolec TZ80WA-U

Summary of Contents for Tecnolec TZ80WA-U

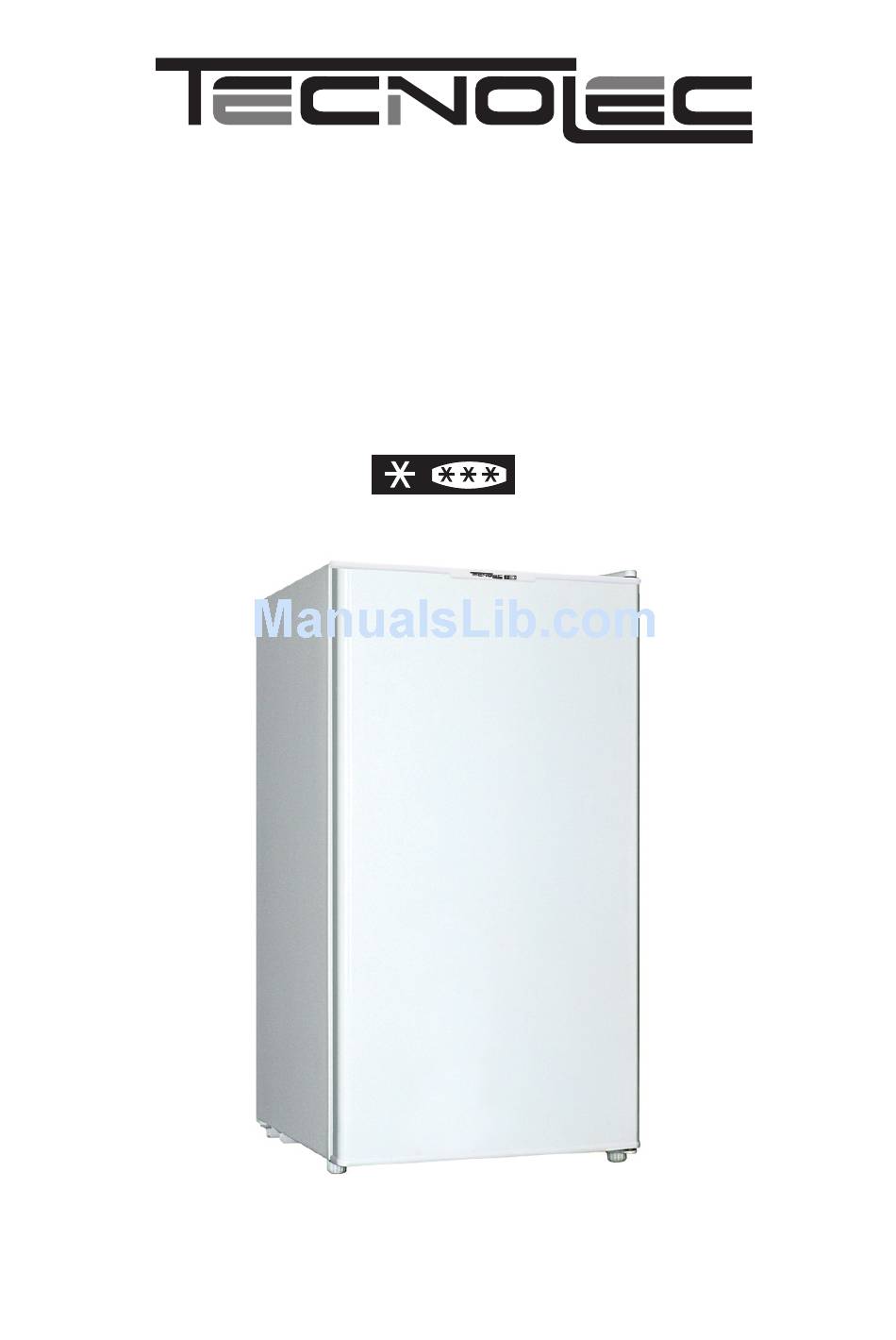

  • Page 1 48cm Under Counter Freezer MODEL: TZ80WA-U INSTRUCTION MANUAL...

  • Page 2: Description Of The Appliance

    Description of the Appliance Control Unit Freezer Drawers Adjustable Feet Door Note: Compartment design may change due to product improvement, No prior notice will be given.

  • Page 3: Electrical Connection (Uk Only)

    THANK YOU FOR PURCHASING THIS TECNOLEC PRODUCT This booklet contains the information you will require to install and operate your new appliance. It is important and worthwhile spending time to fully read this booklet so you will understand how to operate the appliance safely and efficiently.
  • Page 4 REFRIGERATOR SAFETY INFORMATION Check that the voltage marked on the rating plate matches that of your local supply. Failure to use the correct voltage will render the guarantee VOID and may cause damage to the appliance. The manufacturer accepts NO responsibility for using any other voltage than that marked on the rating plate.

  • Page 5: Installation

    This appliance is for refrigerating food and making ice cubes. REFRIGERANT The refrigerating gas contained in the circuit of this appliance is Isobutane (R600a); it causes a low level of pollution but is inflammable. CAUTION: Extreme caution must be used when moving the appliance. WARNINGS: Do not damage the refrigerant circuit.
  • Page 6 CAUTION: DO NOT SITE THIS PRODUCT IN EXCESSIVELY COLD OR HUMID AREAS, SUCH AS OUTBUILDINGS, GARAGES OR CELLARS. IF THE PRODUCT HAS BEEN STORED OR DELIVERED IN A NON-VERTICAL ORIENTATION, WAIT 24 HOURS BEFORE PLUGGING IN AND SWITCHING ON, TO GIVE THE REFRIGERANT TIME TO SETTLE. DO NOT STORE FOOD IN THE FREEZER UNTIL IT HAS BEEN RUNNING FOR AT LEAST 24 HOURS.

  • Page 7: Using The Appliance

    USING THE APPLIANCE This appliance is designed to operate in ambient temperatures (surrounding air temperature) between 16℃ and 32℃ If these temperatures are exceeded i.e. colder or warmer, the appliance will not operate correctly. Should the ambient temperatures be exceeded for long periods, the temperature in the freezer section will rise above -18 ℃...
  • Page 8 FREEZING FRESH FOOD See the technical data sheet at the rear of this booklet for the maximum permissible amount in kilograms of fresh food that can be frozen in any 24-hour period with a room temperature of 25℃ . Never freeze more than the maximum permissible. Set the temperature control to "Super"...

  • Page 9: Power Failure

    POWER FAILURE If there is a power failure for a short time, less than 12 hours, keep the door closed. Frozen food should not be affected if the power failure lasts less than 12 hours. Extra protection can be given by covering the appliance with two or three thick blankets. If a long power failure is anticipated, try to get the foodstuff into another freezer or cold store.

  • Page 10: Reversing The Door

    Reversing the door Warning! When changing the way the door opens, the appliance must not be connected to the mains. Remove the plug from the mains before working on the door. This refrigerator has been built with the door hinges on the right. If you wish to change the opening direction, follow the instructions below: 1.
  • Page 11 Troubleshooting Before calling for service please check the following points. The freezer is not working Check the plug is inserted correctly into the wall socket and it is switched on. Check there is power to the wall socket by plugging in another appliance, if the other appliance works check the fuse in the freezer plug.
  • Page 12 Do's and Don'ts Do- keep raw meat and poultry below cooked food and dairy products. Do- Wrap cheese firstly in greaseproof paper and then in a polythene bag, excluding As much air as possible. For best results, take out of the fridge compartment an hour before eating.

  • Page 13: Technical Data

    Technical data Tecnolec Brand Appliance type Freezer Star rating Total gross volume Total storage volume Freezer storage volume 3.0kg/24h Freezing capacity Maximum rated wattage of lamp Rated power input Rated current 0.6A Climate Class + Ambient Range N (+16℃ to +32℃)
  • Page 14 If something doesn't seem to work If there is something about your appliance which you do not understand and you live in the UK, you can phone our help line during normal office hours on: 0844 8009595 Calls are charged at standard rates. We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.
