Important Safety Instructions This symbol found on the apparatus indicates hazards arising from dangerous voltages. This symbol found on the apparatus indicates the user should read all safety state- ments found in the user manual. This symbol found on the apparatus indicates double insulation. WARNING! To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

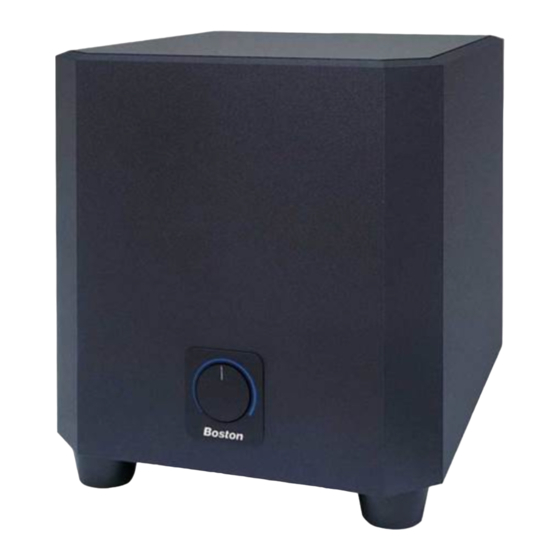

The benefit: The bass stays clean and strong at any listening level. Auto on-off amplifier switching and easily accessible controls make the PV500 subwoofer as convenient to use as it is exciting to listen to.
Page 4
Connections NOTE: Power is always supplied to the subwoofer electronics unless it is unplugged. The auto-on circuitry only activates or deactivates the power amplifier. Make sure your subwoofer and receiver are unplugged when making the connection. Line level: Use one of the “line level in” jacks with most systems. These inputs accept the line level signal from your receiver’s subwoofer output.
Page 5
Use an RCA cable (not included), as shown, to connect your digital receiver’s subwoofer output to the subwoofer. Connect the other end to the PV500 jack labeled “bypass crossover control” underneath “line level in”. PV500...
Page 6
Power light and power status: The power light turns on whenever the PV500 is plugged into an power electrical outlet. The PV500’s auto-on circuitry turns the subwoofer on when a signal is presented, and turns it off if no signal is detected.
Page 7
Use the setting that yields the louder and more dynamic sound. IMPORTANT: Do not place the subwoofer where there is a chance of contact between the rear panel and drapes or furniture. Avoid obstructing air flow to the back. Position PV500 in corner for maximum bass output...
Limited Warranty For one year from the date of purchase, Boston Acoustics will repair for the original owner any defect in materials or workmanship that occurs in normal use of the subwoofer, without charge for parts and labor. Your responsibilities are to use the system according to the instructions supplied, to provide safe and secure transportation to an authorized Boston Acoustics service representative, and to present proof of purchase in the form of your sales slip when requesting service.
