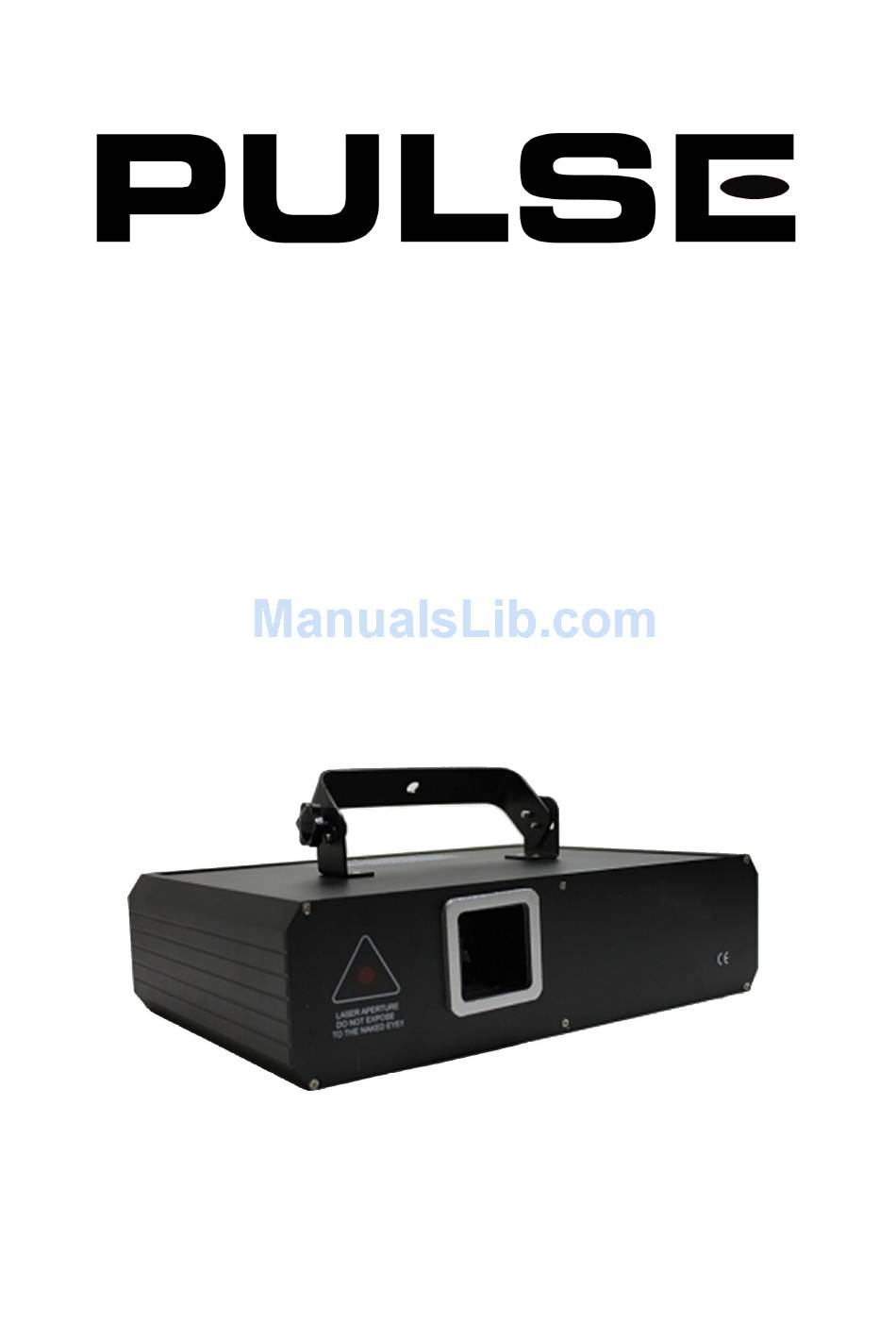

- Page 1 Laser Light Effect Violet 100mW DPSS (405nm) Red 100mW DPSS (650nm) Model: Cygnus *image for illustration purposes only...
-
Page 2: Safety Information
Safety Information The lightning bolt To reduce the risk of electric The exclamation point within a triangle is shock, do not remove cover within a triangle is intended to alert the of this device. There are no intended to alert the... - Page 3 Users of this equipment must be competent and fully aware of all safety • implications of using laser products This laser effect falls into the classification 3B. Full details of usage, exposure • (MPE) and safety precautions can be found in the HS(G)95 publication. Extreme care should be taken to avoid all eye contact (direct or indirect) with the beams emitted from this unit.
- Page 4 safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet Protect the power cord from being stressed at the plugs, convenience • receptacles, and where they exit the amplifier Unplug the device during lightning storms or when unused for an extended time •...
-
Page 5: Features And Specifications
Congratulations on your purchase of this Pulse Cygnus Laser Effect 200mW output from this DPSS laser will add a different dimension to any light show. Ideal for smaller venue’s. The bright, red and violet laser diodes generates a stunning effect a world apart from standard green lasers. -
Page 6: Connections And Controls
Connections & Controls: 1. AC Power Input – This must only be powered from a standard 240VAC, 50~60Hz mains source. Do not use with dimmer packs or electricity supplies outside this range. A fused power cord must be used. 2. Min Max – Adjusts sensitivity to sounds within the “bass” range of the audio spectrum. - Page 7 on and the rest to off. For AUTO mode set DIP switches #9 & #10 to on and the rest to off. For master/Slave modes the first unit in the chain would be set to Sound Active or Auto, the units acting as slaves would then be set to all DIP switches in the off position.
-
Page 8: Master/Slave Mode
Stand Alone Operation (Sound Active & AUTO Modes) The mode allows a single unit to react to the beat of the music in the master mode. 1. Set dipswitch to select Sound Active or AUTO mode. 2. Power up the unit, the laser will then go through a reset cycle and begin operation. 3. -
Page 9: Dmx Operation
1. Use standard XLR DMX cable chain your units together via the XLR connector on the rear of the units. We recommend a terminator at the last fixture (ask your local dealer to supply a PULSE DMXTERM-3P) 2. Assign a DMX address to each the unit using dipswitches 3. -
Page 10: Troubleshooting
Control of this unit is via the Sensitivity control knob – this will adjust how the • unit reacts to bass notes and beats within the audio spectrum. Care should be taken to ensure this product is operated in accordance within •... -
Page 11: Warranty
Compliance When this product reaches the end of its life, do not dispose with household waste. See www.recycle-more.co.uk for details of how to dispose of PULSE products in an environmentally sound fashion, or contact PULSE directly via www.pulse-light.co.uk Warranty Pulse products are warranted, by Pulse, against manufacturer defects for a period of one year from the original date of purchase.
