Summary of Contents for brasa XL Burner

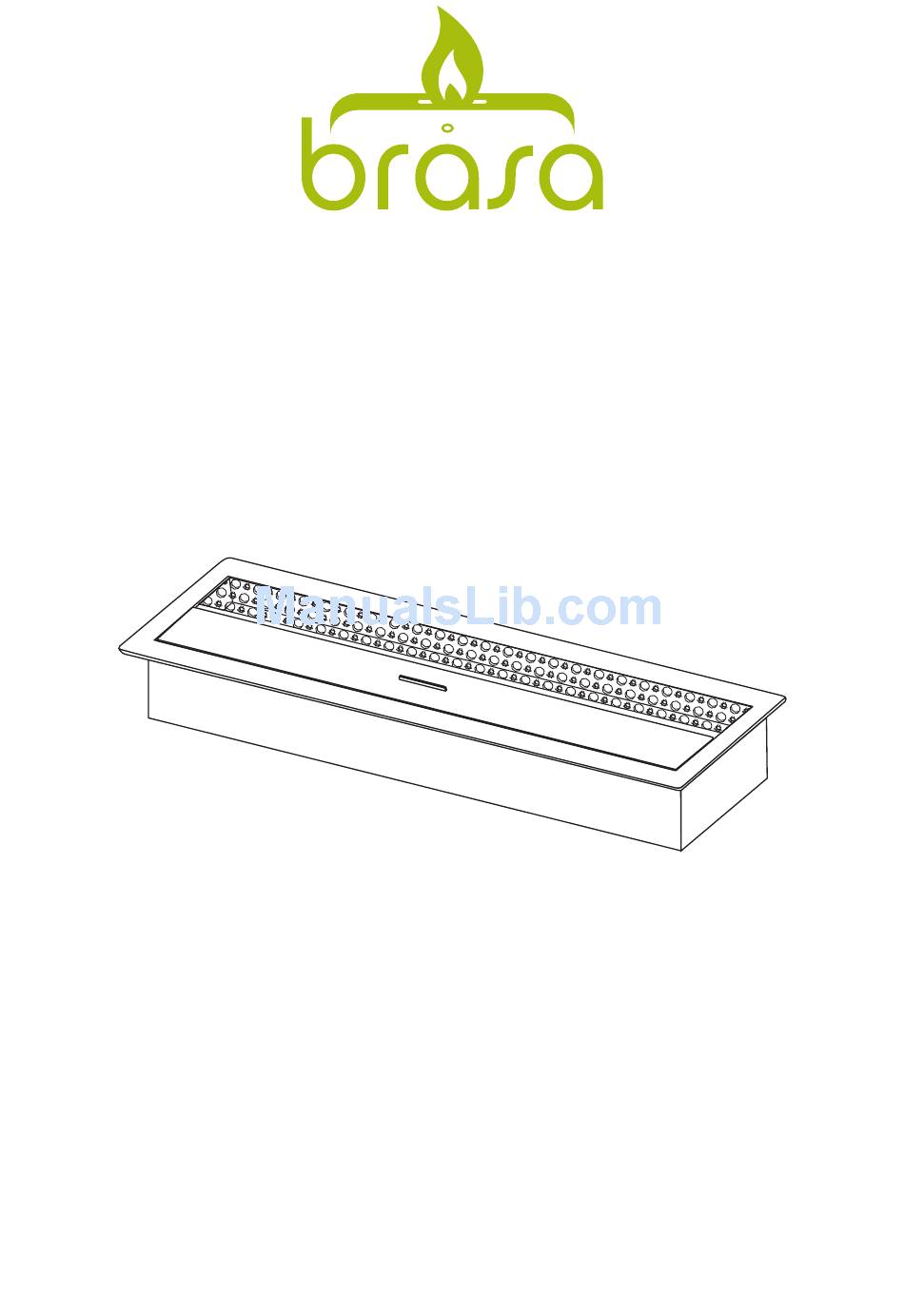

- Page 1 Instruction Manual please read before use XL Burner (patent pending) 307 Tchoupitoulas Street, Suite 100 • New Orleans, LA 70130 p : 888.596.6960 | 504.596.6960 • e : office@brasafire.com www.brasa.co...
-
Page 2: Item Identification
Item Identification burner cover plate control wand slow pour spout polish pad long lighter pg 2... - Page 3 Instruction manual and Safety Instructions Please read this entire instruction manual before using your new XL burner. You will learn how to correctly operate your burner. Keep this instruction manual and do not throw it away. All users must read this instruction manual before use.
- Page 4 First Steps Before using your new XL burner for the first time please be sure to follow these steps: • Remove all packaging material, stickers or labels. • Check the contents of the package for damage and make sure all parts have been included. See item identification.
-
Page 5: Assembly Diagram
Assembly Diagram pg 5... - Page 6 Filling the Burner • For greater control, attach the optional slow pour spout to the alcohol bottle. The spout should only be attached during filling. When filling is complete, the original cap should be put back on to prevent spilling. •...
-
Page 7: Lighting The Burner
Lighting the Burner • The burner is ready to light once it has been filled with alcohol. • Place the cover plate in the open position. *You do not need to open the cover plate the entire way. Burning at half open will improve fuel efficiency. - Page 8 Extinguishing the Burner • Never try to extinguish the flame using water. This is an explosion hazard. • Allow the burner to cool for at least 30 minutes before touching with bare hands. • To extinguish the fire, Use the wand tool to move the cover into the closed position.
-
Page 9: Maintenance And Care
Maintenance and Care • The burner heats up during operation. After the fire has been extinguished the burner will still be hot. Please allow the burner and cover to cool for at least 30 minutes before touching with bare hands. •... - Page 10 Storage and Handling of Alcohol • Alcohol will be delivered in plastic bottles if supplied by brasa. They are marked with applicable regulations. Follow these regulations regarding transportation and storage. Regulations can differ depending on local laws. • Do not eat, drink or smoke during the filling process.
- Page 11 Burn Time The burner for the XL burner can hold up to 112 oz (3312 ml) of fuel when completely full. You will know that the burner is full when no more fuel is being absorbed through the baffle and it begins to pool in the filling reservoir.
- Page 12 The following is the size and cut out information for the XL burner. The burner can be put into place with the flange sitting on top of the custom built surface or the flange can be recessed into the custom area;...
- Page 13 Custom Cut Out Information Lower box cut out information: lower box length 630 mm corner is at 90º angle Overall size info: pg 13...
- Page 14 Custom Cut Out Information Recommended measurements for custom hearth: if your material is ceramic/stone or metal, use these measurements: a: at least 6 in or 15 cm from edge of burner to edge of interior wall b: at least 4 in or 10 cm from back edge of flange to edge of back interior wall c: at least 20 in or 50 cm total interior height of hearth for all other types of non-flammable materials, use these measurements:...
