Summary of Contents for Adkins Hobby Jack

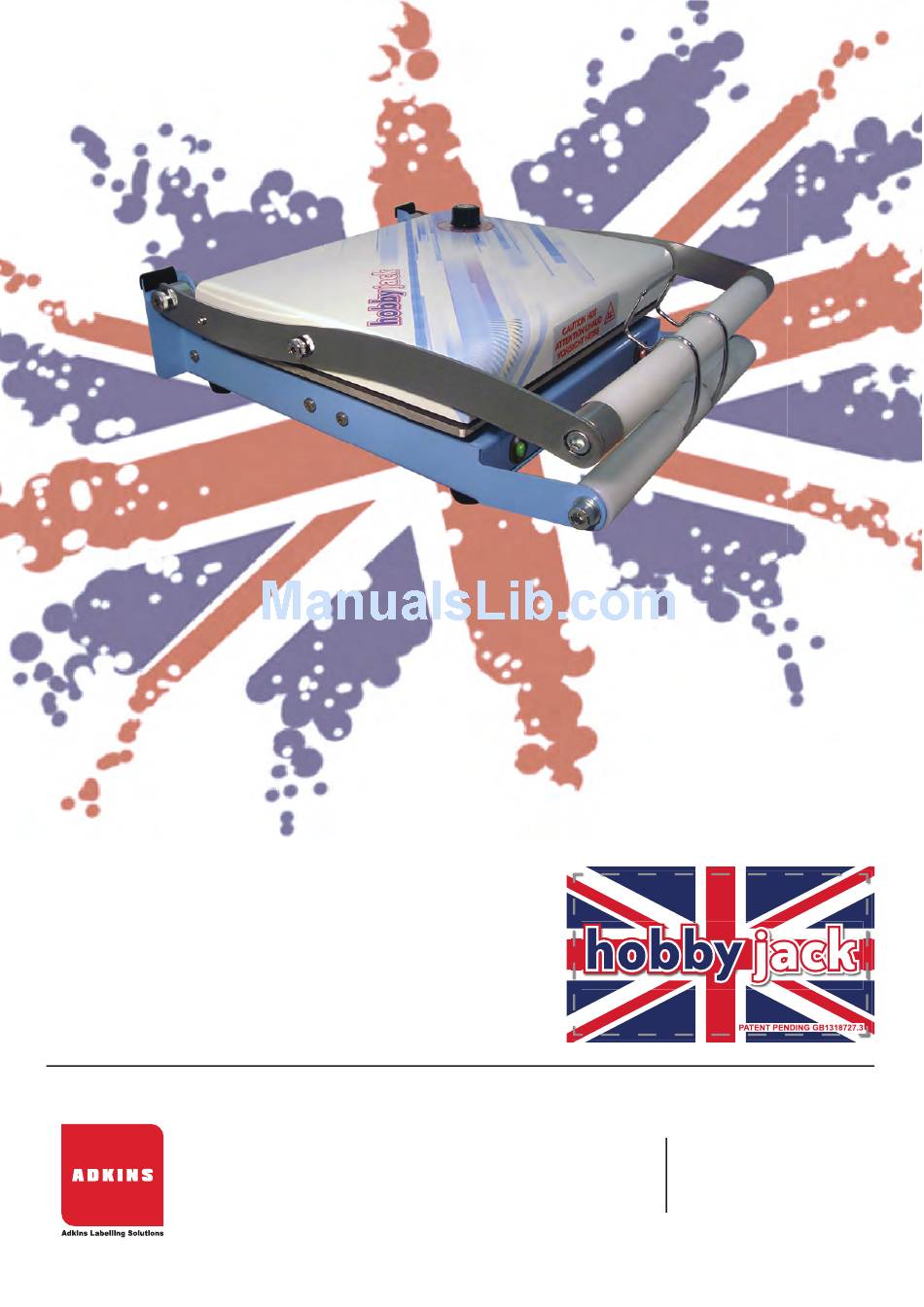

- Page 1 Operators Manual A. Adkins & Sons Limited Tel: [+44] (0)1455 891 291 18 Lancaster Road, Hinckley, FAX: [+44] (0)1455 633 503 Leicestershire LE10 0AW Email: support@aadkins.com Web: www.aadkins.com United Kingdom...
-
Page 3: Table Of Contents
Connecting to power Page Mains AC operation Page Important Page Caution Page Safety precautions Page Using your press Page Connecting your Hobby Jack heat press Page Preparations Page Selecting the temperature Page Heat applying/sealing procedure Page Cleaning Page Tips and advice Page... -
Page 4: Important Safety Instructions
Children should be supervised to ensure that they do not play with the Hobby Jack heat press. The Hobby Jack heat press is not intended to be operated by means of an external timer or separate remote control system. The temperature control of your Hobby Jack heat press should always be 0 (zero) before plugging or unplugging from the outlet. - Page 5 (continued) Your Hobby Jack heat press must be used and rested on a firm, flat and stable surface. Your Hobby Jack heat press should not be used if it has been dropped, if there are visible signs of damage. Never bend the power lead when using or putting you Hobby Jack heat press away as in time this could damage the device.
-
Page 6: Special Instructions
NEVER touch the appliance with wet or damp hands. DO NOT use the power lead or your Hobby Jack heat press in order to pull the plug out of the outlet socket. -
Page 7: Mains Ac Operation
BLUE = NEUTRAL, BROWN = LIVE, GREEN + YELLOW = EARTH IMPORTANT As the colour of the wires in the power lead of your Hobby Jack heat press may not correspond with the coloured markings identifying the terminals in your plug, please... -
Page 8: Caution
Please refer servicing to a qualified service engineer. SAFETY PRECAUTIONS Do not allow your Hobby Jack heat press or any part of the power connectors to be exposed to rain or moisture. Mains supply: 230 Volts~50 Hz with a supply rated for at least 13 Amps (AC only). -
Page 9: Using Your Press
Using your press Below are diagrams outlining the various parts of Top handle your press. It is advised to familiarize yourself with these prior to using your press for the first time. Heat plate The heat plate gets very hot during normal use and should not be touched with bare hands Bottom handle... -
Page 10: Connecting Your Hobby Jack Heat Press
Using your press (continued) CONNECTING YOUR HOBBY JACK HEAT PRESS Connecting your press to the power outlet is a simple task that requires only that you use the supplied power cord and lead. Using a lead other than the one supplied will invalidate your warranty and could lead to personal injury. -
Page 11: Preparations
Using your press (continued) When using your Hobby Jack heat press for the first time, you may notice a slight emission of smoke and/ or a slight smell of burning, this is completely normal and will stop after a short period. -
Page 12: Heat Applying/Sealing Procedure
Using your press (continued) The green light on the front of your Hobby Jack heat press will illuminate to indicate that the press is switched on (see diagram below). The red light, also on the front of your Hobby Jack heat press, will also illuminate to indicate that the temperature is climbing (see diagram below). - Page 13 Using your press (continued) Position the transfer in the desired location over the material to be applied to Take care not to touch the heat plate Lower the heat plate using both hands, taking care to close the handle catch Operators Manual Using your press...
-
Page 14: Cleaning
CLEANING Please note: Before cleaning your Hobby Jack heat press in any way make sure that the outlet plug is not connected to the socket and that the heat plate has completely cooled. Any deposits left on the heat plate can be removed using a damp cloth or a non-abrasive liquid detergent. -
Page 15: Tips And Advice
Hobby Jack heat press prior to repairs being undertaken. Do not let children or pets play with your Hobby Jack heat press. Keep your Hobby Jack heat press and power lead out of the reach of children or pets when it is live and/ or cooling down. -
Page 16: Exploded Diagram And Parts List
Exploded diagram and parts list No. Part Description Part No. Heat Plate Cover AHJ1 Thermostat Housing AHJ2 Thermostat AHJ3 Heat Plate AHJ4 P.T.F.E. Gasket AHJ5 Temperature Sensor AHJ6 Rear Hinge Screw AHJ7 Front Hinge Screw AHJ8 Left Sided Machine Arm AHJ9 Upper Machine Handle AHJ10... -
Page 17: Electrical Diagram
Electrical diagram Operators Manual Electrical Diagram... -
Page 18: Declaration Of Conformity
BS EN ISO 61000-6-2:2005 - EMC Immunity. Manufacturer's Name: A. Adkins & Sons Limited Manufacturer's Address: High Cross, 18 Lancaster Road, Hinckley, Leicester, LE10 0AW, United Kingdom. Adkins Hobby Jack Heat Press Type of Equipment: Model Number: ..................Serial Number: .................. - Page 20 A. Adkins & Sons Limited 18 Lancaster Road, Hinckley, Leicestershire LE10 0AW United Kingdom...
