Summary of Contents for Media KW5262

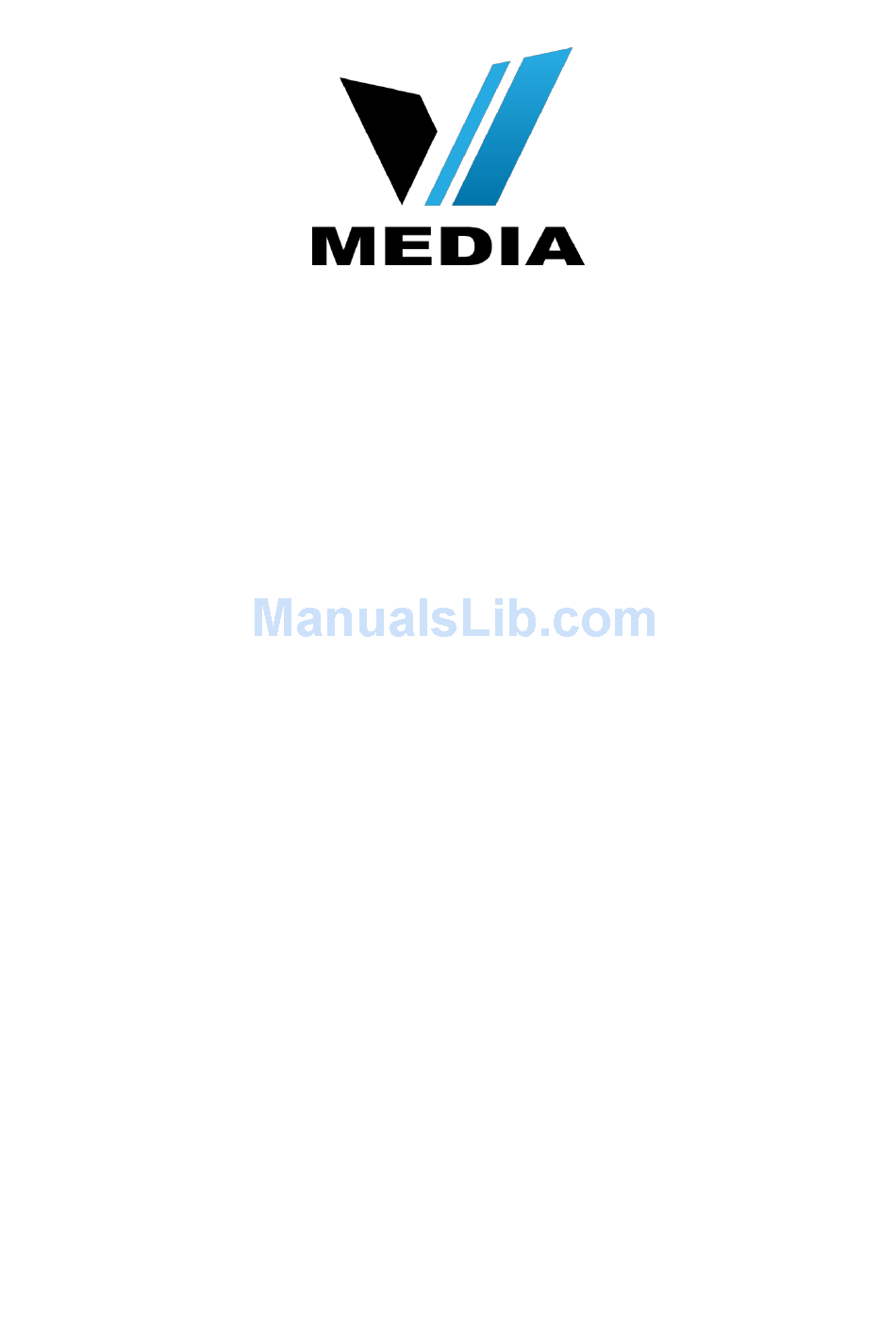

  • Page 1 KW5262 Wireless VDSL Router User Manual...
  • Page 2 VDSL Router User Manual NOTICE This document contains proprietary information protected by copyright, and this Manual and all the accompanying hardware, software, and documentation are copyrighted. All rights are reserved. No part of this document may be photocopied or reproduced by mechanical, electronic, or other means in any form.

  • Page 3: Table Of Contents

    VDSL Router User Manual Content 1.1 F ........................2 EATURES 1.1.1 Data rate ..........................2 1.1.2 DSL Compliant ......................... 2 1.1.3 Wireless ..........................2 1.1.4 Network Protocol & Features ..................2 1.1.5 ATM Capabilities ......................3 1.1.6 VoIP ............................ 3 FIREWALL ........................

  • Page 4: Features

    User Manual 1 Overview Thank you for choosing our product. The KW5262 is a Wireless VDSL router combining an DSL modem, an 802.11n wireless router, a 4-port switch, two FXS ports and an USB port in one unit, bringing high-speed wireless Internet connection to a home or office.

  • Page 5: Atm Capabilities

    VDSL Router User Manual  Internet Control Message Protocol (ICMP)  IP Static Routing  Routing Information Protocol (RIP, RIPv2)  Network Address Translation (NAT)  Virtual Server, Port Forwarding  Dynamic Host Configuration Protocol (DHCP)  DNS Relay, DDNS ...

  • Page 6: Firewall

    VDSL Router User Manual 1.1.7 FIREWALL  Built-in NAT  MAC Filtering  Packet Filtering  Stateful Packet Inspection (SPI)  Denial of Service Prevention (DoS)  1.1.8 Management Support  Web Based GUI  Upgrade or update via FTP/HTTP ...

  • Page 7: System Requirements

    VDSL Router User Manual  DSL ROUTER  External Splitter  Power Adapter  Telephone Line  Ethernet Cable  Antenna  Base  CD System Requirements Before using this ROUTER, verify that you meet the following requirements:  Subscription for DSL service. Your DSL service provider should provide you with at least one valid IP address (static assignment or dynamic assignment via dial-up connection).
  • Page 8 VDSL Router User Manual  Do not install telephone jacks in wet locations and never use the product near water.  To prevent dangerous overloading of the power circuit, be careful about the designed maximum power load ratings. Not to follow the rating guideline could result in a dangerous situation.

  • Page 9: Hardware Description

    VDSL Router User Manual 2 Hardware Description Front Panel Color Function On: Power on Green Off: No power On: LAN link established and active via LAN port LAN1,2,3,4 Green Blinking: DSL data activity occurs Off: No LAN link via LAN port On: The wireless module is ready and idle WLAN Green...
  • Page 10 VDSL Router User Manual Rear panel Port Function Connect the device to an ADSL telephone jack or splitter using a RJ-11 telephone cable FXS0,1 Connect the device to your normal phone Connect the device to your printer LAN1,2,3,4 Connect the device to your PC's Ethernet port, or to the uplink port on your hub/switch, using a RJ-45 cable ON/OFF Switch it on or off...

  • Page 11: Hardware Installation

    VDSL Router User Manual 3 Hardware Installation This chapter shows you how to connect Router. Meanwhile, it introduces the appropriate environment for the Router and installation instructions. Using a telephone line to connect the DSL port of ROUTER to the MODEM port of the splitter, and using a other telephone line connect your telephone to the PHONE port of the splitter, then connect the wall phone jack to the LINE port of the splitter.

  • Page 12: Pc Configuration Guide

    VDSL Router User Manual 4 PC Configuration Guide Local PC Configuration in Windows 95, 98, ME, XP,VISTA,7 In the Windows task bar, click the “Start” button, point to “Settings”, and then click “Control Panel”. Double-click the “Network” icon. On the “Configuration” tab, select the TCP/IP network associated with your network card and then click “Properties”.

  • Page 13: Web-Based Management Guide

    VDSL Router User Manual 5 Web-based Management Guide In order to use the web-based management software it will be necessary to use a computer that occupies the same subnet as the Router. The simplest way to do this for many users will be to use DHCP server that is enabled by default on the Router.

  • Page 14: Internet Access Configuration

    VDSL Router User Manual We can select wizard setup or advanced setup mode to setup KW5262. the wizard set up will guide us for a basic setting,and the advanced setup will guide us to home page for more detailed setup.
  • Page 15 VDSL Router User Manual 4. Click Add to select a layer 2 Interface for this service and then click Next. 5. Choose WAN service type, just choose PPPoE for example here. You can enter your own service description here if you want and then click Next. 6.
  • Page 16 VDSL Router User Manual PPPoE service name can be blank unless your Internet Service Provider gives you a value to enter. Authentication method is default to Auto. It is recommended that you leave the Authentication method in Auto, however, you may select PAP or CHAP if necessary.
  • Page 17 VDSL Router User Manual The gateway can be configured to disconnect if there is no activity for a specific period of time by selecting the Dial on demand check box and entering the Inactivity timeout. The entered value must be between 1 minute and 4320 minutes. The PPP IP Extension is a special feature deployed by some service providers.
  • Page 18 VDSL Router User Manual interface is connected. Priority order can be changed by removing all and adding them back in again. 8. Get DNS server information from the selected WAN interface or enter static DNS server IP addresses. If only a single PVC with IPoA or static MER protocol is configured, you must enter static DNS server IP addresses.

  • Page 19: Vdsl Setup

    VDSL Router User Manual 5.2.2 VDSL Setup From home page, you can find Advanced Setup option on the left router configuration page. 1. From Layer2 Interface, click PTM Interface. you can set it up according to the following steps. You Choose Add , or Remove to configure DSL PTM interfaces.
  • Page 20 VDSL Router User Manual 5. Choose WAN service type, just choose PPPoE for example here. You can enter your own service description here if you want and then click Next. 6. Input PPP Username & PPP Password and then click Next. The user interface allows a maximum of 256 characters in the user name and a maximum of 32 characters in the password.
  • Page 21 VDSL Router User Manual PPPoE service name can be blank unless your Internet Service Provider gives you a value to enter. Authentication method is default to Auto. It is recommended that you leave the Authentication method in Auto, however, you may select PAP or CHAP if necessary.
  • Page 22 VDSL Router User Manual The gateway can be configured to disconnect if there is no activity for a specific period of time by selecting the Dial on demand check box and entering the Inactivity timeout. The entered value must be between 1 minute and 4320 minutes. Use Static IPv4 address: If the ISP gave you a static (fixed) IP address, select this option and enter it in the IP Address field.
  • Page 23 VDSL Router User Manual  The DSL gateway bridges the IP packets between WAN and LAN ports, unless the packet is addressed to the gateway's LAN IP address. 7. Select a preferred wan interface as the system default gateway. Get DNS server information from the selected WAN interface or enter static DNS server IP addresses.

  • Page 24: Router Mode Setup

    VDSL Router User Manual 5.2.3 Router Mode Setup 1. From Advanced Setup, click Layer2 Interface and select ETH Interface. Before you configure ETH WAN interface, you’d better remove all PVC settings from ATM interface. 2. Click Add and you’ll see the following screen. Select a ETH port as you will.
  • Page 25 VDSL Router User Manual From Advanced Setup, click WAN Service to configure a WAN service over the interface you selected. 6. Click Add and you’ll see the following screen. 7. Click Next and you’ll see the following screen. Select PPPoE as WAN service type for example.
  • Page 26 VDSL Router User Manual 8. Enter the user name and password that your ISP has provided to you. Click Next. PPPoE service name can be blank unless your Internet Service Provider gives you a value to enter. Authentication method is default to Auto. It is recommended that you leave the Authentication method in Auto, however, you may select PAP or CHAP if necessary.
  • Page 27 VDSL Router User Manual Someone on the Internet only needs to know the mapping scheme in order to send packets to a device behind the VDSL Device. The gateway can be configured to disconnect if there is no activity for a specific period of time by selecting the Dial on demand check box and entering the Inactivity timeout.
  • Page 28 VDSL Router User Manual  The gateway extends the IP subnet at the remote service provider to the LAN computer. That is, the PC becomes a host belonging to the same IP subnet.  The DSL gateway bridges the IP packets between WAN and LAN ports, unless the packet is addressed to the gateway's LAN IP address.

  • Page 29: Lan Settings

    VDSL Router User Manual 11. Make sure that the settings below match the settings provided by your ISP. Click on the Apply/Save button to save your configurations and reboot the DSL router. 5.2.4 LAN Settings From LAN, Configure the DSL Router’s IP Address and Subnet Mask for LAN interface.
  • Page 30 VDSL Router User Manual This is the IP address that other devices on your local network IP address will use to connect to the modem. This defines the size of your network. The default is Subnet mask 255.255.255.0. The DHCP server assigns an IP addresses from a pre-set pool of Disable / Enable addresses upon request from DHCP client (e.g.

  • Page 31: Wireless Setting

    VDSL Router User Manual 5.3 Wireless setting 5.3.1 Basic Option Description A checkbox that enables or disables the wireless LAN interfaces. The default Enable wireless is to enable wireless communications. Select Hide Access Point to protect the ADSL route access point from detection by wireless active scans.

  • Page 32: Advanced

    VDSL Router User Manual each other. isolation Enter a name for user’s wireless network here. SSID stands for Service Set Network Identifier. This name must be between 1 and 32 characters long. All wireless name (SSID) clients must either detect the gateway or be configured with the correct SSID to access the Internet.
  • Page 33 VDSL Router User Manual Warning: The settings shown above are default settings. Changes made to these items can cause wireless communication problems. Field Description This is the range of frequencies the gateway will use to communicate with Band user’s wireless devices. Channel Drop-down menu that allows selection of specific channel.
  • Page 34 VDSL Router User Manual DTIM interval value. The clients hear the beacons and awaken as needed to receive the broadcast and multicast messages. The amount of time (in milliseconds) between beacon transmissions, each of which identifies the presence of an access point. By default, wireless clients passively scan all radio channels, listening for beacons coming from Beacon access points.

  • Page 35: Security

    VDSL Router User Manual 5.3.3 Security This page allows you to configure security features of the wireless LAN interface. You may set up configuration manually or through WiFi Protected Setup(WPS) 1.Click Security of Wireless item and you’ll see the following page. 2.
  • Page 36 VDSL Router User Manual 3.Enable WPS as below. 4.Set WPS AP mode as unconfigured and click Config AP. 5. Set WPS AP mode as configured and click Save/Apply. 6. Now you can use a wireless adaptor with WPS function and the WPS button to connect to access the Internet.
  • Page 37 VDSL Router User Manual WPA2-PSK, Mixed WPA-WPA2, Mixed WPA-WPA2-PSK. Different item leads different web page settings. Please read the following information carefully. The wireless security page allows user to configure the security features of user’s wireless network. There are several security methods to choose from, depending on user’s needs and the capabilities of user’s wireless machines.
  • Page 38 VDSL Router User Manual WPA — WPA is a more recent encryption method that addresses many of  the weaknesses in WEP. Any client capable of WPA encryption should use it instead of WEP. WPA (PSK) — This is WPA encryption combined with a pre-shared key ...

  • Page 39: Oip Configuration

    VDSL Router User Manual 5.4 VoIP Configuration 5.4.1 SIP Basic Setting Please Click Stop SIP client before configure SIP parameter and click Start SIP Client after the setting. Interface Name: PVC channel for VoIP service. Locale Selection: Keep the value as default if without any request from your ISP. Preferred codec list: Voice codecs.

  • Page 40: Sip Advanced Setting

    VDSL Router User Manual SIP Outbound proxy port is the signal port of outbound proxy port. The default value is 5060. SIP Registrar: The SIP server address provided by your ISP. This address is necessary for VOIP setting. SIP Registrar port: the signal port of SIP server. The default value is 5060. Extension: SIP account username provided by your ISP.

  • Page 41: Printer Server Installations

    VDSL Router User Manual new or the current caller an appropriate time to ring back if the message is important, or to quickly handle a separate incoming call. Call Forwarding Number: a feature that allows an incoming call to a called party, which would be otherwise unavailable, to be redirected to a mobile telephone or other telephone number where the desired called party is situated.Forward the incoming call to the number you typed.
  • Page 42 VDSL Router User Manual 3. Select “Network Printer” and click “Next”. 4. Select Connect to a printer on the Internet, type “http://192.168.1.31:631/printers/printer” and click “Next”. The printer name “Printer” must be the same name entered in the ADSL router “print server setting”...
  • Page 43 VDSL Router User Manual Select driver file directory on CD-ROM or in your hard disk and click “OK”. 6. Choose “Yes” or “No” for default printer setting and click “Next”. Click “Finish”.

  • Page 44: Appendix: Frequent Asked Questions

    VDSL Router User Manual Appendix: Frequent Asked Questions Q: None of the LEDs are on when you power on the DSL router? A: Please make sure what you use is the power adaptor attached with the DSL router package and checks the connection between the AC power and DSL router.
  • Page 45 VDSL Router User Manual The country or the wireless network type you selected is wrong. Q: PC cannot browse Internet web page? A: Please make sure DNS server appointed to the PC is correct. You can use ping application program to test whether the PC can connect to the DNS server of the DSL operator.
