HARD DISK DRIVE

INSTALLATION PROCEDURE MANUAL

1. RECOMMENDED HARD DISK DRIVE

Made by Hitachi Global Storage Technologies
Series
Model Number
Deskstar 7K1000.B
HDT721025SLA380
Deskstar 7K1000.B
HDT721050SLA360
Deskstar 7K1000.B
HDT721010SLA360
Note
Be sure to use the recommended hard disk drive. Failure to do so could cause a recognition failure or data
reading/writing errors.
2. HARD DISK DRIVE ( HDD ) INSTALLATION PROCEDURE
Notes
• Be careful when handling a HDD.
• The HDD is a very precise device and can be damaged by static electricity, shocks, and vibrations.

2.1. Settings

DIP switch setting and cable connection must be changed when installing only a single HDD. Detach the DVD
drive with the following procedures, then change the setting.

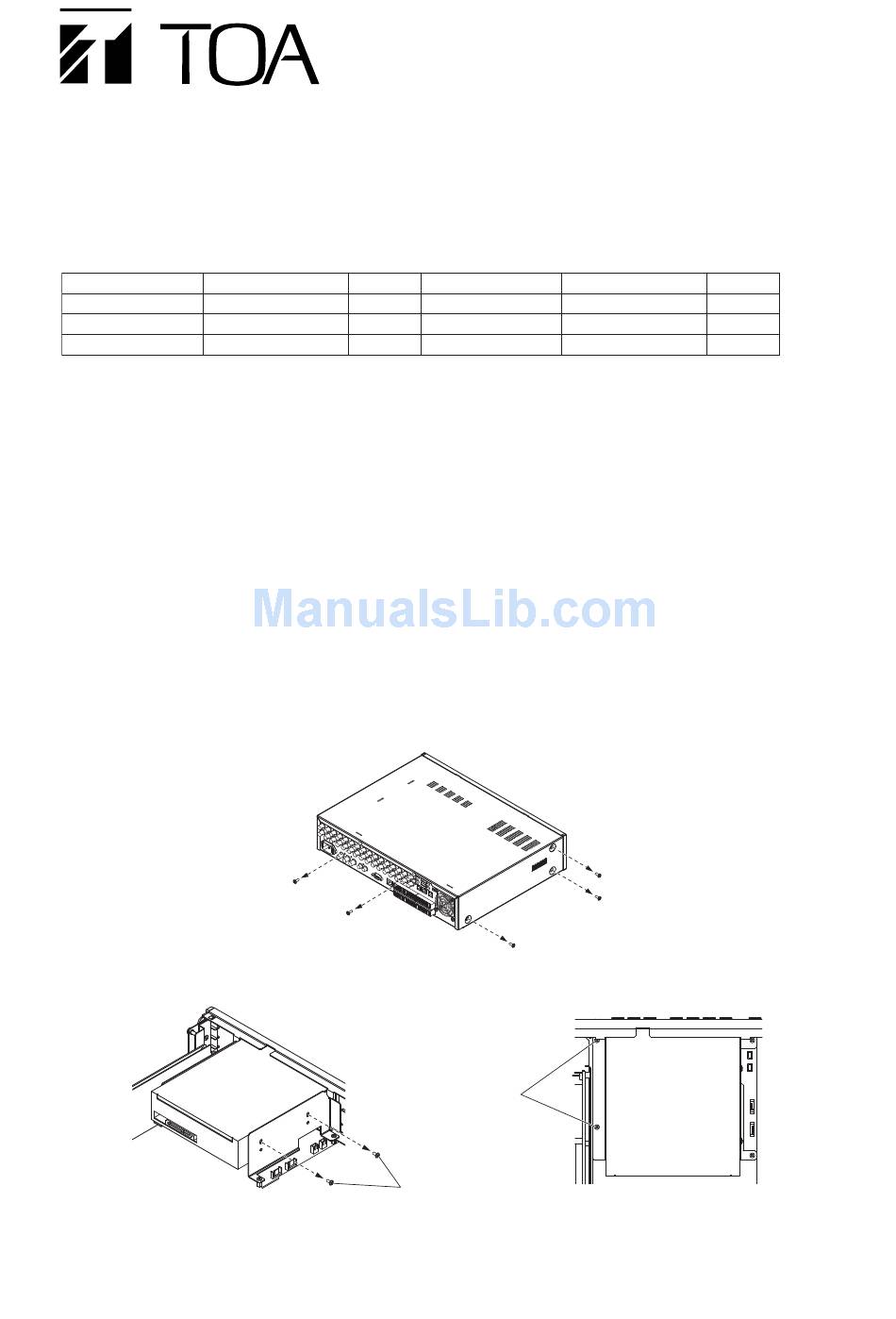

1. Remove 8 screws on the rear and both sides of the case, then detach the case.
Replace the removed case after all work is complete.
2. Remove the screws, then detach the DVD drive.
DVD drive
Capacity
Series
250 GB
Deskstar 7K1000.C
500 GB
Deskstar 7K1000.C
1 TB
Deskstar 7K1000.C
Remove.
Remove.
C-DR091D
C-DR161D
Model Number
Capacity
HDS721025CLA382
250 GB
HDS721050CLA362
500 GB
HDS721010CLA332
1 TB
DVD drive

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-DR091D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Toa C-DR091D

  • Page 1: Hard Disk Drive

    C-DR091D HARD DISK DRIVE INSTALLATION PROCEDURE MANUAL C-DR161D 1. RECOMMENDED HARD DISK DRIVE Made by Hitachi Global Storage Technologies Series Model Number Capacity Series Model Number Capacity Deskstar 7K1000.B HDT721025SLA380 250 GB Deskstar 7K1000.C HDS721025CLA382 250 GB Deskstar 7K1000.B HDT721050SLA360 500 GB Deskstar 7K1000.C...
  • Page 2 3. Change the DIP switch setting as shown in the table below. ( DVD drive ) DVD drive DIP switch DSW 1 Factory default setting DIP switch setting ( DSW 1 ) Factory default setting Setting after change Unchanged Unchanged 4.
  • Page 3 2.2. HDD Installation 1. Remove the mounting brackets attached inside of the Digital Video Recorder ( DVR ) , then attach them to the HDD. Secure the HDD to the chassis. [ In case of a single HDD ] 2. Connect both the signal cable and power supply cable to the HDD. Note: When installing 2 HDDs, be sure to install the ones with the same capacity.
  • Page 4 The display returns to the normal screen. 10. Turn off the DVR power. Place the DVR in standby mode by pressing the power key for 2 seconds or more, then disconnect the power supply plug from the wall outlet. URL: http://www.toa.jp/ 133-41-006-2A...
