Firebird-Systems CHDMI18C Operation Manual

Firebird-systems 1x8 hdmi distribution amplifier
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

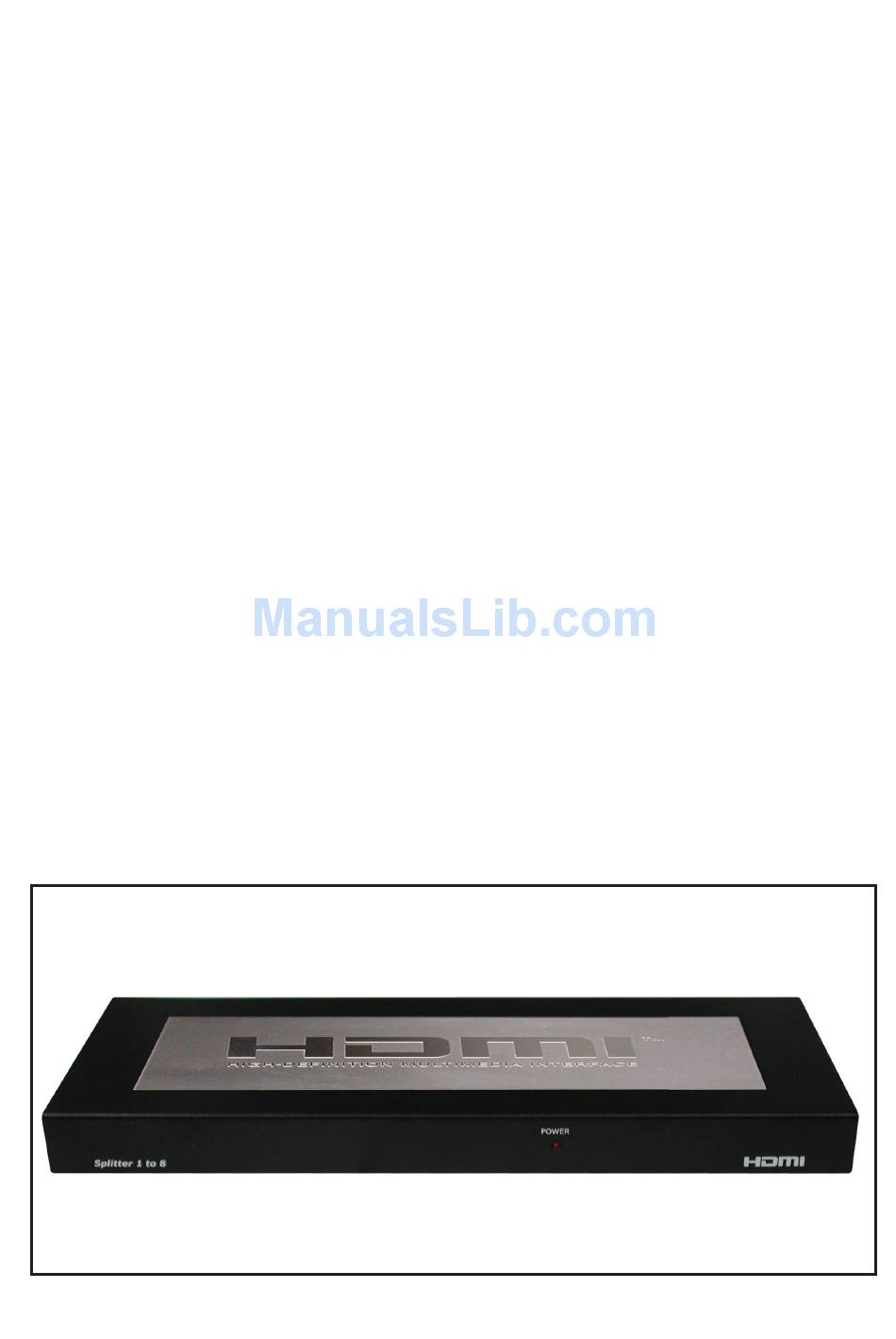

1x8 HDMI
Distribution
Amplifier
Operation Manual
CHDMI18C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHDMI18C and is the answer not in the manual?

Questions and answers

Related Manuals for Firebird-Systems CHDMI18C

Summary of Contents for Firebird-Systems CHDMI18C

  • Page 1 1x8 HDMI Distribution Amplifier Operation Manual CHDMI18C...

  • Page 2: Operation Controls And Functions

    Introduction The CHDMI18C is a high performance HDMI distribution amplifier, Full HD 1080P supported with 25m output range. It allows one HDMI source to connect up to 8 HDMI displays simutaneously. Features 1. Built-in EDID simulator and HDCP keyset allows each output to work independently in connecting to a HDMI display.

  • Page 3: Specifications

    Specifications * Frequency bandwidth: 1.65Gbps(single link) * Input/Output: 1-in/8-out HDMI female ports * 5VDC power supply * Operating temperature range: 0 ~ 48 * Dimensions: 300(W) x104(D) x 25(H)mm * Weight: 906g Connection and Installation DVD or Set-Top-Box DVI to HDMI HDMI Cable...
