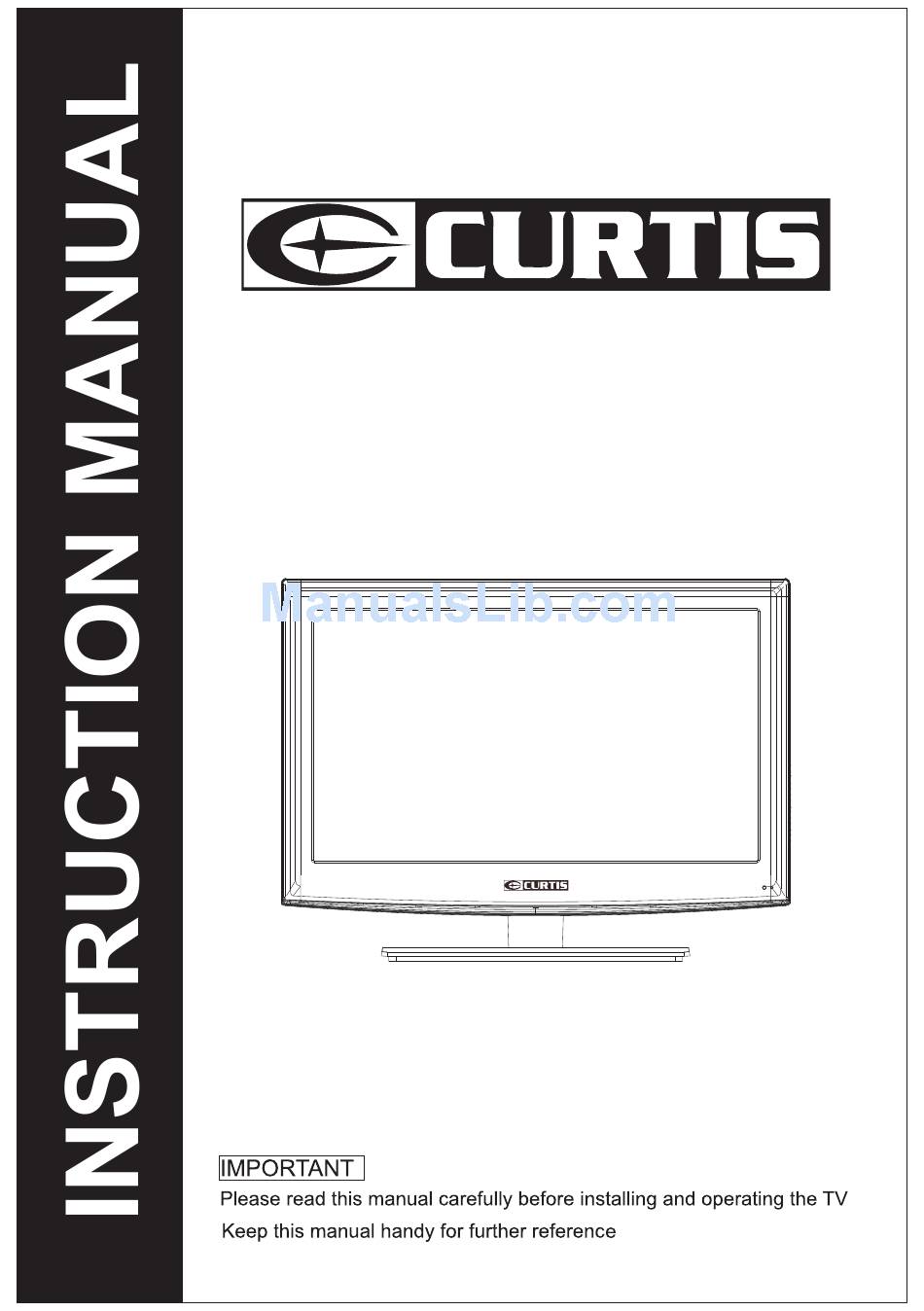

- Page 1 LCD TV LCD2687A...
-
Page 2: Table Of Contents
Contents Caution & Important Safety Precautions Desktop TV Bracket Installation & Assembly Getting Started Front View Rear View Remote Control Key Functions Select input source Main Menu Description 9-10 Picture menu Picture Settings PC Settings Advanced Picture Settings 15-17 SOUND MENU Sound Settings Equalizer Settings 18-21... - Page 3 Contents Setup Menu Closed Caption Menu Language Digital CC Style Clock OTHERS MENU Blue Back No Signal Power Off All Reset Audio Only Help Specifications...
-
Page 4: Caution & Important Safety Precautions
Caution Caution The lightening flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 5 Important Safety Precautions Caution: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.2 19) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles). 20) Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
-
Page 6: Desktop Tv Bracket Installation & Assembly
Desktop TV Bracket Installation & Assembly 200mm 200mm not include This products can be mount on the plasterboard wall or other wall more better. - Page 7 Desktop TV Bracket Installation & Assembly Note:Instruction manual for the TV stand assembly. Step 1: Put the T V carefully on the table coverd with the soft pad , this can prevent LCD panel to be damaged. SOFT PAD TABLE Fig.1 Step 2: Make the "...
-
Page 8: Getting Started
Getting Started Getting started Front view (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby) LED Indicator: Press to turn on and off Indicator on(Red) Standby mode Indicator on(Green) Power on mode The functions of the buttons on the TV RIGHT REAR SIDE are as follows: CH+/-:When watching TV: select channels. -
Page 9: Rear View
Getting Started INPUT OUPUT VIDEO COA XIAL HDMI HDMI HDMI HDMI HDMI HDMI Name Function Description POWER SOCKET AC100-240V~ 50/60Hz Digital Audio Output COAXIAL ANT 75 Ω Connect to ANT or cable source VGA signal from computer output VGA IN PC audio input PC AUDIO IN HDMI IN... -
Page 10: Remote Control Key Functions
Mon o, or SAP (sec on d au di o pr og ram) . GUIDE: Universal remote code This is the code for remote control of LCD2687A,if you want to change to a universal remote control,you can edit this code into your universal remote control. (1)Open the battery compartment cover on the back side (2)Insert two 1.5V batteries of AAA type... -
Page 11: Select Input Source
SELECT INPUT SOURCE SOURCE YPbPr BASIC OPERATION... -
Page 34: Help
HELP... -
Page 35: Specifications
Support importation signal format Resolution 640x480 800X600 1024x768 1360x768 60HZ/70HZ 60/70HZ 60/ 70HZ 60HZ Vertical frequency hz HDMI 576 i/P Format 720 P 1080 i 480 i/P 50HZ/60HZ Vertical frequency hz 50HZ 50HZ/60HZ 60HZ Parameter specification NTSC / ATSC PAL, NTSC AIR:2-69 CABLE:1-135 IN:TV, AV, YPBPR, PC AUDIO, PC, HDMIx3.
